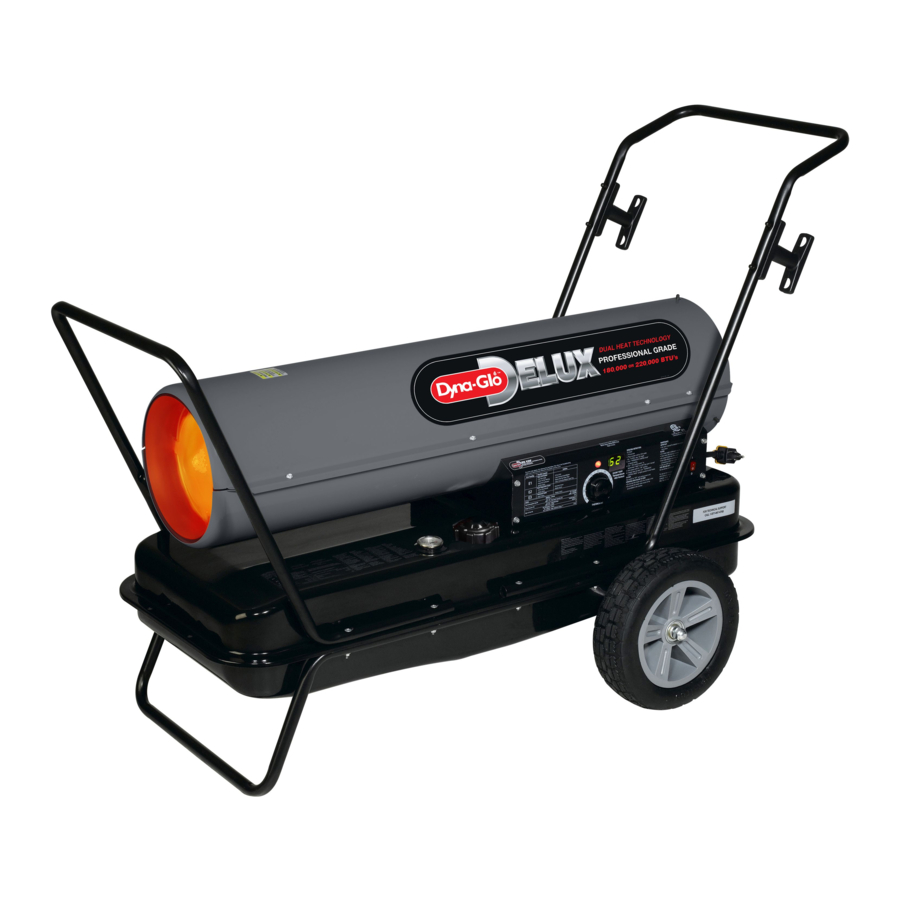

Dyna-Glo KFA210DGD-1 - Air Heater Manual

MODEL: KFA50DGD, KFA75DGD, KFA125DGD KFA170DGD, KFA210DGD

PRECAUTIONS

NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!

IMPROPER USE OF THIS HEATER CAN RESULT IN SERIOUS INJURY OR DEATH FROM BURNS, FIRE, EXPLOSION, ELECTRICAL SHOCK AND/OR CARBON MONOXIDE POISONING.

WARNINGS:

1. RISK OF INDOOR AIR POLLUTION!
   • Use this heater only in well ventilated areas. Provide at least a three-square foot (2,800 sq. cm.) opening of fresh outside air for each 100,000 BTU/hr. of heater rating.
   • People with breathing problems should consult a physician before using the heater.
   • Carbon monoxide poisoning: Early signs of carbon monoxide poisoning resemble the flu, with headaches, dizziness and/or nausea. If you have these signs, the heater may not be working properly. Get fresh air at once! Have the heater serviced. Some people are more affected by carbon monoxide than others. These include pregnant women, persons with heart or lung disease or anemia, those under the influence of alcohol, or those at high altitudes.
   • Never use this heater in living or sleeping areas.
2.
   RISK OF BURNS/FIRE/EXPLOSION!
   • NEVER use any fuel other than 1-K kerosene, #1 disel/fuel oil in this heater.
   • NEVER use fuel such as gasoline, benzene, paint thinners or other oil compounds in this heater.
     (RISK OF FIRE OR EXPLOSION)
   • NEVER use this heater where flammable vapors may be present.
   • NEVER refill the heaters fuel tank while heater is operating or is still hot.

Hot while in operation. Do not touch. Keep children, clothing and combustibles away from heater.

Minimum Clearances: Outlet: 8 feet (250cm) / Sides, top and rear: 4 feet (125cm)

• NEVER block air inlet (rear) or air outlet (front) of heater.
• NEVER use duct work in front or behind of heater.
• NEVER move, handle, service a hot, operating or plugged in heater.
• NEVER transport heater with fuel in it's tank.
• When used with an optional thermostat or if equipped with a thermostat heater may start at any time.
• ALWAYS locate heater on a stable and level surface.
• ALWAYS keep children and animals away from heater.
• Bulk fuel storage should be a minimum of 25 ft. from heaters, torches, portable generators or other sources of ignition. All fuel storage should be in accordance with federal, state or local authorities having jurisdiction.

3. RISK OF ELECTRIC SHOCK!
   • Use only the electrical power (voltage and frequency) specified on the model plate of the heater.
   • Use only a three-prong, grounded outlet and extension cord.
   • ALWAYS install the heater so that it is not directly exposed to water spray, rain, dripping water or wind.
   • ALWAYS unplug the heater when not in use.

PROPOSITION 65 WARNING: Fuels used in gas, wood-burning or oil fired appliances, and the products of combustion of such fuels, contain chemicals known to the State of California to cause cancer, birth defects and other reproductive harm.

MASSACHUSETTS RESIDENTS: Massachusetts state law prohibits the use of this heater in any building which is used in whole or in part for human habitation. Use of this heating device in Massachusetts requires local fire dept. permit (M.E.L.C. 148, Section 10A.)

CANADIAN RESIDENTS: Use of this heater shall be in accordance with authorities having jurisdiction and CSA Standard B139.

NEW YORK CITY RESIDENTS: For use only at construction sites in accordance with applicable NYC codes under NYCFD certificate of approval # 5034 and 5037.

FEATURES

Figure 1. KFA50DGD/75DGD MODELS

Figure 2. KFA125/170DGD MODELS

Figure 3. KFA210DGD MODEL

UNPACKING

REMOVE THE HEATER AND ALL PACKING MATERIALS FROM THE BOX. (Fig. 4 and 5)
NOTE: Save the shipping carton and packing materials for future storage.

	KFA50DGD KFA75DGD	KFA125DGD	KFA170DGD KFA210DGD
Wheel Support Frame	No	Yes	Yes
Wheel	No	Yes	Yes
Threaded Axle	No	Yes	Yes
Front Handle	No	Yes	Yes
Rear Handle	No	Yes	Yes
Handle	Yes	No	No
Cord Wrap	No	Yes	Yes
Hardware kit: HW-KFA1001	Yes	No	No
Hardware kit: HW-KFA1016	No	Yes	Yes

ASSEMBLY

For KFA50DGD/75DGD Models only
(Assembly time for this product is 3 minutes)

Tools Required

• Medium Phillips Screwdriver.
  1. Lift front guard for arrow direction and make sure that guard's wedged portion fits into the slit hole on the upper housing.
  2. Align the holes in the upper housing with two mounting holes on the handle as shown in Figure 6.

  3. Secure handle with Screws with provided.

For KFA125/170/210DGD Models only (Assembly time for this product is 10 minutes)

Tools Required

• Medium Phillips Screwdriver
• 3/4 inch socket or adjustable wrench

Assembling Handle & Wheel and Cord Wrap (Figure 7)

1. Slide threaded axle through the rear section of the wheel support frane.
2. Slide one axle bushing on to each side of the axle. Slide one wheel on to each side of the axle.
   Attach one cap nut on to each side of the threaded axle and tighten well.
3. Place heater on wheel support frame. Align the holes on fuel tank flange with holes on wheel support frame.
4. Position the Handles on top of fuel tank flange.
   Insert screws through handles, fuel tank flange and wheel support frames as shown in Figure 7 and attach nut finger tight after each screw is inserted.
5. Align the hole on the handles with the mounting hole on the Cord Wrap.
   Insert Screws through Cord Wrap, handles and attach nut finger tight after each screw is inserted.
6. After all screws are inserted, tighten nuts firmly.

DO NOT OPERATE heater without support frame assembled to tank.

NOTE: Heater should be inspected before each use, and at least annually by a qualified service person.

KEROSENE

For optimal performance of this heater, it is strongly suggested that 1-K kerosene be used. 1-K kerosene has been refined to virtually eliminate contaminants, such as sulpher. Which can cause a rotten egg odor during the operation of the heater. However, #1 diesel/fuel oil may also be used if 1-K kerosene is not available. Be advised that these fuels do not burn as clean as 1-K kerosene, and care should be taken to provide more fresh air ventilation to accomodate any added contaminants that may be added to the heated space.

KEROSENE SHOULD ONLY BE STORED IN A BLUE CONTAINER THAT IS CLEARLY MARKED "KEROSENE". NEVER STORE KEROSENE IN A RED CONTAINER.

Red containers are associated with gasoline.

NEVER store kerosene in the living space. Kerosene should be stored in a well ventilated place outside the living area.
NEVER use any fuel other than 1-K kerosene (#1 diesel and #1 oil are acceptable substitutes)
NEVER use fuel such as gasoline, benzene, alcohol, white gas, camp stove fuel, paint thinners, or other oil compounds in this heater. These are volatile fuels that can cause an explosion or uncontrolled flames.
NEVER store kerosene in direct sunlight or near a source of heat.
NEVER use kerosene that has been stored from one season to the next. Kerosene deteriorates over time.
"OLD KEROSENE" WILL NOT BURN PROPERLY IN THIS HEATER.

OVERVIEW OF PRODUCT'S DESIGN

Fuel System: This heater is equipped with an electric air pump that forces air through the air line connected to the fuel intake and then through a nozzle in the burner head. When the air passes in front of the fuel intake it causes fuel to rise from the tank and into the burner nozzle. This fuel and air mixture is then sprayed into the combustion chamber in a fine mist.

"Sure Fire Ignition": The electronic ignitor sends voltage to a specially designed spark plug.
The spark plug ignites the fuel and air mixture described above.

The Air System: The heavy duty motor turns a fan that forces air into and around the combustion chamber.
Here the air is heated and then forced out the front of the heater.

The Safety System:

1. Temperature Limit Control: This heater is equipped with a Temperature Limit Control designed to turn off the heater should the internal temperature rise to an unsafe level. If this device activates and turns your heater off it may require service.

	Internal Shut-Off Temp.	Reset Temperature
MODELS	Plus/Minus 10 Degrees	Plus/Minus 10 Degrees
KFA50DGD/75DGD	176°F/80°C	122°F/50°C
KFA125/170DGD	230°F/110°C	194°F/90°C
KFA210DGD	194°F/90°C	140°F/60°C

Once the temperature falls below the reset temperature you will be able to start your heater.

2. Electrical System Protection: This heater's electrical system is protected by a fuse mounted to the PCB assembly that protects it and other electrical components from damage.
   If your heater fails to operate check this fuse first and replace as needed.

FUSE TYPE:

All Models

125 volt / 8 amps

3. Flame-Out Sensor: Utilizes a photocell to monitor the flame in burn chamber during normal operation.
   It will cause the heater to shut-off should the burner flame extinguish.

FUELING YOUR UNIT

NEVER FILL THE HEATER FUEL TANK IN THE LIVING SPACE: FILL THE TANK OUTDOORS.
DO NOT OVERFILL YOUR HEATER AND BE SURE HEATER IS LEVELED.

IMPORTANT NOTICE REGARDING FIRST IGNITION OF HEATER:
The first time you light the heater, it should be done outdoors. This allows the oils, etc. used in manufacturing the heater to burn off outside.

NEVER REFILL HEATER FUEL TANK WHEN HEATER IS OPERATING OR STILL HOT.

OPERATION

VENTILATION

RISK OF INDOOR AIR POLLUTION/USE HEATER ONLY IN WELL VENTILATED AREAS.
Provide a fresh air opening of at least three square feet (2,800 sq. cm) for each 100,000 BTU/Hr. rating. Provide extra fresh air if more heaters are being used.
Example: A KFA210DGD heater requires one of the following:

• two-car garage door raised six inches (15.24 cm)
• single-car garage door raised nine inches (22.86 cm)
• two, thirty-inch (76.20 cm) windows raised fifteen inches (38.1 cm)

OPERATION

TO START HEATER

1. Fill fuel tank with kerosene or No. 1 fuel oil.
2. Attach fuel cap.
3. Plug power cord of heater into three-prong, grounded extension cord. Extension cord must be atleast six feet long.
   Extension Cord Wire Size Requirements
   • 6 to 100 feet (1.8 to 30.5 meters) long, use 16 AWG conductor.
   • 101 to 200 feet (30.8 to 61 meters) long, use 14 AWG conductor.
4. Turn "THERMOSTAT CONTROL knob" to desired setting (setting range: 40°F ~ 110°F)
   (KFA75DGD/KFA125/170/210DGD Models Only)
5. Push "BTU control Switch" to desired level "High or LOW" (See Figure 8.)
   (KFA125/170/210DGD Models Only)

6. Push Power Switch to "ON" position, Power lndicator Lamp will light and heater will start.

NOTE: Room Temperature display explanations are as follows: (KFA170/210DGD Models only)

• When the room temperature is less 0°F, the LED display will show "Lo"
• When room temp is between 0°F and 99°F, number shown on the display is the current room temperature.
• When room temperature is greater than 99°F, the LED display will show "Hi"
  If heater does not start, the thermostat setting may be too low, turn "thermostat Control Knob" to higher position to start heater. If heater still does not start, turn power switch to "OFF" and then to "ON" position. If heater still does not start, see Troubleshootiong Guide.

NOTE: User can Select to operate the heater on two different BTU levels(High or Low). The BTU level can be selected before turning the unit on, or while it is in operation by pushing the BTU control switch.

NOTICE: The major electrical components of this heater are protected by a safety fuse mounted to the PCBboard. If your heater fails to start, check this fuse first and replace as necessary. You should also check your power source to insure that proper voltage and frequency are being supplied to the heater.

TO STOP HEATER

1. Turn switch to "OFF" and unplug power cord.

TO RESTART HEATER

1. Wait 10 seconds after stopping heater.
2. Repeat steps under to start heater.

PIGGYBACK POWER CORD (See Figure 9)

SHOCK HAZARD!

• Always cover electric outlet when not in use.
• Don't plug and use a appliance more than 120V/60Hz 5A current in this outlet.

LONG TERM STORAGE OF YOUR UNIT FUEL TANK DRAIN

1. Drain fuel tank through fuel cap opening.
   (For KFA50DGD/75DGD Models Only)
2. Remove fuel drain bolt from rear bottom side of fuel tank using 3/4" socket or adjustable wrench and drain.
   (For KFA125/170/210DGD Models Only. See Figure 10)

3. Using a small amount of kerosene, swirl and rinse the inside of the tank.
   NEVER mix water with the kerosene as it will cause rust inside the tank.
   Pour the kerosene out making sure that you remove it all.

Do not store kerosene over summer months for use during next heating season. Using old fuel could damage heater.

4. Reinstall fuel cap. Properly dispose of old and dirty fuel. (For KFA50DGD/75DGD Models Only)
5. Reinstall fuel drain bolt to Fuel tank and tighten firmly using 3/4" socket or adjustable wrench. (For KFA125/170/210DGD Models Only. See Figure 10)

Before reinstalling the fuel drain bolt, make sure the seal is on the bolt. If the seal is not used the bolt cannot be installed correctly and the fuel tank will leak.

6. Store heater in dry well ventilated area. Make sure storage place is free of dust and corrosive fumes.
7. Store the heater in the original box with the original packing material and keep the USER'S MANUAL with the heater.

MAINTENANCE

NEVER SERVICE HEATER WHILE IT IS PLUGGED IN OR WHILE HOT!

USE ORIGINAL EQUIPMENT REPLACEMENT PARTS. Use of third party or other alternate components will void warranty and may cause unsafe operating conditions.

1. FUEL TANK
   FLUSH EVERY 200 HOURS OF OPERATION OR AS NEEDED (SEE "STORAGE")
2. AIR INTAKE FILTER
   WASH AND DRY WITH SOAP AND WATER EVERY 500 HOURS OF OPERATION OR AS NEEDED. Figure 11.

   • Remove screws along each side of heater using medium phillips screwdriver.
   • Lift upper shell off.
   • Remove fan guard.
   • Wash or replace air intake filter.
   • Reinstall fan guard and upper shell.
3. AIR OUTPUT FILTER, LINT FILTER
   REPLACE EVERY 500 HOURS OF OPERATION OR ONCE A YEAR. Figure 12.

   • Remove upper shell and fan guard (See Air Intake Filter).
   • Trun Air pressure gauge counter-clock wise and remove.
   • Remove end filter cover screws using medium phillips screwdriver.
   • Remove end filter cover.
   • Replace air output and lint filter.
   • Reinstall end filter cover and air pressure gauge.
   • Reinstall fan guard and upper shell.
4. FAN BLADES
   CLEAN EVERY SEASON OR AS NEEDED. Figure 13.

   • Remove upper shell (See Air Intake Filter).
   • Use M6 allen wrench to loosen set screw which holds fan blade to motor shaft.
   • Slip fan blade off motor shaft.
   • Clean fan blade using a soft cloth moistened with kerosene or solvent.
   • Dry fan blade thoroughly.
   • Reinstall fan blade on motor shaft. Place fan blade hub flush with end of motor shaft.
   • Place set screw on flat of shaft. Tighten set screw firmly (40-50 inch-pounds/4.5-5.6 N-m).
   • Reinstall upper shell.
5. NOZZLE
   REMOVE DIRT IN NOZZLE AS NEEDED.
   (For KFA50DGD/75DGD/125/170DGD Models Only)
   • Remove upper shell (See Air Intake Filter).
   • Remove fan blade (See Fan Blades).
   • Remove fuel and air line hoses from nozzle adaptor.
   • Remove ignitor wire from spark plug.
   • Remove spark plug from nozzle adaptor using medium phillips screwdriver.
   • Turn nozzle adaptor 1/9 turn(40°) to counter clock wise and pull toward motor to remove. (See Figure 14)

   • Place plastic hex-body into vise and lightlry tighten.
   • Carefully remove nozzle from nozzle adaptor using 5/8" socket wrench.
   • Blow compressed air through face of nozzle. (this will remove any dirt in nozzle)
   • Reinstall nozzle into nozzle adaptor until nozzle seats. Tighten 1/3 turn more using 5/8" socket wrench.
   • Reinstall nozzle adaptor to burner head.
   • Reinstall spark plug to nozzle adaptor.
   • Attach ignitor wire to spark plug.
   • Attach fuel and air line hoses to nozzle adaptor.
   • Reinstall fan blade and upper shell. (For KFA210DGD Model Only
   • Remove upper shell (See Maintenance).
   • Remove fan (See Fan Blades).
   • Remove fuel and air line hoses from nozzle adaptor.
   • Remove ignitor wire from spark plug.
   • Remove spark plug from nozzle adaptor using medium phillips screwdriver.
   • Turn nozzle adaptor 1/8 turn (45°) to counter clock wise and pull toward motor to remove. (See Figure 15)

   • Place plastic hex-body into vise and lightly tighten.
   • Carefully remove nozzle from nozzle adaptor using 5/8" socket wrench.
   • Blow compressed air through face of nozzle. (this will remove any dirt in nozzle)
   • Reinstall nozzle into nozzle adaptor until nozzle seats Tighten 1/3 turn more using 5/8" socket wrench
   • Reinstall nozzle adaptor to burner bracket
   • Reinstall spark plug to nozzle adaptor.
   • Attach ignitor wire to spark plug.
   • Attach fuel and air line hoses to nozzle adaptor.
   • Reinstall fan blade and upper shell.
6. SPARK PLUG
   CLEAN AND REGAP EVERY 600 HOURS OPERATION OR REPLACE AS NEEDED. (For KFA50DGD/75DGD/125/170DGD Models Only)
   • Remove upper shell (See Air Intake Filter).
   • Remove fan (See Fan Blades).
   • Remove ignitor wire from spark plug.
   • Remove spark plug from nozzle adaptor using mediumphillips screwdriver.
   • Clean and regap spark plug electrodes to 3.5mm gap. (0.138")
   • Reinstall spark plug to nozzle adaptor.
   • Attach ignitor wire to spark plug.
   • Reinstall fan and upper shell. (For KFA210DGD Model Only)
   • Remove upper shell (See Air Intake Filter).
   • Remove fan (See Fan Blades).
   • Remove ignitor wire from nozzle adaptor.
   • Remove spark plug from nozzle adaptor using mediumphillips screwdriver.
   • Clean and regap spark plug electrodes to 3.5mm gap. (0.138")
   • ReInstall spark plug to nozzle adaptor.
   • Attach ignitor wire to spark plug.
   • Reinstall fan and upper shell.
7. PHOTOCELL
   CLEAN PHOTOCELL ANNUALLY OR AS NEEDED.
   • Remove upper shell (See Air Intake Filter).
   • Remove fan (See Fan Blades).
   • Remove photocell from it's mounting.
     Clean photocell lens with cotton swab.

TO REPLACE:

• Remove side cover screws using medium phillips screwdriver.
• Disconnect switch wires from power switch andremove side cover.
• Disconnect wires from circuit board and removephotocell.
• Install new photocell and connect wires to circuitboard.
• Replace switch wires to power switch and side cover.
• Replace fan and upper shell.

8. FUEL FILTER
   CLEAN OR REPLACE TWICE A HEATING SEASON OR AS NEED. Figure 19.

   • Remove side cover screws using medium phillips screwdriver.
   • Disconnect switch wires from power switch and remove side cover.
   • Pull fuel line off fuel filter neck.
   • Turn fuel filer 90° to counter clockwise and pull to remove (KFA50DGD/75DGD Models only).
   • Turn fuel filter 90° to clockwise and pull to remove (KFA125/170/210DGD Models only).
   • Wash fuel filter with clean fuel and replace in tank.
   • Attach fuel line to fuel filter neck.
   • Replace switch wires to power switch.
   • Reinstall side cover.
9. PUMP PRESSURE ADJUSTMENT
   NOTE: If the pump pressure needs to be adjusted, make sure the heater is running on the HIGH BTU setting. Figure 20.

   • Push the BTU CONTROL Switch to HIGH.
     (See Operation, KFA125/170/210DGD Models only)
   • Remove Pressure Gauge Plug from End Filter Cover.
     Install accessory Pressure Gauge.
     (KFA50DGD/75DGD Models only)
   • Start heater (See Operation)
     Allow motor to reach full speed
   • Adjust pressure (Using a flat blade screwdriver). Turn relief valve to clockwise to increase pressure. Turn relief valve to counter clockwise to decreasepressure.
   • Stop heater (See Operation)

MODEL	Pump Pressure
	High BTU level	Low BTU level
KFA50DGD	3.8 psi	N/A
KFA75DGD	3.8 psi	N/A
KFA125DGD	5.5 psi	3.5 psi
KFA170DGD	6.5 psi	4.5 psi
KFA210DGD	8.5 psi	6.5 psi

NOTE: USE ONLY ORIGINAL EQUIPMENT REPLACEMENT PARTS.
Use of alternate or third party components will void any warranty and may cause unsafe operating condition.

REPLACING FUSE

NOTICE: This heater is fuse protected.
If your heater fails to ignite, DO NOT RETURN YOUR HEATER TO THE STORE.
Please follow the simple instructions below to inspect and change the fuse.

PROCEDURE FOR REPLACING FUSE

SHOCK HAZARD
To prevent personal injury, unplug the power cord before replacing fuse.

1. Unplug heater.
2. Remove side cover screws using medium phillips screw driver.
3. Disconnect switch wires from power switch.
4. Remove fuse from fuse holder.(See Figure 21.)

5. Replace fuse with enclosed fuse.

FIRE HAZARD
To avoid fire, Do not substitute with a higher or lower current rating.

6. Replace switch wires to power switch.
7. Replace side cover.

NOTE: Specified fuse rating: AC 125/8A

TROUBLE SHOOTING GUIDE

TROUBLE	POSSIBLE CAUSE	CORRECTIVE ACTION
Heater ignites but MAIN PCB assembly shuts heater off after a short period of time. (Indicator Lamp is flickering and room temp. display indicates " E1 ")	Wrong pump pressure Dirty Air Output, Air Intakeor Lint Filter. Dirty Fuel Filter. Dirt in Nozzle. Dirty Photocell Lens. Photocell Assembly not Properly installed.(Not seeing the flame) Bad electrical connectionbetween photocell and MAIN PCB assembly. Defective Photocell.	See Pump Pressure Adjustment. See Air Output, Air intakeand Lint Filters. See Fuel Filter. See Nozzle. Clean Photocell Lens. Make sure photocell boot isproperly seated in bracket. Check electrical components See wiring diagram. Replace Photocell.
Heater will not ignite but motor runs for a short period of time. (Indicator Lamp is flickering and room temp.display indicates " E1 ")	No fuel in tank. Wrong pump pressure. Carbon deposits on sparkplug and/or improper gap. Dirty fuel filter. Dirt in Nozzle. Water in fuel tank. Bad electrical connectionbetween ignitor and MAIN PCB assembly. Ignition wire is not attached tospark plug.	Fill tank with kerosene. See Pump Pressure Adjustment. See Spark Plug. See Fuel Filter. See Nozzle, Flush fuel tank with clean kerosene. Check electrical components. See wiring diagram. Attach ignition wire to sparkplug. See Spark Plug.
Fan does not turn when heater is plugged in and power switch was in the " ON " Position. (Indicator Lamp is on or flickering)	Thermostat setting is too low. Bad electrical connection between motor and MAIN PCB assembly.	Turn thermostat control knobto a higher setting. Check electrical connections, See Wiring Diagram.
(Indicator Lamp is flickering and room temp. display indicates "E2")	Sensor Failure.	Replace sensor. See Wiring diagram.
(Indicator Lamp is flickering and room temp. display indicates "E3")	Thermostat switch failure.	Replace switch. See Wiring diagram.
The unit will not turn-on (Indicator Lamp is off)	Temperature limit safety device is overheated. No electrical power Blown fuse. Bad electrical connection between temperature limit safety device and PCB board.	Turn power switch to "OFF"and allow to cool (about 10 min.) Check to insure heater cord andextension cord are plugged in. Check power supply. Replace safety fuse in PCB board. Check electrical connections See Wiring Diagram.

WIRING DIAGRAM

1. WIRING DIAGRAM (KFA50DGD Model)

2. WIRING DIAGRAM (KFA75DGD/125/170/210DGD Models)


SPECIFICATIONS

KFA50DGD/75DGD Models

KFA125/170/210DGD Models

	125DGD	170DGD 210DGD
D	41.9"(1,063 mm)	47.4"(1,205 mm)
W	21.5"(547 mm)	23.1"(587 mm)
H	32.4"(824 mm)	33.5"(850 mm)

SPECIFICATIONS

MODEL		KFA50DGD	KFA75DGD	KFA125DGD	KFA170DGD	KFA210DGD
BTU/Hr.	HIGH	50,000	75,000	125,000	170,000	210,000
	LOW	N/A	N/A	100,000	135,000	170,000
Fuel Consumption - Gal./Hr( /Hr)	HIGH	0.38(1.44)	0.57(2.16)	0.95(3.60)	1.30(4.92)	1.60(6.06)
	LOW	N/A	N/A	0.76(2.90)	1.0(3.79)	1.30(4.92)
Fuel Tank Capacity - Gal.( )		5.0(18.9)	5.0(18.9)	10.0(37.9)	13.0(49.2)	13.0(49.2)
Pump Pressure PSI(kgf/cm2)	HIGH	3.8(0.27)	3.8(0.27)	5.5(0.39)	6.5(0.46)	8.5(0.60)
	LOW	N/A	N/A	3.5(0.25)	4.5(0.32)	6.5(0.46)
Volt/Hz		120Vac/60hz	120Vac/60hz	120Vac/60hz	120Vac/60hz	120Vac/60hz
Amps.		1.6	1.6	2.5	3.2	3.7
Phase		1	1	1	1	1
Size(D×W×H), Inch(mm)		32.0×11.7×16.7 (813×297×424)	32.0×11.7×16.7 (813×297×424)	41.9×21.5×32.4 (1,063×547×824)	47.4×23.1×33.5 (1,205×587×850)	47.4×23.1×33.5 (1,205×587×850)
Weight Lbs.(kg)		26.9(12.2)	26.9(12.2)	54.5(24.7)	60.2(27.3)	62.4(28.3)

KFA50DGD/75DGD EXPLODED PARTS DRAWING

(KFA50DGD/75DGD Models Only)
NOTE: SPECIFY MODEL NUMBER AND PART NUMBER WHEN ORDERING PARTS.

KFA50DGD/75DGD PARTS LIST

FOR TECHNICAL ASSISTANCE SEE YOUR LOCAL RETAILER OR CONTACT US AT:
Phone: 1-877-447-4768

KFA125/170DGD EXPLODED PARTS DRAWING

NOTE: SPECIFY MODEL NUMBER AND PART NUMBER WHEN ORDERING PARTS.

KFA125/170DGD PARTS LIST

FOR TECHNICAL ASSISTANCE SEE YOUR LOCAL RETAILER OR CONTACT US AT:
Phone: 1-877-447-4768

KFA210DGD EXPLODED PARTS DRAWING

NOTE: SPECIFY MODEL NUMBER AND PART NUMBER WHEN ORDERING PARTS.

KFA210DGD PARTS LIST

FOR TECHNICAL ASSISTANCE SEE YOUR LOCAL RETAILER OR CONTACT US AT:
Phone: 1-877-447-4768

WHEELS AND HANDLE PARTS LIST

1. KFA50DGD/75DGD MODELS


KEY NO.	DESCRIPTION	PART NO.		Quantity
		KFA50DGD	KFA75DGD
1	Handle	3231-0073-00	3231-0073-00	1
2	Hardware Kit	HW-KFA1001	HW-KFA1001	1

2. KFA125/170/210DGD MODELS


KEY NO.	DESCRIPTION	PART NO.		Quantity
		KFA125DGD	KFA170/210DGD
1	Front Handle	3551-0023-00	3551-0022-00	1
2	Rear Handle	3551-0096-00	3551-0097-00	1
3	Wheel Support Frame	3551-0082-00	3551-0084-00	1
4	Wheel	3720-0017-00	3720-0017-00	2
5	Threaded Axle	3551-0088-00	3551-0089-00	1
6	Cord Wrap	3221-0042-00	3221-0042-00	2
7	Hardware Kit	HW-KFA1016	HW-KFA1016	1
7-1	Screw	INCLUDED IN HARDWARE KIT	INCLUDED IN HARDWARE KIT	8
7-2	Flange Screw	INCLUDED IN HARDWARE KIT	INCLUDED IN HARDWARE KIT	4
7-3	Cap Nut S	INCLUDED IN HARDWARE KIT	INCLUDED IN HARDWARE KIT	4
7-4	Nut	INCLUDED IN HARDWARE KIT	INCLUDED IN HARDWARE KIT	8
7-5	Bushing	INCLUDED IN HARDWARE KIT	INCLUDED IN HARDWARE KIT	2
7-6	Cap Nut L	INCLUDED IN HARDWARE KIT	INCLUDED IN HARDWARE KIT	2

WARRANTY REGISTRATION

We urge you to fill out your warranty registration card within fourteen (14) days of date of purchase. You can also register your warranty on the internet at www.ghpgroupinc.com. Complete the entire serial number. Retain this portion of the card for your record.

Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 877-447-4768 8:30 a.m. - 4:30 pm CST, Monday - Friday.
or email us at customerservice@ghpgroupinc.com

GHP Group, Inc.
6440 W Howard St
Niles, IL 60714-3302
Tel: (877) 447-4768
www.ghpgroupinc.com

GHP Group, Inc.
6440 W Howard St
Niles, IL 60714-3302

Documents / Resources

References

• GHP Group Inc

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Dyna-Glo KFA210DGD-1 - Air Heater Manual
