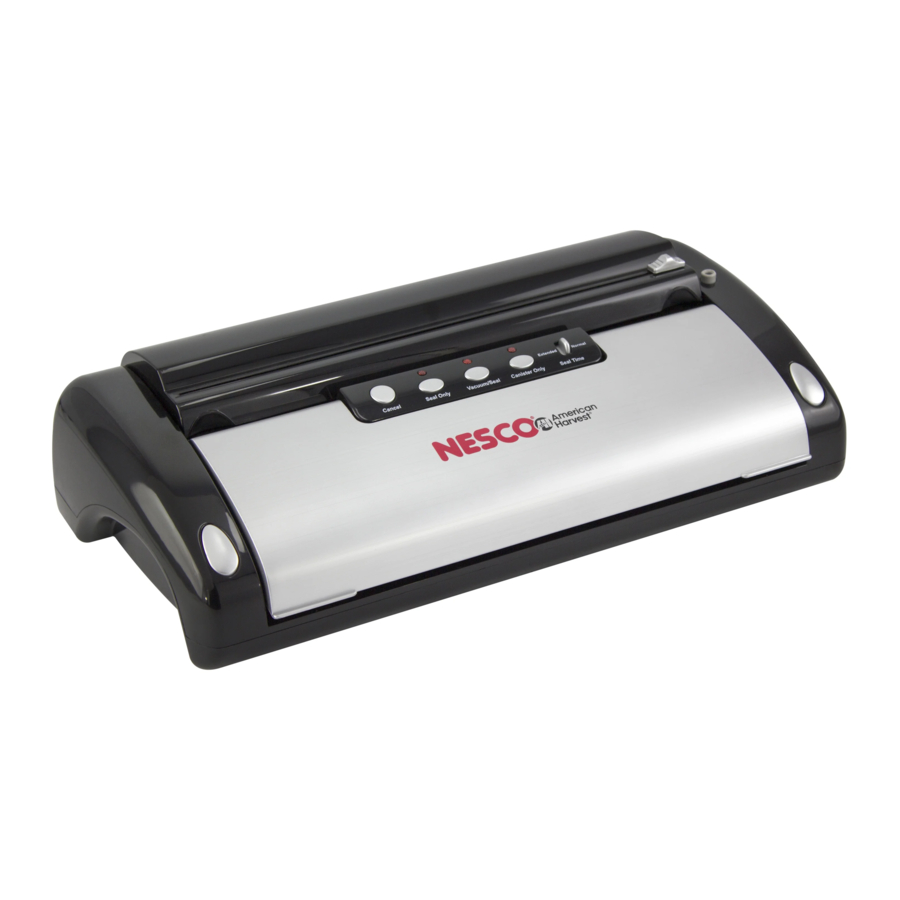

Nesco VS-02 - Vacuum Sealer Manual

Also See for VS-02:

Care/use manual (24 pages)

User manual (9 pages)

Care and use manual (17 pages)

Table of Contents

Contents

1 Features
2 Functions
3 Operating Instructions
- 3.1 MAKING A BAG WITH THE ROLL
- 3.2 VACUUM PACKAGING YOUR FILLED BAG
4 Cleaning And Maintenance
5 Vacuum Sealing Tips
6 Troubleshooting
7 Technical Specifications
8 Customer Service
9 IMPORTANT SAFEGUARDS
10 Documents / Resources
- 10.1 References
- 10.2 Download manual

Nesco VS-02 - Vacuum Sealer Manual

Features

Unlock Buttons
Front Lid
Roll Compartment
Bag Cutter
Hose Port
Sealing Gasket
Vacuum Chamber
Sealing Bar
Sealing Element
Indicator Lights
Cancel Button
Seal Only
Vacuum &Seal
Canister Only
Seal Time Selection

Functions

Unlock Buttons - On the right and left side of the cover. Press down to unlock. In the locked position, they secure the lid in place while the vacuum packing cycle is under way in bags; they release automatically.
Front Lid - Opening the lid into the fixed raised position allows you to position the bags before starting the vacuum packing process.
Roll Compartment - For keeping a roll of bags within reach and ready to use.
Bag Cutter - Press and slide in one direction or another to cut bags of a desired size.
Hose Port - Insert the hose accessory when sealing in canisters, universal lids, bottle savers and jar attachments (not included).
Sealing Gasket - Guarantee that a vacuum will be maintained in the chamber, thus allowing air to be removed from bags and containers. Make sure the lid of appliance is not locked when not in use and during storage to prevent deformation of the gaskets.
Vacuum Chamber - Position the open end of the bag inside the chamber, draws air from the bag and collect any excess liquid.
Sealing Bar - Place bag to be sealed over this bar.
Sealing Element - Non-stick heating element that seals the bag ends. DO NOT remove the protective covering that is over the element.
Indicator Lights - Indicates the status of vacuum or seal process.
Cancel Button - Stops the unit at any time.
Seal Only - For sealing a bag without vacuum. When the automatic "Vacuum and Seal" function is in operation, this button stops the motor pump and immediately starts to seal the bag.
Vacuum & Seal - For vacuuming the bag and automatically sealing it when vacuum is complete.
Canister Only - For vacuum sealing canisters through a hose. (Canisters not included)
Seal Time Selection - Choose normal or extended setting depending on type of food. If you have foods that are wet, choose extended.

Operating Instructions

MAKING A BAG WITH THE ROLL

The bag cutter must be positioned at either end of the cutter slide slot before cutting.
Open the rear lid and place bag roll into roll storage compartment.
Pull the bag material out of the roll storage to the suitable length you want (pull out enough of the bag roll to hold items to be vacuum packed plus an additional 3 inches. Allow another 1 inch for each time the bag will be resealed.) Then close the rear lid.
Press and slide bag cutter from one side to the end with your hand holding the bag steady.
Open the lid and place either open end of bag material on sealing bar, close it. Press down on the lid until two click sounds are heard.
Press the "seal only" button to start sealing.
When the seal indicator light turns off, sealing is completed. Press both unlock buttons.
Open the upper lid and take out the bag.
Now the bag is ready, you can vacuum package with it.

VACUUM PACKAGING YOUR FILLED BAG

Put the items inside the bag.
Open the lid, clean and straighten the open end of the bag, make sure there no wrinkle or ripples.
Place the open end of the bag in the vacuum chamber beneath the air intake.
Close the lid and then press on both sides of the lid until two "click" sounds are heard.
Press the "vacuum/seal" button. The bag will be automatically vacuumed and sealed.
When the indicator lights of "seal only" and "seal/vacuum" turn off, the process is completed. Press the two unlock buttons, lift lid and remove the bag.
Refrigerate or freeze if needed.

warning NOTE: For best sealing effect, it is better to let the appliance cool down for 2 minutes before using it again. Wipe out any excess liquid or food residue from the vacuum chamber after each use.

Cleaning And Maintenance

Vacuum Sealer

Unplug the unit before cleaning.
Clean the vacuum sealer with a damp sponge. Do not immerse in water.
Use a mild dish soap. Do not use abrasive cleaners as they will scratch The surface.
Dry thoroughly, before using. When storing, do not lock cover to prevent deformation of the gaskets.

Bags

The bagging material can be washed in warm water with dishwashing soap. Rinse the bags well and allow to dry thoroughly before re-using.
Bags can be washed on the top rack in your dishwasher by turning the bags inside out. Stand the bag up so the water can get inside the bag. Dry thoroughly before next use. Note: Bags used to store greasy foods should not be re-used.

Storing Your Vacuum Sealer

Keep the unit in a flat and safe place, out of the reach of children.
Make sure the lid of appliance is not locked when not in use and during storage to prevent deformation of the gaskets.

Vacuum Sealing Tips

Do not overfill the bags. Leave enough space at open end of bag so bag can be placed on vacuum chamber more positively.
Do not wet the open end of the bag as wet bags do not seal tightly.
Clean and straighten open end of the bag before sealing. Make sure nothing is on open area of the bag, no wrinkle or creases should appear. Foreign objects or creased bags may cause difficulty sealing.
Do not vacuum package objects with sharp points like fish bones and hard shells, as they may tear the bag.
Let the vacuum sealer rest for 2 minutes, after each sealing or vacuum sealing.
Freeze moist and juicy foods first before sealing bags or place a folded paper towel near the inside top of the bag to reduce liquids, crumbs or food from being pulled into the vacuum chamber and clogging the pump.
For powdery or fine-grained foods, avoid overfilling bags.
Prefreeze fruits and blanch vegetables before vacuum packing for best results.
Liquids need to be cooled. Hot liquids will bubble up over the top of the bag or jar when vacuum packed. Note: A jar attachment is necessary for sealing jars. (not included)
Store perishable foods in the freezer or refrigerator. Vacuum packing extends the shelf life of foods, but does not preserve them.
Pantry items such as flour, rice, mixes for cakes and pancakes, all stay fresh longer when vacuum packed.
Nuts and condiments maintain their flavor while rancidity is kept out.
Keep camping supplies such as matches, first aid kits and clothing, clean and dry.
Keep flares for auto emergencies ready.
Keep silver and collectibles untarnished.
Fill a bag about 2/3 full with water, seal the end (don't vacuum). Freeze the bag and use for ice in the cooler, or ice packs for sports injuries.

Troubleshooting

Vacuum sealer has no power.

Check to see that the vacuum sealer is plugged in. Test electrical outlet by plugging in another appliance.
Vacuum sealer will shut off automatically if overheated. Allow to cool down for 15 minutes and try again.
Check power cord and plug for damage. If damaged, do not use the Vacuum sealer.

Vacuum sealer does not perform first seal on the bag.

Make sure the bag cut from the roll is properly positioned.

Vacuum sealer does not pull a complete vacuum in bags.

To seal properly, open end of bag should be resting entirely inside vacuum chamber area.
Check seal bar and gaskets for debris and position. Wipe clean and smooth them back into place.
Vacuum sealer bag may have a leak. To test, seal the bag with some air in it, submerge in water, and apply pressure. Bubbles indicate a leak. Reseal or use another bag.

Vacuum sealer not sealing bag properly.

Should sealing bar overheat and melt the bag, it may be necessary to lift the lid and allow the seal bar to cool for a few minutes.

Vacuum sealer loses vacuum after being sealed.

Leaks along the seal can be caused by wrinkles, crumbs, grease or liquids. Reopen bag, wipe the top inside of the bag and smooth it out along the sealing strip before resealing.
Check the bag for a puncture or hole which may have released the vacuum. Cushion sharp edges in the contents of the bag with paper towels.

Technical Specifications

Model: VS-02 / NESCO Deluxe Vacuum Sealer
Input - 120Volts / 60HZ / 130Watts

Customer Service

Please email our department at nescocs@nesco.com or call 1-800-288-4545.
NESCO Customer Service is available 8 am to 4 pm CST.

For more products or recipes, visit nesco.com.

Follow us on #YourKeyIngredient

IMPORTANT SAFEGUARDS

This product is designed for household use only
When using electrical appliances, basic safety precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE.
The appliance is designed for household use only. It is not intended for commercial use.
To protect against electric shock, do not immerse the appliance, including cord and plug, in water or other liquid.
Close supervision is necessary when appliance is used near children. This appliance is not recommended for use by children.
Unplug appliance from power outlet when not in use, before assembly or disassembly of parts, and before cleaning.
Do not operate any appliance with damaged cord or plug or after appliance malfunctions, or has been damaged in any manner.
Contact nescocs@nesco.com.
Do not place appliance on or near a hot gas or electric burner, or heated oven.
Only use accessory attachments recommended by the manufacturer.
Do not use appliance outdoors or for other than intended use.
Do not let the cord hang over the edge of a table or touch hot surfaces.
WARNING: Appliance is not designed for continuous use. Approved for one operating cycle every two minutes.
Operate appliance only when all parts are fully engaged and tightened.
To reduce risk of injury and damage to appliance, keep hands, hair, clothing and utensils away from parts during operation.
Place appliance on flat and steady support surface when ready for use.

SAVE THESE INSTRUCTIONS

Polarized Plug: This appliance has a polarized plug (one blade is wider than the other). To reduce risk of electric shock, plug is intended to fit into polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not try to modify the plug in any way.

Short Cord Instructions: A short power supply cord is provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord. Extension cords may be used if care is exercised in their use. If an extension cord is used, the marked electrical rating of the cord should be at least as great as the electrical rating of the appliance. The longer cord should be arranged so that it will not drape over the tabletop where it can be pulled on by children or tripped over unintentionally.
