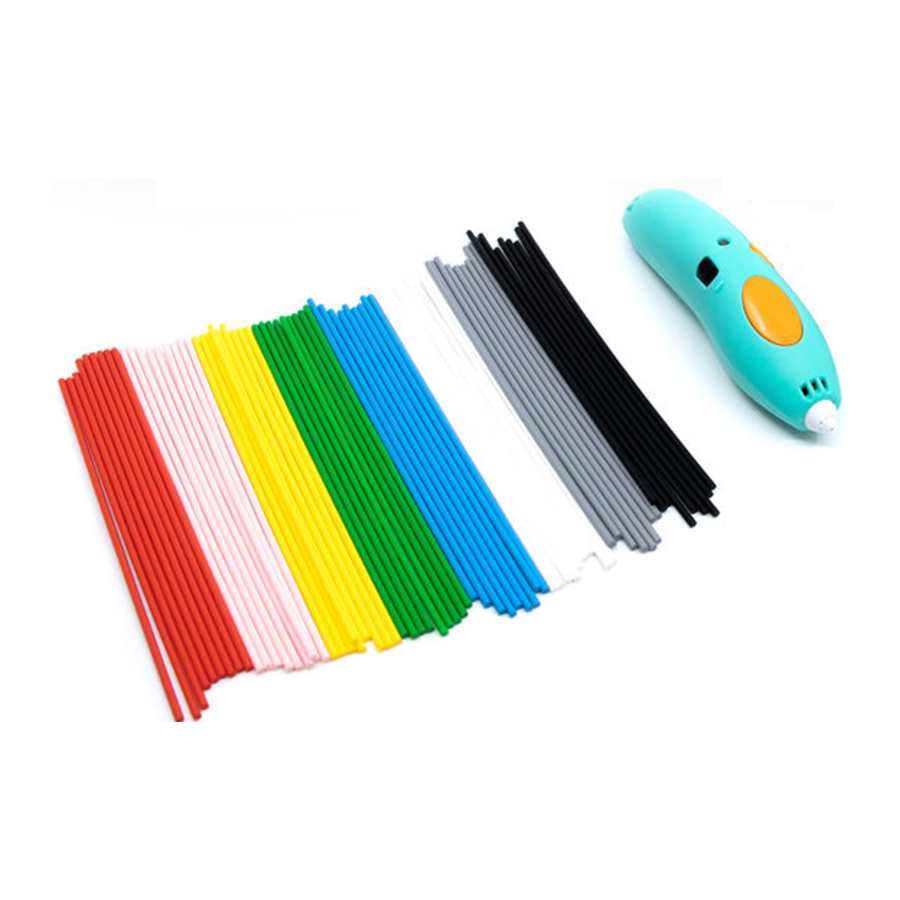

3Doodler start+ - 3D Printer Manual

App

Start and Stop

1. Once the pen is turned ON, wait for the light to switch from SOLID RED to SOLID GREEN before Doodling.

2. Click the button once to start your pen. The LED light will SLOWLY FLASH GREEN to show that your pen is active.

3. Insert a strand of plastic into the back of the pen until you feel it grip.

4. After a few seconds, you should see plastic appear from the Nozzle of your 3Doodler Start+. Click the button again to stop pen.


How to Charge your 3Doodler Start+

1. When the pen's battery is running low, the LED light will SLOWLY FLASH ORANGE. Turn off your 3Doodler Start+ and charge it at your earliest convenience.

2. Connect your 3Doodler Start+ to a power source using a USB-C cable (as provided).

3. The LED light will FAST FLASH ORANGE while charging.

4. When your 3Doodler Start+ is fully charged, the LED light will stop flashing and change to SOLID ORANGE.


Tips & Tricks

• If you want your plastic to stick to surfaces (for example paper), or stick to other Doodles, push your 3Doodler Start+ into the surface or into the other Doodle while Doodling.

• To get the exact shape you want, wait a few seconds after the plastic comes out of the nozzle, then mold and shape your Doodles for a few more seconds before they harden.

• Want to strengthen your Doodles? Try layering! The more plastic you add, the stronger your Doodles will be.

• Join two shapes using a table edge.


Learn how to Doodle in 3D

Specification

Minimum transformer specification -
Input: 100~240V 50~60Hz.
Output: 5V 1A

Recommended transformer specification -
Input: 100~240V 50~60Hz.
Output: 5V 2A

The toy contains batteries that are non-replaceable.

Important Safety Information

Choking Hazard - Not suitable for children under 36 months. May contain small parts.

Packaging and instruction have to be kept since these contain important information.
Rechargeable batteries are only to be charged by adults or by children at least 8 years. The toy must only be used with a transformer for toys. The transformer is not a toy.
The toy can only be connected to Class Il or Class Ill equipment bearing with symbol.

The transformer/charging unit (Not Included) should be regularly examined for potential hazard, such as damage to the cable or cord, plug, enclosure of other parts and if in the event of such damage, the toy must not be used until that damage had been properly removed.

Important Notes

• Ensure the filament is cut correctly before inserting into the pen.

• Extruded plastic cannot be reused.

• If you have trouble extruding, try cleaning away any plastic that may be stuck to the nozzle while the pen is switched on.

• Still need help? Visit our Getting Started Guide


WHAT WILL YOU CREATE?^®
3DOODLERSTART.COM
