Summary of Contents for 3Doodler Creater
- Page 1 Chipsmall Limited consists of a professional team with an average of over 10 year of expertise in the distribution of electronic components. Based in Hongkong, we have already established firm and mutual-benefit business relationships with customers from,Europe,America and south Asia,supplying obsolete and hard-to-find components to meet their specific needs.
-
Page 2: Getting The Most Out Of Your
Getting the most out of your #WhatWillYouCreate? SLOW FAST Hello Please do not throw these instructions away. (We worked really hard to make sure they were as useful and readable as possible!) the3Doodler.com Revised: April 20, 2016... -
Page 3: Section 1: Warnings
ADULT USE ONLY. KEEP OUT OF REACH OF CHILDREN. Disposal of this product At the end of your 3Doodler’s life, please do not dispose of it in your general household waste. In order to prevent possible harm to the environment... -
Page 4: Section 2: Getting Started With 3Doodler

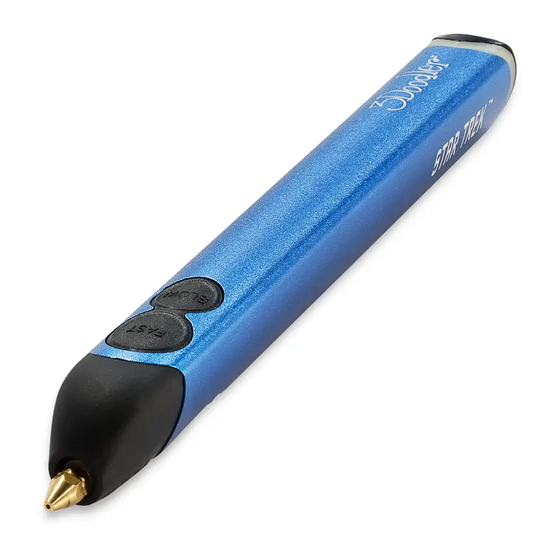

Pen to see what’s going on How it Works: The 3Doodler melts Plastic and uses a motor and gears (Drive Gear) to push it through the Pen’s hot end (Nozzle) in a thin line. This process is called extruding or extrusion, and we will refer to it throughout this User Manual. - Page 5 Step 1: Turn on your 3Doodler and wait for it to heat up Power Adapter Plug in 3Doodler Pen. Slide Control Switch to HI. 60-90 secs Light to BLUE Light will glow RED while the Pen is reaching the temperature required to melt your Plastic.
- Page 6 Step 3: Doodle your name Use box below to create your first Doodle - your name! Write your name in the box Click FAST button once. When provided using marker, pen, Plastic starts extruding, push pencil, or any other writing Nozzle down into paper to get utensil of your choice.
- Page 7 Well done! You just Doodled in the air! This is a crucial stepping stone to making all kinds of wonderful three dimensional objects with your 3Doodler. Step 5: Doodle Even More! For further guides, projects and inspiration, please refer to: YouTube videos: Cube https://www.youtube.com/3Doodler...
- Page 8 NOTE: inches Plastic that is shorter than 5.3 inches cannot be reversed. You should feed it all the way through your 3Doodler and use it up. (Alternatively, you can push Plastic out the back - see Section 3, Step 3B.) PLASTIC TYPES AND SETTINGS.
-
Page 9: Step 8: Power Down
Allow your 3Doodler to cool completely before storing. NOTE: After 5 minutes of inactivity, the 3Doodler’s heating system will automatically power down. You will need to press one of the Speed Buttons OR toggle the Control Switch OFF and then ON again to continue use. -
Page 10: Section 3: Troubleshooting
SECTION 3: TROUBLESHOOTING Tools (Provided in Box) Before showing you how to troubleshoot issues with your 3Doodler, we want to introduce you to three handy tools provided in your box: Mini Spanner Used for tightening and removing the Nozzle. Do Not Remove Nozzle when Pen is cold. - Page 11 A. Is the Power Adapter plugged into a working power outlet? NOTE: If you have a spare power adapter around the house please use it to test your 3Doodler. This will help determine if the problem is with your 3Doodler or with the Power Adapter provided in the box.
- Page 12 It is possible that the Plastic is either too short to reverse all the way out of your 3Doodler, or that the Plastic has moved past the Pen’s Drive Gear system. You will be able to check for these issues by looking through the Maintenance Cover.
-
Page 13: Section 4: Tips And Best Practices
3Doodler. This will reduce blockages or clogging issues. Reverse and remove Plastic correctly • DO NOT pull Plastic from the back of the 3Doodler other than as directed. BLUE Light Flashing BLUE With the Pen set to HI, wait for Double click either Speed the BLUE Light to come on. - Page 14 Once the Plastic stops reversing, it is safe to remove it from the Pen by gently pulling on the back of the strand. Take a break • DO give your 3Doodler a rest after every 2 hours of continuous Doodling. 30 minutes of down time should be plenty. Treat your Nozzle right •...
-
Page 15: Section 5: Stencils
SECTION 5: STENCILS Eiffel Tower... - Page 18 Glasses...
