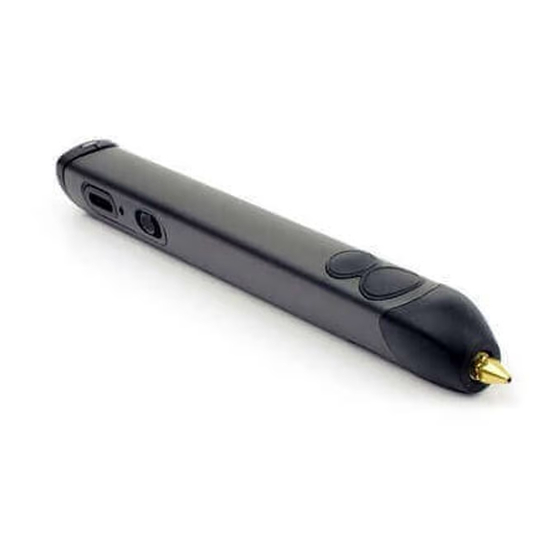

3Doodler 2.0 User Manual
Hide thumbs Also See for 2.0:

Advertisement

A-PDF Page Cut DEMO: Purchase from www.A-PDF.com to
remove the watermark
®
W A R N I N G
BURN HAZARD. The nozzle of the 3Doodler
and the adjoining rubber tip can become
extremely hot. DO NOT touch the nozzle or
the adjoining rubber tip, the parts near the
nozzle or the parts near the adjoining rubber
tip, or any melted plastic/filament, or you
may be severely burned! DO NOT allow the
nozzle or the adjoining rubber tip near or in
contact with flammable materials. Inform
others in the area that the unit is hot and
should not be touched. Unplug and set the
slide switch to OFF when not in use or before
storing. After use, allow the nozzle and the
adjoining rubber tip to cool completely before
storing. The hot nozzle or adjoining rubber
tip may damage painted surfaces, plastics
and cloth if left in direct contact with these
materials.
BURN HAZARD. The Cleaning Tool can
become extremely hot. DO NOT touch the
metal part of the Cleaning Tool after using it
to clean your 3Doodler, or you may be
severely burned!
If the 3Doodler is emitting black or brown
smoke, cease using the pen immediately,
unplug the pen, allow the pen to cool, and
then store it away safely. Failure to do so will
increase the risk of fire. Please contact us
immediately at cs@the3Doodler.com in such
circumstances.
ADULT USE ONLY. KEEP OUT OF REACH
OF CHILDREN.
WARNING: DO NOT use the 3Doodler near
bathtubs, showers, basins or other vessels
containing water. This could result the in
death due to electric shock.
The 3Doodler should only be used with
3Doodler approved filaments or materials.
Misuse of your 3Doodler and/or use of
non-approved plastics, filaments or other
materials may result in damage to your pen
or injury to you, and will void your warranty.
3Doodler - 2.0
WARNINGS & NOTICES
ENGLISH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2.0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for 3Doodler 2.0

  • Page 1 BURN HAZARD. The Cleaning Tool can become extremely hot. DO NOT touch the metal part of the Cleaning Tool after using it to clean your 3Doodler, or you may be severely burned! • If the 3Doodler is emitting black or brown...
  • Page 2 IT’S TIME TO 3DOODLE! You are now the proud owner of a 3Doodler 2.0. The 3Doodler puts the power of creation in the palm of your hand and allows you to draw objects in 3D quickly and easily! #WhatWillYouCreate? To find great ideas for what you can create, as well as tips, tricks &...
  • Page 3 LED LEGEND: Solid RED: Heating up (please wait) BLUE: (230°C to 240°C; 446°F to 464°F) GREEN: (190°C to 200°C; 374°F to 392°F) Flashing LED: Reversing plastic. Actual product may vary from the image found in this document Nozzle Maintenance Cover Extrusion Speed Cleaning Tool Control (FAST)
  • Page 4 Load the plastic/filament into the plastic loader at the back of the pen, feeding it down the length of the 3Doodler until you feel it gripped by the gears inside the pen. NOTE: If you do not feel the plastic/filament being gripped...
  • Page 5 LED to change to the appropriate color again (the pen is simply returning to its optimal heating temperature). NOTE: After 5 minutes of inactivity the 3Doodler’s heating system will automatically power down. You will need to press one of the buttons OR toggle the power switch off and then on again to continue use.
  • Page 6 FAST (3) or SLOW (4) button on your 3Doodler. To temporarily pause the continuous flow of plastic/filament, hold down on either the FAST (3) or SLOW (4) button on your 3Doodler and then release to resume continuous flow. NOTE: Upon resumption of continuous flow, the extrusion speed will change depending on which extrusion button (FAST or SLOW) you used to pause the flow.
  • Page 7 Try to extrude again.WARNING: DO NOT force the nozzle or overtighten it, as you could irreparably damage your 3Doodler. clockwise twist If this does not work, we suggest cleaning the 3Doodler. Please follow the steps below: 1. Ensure the LED light is BLUE or GREEN before starting this process (indicating that the pen is hot).
  • Page 8 WARNING: DO NOT force the nozzle or overtighten it, as you could irreparably damage your 3Doodler. 5. If you are still experiencing problems extruding or suspect there may be a blockage in your 3Doodler, please remove the Maintenance Cover as follows: •...
  • Page 9: Specifications

    (as shown in the diagram), then pinch the two sides of the exposed end to ensure they are inside the shell of the 3Doodler, and push the back of the Maintenance Cover down until it clicks firmly into place 35°...
