Temtop M10 (XT-M10-01) - Air Quality Monitor Indoor Tester Manual

Appearance

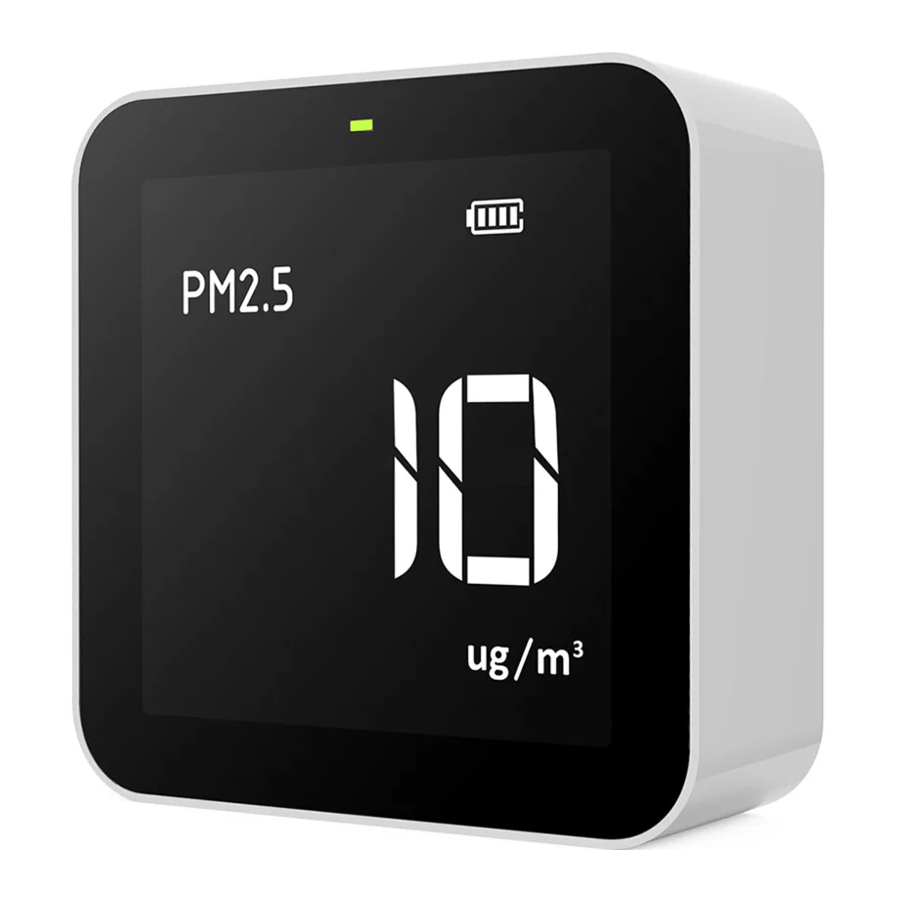

Device Appearance

Specifications

Battery capacity: 2200mAh PM2.5 sensor: Laser PM sensor
Battery life: Approx.6 hours on a single charge Measuring range(PM2.5):0-999gg/m3
Input: DC 5V; 0.5A-1A Resolution(PM2.5): 1μg/m3
Weight: 200g PM2.5 sensor life: 3 years
Dimensions: 82x82x31 mm HCHO Sensor: Electrochemical sensor
Measuring range (TVOC): 0-5mg/m3 Measuring range(HCHO): 0-2mg/m3
Resolution (TVOC): 0.01mg/m3 Resolution(HCHO): 0.01mg/m3
TVOC sensor life: 3 years HCHO sensor life: 3 years

Operations

  1. Unpack and take out the detector. place it outdoors for more than 6 hours for calibrations.
    Operation - Step 1 - Unpack the device
  2. Turn ON the detector and wait for the countdowns.
    Operation - Step 2 - Turn on the unit
  3. Use Home Button to display each measured pollutant:
    HCHO concentration will display after power ON.

Operation - Step 3
Press Home Button to enter PM2.5 concentration display screen. Then press Home Button again to display TVOC concentration.


Press Home Button again to display AQI index. Press Home Button to repeat all these operations.

Note: Double press the Home Button to AUTO repeat these operations per 3 seconds display intervals.
Double press the Home Button again to exit AUTO display mode.

  1. Indicator Lights Introduction
    The indicator lights on the panel indicate the corresponsing air quality:
Color Green Yellow Red
Status Good Moderate Unhealthy

The battery level indicator on the screen indicates the device charging status:

Color Yellow Green
Status Charging Full
  1. When the battery level is low, please charge by connecting it with USB cable and power supply.
    Operation - Step 4 - Charge the unit
  1. It is suggested to calibrate the detector after three months usages.
    Please follow the manual instructions showing below:
    1. Turn ON the detector and wait for about 10 minutes.
    2. Use the pin to poke the calibration button until HCHO icon blinks on the screen.
      Operation - Step 5
    3. Place the detector outside for 10 minutes for ventilation.
    4. When HCHO icon does not blink, it indicates that the calibration has finished.

Parameter Index for reference

Status
Pollutant Good Moderate Unhealthy
PM2.5 <12gg/rn3 12.1~55.4μg/m3 >55.5μg/m3
HCHO <0.1mg/m3 0.1~0.3 mg/m3 >0.3 mg/m3
TVOC <0.6mg/m3 0.6~1.6mg/m3 >1.6mg/m3
AQI <50 50~150 >150

*Please contact us or check out our website for more detailed index information.

What's included

M10 Detector x1
USB Cable x1
User Manual x1

Warnings

  • Do not place the detector in the environment with formaldehyde(HCHO) concentration above 0.5mg/m3 and PM2.5 above 500ug/m3 for a long time. Otherwise, the sensor may be damaged and cannot run normally.
  • Do not use the detector in humid environment in order to maintain the detection accuracy.
  • Do not cover the air inlet/outlet while in use.
  • Try to avoid usingthe product in the environment with strong ardour or pungent smell. Otherwise the high accuracy electrochemical sensor may be damaged.
