Please read instructions carefully
Remove all wrapping materials, staples and packing straps from the carton. Refer to Parts List and Hardware List and ensure they are complete
before you start assembling. Place all wooden parts on a clean, flat and soft surface (e.g carpet or rug) to prevent parts from being scratched.
CAUTIONS: 1) DO NOT FULLY TIGHTEN BOLTS AND NUTS UNTIL ALL PARTS HAVE BEEN ASSEMBLED.
2) DO NOT OVER-TIGHTEN BOLTS AND NUTS .
3) KEEP ALL HARDWARE PARTS OUT OF REACH OF CHILDREN.
Carton
Designation
TABLE TOP
TRESTLE LEG
FRAME
1
TOP BAR
LEG
STRETCHERS
DIAGONAL
STRETCHER
ASSEMBLY INSTRUCTIONS
MODEL : 3269-01 RAQUEL DINING TABLE
Part List
P1 x 1pc
P2 x 2pc
P3 x 1pc
P4 x 1pc
P5 x 2pc

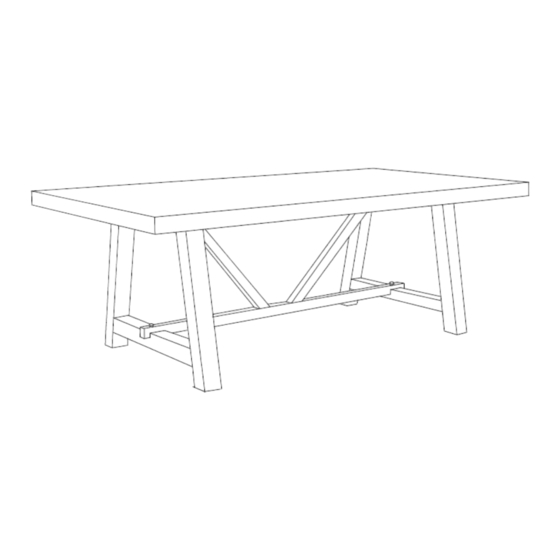

COMPLETE ASSEMBLY
Hardware List
H1 x 12pc
M6x35mm JCBC SCREW
H2 x 8pc
M6x60mm JCBC SCREW
H3 x 12pc
Spring Washer
H4 x 12pc
Flat Washer
H5 x 2pc
Bolt & Nut 1/2"
x 4 1/2"
H6 x 2pc
M4 x 32mm CSK Screw
Allen Key
H7 x 1pc
Page 1 of 4
Advertisement
Related Manuals for Living Spaces RAQUEL 3269-01
Summary of Contents for Living Spaces RAQUEL 3269-01
- Page 1 ASSEMBLY INSTRUCTIONS MODEL : 3269-01 RAQUEL DINING TABLE Please read instructions carefully Remove all wrapping materials, staples and packing straps from the carton. Refer to Parts List and Hardware List and ensure they are complete before you start assembling. Place all wooden parts on a clean, flat and soft surface (e.g carpet or rug) to prevent parts from being scratched. CAUTIONS: 1) DO NOT FULLY TIGHTEN BOLTS AND NUTS UNTIL ALL PARTS HAVE BEEN ASSEMBLED.
- Page 2 ASSEMBLY INSTRUCTIONS MODEL : 3269-01 RAQUEL DINING TABLE PARTS LIST (FOR 1 TABLE) COMPONENT QTY. TABLE TOP TRESTLE LEG FRAME TOP BAR LEG STRETCHERS DIAGONAL STRETCHER HARDWARE LIST (FOR 1 TABLE) DESCRIPTION QTY. JCBC SCREW M6 x 35MM COMPLETE ASSEMBLY JCBC SCREW M6 x 60MM SPRING WASHER FLAT WASHER...
- Page 3 STEP 4 Now repeat same process on the other side of the Trestle Leg Frame and Attach the Stretcher Frame (consist of P3, P4 & P5) to complete the base assembly step. Again, align Screw (H6) through holes in (P3). Tighten it using an household screwdriver.
- Page 4 STEP 6 Then align Bolt (H1) together with Spring washer (H3) & Flat washer (H4) into holes in the top bar and tighten it using the Allen key (H7). Do not tighten completely until all 4 screws are in place . Do not over tighten the screws .
