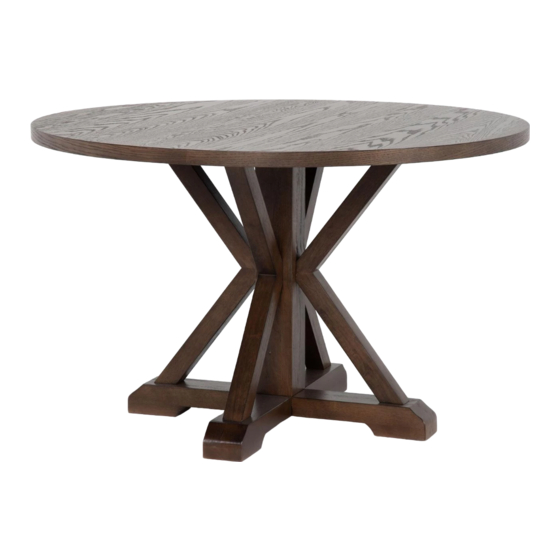

- Page 1 ASSEMBLY INSTRUCTIONS L I V I N G S P C ES KAILANI 48" ROUND DINING TABLE D2107-205 323847 ITEM NO : SKU: 15 min...
-
Page 2: Cleaning Instructions
IMAGE DESCRIPTION QTY PART SKU# 323847-A-W (Walnut) Table Top Table Leg 323847-B-W (Walnut) 323847-C-W (Black) Table Panel 323847-C-W (Walnut) Pedestal 323847-E-W (Walnut) Table Base Table Base 323847-F-W (Walnut) Hardware List of Dining Table PART SKU# IMAGE DESCRIPTION 323847-1(5) Bolts M4*Ø5/16*75mm 323847-2 (5) Bolts M4*Ø5/16*38mm 323847-3 (8) -
Page 3: Detail View
DETAIL VIEW STEP 1: Assemble the table legs (B) with the stretcher (C). *Use dowel (4) to locate table legs (B) with pedestal (D), Use Bolt (2) to fix table panel (C) with pedestal (D) and table legs (B). 2= 5 pcs... - Page 4 STEP 2: Assemble the table base (E,F) with the table pedestal (D) and table legs (B). *Use dowel (4) to locate pedestal (D) with table base (E), table base (F). Use bolt (1) to fix table base (E,F) with pedestal (D) and table legs (B). 1= 5 pcs STEP 3 :Assemble the table panel (C) with the table top (A).
- Page 5 djust leveler =4pcs That's it ! You've finished assembling your item. Thank you!
