HUION Inspiroy Q11K - Tablet Manual

Product Overview

Tablet Introduction

This is a new generation of portable professional drawing tablet, which can greatly improve your work efficiency of painting and creation, and full of fun. You can freely painting and writing, depicting different lines and colors, just as the pen writes on the paper, which brings you a real shock experience.
To give you a better understanding and using of your tablet, please read this user manual carefully. The user manual only shows the information under Windows, unless otherwise specified, this information applies to both Windows and Macintosh systems.

Product and Accessories

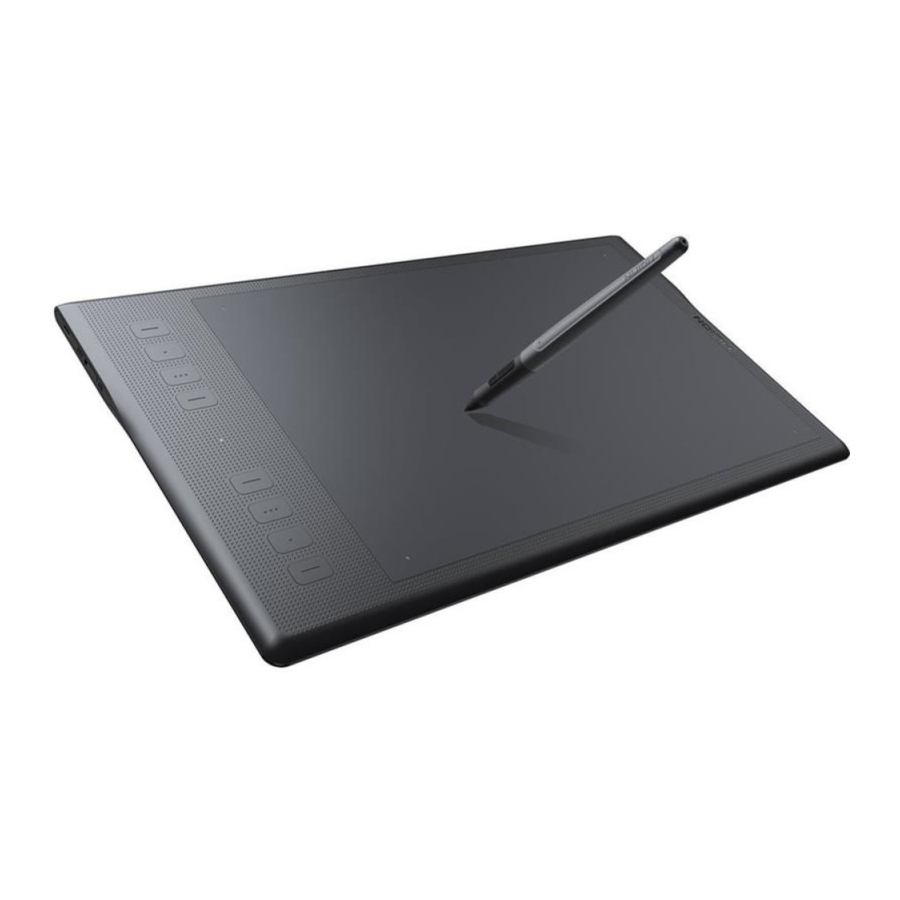

Graphics Tablet
Product and Accessories - Graphics Tablet

Stylus Pen
The stylus pen is a rechargeable pen with 8192 levels pressure sensitivity and can be used for around 350hrs with full battery.
Product and Accessories - Stylus Pen

Wireless Receiver

When using wireless mode, please insert the receiver into your computer and unplug the USB cable in the same time.

Other Accessories

Tablet Connection

Wired Mode Connection

  1. Connect the tablet to your computer with USB cable.
    Wired Mode Connection

Wireless Mode Connection
Wireless Mode Connection

  1. Insert the wireless receiver to your computer.
  2. Toggle the switch down on the left side to power on the tablet.
  3. When not using for 15mins, the tablet will enter sleep mode. In this case you need to toggle the switch off- then switch on to wake the tablet up.

Driver Installation

OS Support
Windows 7 or later, macOS 10.11 or later

Install via Download
Please download the driver from our website: www.huion.com/download
After finishing installation, you can find the driver icon in the system tray area, which means the driver was installed successfully; when you connect the tablet to computer, the icon will change to color , which means the driver has already recognized the tablet and you can start using it now.

Notice:

  1. Before installing, you need to uninstall other driver of similar products, including the old driver of this product.
  2. Before installing, please close all graphics software and anti-virus software to avoid unnecessary mistake.

Pen Nib Replacement

The nib will be wear out after using for a long time, then you need to replace a new nib.

  1. Anticlockwise rotate the pen holder to open the bottom cover, then you can see the build-in nib clip.
  2. Insert the pen nib into the hole and tilt the pen to pull out the old nib.
  3. Insert the new nib straight into the pen and push the nib slowly and firmly until it stops.

Charging the Pen

Charging the Pen

  1. When the indicator on the pen shows orange, it means the voltage of the pen is low, and then you need to charge the pen.
  2. Charge the pen with the attached pen charging cable. Insert one end of the charging cable into the rear of the stylus charging port, the other end can be connected to a computer, power supply or power bank.

Product Basic Operation

Using The Pen

Hold the pen
Hold the pen as you hold a normal pen or pencil. Adjust your grip so that you can toggle the side switch easily with your thumb or forefinger. Be careful not to accidentally press the switch while drawing or positioning with the pen.

Notice:When not in use, place the pen in the pen case or on the desk. Do not place the pen on the surface of screen, which may interfere with the use of other screen cursor positioning equipment, may also cause your computer can not enter the sleep mode.

Position the cursor
Move the pen slightly above the active area without touching the screen surface, the cursor will move to the new position accordingly.
Press the pen tip on the screen to make a selection. Tap the screen once with the pen tip, or touch it to the screen with enough pressure to register a click.
Using The Pen - Position the cursor

Click
Use the pen tip to tap once on the screen to register a click. Tap to highlight or select an item on the screen and double-click to open it.
Using The Pen - Click

Move
Select the object, then slide the pen tip across the screen to move it.
Using The Pen - Move

Use the side buttons
The buttonson the pen can be set to two different customizable functions. You can use the buttons whenever the pen tip is within 10mm of the tablet active area.
You do not have to touch the pen tip to the tablet in order to use the switch.
Use the side buttons

Using the Tablet

Power Switch

  1. The power switch was placed on the top left side of the tablet, when you use the tablet on wireless mode, you need to turn on the power switch before using.
  2. When not use the tablet for 15 minutes or press the power button for 3 seconds, it will enter sleep mode.
  3. LED indicator:
    When working:
    White-Detected pen or touch signal,
    Off-no pen or touch signal,
    Red flashes-Voltage is low, need to be charged.
    When charging:
    Red-Charging,
    Off-Full Charge.

Press Keys
There are 8 press keys on the top left side of the tablet, which you can set the function on the driver interface according to your own habits, which will help to improve your work efficiency.

Charging the Tablet
Charging the Tablet

  1. Before using the tablet for the first time in wireless mode, you should fully charge the tablet battery. Do this by connecting the USB cable between tablet and a primary USB port on your computer, or to a powered USB port.
  2. The USB cable is used for charging the battery, and also for operating the tablet as a wired USB tablet. The battery will charge whenever the USB cable is connected and the battery is not fully charged.
  3. It will take about 7 hours to fully charge an empty battery. The actual charge time depends on current battery level and tablet use while charging. The battery status indicator shows RED when charging, and will be OFF when fully charged.
  4. Whenever the tablet is connected to computer with USB cable, the wireless mode will be disabled.

Function Setting

Device Connection Prompt

Device Connection Prompt

  1. Device disconnected: The computer does not recognize the tablet.
  2. Device connected: The computer has recognized the tablet.

Working Area Setting

Using Multiple Monitors
Select the Working Area tab to define the relationship between pen movement on the tablet and cursor movement on the monitor screen.
By default the entire active area of tablet maps to the entire monitor. If more than one monitor is in use and you are in extended mode, you need to choose the related monitor on the driver interface which you are going to map to.
If your monitors are in mirror mode (All monitors display the same content), the tablet maps to the entire space on each monitor and the screen cursor is displayed on each monitor simultaneously.
Using Multiple Monitors

Working Area Setting
Define the tablet area that will be mapped to the screen area.

  1. Full Area: the entire active area of the tablet. This is the default setting.
  2. Customized Area:
    1. > Enter coordinate values. or
    2. >. Drag the corners of the foreground graphic to select the screen area.
      Working Area Setting

Rotate Working Area
By changing the direction of the tablet to adapt to the left and right hand operation.
You can rotate the tablet by 0°,90°,180° or 270°.
Rotate Working Area

Press Keys Function Setting

Default Setting: Place the cursor on the press key or click the press key to find the default values.
Customized Setting: Select the function to be achieved on the pop-up dialog box, then click APPLY or OK to take effect.
Enable/Disable Press Keys: Check/Uncheck"Enable Press Keys"
Press Keys Function Setting

Pen Buttons Function Setting

Select the function to be achieved on the pop-up dialog box, then click APPLY or OK to take effect.
Pen Buttons Function Setting

Pressure Sensitivity Setting

The pressure sensitivity will be changed by dragging the slider up and down, the smaller the value, the more pressure sensitive.
Pressure Sensitivity Setting

Pen Pressure Testing

Click "start pressure test", you can gradually apply pressure to the stylus on the screen to test the pressure level. Click "Clear" button to clear all the ink.
Pen Pressure Testing

Enable the Windows Ink feature

Microsoft Windows provides extensive support for pen input. Pen features are supported in such as Microsoft Office、Windows Journal、Adobe Photoshop CC、 SketchBook 6 and so on.
Enable the Windows Ink feature

Data Export and Import

The driver supports exporting and importing your custom configuration data of the product, which is convenient for you to use different software and avoid the trouble of repeated settings.
Data Export and Import

Specifications

Graphics Tablet
Model Q11K
Touch Technology Electromagnetic Resonance
Working Area 279.4 x 174.6mm(11 x 6.875 inch)
Dimension 390 x 223 x 11mm
Net Weight 0.88kg
Touch Resolution 5080LPI
Report Rate 233PPS
Pen Sensing Height 12mm
Interface Micro USB
Press Keys 8 Customized Press Keys
Wireless 2.4G
Wireless Distance Approx. 10-20m
(Depending on the actual use of the environment)
Battery Capacity 2500mAh
Life Time Approx. 40hrs
OS Support Windows 7 or later, macOS 10.11 or later
Stylus Pen
Model PF150
Dimension 176 x Φ13.5mm
Weight 16.5g
Pressure 8192Levels
Life Time Approx. 350hrs
Automatic Sleep Time 15min
Pen Tilt ±45°
Accuracy ±0.3mm

Trouble Shooting

Possible Breakdowns Related to TABLET

Abnormal Phenomena Possible Solutions
There is no pressure in the graphics software but the cursor moves You may have installed other tablet drivers or opened the drawing software when installing the driver. Please uninstall all drivers and close the drawing software, then reinstall the Huion driver. It's better to restart your computer after finishing the installation.'
While using the tablet, the battery indicator flashes red The battery voltage is low, please recharge the tablet in time.

The pen does not work

  1. Make sure power is on.
  2. Make sure you are using the pen that originally came with your tablet.
  3. Make sure the pen is with enough power, if not, please charge the pen
  4. Make sure you installed the driver correctly.

Press Keys does not work

  1. Make sure the Press Keys function were enabled in the driver.
  2. Make sure you have correctly defined the Press Keys.
The cursor is not stable or the drawing line is not straight when using wireless mode
  1. Make sure there is no other 2.4G device surround, because it may affect the tablet function.
  2. Make sure there is no barrier between the tablet and receiver.

The computer can't enter sleep mode

When you are not using the tablet, please do not put the pen on the tablet surface, which will keep the computer awake.

The side button of the pen doesn't work

When pressing the side button, please make sure that the nib didn't touch the glass surface and the distance between the nib and surface is within 10mm.

Possible Breakdowns Related to SYSTEM

Abnormal Phenomena Possible Solutions
The computer can't recognize the tablet or the wireless receiver Make sure the USB port is functional, if not, please change to another USB port.
The tablet charging progress seems to stop whenever the computer enters sleep mode It might because the system stops powering the USB port. Then you can adjust your system power or energy saver settings so that the computer can't enter sleep mode while the tablet is charging.

After-service Contact

SHENZHEN HUION ANIMATION TECHNOLOGY CO.,LTD.
Building 28, Quarter 4, HuaiDeCuiGang Industrial Park, Fuyong Street, Bao'an District,
Shenzhen, 518106, China
Note: Information in this manual is subject to change without further notice. For more information, please contact us with our email: service@huion.com
Or go to our website (www.huion.com) to get the latest driver and user manual.

Precautions

  1. Please read this manual carefully before using, and keep it well for future reference.
  2. Before cleaning the tablet please unplug the power cord and wipe with a soft damp cloth, do not use any kind of detergents.
  3. Don't expose this product to water or other liquids. Take care to never spill liquids onto the tablet and pen. Exposing this product to water or other liquids may cause product malfunction or electrical shock.
  4. Do not place the tablet on where is unstable or a height for children reaching easily in order to avoid danger. Prevent children from swallowing the pen nib or side switch. The pen nib, side switch, or other movable parts may accidentally be pulled out if children are biting on them.
  5. Power off your tablet in locations where/when electronic devices is not allowed. Because the tablet may cause other electronic devices to malfunction in some locations where/when the use of electronic devices is not allowed, such as within an airplane, be sure to turn off the tablet.
  6. To protect your tablet and save power, please switch off the power when it is not in use.
  7. Do not disassemble the tablet and pen. Do not disassemble or otherwise modify the tablet or pen. Such action may cause heat generation, ignition, electronic shock, or other damage, including human injury. Disassembling the product will void your warranty.
  8. While getting the components replaced, you are supposed to guarantee that the repairman is using the substitute components specified by the manufacturer. Unauthorized component replacement might cause fire, electric shocks or other dangers.
  9. Do not insert foreign material into the USB port or any other opening of this product. If a metal object or foreign material is inserted into a port or other opening of this product it may cause the product to malfunction or burn out, or cause electronic shock.
  10. Tablet and Digital pen has a lithium battery, which should be charged in time under low battery mode, and at the same time it should be charged every 3 months, otherwise it will cause lithium battery damage.
  11. The nib of the digital pen can't be pressed when it is placing, otherwise the pen can't enter the power-saving state, which is easy to cause lithium battery over-discharge damage.
