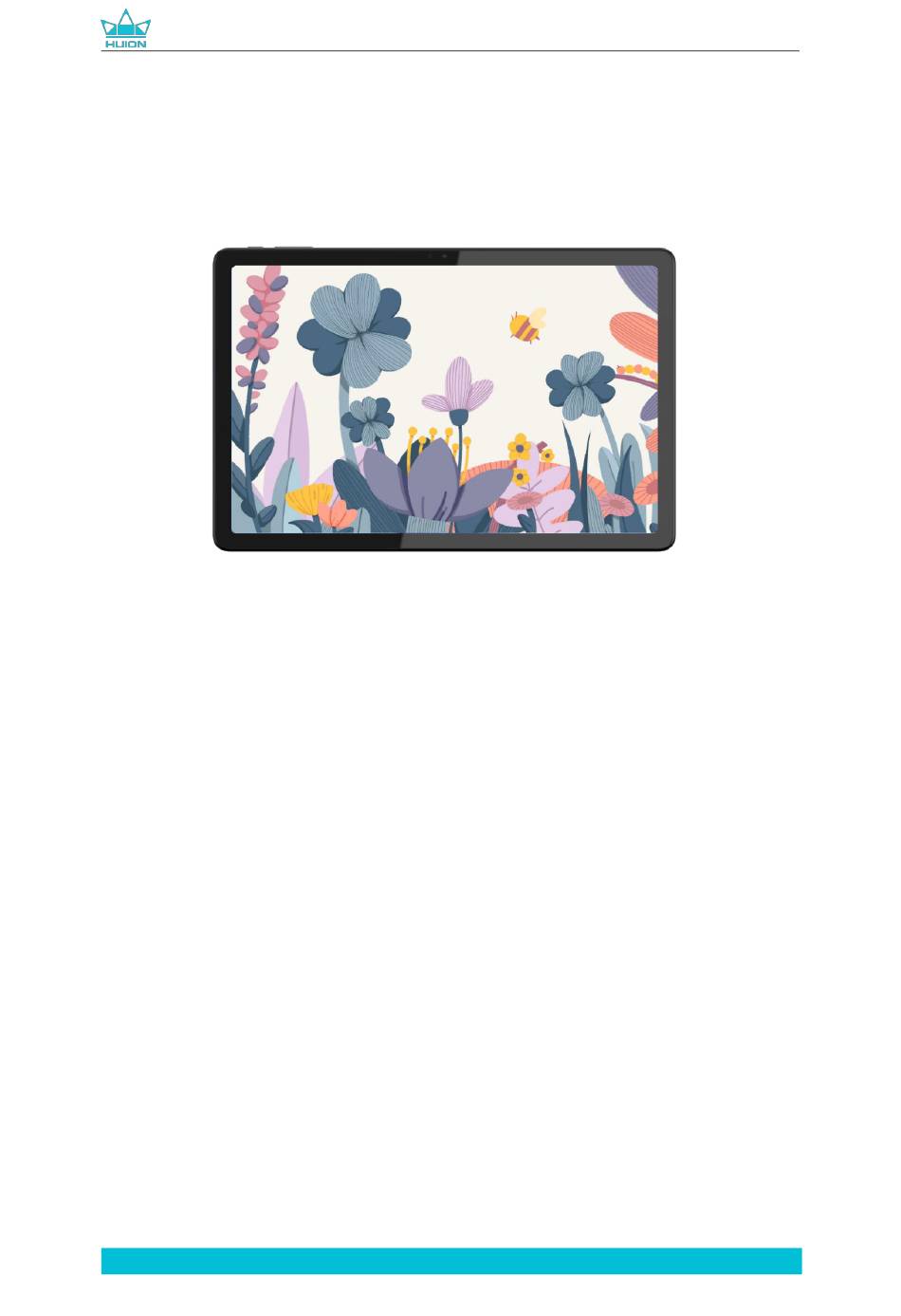

KT1101
Kamvas Slate 11
Thanks for choosing HUION kamvas slate 11 drawing tablet. kamvas slate 11 is a
10.95-inch Android tablet with a full HD touch screen and an active capacitive stylus
pen. Supporting finger touch and pen touch, Wi-Fi, and Bluetooth, kamvas slate 11 is
ideal for painting, design, office work, and entertainment. The product comes with
pre-installed apps brought by Google Mobile Services (GMS) such as Google Maps,
YouTube, and Google Play. More apps can be downloaded from Google Play.
To better know and use this product, please read this user manual carefully.
Note: Design and specifications are subject to change without notice. The pictures in
the user manual are for reference only.
www.huion.com
1 / 32

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Kamvas Slate11 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Huion Kamvas Slate11

Summary of Contents for Huion Kamvas Slate11

  • Page 1 KT1101 Kamvas Slate 11 Thanks for choosing HUION kamvas slate 11 drawing tablet. kamvas slate 11 is a 10.95-inch Android tablet with a full HD touch screen and an active capacitive stylus pen. Supporting finger touch and pen touch, Wi-Fi, and Bluetooth, kamvas slate 11 is ideal for painting, design, office work, and entertainment.

  • Page 2: Product View

    KT1101 Product View www.huion.com 2 / 32...
  • Page 3 KT1101 1.1. Active Capacitive Stylus Pen 1.2. Accessories Drawing Tablet ×1 HS230 Stylus Pen ×1 Spare Pen Nib ×3 SIM Card Ejector Pin ×1 Tablet Case ×1 USB-C Cable ×1 www.huion.com 3 / 32...

  • Page 4: Operating Temperature

    It is recommended to charge the tablet before the first use. Please use the power adapter and USB cable to charge as shown. You can also use a USB cable to connect the tablet to a computer for charging. But the charging speed will be much slower. www.huion.com 4 / 32...

  • Page 5: How To Use The Stylus Pen

    Wake Up Pick up to wake it up Charging Time About 1h Battery life About 60hrs Replace the Pen Nib When the Pen Nib is badly worn, please pull it out and insert a new one. www.huion.com 5 / 32...

  • Page 6: Home Screen Overview

    Quickly search the web, local files, and installed apps.  Support voice input. Tap the microphone icon or say "Hey Google" to activate it.  Support smart lens. Tap the lens icon to perform photo translation, search, and  homework search. www.huion.com 6 / 32...

  • Page 7: Shut Down And Restart

    Long press the power button to shut down or restart the tablet Long press the power button for 2s, and tap the "Power off" or "Restart" button in the pop-up window to shut down or restart the tablet. www.huion.com 7 / 32...
  • Page 8 Open the Control Center to shut down or restart the tablet Swipe down from the top of the screen to bring up the Control Center and Notification Center, and tap the "Power off" button at the bottom to get to the shutdown box. www.huion.com 8 / 32...
  • Page 9 KT1101 Force shutdown Long press the power button for 7s to force shutdown. www.huion.com 9 / 32...

  • Page 10: System Navigation

    To go Home, swipe up from the bottom of the screen. To switch apps, swipe up from the bottom, hold, then release. To go back, swipe from either the left or right edge. 3-button navigation Go back, Home, and switch apps with buttons at the bottom of your screen. www.huion.com 10 / 32...
  • Page 11 Tap the "Settings" icon on the Home screen or in the apps list, tap System>Gestures>Navigation mode in Settings, and switch to Gesture navigation or 3-button navigation in the system navigation mode selection interface. When you switch to gesture navigation, the three navigation buttons at the bottom of www.huion.com 11 / 32...

  • Page 12: Split Screen

    While using gesture navigation, swipe up from the bottom of the screen and hold, then release to bring up all recent apps. While using 3-button navigation, tap the Recent Apps button to display all recent apps. www.huion.com 12 / 32...
  • Page 13 Choose the first app you want, tap its app icon at the top, and select Split screen in the pop-up window. Tap the second app from the app list, and the screen will automatically split into two sections vertically or horizontally. www.huion.com 13 / 32...
  • Page 14 KT1101 Drag the center divider to change the size of each app and double tap the divider to swap the position of your apps. www.huion.com 14 / 32...
  • Page 15 Hold the center divider and drag it to the edge of the screen until one of the windows disappears. You can also directly close one of the apps by tapping the back button at the bottom or swiping from either the left or right edge of the screen. www.huion.com 15 / 32...

  • Page 16: Language Setting

    Tap Add a Language and select the language you require. It will be added to the bottom of the languages list. Then touch and drag the language to the top of the list. Then the device automatically displays the language you selected. www.huion.com 16 / 32...
  • Page 17 KT1101 Wi-Fi Connection From the Home screen, tap Settings > Network & internet > Wi-Fi to view available Wi-Fi networks. Once Wi-Fi is turned on, the tablet will automatically search for available Wi-Fi networks. www.huion.com 17 / 32...
  • Page 18 Wi-Fi network connection. Log Into a Google Account From the Home screen, tap Settings > Passwords & accounts > Add an account > Google. On the Google Sign-in interface, enter your Google account and password. If you don't www.huion.com 18 / 32...

  • Page 19: Lock/Unlock Screen

    Display>Screen timeout in the Settings to set the waiting time for automatic sleep. Manual Lock You can press the power button to lock the screen and activate sleep mode. Wake Up Screen You can press the power button to wake up the screen. www.huion.com 19 / 32...

  • Page 20: File Transfer

    File Transfer 11.1. Wired File Transfer 1. Connect your tablet and PC using a USB-C cable. 2. Drag down the status bar and tap the USB notification to enter USB preferences. www.huion.com 20 / 32...
  • Page 21 3. Go to Use USB for > File transfer. 4. Kamvas Slate 11 device icon appears in the Devices and drives section on your PC. 5. Double-click the device icon of Kamvas Slate 11 to open the tablet and then www.huion.com 21 / 32...

  • Page 22: Bluetooth File Transfer

    2. Click the Bluetooth icon on your Windows PC and select Receive a File to enter the Waiting for a Connection screen. 3. Select the files you want to transfer on the tablet, click the share icon, and choose “Bluetooth” to share the files. www.huion.com 22 / 32...

  • Page 23: System Update

    You can also enter the Settings interface through the Settings icon on the Home screen or in the app list, and tap System >System update to manually check and update the system. www.huion.com 23 / 32...
  • Page 24 The functions of the side buttons of the stylus can be customized in HiPaint. The side buttons of the stylus in other software may have no function, and the functions cannot be customized. Open the HiPaint app, open any file or create a new one. www.huion.com 24 / 32...
  • Page 25 KT1101 Enter any file, tap the More button in the upper right corner and select Sketch Setting. Enter Sketch Setting and tap Stylus pen down button to set functions of the side buttons on the stylus. www.huion.com 25 / 32...
  • Page 26 The reverse operation of undo, which restores valid actions when too Redo many undo steps have been performed. Disable The buttons have no function. Note: After Radial menu is selected, press the side button of the stylus and tap one of the www.huion.com 26 / 32...
  • Page 27 KT1101 function items in the radial menu to realize the corresponding function. Long press the function item in the radial menu for 2 seconds to set the desired function. 13.2. Tilt Function Settings www.huion.com 27 / 32...
  • Page 28 HiPaint. Enter any file under the HiPaint app and select any brush. Click to enter the brush settings, and select the Pencil setting interface, which includes Pressure Setting and Tilt setting interfaces. www.huion.com 28 / 32...

  • Page 29: Troubleshooting

    Make sure the USB cable is properly plugged into the charging port. · Try with another compatible USB cable and power adapter. Q3 An error message appears during operation. · Uninstall the app with the error message, then download and reinstall it. www.huion.com 29 / 32...
  • Page 30 Check the screen for dust or oil, if so, clean it with a cloth. Q8 The stylus button does not work. The side buttons of the stylus are only functional in Huion Note and HiPaint apps, and other software doesn't support button functions. In addition, the functions of the side www.huion.com...
  • Page 31 Battery Capacity: 8000mAh Screen Display Resolution: 1920 x 1200(16:10) FHD+ LCD Type: Full Lamination: Typ. Brightness: 350 cd/m2 Color Gamut: 99% sRGB Stylus Stylus: HS230 Pen Technology: Active Capacitive Stylus Pen Pressure Sensitivity: 4096 Levels Operating Environment www.huion.com 31 / 32...

  • Page 32: Copyright Notice

    Storage Temperature and Humidity: -20°C-60°C, 10-90% Copyright Notice Shenzhen Huion Trend Technology Co., Ltd. reserves the right to make changes to the product specifications and other contents of the manual without prior notice. Disclaimer This manual is only intended as a guide for use. We have endeavored to ensure the accuracy of the content when writing, but we do not guarantee that the content is completely free from errors or omissions.
