Huion INSPIROY HS611 Manual

Hide thumbs Also See for INSPIROY HS611:
Table of Contents

Advertisement

Quick Links

Contents
Product Overview .................................................. 2
Product Connection ................................................ 4
Driver and Setting ................................................. 6
....................................................... 6
..................................................... 23
Digital Pen Basic Operation ........................................ 27
Specifications ..................................................... 31
Troubleshooting Solutions ......................................... 32
.................................................. 2
.............................................. 2
.............................................. 8
.................................................. 10
.................................................. 17
HS611
1 / 33

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the INSPIROY HS611 and is the answer not in the manual?

Questions and answers

Related Manuals for Huion INSPIROY HS611

Summary of Contents for Huion INSPIROY HS611

  • Page 1: Table Of Contents

    HS611 Contents Product Overview ..........2 Tablet Introduction ..........2 Product and Accessories ..........2 Product Connection ..........4 Driver and Setting ..........6 Install Driver ............6 Driver Interface Preview ..........8 Pen Tablet Setting ..........10 Digital Pen Setting ..........

  • Page 2: Product Overview

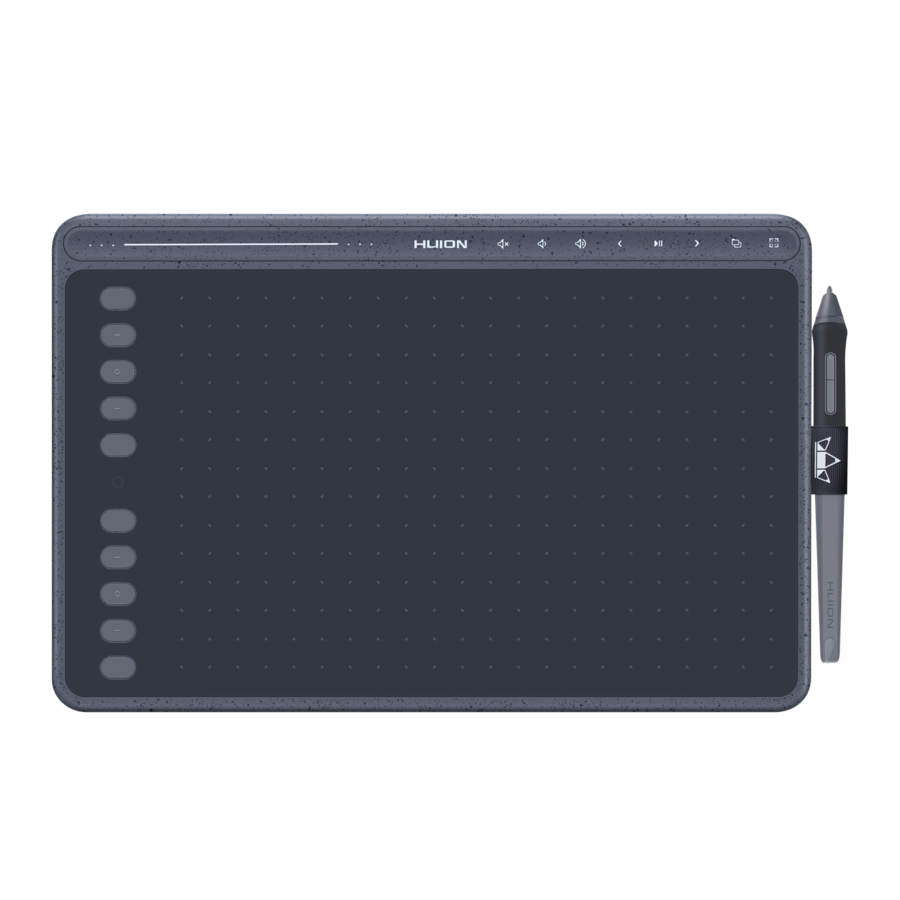

    Product Overview Tablet Introduction Thanks for choosing HUION INSPIROY HS611 creative pen tablet. This is a new generation of professional battery-free drawing tablet, which can greatly improve your work efficiency of painting and creation, and full of fun. You can freely painting and writing, depicting different lines and colors, just as the pen writes on the paper, which brings you a real shock experience.
  • Page 3 HS611 After unboxing your package, make sure that you have the following items: Tablet*1 Battery-free Pen*1 Pen Holder*1 Replacement Nibs(Inside the Pen Holder)*8 3 / 33...

  • Page 4: Product Connection

    HS611 USB Cable*1 Quick Start Guide*1 Warranty Card*1 Product Connection The tablet supports the connection of a computer and a mobile phone, please refer to the following steps to connect. Connecting to Computer Connect the tablet to your computer with USB cable. Please follow the steps below: 1.
  • Page 5 HS611 the tablet is successfully connected to the computer.You can start use the tablet. 3. Restart the computer after the driver is installed. See Section Connecting to Android Phone Please follow the steps below: 1. Please make sure your phone & pad OS is as following: Android OS 6.0 or later. 2.

  • Page 6: Driver And Setting

    3. Please note that the press keys of pen tablet and digital pen are not supported in phone mode, unless you are using Huion Sketch. *Huion Sketch is an intuitive drawing app developed by Huion. Driver and Setting Install Driver...
  • Page 7 HS611 7 / 33...

  • Page 8: Driver Interface Preview

    HS611 Driver Interface Preview 8 / 33...
  • Page 9 Sensitivity Adjustment and Pressure Test. See Section 3. Store Huion Store, where you can get the latest information about the product such as its FAQ or sales promotion. Additionally, you can also purchase other products or accessories on Huion Store. 9 / 33...

  • Page 10: Pen Tablet Setting

    HS611 4. Add Programs You can customize different functions on the current device for different programs. When select All programs, the setting of the device is valid for every program. By clicking Add a Program from the drop-down list, you can set the functions for a specific program and hence have unique settings for different programs.
  • Page 11 HS611 1. Keyboard Key Click on the input box above and enter a valid key combination to creat a shortcut. For example "Ctrl+A", "Ctrl+Z", and so on. 11 / 33...
  • Page 12 HS611 2. Mouse Key Select the function of a Mouse or Wheel. Please see the picture below for detailed functions. Mouse: Left Button, Right Button, Middle Button. Wheel: Wheel Forward, Wheel Backward. Double-Left Click. 12 / 33...
  • Page 13 HS611 3. Switch Select Switch Screen or Switch Brush. Note: Some software does not support the "Switch Brush" function. 4. Run Program Browse and select a program that you want to launch quickly. After the setting, you can launch that program with just a single press. 13 / 33...
  • Page 14 HS611 5. System Application The table below are the functions of Windows and Mac Systems that can be customized on the Keys. 6. Multimedia 14 / 33...
  • Page 15 HS611 To realize the functions such as previous song, next song, play/pause, volume up, volume down. 7. None When select None, the keys will have no function. Working Area Select the Working Area tab to define the relationship between pen movement on the tablet and cursor movement on the monitor screen.
  • Page 16 HS611 1> Enter coordinate values. 2> Drag the corners of the foreground graphic to select the screen area. 2. Rotate Working Area By changing the direction of the tablet to adapt to the left and right hand operation. You can rotate the tablet by 0°,90°,180°...

  • Page 17: Digital Pen Setting

    HS611 Digital Pen Setting 1. Press Key The function setting is the same as the Press Key setting of the tablet. Please refer to it. See Section. 17 / 33...
  • Page 18 HS611 2. Pen Nib Activity The pen nibs can be set to be Valid/Invalid as needed. Click the drop-down option to select. In Valid mode, the digital pen can be used normally. In Invalid mode, the digital pen has cursor movement, but cannot complete the specified action.
  • Page 19 HS611 3. Enable Windows ink Microsoft Windows provides extensive support for pen input. Pen features are supported in such as Microsoft Office, Windows Whiteboard, Adobe Photoshop CC, SketchBook 6 and so on. 19 / 33...
  • Page 20 HS611 4. Mode Selection Game Mode: This mode is specially designed for OSU games. OSU game users can turn on the "Game Mode" to increase the cursor's following speed when the pen tip moves quickly. It is not recommended for non-OSU game users. Mouse Mode: When the digital pen moves on the tablet work area, the"absolute coordinate"...
  • Page 21 HS611 5. Pressure Sensitivity Adjustment The pressure sensitivity will be changed by dragging the slider up and down, the smaller the value, the more pressure sensitive. Click the Redo button at the top right of the Settings box to reset the pressure sensitivity to the default state.
  • Page 22 HS611 6. Pressure Test You can gradually apply pressure to the stylus on the screen to test the pressure level. Click the Clear button to clear all the ink. 22 / 33...

  • Page 23: Driver Setting

    HS611 Driver Setting 1. Device You can view product information. 23 / 33...
  • Page 24 HS611 2. Backup The Driver can import and export your custom settings, which helps to avoid repeated settings when launching a different program. 24 / 33...
  • Page 25 HS611 3. General Setting [1] Language: Click the drop down menu to select a language. [2] Color: You can select the color of the Driver interface among Dark, Blue, and Light according to your preference. [3] Start Menu: Click to enable or disable AutoStart, New Message Alert, Automatic Updates. [4] Hotkey: A hotkey can be used to call out the Driver interface quickly, you can set one according to your usage habits.
  • Page 26 HS611 4. About Users can check the Driver version number here. Click Check for Updates to view the latest Driver version and then follow the prompts to update the Driver if needed. 26 / 33...

  • Page 27: Digital Pen Basic Operation

    HS611 Digital Pen Basic Operation Note: Picture shown is for illustration purposes only. Hold the Pen Hold the pen as you hold a normal pen or pencil. Adjust your grip so that you can toggle the side switch easily with your thumb or forefinger. Be careful not to accidentally press the switch while drawing or positioning with the pen.
  • Page 28 HS611 Position the cursor Move the pen slightly above the active area without touching the screen surface, the cursor will move to the new position accordingly. Press the pen tip on the screen to make a selection. Tap the screen once with the pen tip, or touch it to the screen with enough pressure to register a click.
  • Page 29 HS611 Click Use the pen tip to tap once on the screen to register a click. Tap to highlight or select an item on the screen and double-click to open it. Move Select the object, then slide the pen tip across the screen to move it. 29 / 33...
  • Page 30 HS611 Use the side buttons The buttons on the pen can be set to two different customizable functions. You can use the buttons whenever the pen tip is within 10mm of the tablet active area. You do not have to touch the pen tip to the tablet in order to use the switch. Pen Nib Replacement The nib will be wear off after using for a long time, then you need to replace a new nib.

  • Page 31: Specifications

    HS611 Specifications Here are the product specifications for you to learn more about the Tablet. If you have any questions, please feel free to contact us. The following data will vary in different usage environments and are for reference only. Appearance Color: Coral Red, Space Grey, Starry Blue...

  • Page 32: Troubleshooting Solutions

    You may have installed other tablet drivers or opened the drawing software when installing the driver. Please uninstall all drivers and close the drawing software, then reinstall the Huion driver. It's better to restart your computer after finishing the installation.
  • Page 33 10mm. How to manually set your tablet to phone mode? Click Here How to turn off the HS611 Press keys? Click Here If your problem is not resolved, please clickFAQsto view more troubleshooting methods or email us(service@huion.com). 33 / 33...
