Summary of Contents for Huion Inspiroy Q11K v2

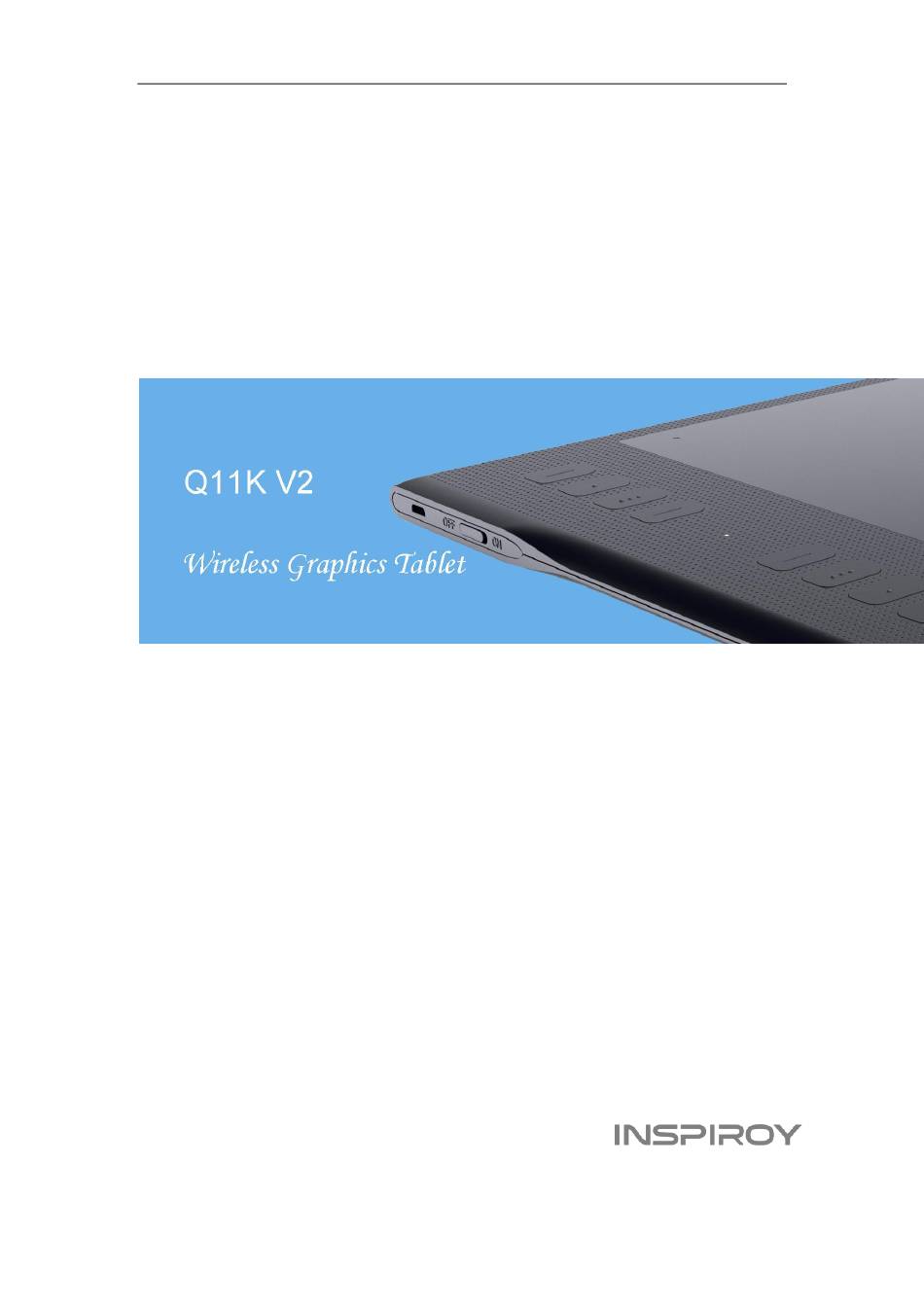

- Page 1 User Manual For Windows and Macintosh OS...
- Page 2 9. Do not insert foreign material into the USB port or any other opening of this product. If a metal object or foreign material is inserted into a port or other opening of this product it may cause the product to malfunction or burn out, or cause electronic shock. www.huion.com...
-
Page 3: Table Of Contents
3.8 Data Export and Import ...................... 14 4. Specifications ..........................15 5. Trouble Shooting ........................... 16 5.1 Possible Breakdowns Related to TABLET ................16 5.2 Possible Breakdowns Related to SYSTEM ................16 6. CE and FCC Notice ......................... 17 7. After-service Contact ........................18 www.huion.com... -
Page 4: Product Overview
1. Product Overview 1.1 Tablet Introduction Thanks for choosing HUION INSPIROY Q11K V2 wireless graphics tablet. This is a ® ® new generation of professional battery-free drawing tablet, which can greatly improve your work efficiency of painting and creation, and full of fun. You can freely painting and writing, depicting different lines and colors, just as the pen writes on the paper, which brings you a real shock experience. - Page 5 The stylus pen is a battery-free pen with 8192 levels pressure sensitivity and can be used without battery. 1.2.3 Wireless Receiver When using wireless mode, please insert the receiver into your computer and unplug the USB cable in the same time. www.huion.com...
-
Page 6: Tablet Connection
1.2.4 Accessories Digital Pen Pen Holder Replacement Nibs Quick Start Guide Micro USB Cable Pen Nib Clip 1.3 Tablet Connection 1.3.1 Wired Mode Connection Connect the tablet to your computer with USB cable. www.huion.com... -
Page 7: Driver Installation
Windows 7 or later，macOS 10.12 or later 1.4.2 Install Driver Please download the driver from our website: www.huion.com/download After finishing installation, you can find the driver icon in the system tray area, which means the driver was installed successfully; when you connect the tablet to... -
Page 8: Product Basic Operation
Press the pen tip on the screen to make a selection. Tap the screen once with the pen tip, or touch it to the screen with enough pressure to register a click. www.huion.com... - Page 9 The buttonson the pen can be set to two different customizable functions. You can use the buttons whenever the pen tip is within 10mm of the tablet active area. You do not have to touch the pen tip to the tablet in order to use the switch. www.huion.com...
-
Page 10: Using The Tablet
The battery status indicator shows RED when charging, and will be OFF when fully charged. 4. Whenever the tablet is connected to computer with USB cable, the wireless mode will be disabled. www.huion.com... -
Page 11: Function Setting
If your monitors are in mirror mode (All monitors display the same content), the tablet maps to the entire space on each monitor and the screen cursor is displayed on each monitor simultaneously. 10 / www.huion.com... - Page 12 2. Customized Area: 1.> Enter coordinate values. or2>. Drag the corners of the foreground graphic to select the screen area. 3.2.3 Rotate Working Area By changing the direction of the tablet to adapt to the left and right hand operation. You can rotate the tablet by 0°,90°,180° or 270°. 11 / www.huion.com...
-
Page 13: Press Keys Function Setting
APPLY or OK to take effect. Enable/Disable Press Keys: Check/Uncheck”Enable Press Keys” 3.4 Pen Buttons Function Setting Select the function to be achieved on the pop-up dialog box, then click APPLY or OK to take effect. 12 / www.huion.com... -
Page 14: Pressure Sensitivity Setting
3.6 Pen Pressure Testing Click “start pressure test”, you can gradually apply pressure to the stylus on the screen to test the pressure level. Click “Clear” button to clear all the ink. 13 / www.huion.com... -
Page 15: Enable The Windows Ink Feature
SketchBook 6 and so on. 3.8 Data Export and Import The driver supports exporting and importing your custom configuration data of the product, which is convenient for you to use different software and avoid the trouble of repeated settings. 14 / www.huion.com... -
Page 16: Specifications
Approx.10-15m (Depending on the actual use of the Wireless Distance environment) Battery Capacity 2500 mAh Life Time Approx. 30 hrs Windows 7 or later, OS Support macOS 10.12 or later Stylus Pen Model PW500 Pressure 8192 Levels Accuracy ±0.3 mm 15 / www.huion.com... -
Page 17: Trouble Shooting
There is no pressure in the graphics uninstall all drivers and close the drawing software, then software but the cursor moves reinstall the Huion driver. It’s better to restart your computer after finishing the installation.’ While using the tablet, the battery... -
Page 18: Ce And Fcc Notice
-- Consult the dealer or an experienced radio/TV technician forhelp. Specific Absorption Rate (SAR) information: This device meets the government's requirements for exposure to radio waves. The guidelines are based on standards that were developed by independent scientific 17 / www.huion.com... -
Page 19: After-Service Contact
Shenzhen, 518106, China Note: Information in this manual is subject to change without further notice. For more information, please contact us with our email: service@huion.com Or go to our website (www.huion.com) to get the latest driver and user manual. 18 / www.huion.com...
