HUION Inspiroy G10T - Tablet Manual

Product Overview

Product and Accessories

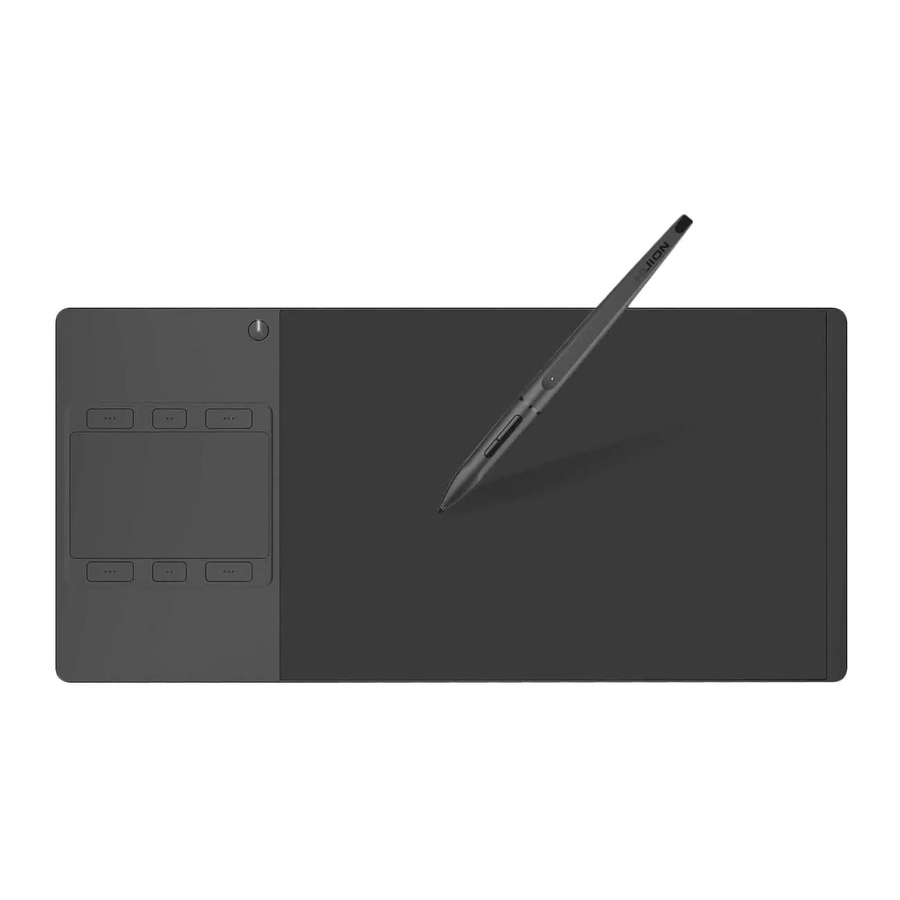

Graphics Tablet

Stylus Pen

The stylus pen is a rechargeable pen with 8192 levels pressure sensitivity and can be used for around 350hrs with full battery.

Wireless Receiver

When using wireless mode, please insert the receiver into your computer and unplug the USB cable in the same time.

Other Accessories

Tablet Connection

Wired Mode Connection

1. Connect the tablet to your computer with USB cable.


Wireless Mode Connection

1. Insert the wireless receiver to your computer.
2. Press the power button to power on the tablet.
3. When not using for 15mins, the tablet will enter sleep mode. In this case you need to press the power button again to wake the tablet up.


Driver Installation

OS Support

Windows 7 or later,
macOS 10.11 or later

Install via Download

Please download the driver from our website: www.huion.com/download
After finishing installation, you can find the driver icon in the system tray area, which means the driver was installed successfully; when you connect the tablet to computer, the icon will change to color , which means the driver has already recognized the tablet and you can start using it now.

Notice:

1. Before installing, you need to uninstall other driver of similar products, including the old driver of this product.
2. Before installing, please close all graphics software and anti-virus software to avoid unnecessary mistake.

Pen Nib Replacement

1. The nib will wear off after using for a long time, thus may affect your normal use, then you need to replace a new nib in time.
2. Take out the new nib and clip from pen box.
3. Pull out the old nib with the nib clip.
4. Insert the new nib straight into the pen and push the nib slowly and firmly until it stops.


Charging the Pen

1. When the indicator on the pen shows orange, it means the voltage of the pen is low, and then you need to charge the pen.
2. Charge the pen with the attached charging cable. Insert one end of the pen charging cable into the rear of the stylus charging port, the other end can be connected to a computer, power supply or power bank.


Product Basic Operation

Using The Pen

Hold the pen

Hold the pen as you hold a normal pen or pencil. Adjust your grip so that you can toggle the side switch easily with your thumb or forefinger. Be careful not to accidentally press the switch while drawing or positioning with the pen.

Notice: When not in use, place the pen in the pen case or on the desk. Do not place the pen on the surface of screen, which may interfere with the use of other screen cursor positioning equipment, may also cause your computer can not enter the sleep mode.

Position the cursor

Move the pen slightly above the active area without touching the screen surface, the cursor will move to the new position accordingly.
Press the pen tip on the screen to make a selection. Tap the screen once with the pen tip, or touch it to the screen with enough pressure to register a click.

Click

Use the pen tip to tap once on the screen to register a click. Tap to highlight or select an item on the screen and double-click to open it.

Move

Select the object, then slide the pen tip across the screen to move it.

Use the side buttons

The buttons on the pen can be set to two different customizable functions. You can use the buttons whenever the pen tip is within 10mm of the tablet active area.
You do not have to touch the pen tip to the tablet in order to use the switch.

Using the Tablet

Power Switch

1. The power switch was placed on the top left side of the tablet, when you use the tablet on wireless mode, you need to turn on the power switch before using.
2. When not use the tablet for 15 minutes or press the power button for 3 seconds, it will enter sleep mode.
3. LED indicator:

When working:
White-Detected pen or touch signal,
Off-no pen or touch signal,
Red flashes-Voltage is low, need to be charged.

When charging:
Red-Charging,
Off-Full Charge.

Press Keys

There are 6 press keys on the top left side of the tablet, which you can set the function on the driver interface according to your own habits, which will help to improve your work efficiency.

Charging the Tablet

1. Before using the tablet for the first time in wireless mode, you should fully charge the tablet battery. Do this by connecting the USB cable between tablet and a primary USB port on your computer, or to a powered USB port.
2. The USB cable is used for charging the battery, and also for operating the tablet as a wired USB tablet. The battery will charge whenever the USB cable is connected and the battery is not fully charged.
3. It will take about 7 hours to fully charge an empty battery. The actual charge time depends on current battery level and tablet use while charging. The battery status indicator shows RED when charging, and will be OFF when fully charged.
4. Whenever the tablet is connected to computer with USB cable, the wireless mode will be disabled.


Touch Pad

The top left side of the tablet is provided with a touch pad, you can achieve some basic operation with simple gestures, the default functions of the gestures are as follows:

Figure	Movement	Function	Gesture
Single finger	Tap the touchpad with one finger	Simulate the left mouse function
Two fingers	Tap the touchpad with two fingers	Simulate the right mouse function
	Swipe left/right with two fingers	Toggles the previous / next item
	Scroll up/down with two fingers	Scroll
	Move two fingers apart	Zoom in
	Pinch two fingers together	Zoom out
Three Fingers	Swipe left/right with three fingers	Switch tasks
Four Fingers	Tap the touchpad with four fingers	Display Desktop

Notice:

1. The above gestures only support some software.
2. Some of the gestures may not working on different OS version.
3. Touch function can be disabled in the driver.

Function Setting

Device Connection Prompt

1. Device disconnected: The computer does not recognize the tablet.
2. Device connected: The computer has recognized the tablet.


Working Area Setting

Using Multiple Monitors

Select the Working Area tab to define the relationship between pen movement on the tablet and cursor movement on the monitor screen.
By default the entire active area of tablet maps to the entire monitor. If more than one monitor is in use and you are in extended mode, you need to choose the related monitor on the driver interface which you are going to map to.

If your monitors are in mirror mode (All monitors display the same content), the tablet maps to the entire space on each monitor and the screen cursor is displayed on each monitor simultaneously.

Working Area Setting

Define the tablet area that will be mapped to the screen area.

1. Full Area: the entire active area of the tablet. This is the default setting.
2. Customized Area:
   1.> Enter coordinate values.
   or
   2>. Drag the corners of the foreground graphic to select the screen area.


Rotate Working Area

By changing the direction of the tablet to adapt to the left and right hand operation.
You can rotate the tablet by 0°,90°,180° or 270°.

Press Keys Function Setting

Default Setting: Place the cursor on the press key or click the press key to find the default values.
Customized Setting: Select the function to be achieved on the pop-up dialog box, then click APPLY or OK to take effect.
Enable/Disable Press Keys: Check/Uncheck"Enable Press Keys"
Enable/Disable Touch Pad: Check/Uncheck"Enable Touch"

Pen Buttons Function Setting

Select the function to be achieved on the pop-up dialog box, then click APPLY or OK to take effect.

Pressure Sensitivity Setting

The pressure sensitivity will be changed by dragging the slider up and down, the smaller the value, the more pressure sensitive.

Pen Pressure Testing

Click "Start Pressure Test", you can gradually apply pressure to the stylus on the screen to test the pressure level. Click "Clear" button to clear all the ink.

Enable the Windows Ink feature

Microsoft Windows provides extensive support for pen input. Pen features are supported in such as Microsoft Office, Windows Journal, Adobe Photoshop CC, SketchBook 6 and so on.

Data Export and Import

The driver supports exporting and importing your custom configuration data of the product, which is convenient for you to use different software and avoid the trouble of repeated settings.

Specifications

Trouble Shooting

Possible Breakdowns Related to TABLET

Possible Breakdowns Related to SYSTEM

Precautions

1. Please read this manual carefully before using, and keep it well for future reference.
2. Before cleaning the tablet please unplug the power cord and wipe with a soft damp cloth, do not use any kind of detergents.
3. Don't expose this product to water or other liquids. Take care to never spill liquids onto the tablet and pen. Exposing this product to water or other liquids may cause product malfunction or electrical shock.
4. Do not place the tablet on where is unstable or a height for children reaching easily in order to avoid danger. Prevent children from swallowing the pen nib or side switch. The pen nib, side switch, or other movable parts may accidentally be pulled out if children are biting on them.
5. Power off your tablet in locations where/when electronic devices is not allowed. Because the tablet may cause other electronic devices to malfunction in some locations where/when the use of electronic devices is not allowed, such as within an airplane, be sure to turn off the tablet.
6. To protect your tablet and save power, please switch off the power when it is not in use.
7. Do not disassemble the tablet and pen. Do not disassemble or otherwise modify the tablet or pen. Such action may cause heat generation, ignition, electronic shock, or other damage, including human injury. Disassembling the product will void your warranty.
8. While getting the components replaced, you are supposed to guarantee that the repairman is using the substitute components specified by the manufacturer. Unauthorized component replacement might cause fire, electric shocks or other dangers.
9. Do not insert foreign material into the USB port or any other opening of this product. If a metal object or foreign material is inserted into a port or other opening of this product it may cause the product to malfunction or burn out, or cause electronic shock.
10. Tablet and Digital pen has a lithium battery, which should be charged in time under low battery mode, and at the same time it should be charged every 3 months, otherwise it will cause lithium battery damage.
11. The nib of the digital pen can't be pressed when it is placing, otherwise the pen can't enter the power-saving state, which is easy to cause lithium battery over-discharge damage.

For more information, please contact us with our email: service@huion.com
www.huion.com
