Huion KAMVAS Pro 16 Plus GT1562 Manual

Product Overview

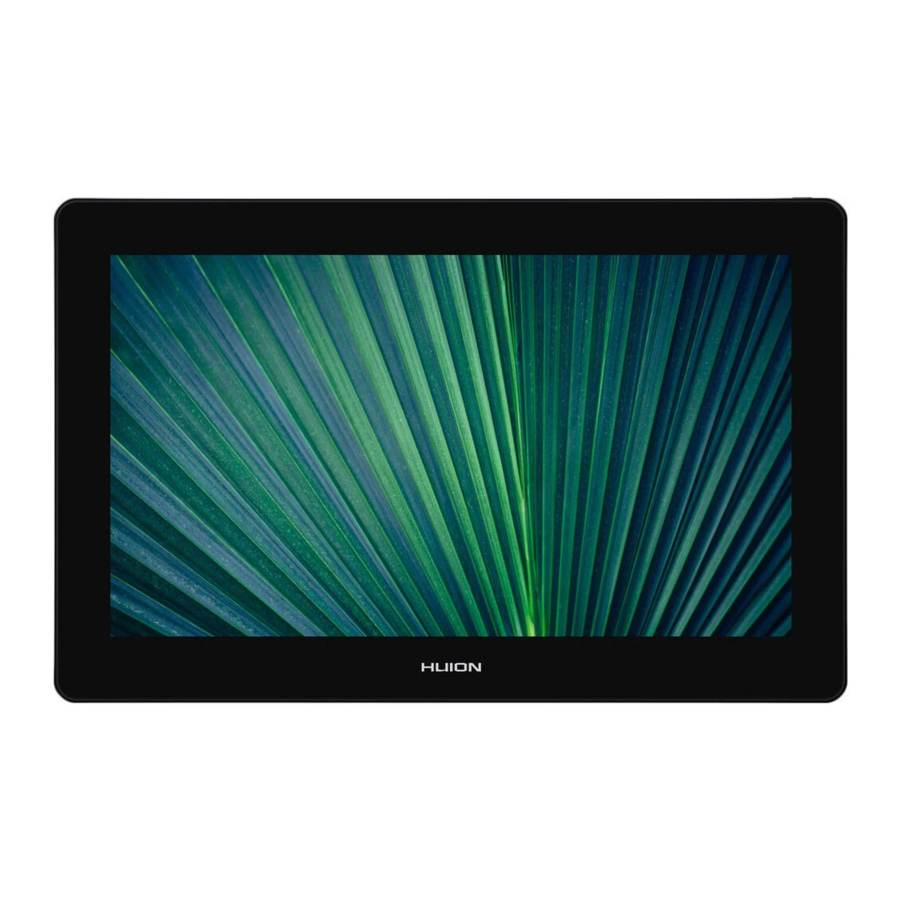

Display Introduction

Thanks for choosing HUION KAMVAS Pro 16 Plus (4K) creative display. This is a new generation of professional drawing display, which can greatly improve your work efficiency of painting and creation, and full of fun. You can freely paint and write, depicting different lines and colors, just as the pen writes on the paper, which brings you a real shock experience.

To give you a better understanding and using of your display, please read this user manual carefully. The user manual only shows the information under Windows, unless otherwise specified, this information applies to both Windows and Mac systems.

Product and Accessories

*Function Button: Press Power Button around three seconds to open the OSD menu.

Picture shown is for illustration purposes only.

Accessories

3-in-1 Cable

1. USB (Data)
2. HDMI
3. USB (Power)
4. Type-C

Adjustable Stand

We designed this ergonomic adjustable stand specially for your KAMVAS display, you can adjust the angle of the display according to your usage habit, and make you feel more comfortable when painting and creating.

Display Connection

Connect the pen display to your computer with 3-in-1 Cable or USB-C to USB-C Cable.

1. Connect the display to your computer with 3-in-1 cable;
   Connect the power adapter to the power cable.


When the power cable is not long enough to be connected to the power adapter, an extension cable is available to help reach further.
All USB power adapters are applicable as long as its gauge is 5V and 3A.

2. Connect the pen display with PC/Android device via USB-C to USB-C cable; Connect the power adapter to the power cable.


The USB-C to USB-C and power cable can be purchased separately. Please notice the USB-C to USB-C cable must meet the requirements of USB3.1 GEN1 and DP1.2 or above, and gauge of the power cable should be 5V, 3A at least.

Install Driver

OS Support

Windows 7 or later, macOS 10.12 or later.

Install Driver

Please download the driver from our website: www.huion.com/download
After finishing installation, you can find the driver icon " " in the system tray area, which means the driver was installed successfully; when you connect the display to computer, the icon will change to color " ", which means the driver has already recognized the display and you can start using it now.

Notes:

1. Before installing, you need to uninstall other driver of similar products, including the old driver of this product.
2. Before installing, please close all graphics software and anti-virus software to avoid unnecessary mistake.

Driver Page

After the download is successful, double-click to open the driver, connect the display to your computer with attached cables.
When the connection is complete, watch for a prompt at the bottom left of the driver page that display two states "Device disconnected" or "Device connected".

Pen Basic Operation

Hold the pen

Hold the pen as you hold a normal pen or pencil. Adjust your grip so that you can toggle the side switch easily with your thumb or forefinger. Be careful not to accidentally press the switch while drawing or positioning with the pen.

Notice:
When not in use, place the pen in the pen case or on the desk. Do not place the pen on the surface of screen, which may interfere with the use of other screen cursor positioning equipment, may also cause your computer can not enter the sleep mode.

Position the cursor

Move the pen slightly above the active area without touching the screen surface, the cursor will move to the new position accordingly.
Press the pen tip on the screen to make a selection. Tap the screen once with the pen tip, or touch it to the screen with enough pressure to register a click.

Click

Use the pen tip to tap once on the screen to register a click. Tap to highlight or select an item on the screen and double-click to open it.

Move

Select the object, then slide the pen tip across the screen to move it.

Use the side buttons

The buttons on the pen can be set to two different customizable functions.
You can use the buttons whenever the pen tip is within 10mm of the display active area.
You do not have to touch the pen tip to the display in order to use the switch.

Pen Nib Replacement

The nib will be worn off after using for a long time, then you need to replace a new nib.

1. Anticlockwise rotate the pen holder to open the cover, take a new nib out.

2. Insert the pen nib into the pen nib clip and tilt the pen to pull out the old nib.

3. Insert the new nib straight into the pen and push the nib slowly and firmly until it stops.


Pen-enabled OSD Menu

OSD settings on Kamvas Pro 16 Gen2 products can be done with the digital pen.

Method 1

Long press the power switch button to call up the OSD menu, and then use the digital pen to adjust the settings. The user interface is designed in a minimalist way, where options including Brightness, Color Temperature, General Settings and Exit are reserved, while seldom used ones are eliminated.

Brightness Settings

There are four mode of "Standard", "Game", "Movie" and "User" can be choosed. In "User" mode, you can adjust the brightness by dragging the bar on the upper right.

Color Temp Settings

There are four mode of "6500K", "9300K", "sRGB" and "User" can be choosed. In "User" mode, you can adjust the Color temperature by dragging the bar on the upper right. right.

General Settings

1. TypeC/HDMI: Display the current signal connection mode.
2. FULL: Switch the display ratio to FULL
3. : Switch the display ratio to 4:3.
4. : Switch the display ratio to 16:9.
5. : All the setting options will be restored to the default setting.

Exit button

Click the exit button to exit the OSD menu.

Method 2

1. Click the " " in the upper right corner of the driver to set.

2. Click on the "Activate OSD" button and then you can adjust the screen, scene mode, brightness, contrast and color.


Function Setting

Working Area Setting

Using Multiple Monitors

Select the Working Area tab to define the relationship between pen movement on the display and cursor movement on the monitor screen.
By default the entire active area of display maps to the entire monitor. If more than one monitor is in use and you are in extended mode, you need to choose the related monitor on the driver interface which you are going to map to.
If your monitors are in mirror mode (All monitors display the same content), the display maps to the entire space on each monitor and the screen cursor is displayed on each monitor simultaneously.

Working Area Setting

Define the display area that will be mapped to the screen area.

1. Full Area: the entire active area of the display. This is the default setting.
2. Screen Ratio: As a general rule, be 16:9.
3. Customized Area:
   1. Enter coordinate values.
   2. Drag the corners of the foreground graphic to select the screen area.

Rotate Working Area

By changing the direction of the display to adapt to the left and right hand operation. You can rotate the display by 0°, 90°, 180° or 270°.

Display Setting

Click the " " in the upper right corner of the driver to set the Display, including General settings, Hotkeys and Updates.

General settings

1. Add App: Shortcut key function can be set by adding different programs.
   When opening different programs, the driver will automatically recognize that the shortcut function is the corresponding function set.

2. OSD Adjustment: Click on the "Activate the OSD" button and then you can adjust the screen, scene mode, brightness, contrast and color.


Hotkeys settings

Set the shortcut key to quickly open the driver interface. The default value is Ctrl+Alt+H, which can be set according to usage habits.

Updates

You can view the driver version number, click "Check for Update", view the latest driver version, and update according to the system prompt.

Pen Buttons Function Setting

Select the function to be achieved on the pop-up dialog box, then click "Apply" or "OK" to take effect.

Enable the Windows Ink Feature

Microsoft Windows provides extensive support for pen input. Pen features are supported in such as Microsoft Office, Windows Journal, Adobe Photoshop CC, SketchBook 6 and so on.

Pressure Sensitivity Setting

The pressure sensitivity will be changed by dragging the slider up and down, the smaller the value, the more pressure sensitive.

Drag upward (left): the pressure change is more obvious, small pressure produces a great pressure.
Drag down (right): pressure change is weak, a lot of pressure produces less pressure.
Click the button at the bottom right of the Settings box to reset the pressure sensitivity to the default state.

For example: apply *N respectively the same pressure, under different pressure coefficient produced different pressure effects. According to their habit of holding the pen posture and the size of the hand for the appropriate pressure Settings.

Pen Pressure Testing

You can gradually apply pressure to the stylus on the screen to test the pressure level.
Click " " button to clear all the ink.

Pen Nib Activity Setting

The pen nibs can be set to be Active/Inactive as needed. Click the drop-down option to select, and click OK again to save the Settings. In Active mode, the digital pen can be used normally. In Inactive mode, the digital pen has cursor movement, but cannot complete the specified action.

Data Export and Import

The driver supports exporting and importing your custom configuration data of the product, which is convenient for you to use different software and avoid the trouble of repeated settings.

Specifications

Trouble Shooting

Precautions

Please read this manual carefully before using, and keep it well for future reference.

• Before cleaning the display, please unplug the USB cable and wipe with a soft damp cloth, do not use any kind of detergents.
• Please don't place the display near water sources such as bathtub, washbasin, sinks, washing machine, damp basement, swimming pool, etc.
• Do not place the display on where is unstable or a height for children reaching easily in order to avoid danger.
• Do not place the display and digital pen close to the magnetic field.
• The grooves and holes on the back case is designed for ventilation to prevent the monitor from overheating. Please don't place the display on beds, sofas, carpets or in embedded device.
• Only power supplies shown on the nameplate can be used for the display. If you have questions about the power supply which you are using, please consult the distributor of your display.
• To protect your display, please switch off the power when it is not in use. During blackouts or not using for long time, please unplug the display from the socket.
• Make sure no foreign bodies get inside the monitor through grooves and prevent liquid from splashing on the display as to prevent short-circuit or fire.
• If the display has a breakdown, do not open the main case and try to repair it by yourself. Please ask for a service for proper repair and maintenance.
• When the following situations occur, please unplug the power adapter and you may need a service for full repair and maintenance:
  1. The power wire or plug is damaged or worn out;
  2. There is liquid splashed inside of the display;
  3. The display has fallen or the LCD is broken;
  4. When obvious abnormalities occur to the display.
•
  While getting the components replaced, you are supposed to guarantee that the repairman is using the substitute components specified by the manufacturer. Unauthorized component replacement might cause fire, electric shocks or other dangers.

After-service Contact

SHENZHEN HUION ANIMATION TECHNOLOGY CO., LTD.
Bldg 28, Quarter 4, HuaiDeCuiGang Industrial Park, Fuyong Street, Bao'an District, Shenzhen, 518106, China

The information in this manual is subject to change without notice. For more information, please contact us by email: service@huion.com
Or visit our website www.huion.com to get the latest driver.
