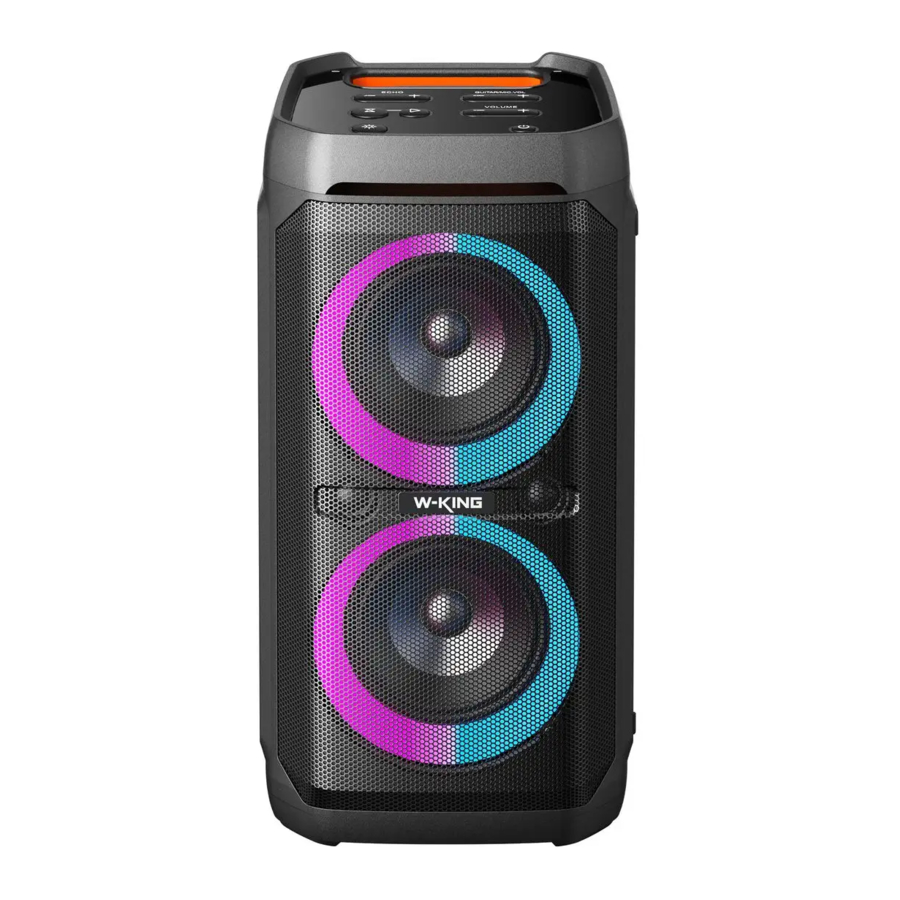

W-KING T11 - Party Speaker Manual

Introduction

1. Microphone / Guitar Input
2. Reset
3. USB Port( AS Power Bank)
4. USB Flash Drives Port
5. AUX
6. TF Card Slot
7. Charging Port

1. ECHO - / ECHO+
2. Microphone volume - / Microphone volume +
3. True Wireless Stereo Pairing
4. Play / Pause
5. Volume - / Volume +
6. Light Mode
7. LED Indicator
8. Battery Indicator
9. Power ON / OFF

Specifications

Charging

Fully charge this speaker before first use. Using the included Power Adapter ( DC 15V 1.6A ) to charge your speaker. When there are 3 solid white lights, your speaker is fully charged Charging takes around 3.5 hours.

Battery

Low Battery

Power Bank function

1. Press the power button for IS to turn on the power bank function separately.
2. When the power bank function is turned on alone, the load is detected in 10 seconds, If no load is detected during this period, the power bank function will be turned off.
3. When the speaker is turned on, the power bank is always on, and when the speaker battery is lower than 20%, the power bank output will be turned off.
   Notes: When the speaker is charging, the power bank will be forced to turn off.

Connection Way

Bluetooth connection

Notes

• To reset the speaker (to clear the pairing list or any program errors), use a straightened paper clip or a toothpick to carefully short-press the reset hole.
• The speaker will automatically shut down after 10 minutes in pairing mode if no devices are paired
• If your paired device is switched off or manually disconnected, the speaker will enter pairing mode and automatically shut down after 10 minutes
• If the speaker or connected device exceeds the operating range, the speaker will disconnect. The connection to the last successfully connected device will be re-established once you re-enter wireless range within 10 minutes. To connect to other devices, please repeat the previous "Pairing" steps

Other Connection ways

Notes

• The speaker will disconnect from your phone or other paired device when an audio cable is plugged into the audio input jack.
• When playing audio using the audio input jack, press the volume + / - to adjust the volume. and short-press play/pause to pause or resume. Next / previous track control on the speaker is disabled in audio input mode.
• For some computers, you may need to access the audio control panel to manually set the speaker as the default audio device

Microphone / Guitar Function

*Notes: The guitar function can only be used when the reverb effect is 0.

True Wireless Stereo Pairing

The True Wireless technology enables you to use two speakers paring via Bluetooth to create a wireless dual-channel system to deliver true stereo sound effect.

Actions	Operation	LED status
Power on	Turn on both T11 Bluetooth speakers(the distance should not be over 10 meters, and make sure that the Bluetooth of your two speakers are not connected).	Master speaker: Blue LED flashes.
True wireless Stereo	Select one speaker as the Master speaker, and Short press the button (any machine) in any mode, Enter True wireless stereo paring mode, True wireless stereo paring default search time is one minute, if not connected for one minute, it will automatically exit True wireless stereo paring.	Master speaker: Blue and Green LED flash Slave speaker: Blue LED stays on.
Connection between two W-KING Tl I speakers	successfully connection	The Blue LED indicator of the Master speaker flashes slowly and the Slave speaker LED keep bright blue.
Connect with mobile	When True wireless stereo paring successfully connected, turn on your phone's Bluetooth, search "W-KING Tl 1" and connect the Master speaker.	Master and Slave speaker LED keeps bright blue
Disconnect true pairing	When True wireless stereo paring successfully connected, Short press the button, the true wireless stereo will be disconnected.	Master speaker: Blue LED flashes. Slave speaker: Blue LED flashes.

LED Lights Mode

Click " " buttonto change the LED Lights modes.

1. Rotational pulsation from bottom to top.
2. Half-circle rotation (rotate and chase with the rhythm of the music)
3. Full cycle rotation (speed automatic).
4. Brightness flashes to the beat of the music.
5. Flow from the middle up and down.
6. Turn off the lights.

Basic Controls

Functions	Instructions
Adjust Volume	Short press volume button + / -
Pause / Play	Press Play / Pause button
Next / Previous track	Long press" + / -" button to Next / Previous track
Switch Mode	Short press power button to switch.
Light Mode	Short press light mode button

Equalizer Mode

Sound Effect Adjustment (EQ Modes)	LED Status
Long pressthe button " " for 2 seconds to switch between bass mode and treble mode.	Bass Mode: Solid blue light
	Treble Mode: Flashing blue light

Product Care & Use

Keep away from liquids, extreme heat, and strong magnetic fields. Do not use this speaker at high volume for extended periods, as this may cause permanent hearing damage or loss.
