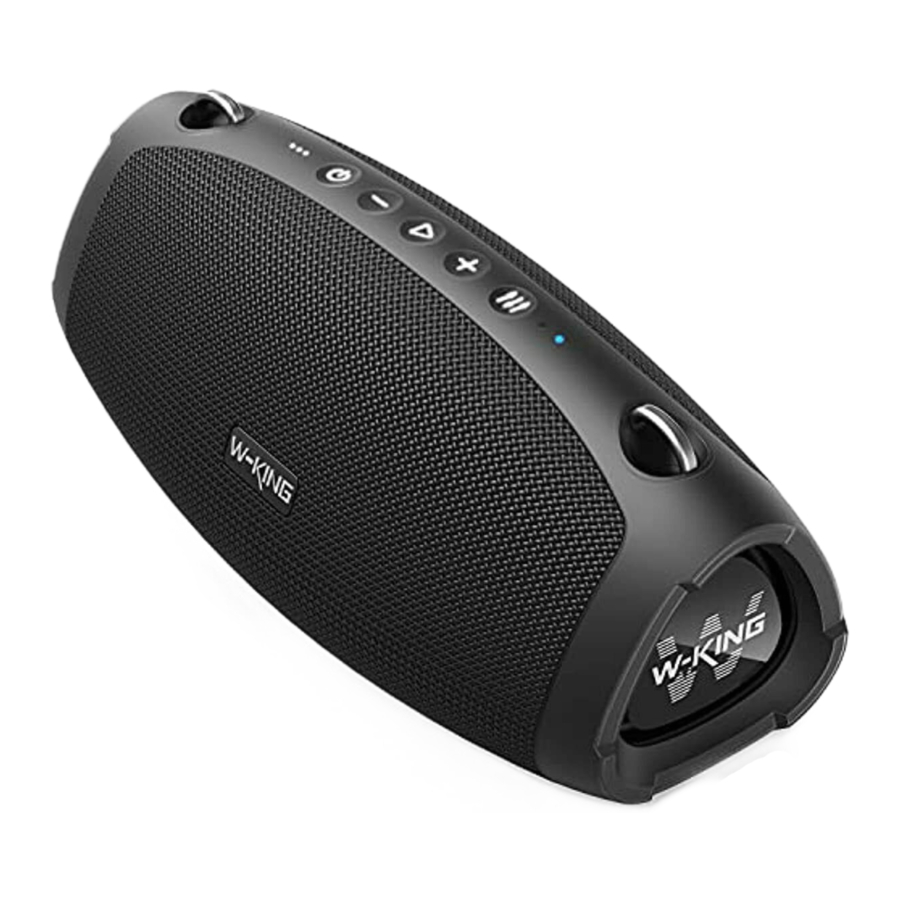

W-KING X10 - Wireless Speaker Manual

Introduction

Please read this user manual carefully and keep it for future reference. If you need any assistance, please contact our support team with your product model number and order number.
Amazon E-mail: support.amazon@w-king.com

Package Contents

X10 Wireless Speaker
USB A to USB C Charging Cable
3.5mm Audio Cable
User Manual

Product Diagram

Product Diagram

Specifications

Specifications

Charging

Fully charge this speaker before first Use. Used our provided USB Type-C charging cable to charge your speaker. When there are 3 solid white lights, your speaker is fully charged and ready for Use. Charging takes around 8.5-9 hours.
Note
USB Power adapter is NOT INCLUDED.
Charging

Power On / Off

Long press the ON/OFF button for 2-3 seconds to power on or off (LED indicator flashes blue or off)

Pairing

  1. When you turn on the speaker, the speaker will automatically enter pairing mode and the LED indicator will start to flash blue rapidly
  2. Active the pairing function on your phone or other compatible device and select "W-KING X 10"
  3. If a code or pin is required for pairing, please enter "0000"
  4. When successfully paired, the LED indicator will stay blue

Notes

  • To reset the speaker (to clear the pairing list or any program errors), use a straightened paper clip or a toothpick to carefully short-press the reset hole
  • The speaker will automatically shut down after 10 minutes in pairing mode if no devices are paired
  • If your paired device is switched off or manually disconnected, the speaker will enter pairing mode and automatically shut down after 10 minutes
  • If the speaker or connected device exceeds the operating range, the speaker will disconnect. The connection to the last successfully connected device be re-established once re-enter wireless range within 10 minutes. To connect to other devices, please repeat the previous "Pairing" steps

Playing Audio via Audio Input Connection

  1. Connect the X10 to your PC, laptop, or other device with audio Output port using the included 3.5mm audio cable
  2. Long press the on/off button for 2-3 seconds to turn on, and the LED indicator will light up solid green

TF Card Function

  1. Insert a TF card into the TF card slot on X10
  2. Green LED confirms that the speaker has enter TF card mode

Notes

  • The speaker will disconnect from your phone or other paired device when an audio cable is plugged into the audio input jack
  • When playing audio using the audio input jack, press the volume + / to adjust the volume and short-press play/pause to pause or resume. Next / previous track control on the speaker is disabled in audio input mode
  • For some computers, you may need to access the audio control panel to manually set the speaker as the default audio device

Charging Phone / Tablet

  1. Connect your phone / tablet to the type-c port of the X10 speaker
  2. Turn on the speaker, your device will be charged automatically
  3. Turn off the speaker to discharge your device

Adjust Sound Effect

Short press the Equalizer button "" to switch between indoor or outdoor mode

True Wireless Stereo Pairing

True Wireless Stereo Pairing

  1. Turn on both of your X10 speaker simultaneously, you will see blue LED indicator flashes rapidly on the two devices
  2. Select one speaker as the leading speaker, double press the ON / OFF button to start pairing.
  3. After successfully paired, the blue LED indicator of the leading speaker flashes slowly and the secondary speaker LED keeps bright blue
  4. Turn on your phone's Bluetooth, search "W-KING X 10" and connect. The blue LED indicator of the leading speaker keeps bright. The two speakers will play music simultaneously when complete pairing
  5. To disconnect True Wireless Stereo pairing, press the volume button "+" and "-" at the same time, you will see blue LED flashes rapidly on the secondary speaker, that means True Wireless Stereo unpaired successfully

We have two version X10 speakers. I'W-KING Xl 0-1" and I'W-KING X10" are the different version speaker. The W-KING Xl 0 is an upgraded version of the W-KING X 10-1.They could not be paired in True Wireless Stereo mode. True Wireless Stereo function only works under the same Bluetooth name.

Controls & LED Indicators

Functions Instructions
Adjust Volume Short press volume button + / -
Pause / Resume Short press play/pause button
Next / Previous track Long press + / - to Next / Previous track
Cancel pairing When connected, press volume button + and - at the same time
Answer / End a call Short press the play/pause button once
Reject an incoming call Long press the play/pause button for 2 seconds
LED Indicator Status
Blue Flashing Rapidly Pairing mode / Disconnected
Solid Blue Connected / Outdoor mode
Solid Green Audio input mode
White Lights Flashing Charging
White Lights On (after charging) Fully charged

Product Care & Use

  • Keep away from liquids, extreme heat, and strong magnetic fields
  • Do not use this speaker at high volume for extended periods, as this may cause permanent hearing damage or loss

Documents / Resources

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download W-KING X10 - Wireless Speaker Manual
