W-KING D9-1 - Wireless Speaker Manual

Introduction

Please read this user manual carefully and keep it for future reference. you need any assistance, please contact our support team with your product model number and order number.
Amazon E-mail: support.amazon@w-king.com

Package Contents

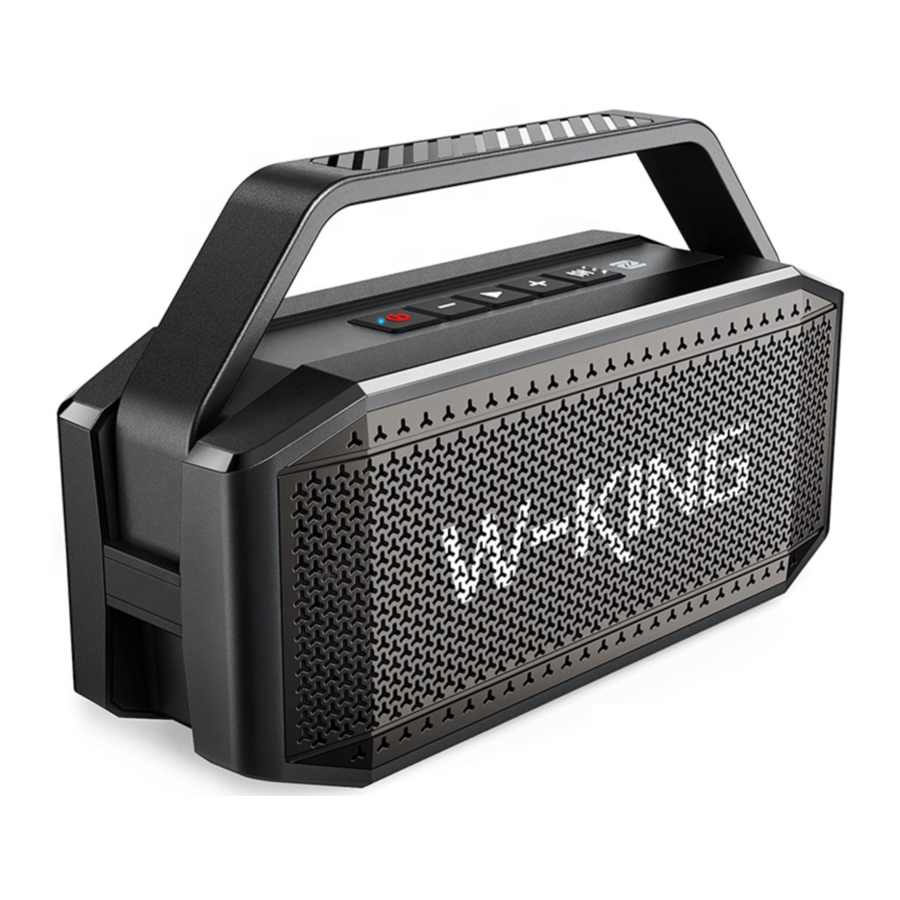

D9-1 Outdoor Wireless Speaker
USB Type-C Charging Cable
3.5mm Audio Cable
User Manual

Product Diagram

Product Diagram

Specifications

Specifications

Charging

Fully charge this speaker before first Use. Use our provided USB Type-C charging cable to charge your speaker. Connect one end to the charging port, another end to a 5V / 2A USB power adapter (not include). When all three white LED charging indicators light up, your speaker is fully charged and ready for Use. Charging takes around 7-8 hours.
Note: USB power adapter is not included
Charging

Power On / Off

Long press the ON/OFF button for 2-3 seconds to power on or off the speaker

Bluetooth Pairing

  1. When you turn on the speaker, it will automatically enter pairing mode and the LED indicator will start to flash blue rapidly
  2. Enable Bluetooth on your phone or other compatible device and select "W-KING D9-l "
  3. When successfully paired, the LED indicator will stay solid blue

Notes

  • To reset the speaker (to clear the pairing list or any program errors), use a straightened paper clip to carefully short-press the reset hole at the rear of the speaker
  • The speaker will automatically shut down after 10 minutes in pairing mode if no devices are paired
  • If your paired device is switched off or manually disconnected, the speaker will enter pairing mode and automatically shut down after 10 minutes
  • If the speaker or connected device exceeds the operating range, the speaker will disconnect. The connection to the last successfully connected device will be re-established once you re-enter wireless range within 10 minutes. To connect to other devices, please repeat the previous "Pairing" steps

Reset Speaker

Use a straightened paper clip to press the reset hole at the rear of the speaker

Play Audio via Audio Input Connection

  1. Connect the speaker to your PC, laptop, or other device with audio output port using the included 3.5mm audio cable
  2. Long press the on/off button for 2-3 seconds to turn on, and the LED indicator will keep solid green

Notes

  • The speaker will disconnect from your phone or other paired device when an audio cable is plugged into the audio input jack
  • When playing audio using the audio input jack, press the volume + / - to adjust the volume and short-press play/pause to pause or resume. Next/previous track control on the speaker is disabled in audio input mode
  • For some computers, you may need to access the audio control panel to manually set the speaker as the default audio device

Charging Phone/Tablet

  1. Connect your phone/tablet to the USB port of the speaker
  2. Turn on the speaker, your device will be charged automatically
  3. Turn off the speaker to discharge your device

Adjust Sound Effect / Equalizer

Short press the Equalizer button " " to switch between bass boost mode and high and treble boost mode

TF Card Playback

  1. Insert a TF card into the TF card slot on the speaker
  2. Green light keeps bright at indoor mode, flashes at outdoor mode

Answer / Reject / End / Redial Calls

  1. Short press the Play / Pause button to pick up an incoming call
  2. Long press the Play / Pause button to reject an incoming call
  3. Short press the Play / Pause button during a call to hang up
  4. Long press the Play / Pause button to redial the last dialed number

True Wireless Stereo Pairing

True Wireless Stereo Pairing

  1. Turn on both of your D9-l speakers simultaneously, you will see blue LED indicator flashes rapidly on the two devices
  2. Select one speaker as the leading speaker, double press the ON/OFF button to start pairing.
  3. After successfully paired, the blue LED indicator of the leading speaker flashes slowly and the secondary speaker LED keeps bright blue
  4. Turn on your phone's Bluetooth, search "W-KING D9-l " and connect.
    The blue LED indicator of the leading speaker keeps bright. The two speakers will play music simultaneously when complete pairing
  5. To disconnect True Wireless Stereo pairing, press the volume button "+" and "-" at the same time, you will see blue LED flashes rapidly on the secondary speaker, that means True Wireless Stereo unpaired successfully

* Note: Please pair the speakers first, then turn on Bluetooth on your device. Don't turn on Bluetooth first then pair the speakers.
Because of the shortage of chips in the whole market, we have two version D9 speakers."W-KlNG D9" and "W-KING D9-1 " are the different version speaker. They could not be paired in True Wireless Stereo mode. True Wireless Stereo function only works under the same Bluetooth name. We may not sell "W-KING D9" any more.

NFC Pairing

  1. Long press the power button for 2-3 seconds to turn on the speaker
  2. EnabIe NFC on your device and put it close to the NFC logo on the speaker
  3. Wait for a few minutes and you will see pop-up window on your phone screen, tap "Confirm" or "OK" to continue
  4. YOU will hear a sound once successfully paired
    Note: Please turn OFF Bluetooth on your device before connecting NFC.

Product Care & Use

Functions Instructions
Adjust volume Short press volume button +/-
Pause / Resume Short press play/ pause button
Next / Previous track Lon ress +/- to Next /Previous track
Cancel pairing When connected, press volume button + and - at the same time
Answer / End a call Short press the play / pause button once
Reject an incoming call Long press the play/pause button for 2 seconds
Redial last-called number Long press the play/pause button
LED Indicator Status
Blue flashing rapidly Pairing mode / Disconnected
Solid blue Connected / Bass boost
Blue flashing High and treble boost
Solid green Audio input mode
Red light flashing Low battery
White lights flashing Charging
White lights on (after charging) Fully charged

Product Care & Use

  • Keep away from liquids, extreme heat, and strong magnetic fields
  • Do not use this speaker at high volume for extended periods, as this may cause permanent hearing damage or loss
