W-KING D10 - Party Speaker Manual

Table of Contents

Sound Great!

Why not help other people hear something special?

	Tell your friends and family
	Share your experience by writing an online review

We can put things right for you.

Our friendly customer support team are always here to help you:
Amazon E-mail: support.amazon@w-king.com

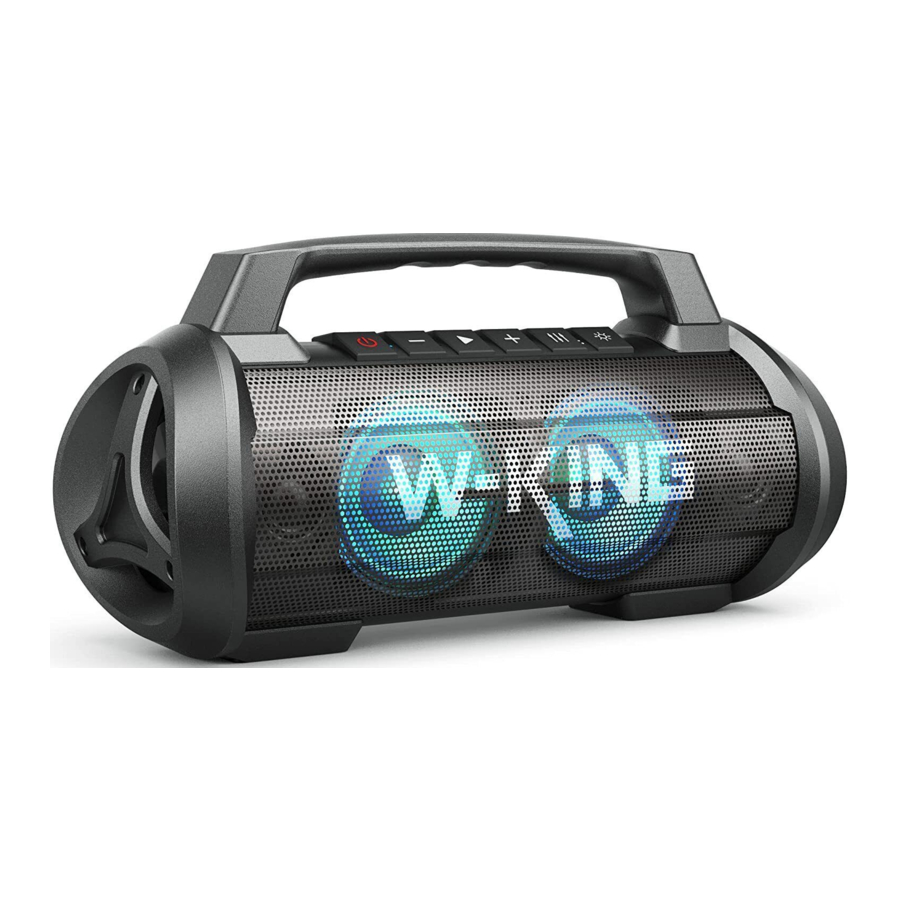

DIO Portable Party Speaker
USB Type-C Charging Cable
3.5mm Audio Cable
User Manual

Fully Charge this speaker before first Use.
Use the included USB Type-C charging cable and a 5V 2A power adapter to charge your speaker. The power adapter is NOT INCLUDED.
When there are 3 solid white lights, your speaker is fully charged and ready for use.

Battery Type	7800mAh
Battery Voltage	7.2V
Low battery alarm (When battery voltage lower than 6.9V (20%) & 6.2V (10%))	Red LED flashes
Automatically turn off at low battery (When battery voltage lower than 0%))	/
Input voltage/current	TYPE-C USB:5V/2.4A
Charging time	Around 7.5 hours

Actions	Operation	LED status
Power on	When the speaker on power off status, press and hold the power button for 2 to 3 seconds.	Blue LED on
Power off	When the speaker on power on status, press and hold the power button for 2 to 3 seconds.	LED turns off

Bluetooth Pairing

Actions	Operation	LED status
Pairing	Automatically enter pairing mode when turn on the speaker.	Blue LED flash
Connected	Select the Bluetooth pairing name "W-KING D10" on mobile phone.	Blue LED stays on (successfully paired)
Disconnected manually	Press volume + and volume - at the same time for 2-3 second.	Blue LED flash
Reconnect	Speaker will reconnect with last device when power on.	Blue LED stay on

Other Connection Way

Actions	Operation	LED status
AUX Mode	Insert AUX cable to enter AUX mode.	Play: green LED stays on Pause: green LED flashes
TF-Card Mode	Insert TF-card to enter TF-card mode.	Indoor mode: green LED stays on Outdoor mode: green LED flashes slowly
Switch Mode (Bluetooth/ AUX/TF-Card)	Short press power button to switch. (Note: The mode can only be changed when there are more than two connection modes at the same time.)	/

Note:

If a code or pin is required for pairing, please enter "0000"
The speaker will automatically shut down after 10 minutes in pairing mode if no devices are paired.
If speaker can not enter pairing, please reset the speaker to clear the pairing list or any program errors.
The speaker can remember last volume and mode, it will continue at the same status when turns on again.
If your paired device is switched off or manually disconnected, the speaker will enter pairing mode and automatically shut down after 10 minutes.
If the speaker or connected device exceeds the operating range, the speaker will disconnect. The connection to the last successfully connected device will be re-established once you re-enter wireless range within 10 minutes. To connect to other devices, please repeat the previous "Pairing" steps.

Actions	Operation	LED status
Pick up the call	When receive a phone call, short press "play/pause" button.	Blue LED stays on
Hang up	During a phone call, press the "play/pause" button.	Blue LED stays on
Reject the call	When receive a call, long-press the "play/pause" button.	Blue LED stays on

Actions	Operation	LED status
Power on	Turn on both DIO bluetooth speakers. (note: Please make sure that the Bluetooth of your two speakers is not connected)	Blue LED on
True Wireless	Select one speaker as the master speaker, and then double press the power button of the master speaker to start pairing.	Blue and green LED flash (master speaker)
Connection between two speakers	Successfully connection. (do nothing, just wait pairing)	Slave speaker blue LED stay on, blue LED on master flash slowly
Connect with mobile	When"True Wireless Stereo"successfully connected, open Phone's Bluetooth to search and connect the master speaker.	Master and slave speaker blue LED stay on

Note: In "True Wireless Stereo"mode, only the master speaker has phone call function.

Actions	Operation	LED status
Adjust Volume	Short press volume+/- button	/
Next/Previous Track	Press and hold volume + /- button	/
Pause/Play/ Mute	Press the Play/Pause button (In AUX mode, it's a mute function)	/
Switch Equalizer Mode	Short press Equalizer button	Default setting: turns on Enhance bass Equalizer: slowly flashes
Light Mode	Short press light mode button
Reset	Press the reset button	LED turns off

(The following situations are all after the microphone is connected)

Actions	Operation
Mic Volume Mode	Press and hold the "Equalizer" button until you hear ONE "bee-", then short press "Volume +/-" buttons to adjust volume.
Music Volume	When you enter mic volume mode, 10 seconds of no operation will automatically enter the music volume, then Short press "Volume +/-" buttons to adjust music volume.

Keep away from liquids, extreme heat, and strong magnetic fields.
Do not use this speaker at high volume for extended periods, as this may cause permanent hearing damage or loss.
