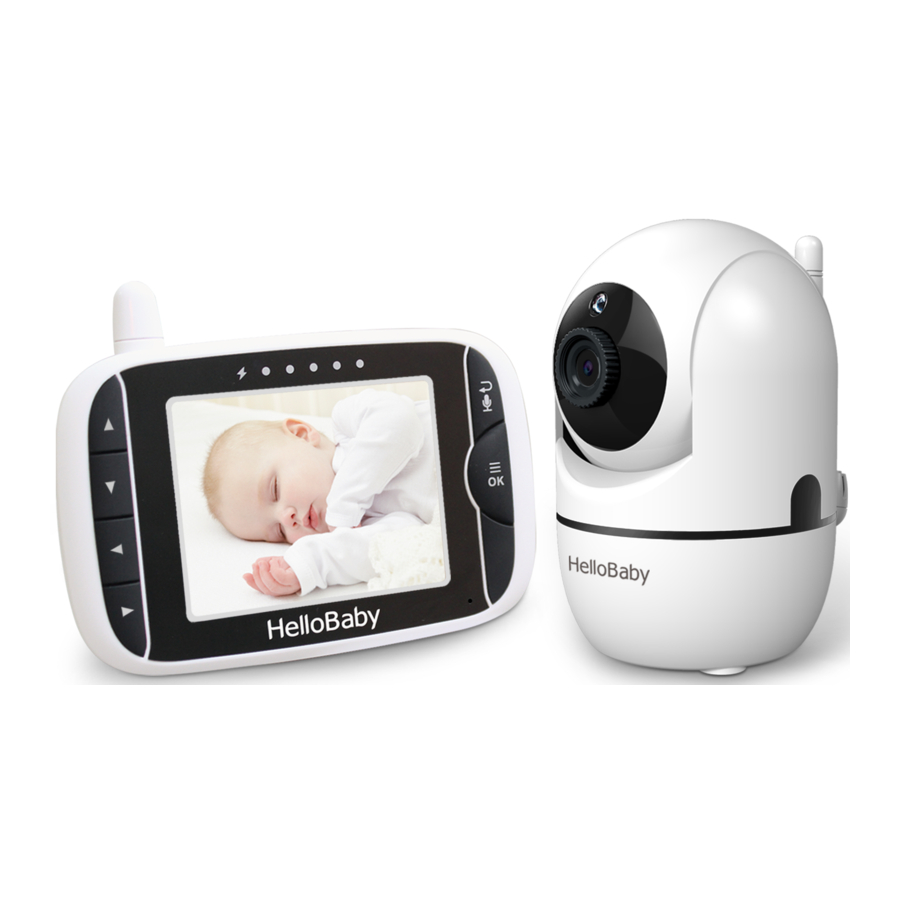

HelloBaby HB65 - Baby Monitor Manual

PACKAGE CONTENTS

Please make sure you have the following in your package

• Parent unit x 1
• User manual x 1
• Camera unit x 1
• Wall-mounting kit x 1
• Power Adapter x 2

SAFETY INSTRUCTIOINS

Keep the device away from children.

Strangulation Hazard: Children have STRANGLED in cords. Keep this cord out of the reach of children (more than 3ft (1m) away). Never use extension cords with AC Adapters. Only use the AC Adapters provided.
Choking Hazard: This product contains small parts, so exercise care when unpacking and assembling the product.
Read and keep to instructions: All the safety and operating in structions should be read before the video baby monitor is operated. This product cannot replace responsible adult supervision.
Water and moisture: This product is designed for indoor use only. The unit should not be exposed to rain, moisture, dripping or splashing. No objects filled with liquid should be placed on top of, or beside the product, such as a glass or vase. This item should not be used near water.
DO NOT: Use the appliance if the cord or plug is damaged. If your baby monitor is not operating properly or has suffered any damage, contact "HelloBaby" service center to request inspection and repair of the appliance in order to avoid any possible risk.
DO NOT: Attempt to repair or adjust any of the electrical or mechanical functions of the unit, if you do, the guarantee will be made void.
Ventilation: This baby monitor should not be used on a bed, sofa, rug or similar surface that may block the ventilation openings, or be placed in an enclosed area such as a bookcase or drawer that may impede air flow.
Keep away from sources of heat: This unit should not be exposed to direct heat sources such as a candle, radiator, heat register, stove or other appliance that emits heat. The unit should not be left in direct sunlight.
Power source: This unit should only be used with the AC power adapters included in this package (rated 6V 600mA/ rated 5V 1000mA).
Damage requiring service: This unit should be serviced by qualified personnel only when:

• Objects have fallen or liquid has been spilled into the product;
• The units have been exposed to rain;
• The units do not appear to operate normally or exhibits a distinct change in performance;
• The units have been dropped or the enclosure damaged;

INSTALLATION GUIDELINES

* To use your parent unit and camera unit together, you must be able to establish a radio link between them, and the range will be affected by environmental conditions.
* Any large metal object, like a refrigerator, a mirror, a filling cabinet, metallic doors or reinforced concrete between the baby and parent unit may block the radio signal.
* The signal strength may also be reduced by other solid structures, like walls, or by radio or electrical equipment, such as TV, computers, cordless or mobile phones, fluorescent lights or dimmer switches.
* Use of other 2.4GHz product, such as wireless networks (Wi-Fi routers), Bluetooth systems, or microwave ovens, may cause interference with this product, so keep the baby monitor away at least 5ft (1.5m) from these types of products, or turn them off if they appear to be causing interference.

PLACEMENT OF THE CAMERA UNIT

The camera can be placed at wall mount and desktop modes. Place the baby monitor away from heat sources such as radiators, chimneys, cookers and direct sunlight; place the baby unit away from TV sets, microwave oven and to ensure optimal reception.

GETTING STARTED

TURN ON THE CAMERA UNIT

*Only use the A/C adapter included in this package (5V, 1A);

1. Insert the plug of the Camera Unit power adaptor into the DC socket in the back of the Camera unit.
2. Insert the other end of the power adaptor into a suitable electrical outlet.
3. Once the adapter is connected, the power LED will light up.

TURN ON THE PARENT UNIT

* Only use the A/C adapter included in this package (6V, 600mA);
* The parent unit is supplied with a built-in rechargeable Li-ion battery (3.7V 950mAh). Charge the battery in the Parent Unit at least 12 hours before using for the first time or when the Parent Unit indicates that the battery is low.

1. Insert the round plug of the Parent Unit's power adaptor (Output 6V 600mA) into the DC socket of the Parent Unit.
2. Insert the other end of the power adaptor into a suitable electrical outlet.
3. Press and hold the power key on the top of the parent unit. The battery status indicator will light up indicates that the Parent Unit is connected to the electrical outlet.

AUTOMATIC INFRARED NIGHT VISION

The infrared night vision function allows the camera to pick up images in dark or low light conditions. In this mode, only black and white images will be displayed on the monitor, the optimum image is 6ft (2m) distance between baby unit and object. When the camera is in night vision mode, the icon will be displayed on the top of screen.

PRODUCT OVERVIEW

ICONS OVERVIEW

PARENT UNIT OVERVIEW

BABY UNIT OVERVIEW

KEY OPERATION

1. POWER SAVE/SCREEN OFF
   Short press the power key to turn on / off the screen.
2. UP KEY
   Press once to tilt the camera up by one step. Press and hold to tilt continuously.
3. DOWN KEY
   Press once to tilt the camera down by one step. Press and hold to tilt continuously.
4. LEFT KEY
   Press once to pan the camera left by one step. Press and hold to pan continuously.
5. RIGHT KEY
   Press once to pan the camera right by one step. Press and hold to pan continuously.
6. CAMERA VIEW/SCAN
   Press scan key to view/scan camera; during scan mode, the scan icon will be displayed on the top of screen. and each camera is video will be stay on the LCD around 10 seconds then change to next camera;
7. DIGITAL ZOOM
   Press and hold the key around 2 seconds to operate zoom in/ out;
8. Two Way Talk
   Press and hold key to enter two way talk mode. A microphone icon will be displayed on the top of the LCD screen. Release the key to stop.
   Note: When you are in the two-way talk mode, the parent unit speaker is muted.

MENU OPERATION

PAIRING THE CAMERA AND PARENT UNITS

The baby unit is pre-registered to your parent unit. You do not need to register it again unless the baby unit loses its link with the parent unit. To re-register your baby unit, or register a new baby unit, follow the procedure below:

Note: Camera icon with "*" means it is well registered. You should select and pair with the camera icon without "*" sign.

ADD CAMERA

1. Press the MENU key then the menu will pop up;
2. Press the key or key until the camera icon is highlighted, then press key or key to select your desired camera;
3. Press OK key to enter into sub-menu;
4. Press key or key to select ADD CAM then press OK key;
5. While the appears on the LCD screen, unplug the camera power plug first, then press and hold the PAIR button at the camera unit and re-plug the power plug at the same tim until the camera's power indicator flashes.
6. Once paired, " appears"on the LCD screen.
7. If fails, repeat the above steps.

DELETE CAMERA

1. Press the MENU key and the menu will pop up;
2. Press the key or key until the camera icon is highlighted, then press key or key to select your desired camera;
3. Press OK key, to enter into sub-menu;
4. Press key or key to select DEL CAM then press OK key;
5. Press key to select key to delete the camera;
6. Press OK key to confirm the option.

VOLUME

1. Press the button and the menu bar will pop up.
2. Press the button or button until is highlighted.
3. Press the button or button to select the desired volume level from level 1 ~ 5.
   (The default volume level setting is level 2 and level 0 is OFF.)

TEMPERATURE UNIT SETTING

1. Press the MENU/OK key and the menu will pop up;
2. Press the key or key until the temperature icon is highlighted;
3. Press key or key to select between ℉ or ℃ ;
4. Press OK key to confirm;
5. Press the key to Exit.

Note: The detection range is 0~50 ℃ .

TEMPERATURE ALARM SETTING

1. Press key to select then for alert setting.
2. Press to select then followed by for confirming alarm on or then followed by for switching off alarm function.

SET TEMPERATURE HI/LO ALERT LIMITS

1. When is highlighted at Alarm setting then press to enter Hi/Lo limits settings.
2. Press keys to adjust the Hi limit then press to confirm.
3. Then the cursor will jump to Lo limit setting.
4. Press keys to adjust the Lo limit then press to confirm.

To skip the setting edit, press key to exit to last menu level.

Note:The High temperature alarm range is 20-40 ℃, and the Low temperature alarm range is 0-19 ℃. The high temperature alarm default setting is 36 ℃, and the low temperature alarm default setting is 8 ℃. When the temperature goes above or below the settings, the temperature icon turns red. It will flash to alert user by audio beeps. Press any key on the parent unit to stop beeping and flashing.

LULLABY SETTING

You can soothe the baby to sleep by playing a gentle lullaby from the Camera unit.

1. Press the MENU key and the menu will pop up;
2. Press the key or key until the lullaby icon is highlighted;
3. Press key or key to select one of the 8 available lullabies, you can pick single playback, loop (all 8 lullabies) playback or stop ;
4. Press OK key to confirm.

Note: The lullaby default setting is OFF.

ALARM SETTING

You can use the Parent Unit to set an alarm as a reminder for you to take care of your baby. If an alarm time is selected, the Parent Unit will beep at the end of the selected hour period from 30min to 6hrs with 30min step interval. The alarm will sound for about 1 minute when the time is reached, or can be stopped by pressing any button.

1. Press the MENU key and the menu will pop up.
2. Press the keys to select is highlighted..
3. Press the keys to select the expected timers.
4. Press OK key to confirm.

Note: The alarm default setting is OFF. When the alarm is ringing, press any key on the parent unit to stop.

DISPLAY BRIGHTNESS

1. Press the button and the menu bar will pop up.
2. Press the or keys until is highlighted.
3. Press the or keys to select the desired brightness level from level 1 ~ 5. (The default brightness level setting is level 3.)

VOX SETTING

This mode allows you to control the sound activation of your baby unit. If there is no sound around the baby unit within 30 seconds, it will stop audio transmission and turn off the screen of the parent unit. When the baby unit detects any sound louder than the sensitivity level, it will start transmitting the signal to the parent unit again and turn on the screen of the parent unit. To change the VOX level, please follow the below instructions.

1. Press the button and the menu bar will pop up.
2. Press the or keys until is highlighted.
3. Press the or keys to select the VOX sensitivity level.
4. Press key to confirm setting.

Note: Sensitivity levels and indications:

	Hear everything from your baby. The speaker of the parent unit is continuously on.
	Hear all sounds from soft babbling. If your baby does not make any sound, the speaker of the parent unit is off.
	The speaker of the parent unit only goes on if the baby makes loud sounds (e.g. crying)

TECHNICAL DATA

TROUBLE SHOOTING

MAINTENANCE

* Clean your baby monitor with a slightly damp or anti-static cloth.
* Never use cleaning agents or solvents.

If you have any questions or concerns, please feel free to email us at service@hellobaby.net.cn
