Summary of Contents for HelloBaby HB6550-2

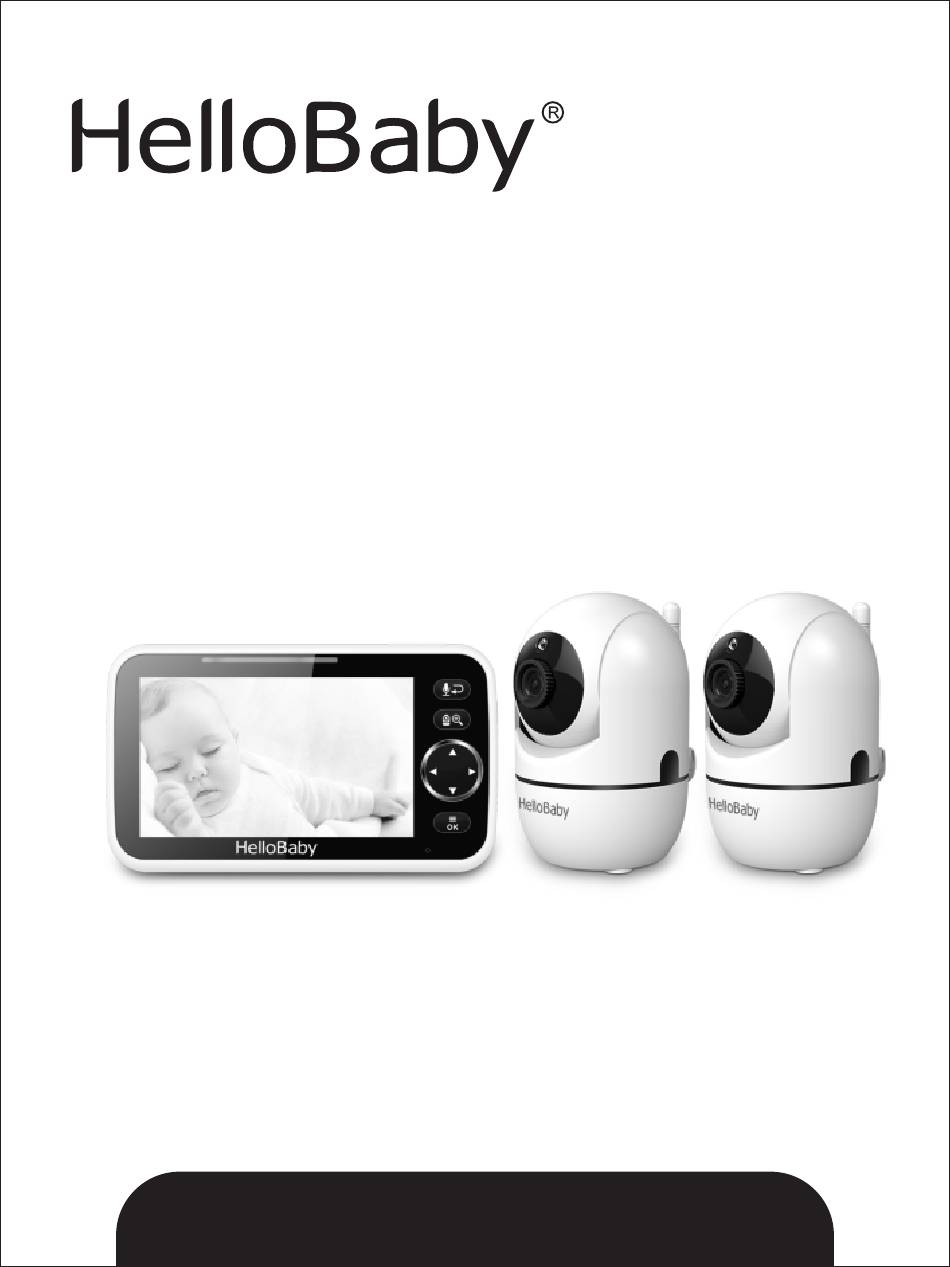

- Page 1 Ver: 1.2 User Manual 2.4GHz Digital Wireless Video Baby Monitor Model: HB6550-2 The pictures are for reference only, please subject to practicality. www.hellobaby.net.cn service@hellobaby.net.cn...
- Page 2 Thank you for purchasing the HB6550-2 Baby Monitor. With our baby monitor, you could see and hear your baby sleeping or playing in their room anytime. Please retain your original dated sales receipt for your records. For warranty service of your product, you will need to provide a copy of your dated sales receipt to confirm warranty status.
- Page 3 . The units do not appear to operate normally or exhibits a distinct change in performance; . The units have been dropped or the enclosure damaged; 2. WARRANTY TERMS We offer one-year warranty from the original purchase date against defects in workmanship and materials.
-
Page 4: Parent Unit Overview
2.Insert the other end of the power adapter into a suitable electrical outlet; 3. Press and hold the power key 3 seconds on the side of the parent unit; 4.Once parent unit is on, the power LED will light upand the image will display on the LCD 5.3 INFRARED NIGHT VISION (AUTOMATIC) The infrared night vision function allows the camera to pick up images in dark or low light conditions. -
Page 5: Digital Zoom
6. 3 BABY UNIT OVERVIEW: Light sensor Antenna Infrared LEDs Speaker Lens Power LED Pair key DC-Jack Temperature sensor 7. KEY OPERATION 7.1 TURN ON/OFF Press and hold the power key for 3 seconds to turn on / off the parents unit. 7.2 UP ▲... -
Page 6: Add Camera
new baby unit, follow the procedure below: Note : Camera icon with " "means it is well registered. You should select and pair with the camera icon without " " sign. 8.1 .1 ADD CAMERA 1. Press the MENU key then the menu will pop up; 2. -
Page 7: Temperature Alarm Setting
8.4.1 TEMPERATURE ALARM SETTING 1. Press the ◀/▶/▲/▼ key to select for turning on alarm function; Press to confirm; 2. Press the ◀/▶ / ▲/▼ key to select for turning off alarm function; Press to confirm; 8.4.2 SET TEMPERATURE HI/LO ALERT LIMITS 1. -
Page 8: Language Setting
screen of the parent unit. When the baby unit detects any sounds louder than the sensitivity level, it will start transmitting the signal to the parent unit again and turn on the screen of the parent unit. To change the VOX level, please follow the below instructions. 1. -
Page 9: Troubleshooting
10. TROUBLE SHOOTING * The power adapters may not be properly connected; * Confirm that the camera and monitor are ON; No reception on the * Camera may be far away from the monitor; monitor * Camera and monitor may not be properly paired; follow PAIRING instruc ons; * Move the monitor close to the camera;... - Page 10 FCCAND IC REGULATIONS FCC Part 15 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CC Caution: Changes or modifications not expressly approved by the part responsible for compliance could void the user's authority to operate the equipment.
- Page 11 Hereby, videotimes declares that the radio equipment type is in compliance with RED Directive 2014/53/EU. The full text of the EU declaration of conformity is available on the website: www.hellobaby.net.cn Model: HB6550-2 Responsible Party(US): Startline LLC Add: 22 Hazelwood Drive, Jericho, NY 11753 Tel: 1-516-681-3729...
- Page 12 WARNING Strangulation Hazard: Children have STRANGLED in cords. Keep this cord out of the reach of children (more than 3 ft (0.9 m) away). Do not remove this tag. AVERTISSEMENT DANGER D’ÉTRANGLEMENT: Des enfants se sont ÉTRANGLÉS avec des cordons électriques. Garde le cordonélectrique hors de la portée des enfants(à plus de 0.9m/3 pi du lit d’enfant).
Need help?
Do you have a question about the HB6550-2 and is the answer not in the manual?
Questions and answers
Trying to pair a camera that was deleted. After trying to pair the deleted camera without a check, a ❌ continues to pop up and it doesn’t pair.
To successfully pair a deleted HelloBaby HB6550-2 camera:
1. Press the MENU key to open the menu.
2. Use the ◀/▶/▲/▼ keys to select the camera icon (highlighted by a red box).
3. Press the OK key to enter the sub-menu.
4. Use ▲/▼ to select the desired camera.
5. Press the key to enter the sub-menu again, then use ▲/▼ to select and confirm.
6. When the pairing icon appears on the LCD screen, press the PAIR button on the back of the camera.
7. Once paired, a successful pairing icon will show on the LCD screen.
8. If pairing fails, repeat the steps.
This answer is automatically generated
Can I pair the hello baby monitor to my IPhone?
No, the HelloBaby HB6550-2 monitor cannot be paired with an iPhone. It uses 2.4GHz FHSS technology and does not support WiFi or smartphone connectivity.
This answer is automatically generated
How do I set the time/date?
To set the time and date on the HelloBaby HB6550-2:
1. Press the MENU key to open the main menu.
2. Use the ◀ / ▶ / ▲ / ▼ keys to select the Setting icon.
3. Press the MENU key to open the Settings submenu.
4. Use the ◀ / ▶ / ▲ / ▼ keys to select the Time icon.
5. Press the ◀ / ▶ keys to select Month, Day, and Year, then use the ▲ / ▼ keys to set the desired values.
6. Use the ◀ / ▶ keys to select the 12H or 24H time format.
7. Use the ◀ / ▶ keys to select Hour and Minute, then use the ▲ / ▼ keys to set the desired values.
8. Press the Return key once to exit the submenu, and twice to exit the main menu.
This answer is automatically generated

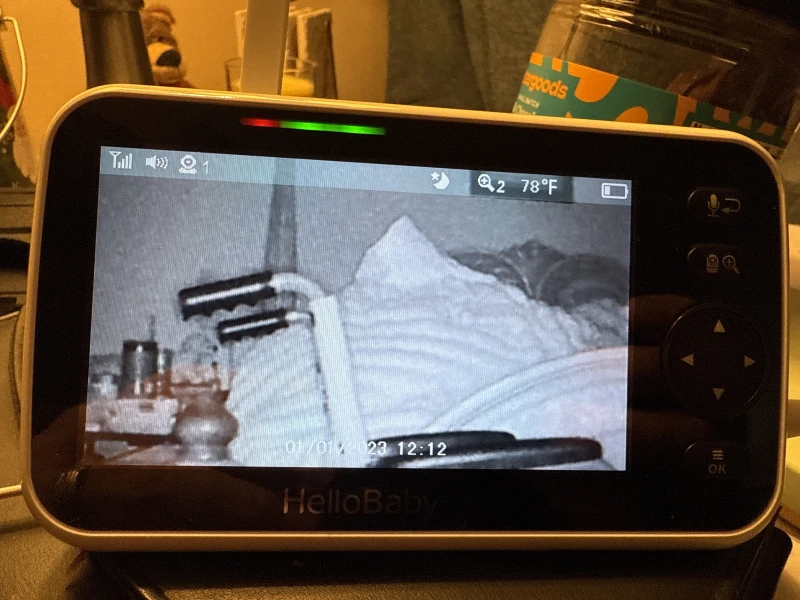

My signal keeps going out and showing a red X and the picture disappears, but then comes right back up. How do I fix this?
To fix the signal issue with the HelloBaby HB6550-2 that shows a red X and causes the picture to disappear, try the following steps:
1. Ensure the camera and monitor are both powered on.
2. Check if the power adapters are properly connected.
3. Move the monitor closer to the camera to improve the signal.
4. Ensure the camera and monitor are properly paired by following the pairing instructions.
5. Avoid placing the camera or monitor near metal objects or electronic devices that may cause interference.
6. Check if the battery power is low and recharge if necessary.
7. If the issue persists, try repowering the baby unit by unplugging and plugging it back in.
8. Press the RESET key on the back of the parent unit if the picture is frozen.
These steps should help restore the signal and display the picture correctly.
This answer is automatically generated
My HB65 monitor will only remail no for about 1 second and I can't get the vox to shut off.
The HelloBaby HB6550-2 monitor remains on for about 1 second because the VOX (Voice Operated Exchange) mode is enabled. In VOX mode, the screen and audio transmission turn off if there is no sound detected around the baby unit for 30 seconds. The screen and audio transmission reactivate when sounds louder than the set sensitivity level are detected.
To turn off the VOX feature, follow these steps:
1. Press the MENU key to open the menu.
2. Use the ◀/▶/▲/▼ keys to select the VOX icon (highlighted with a red box).
3. Press the OK/ENTER key to enter the sub-menu.
4. Adjust the settings to disable VOX mode.
This answer is automatically generated
I can't find volume icon
The volume icon on the HelloBaby HB6550-2 is located in the menu, highlighted by an orange box when selected. Use the ◀/▶/▲/▼ keys to navigate to it.
This answer is automatically generated
how do i turn it in?
