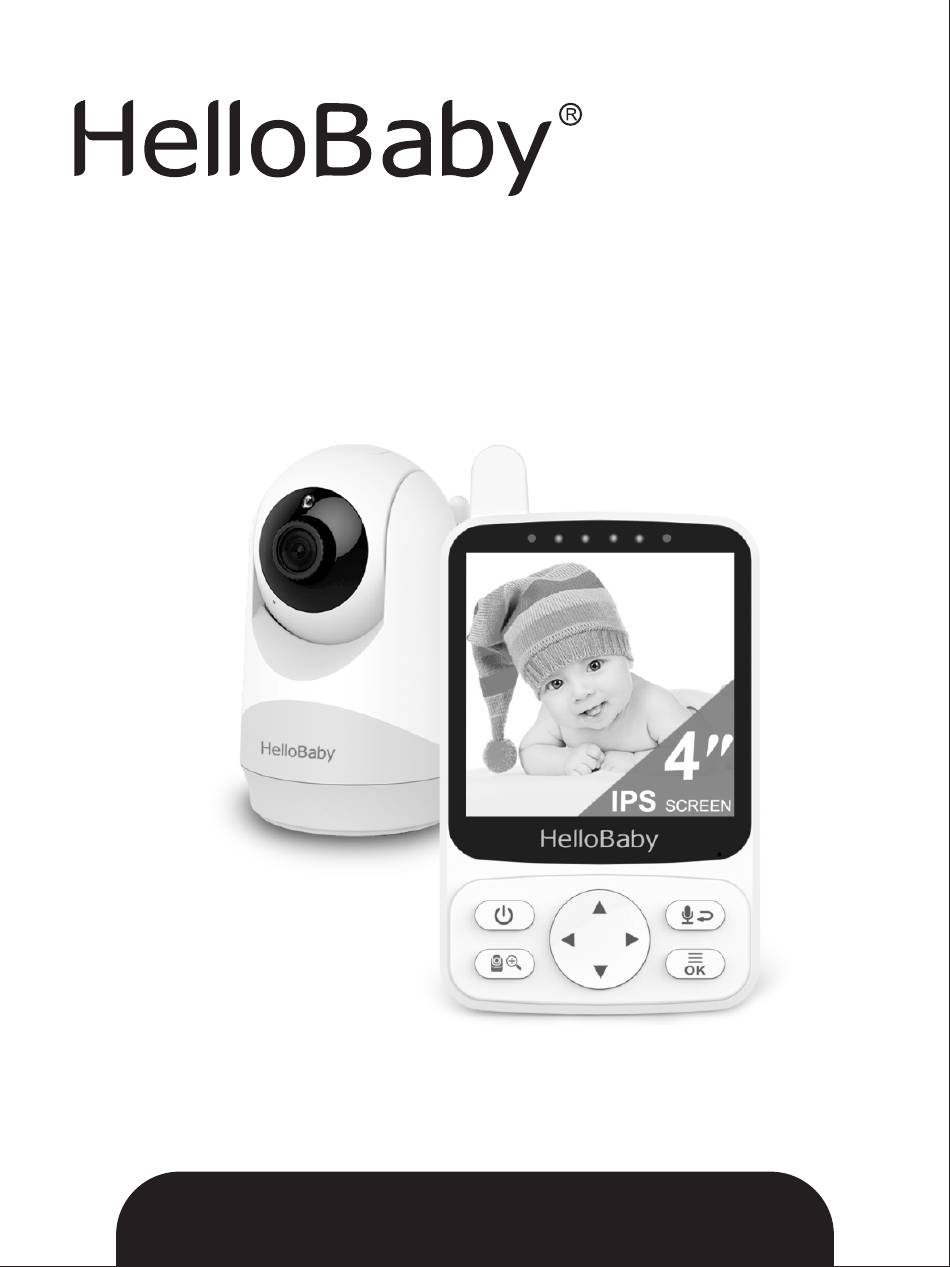

- Page 1 Ver: 1.1 User Manual 2.4GHz Digital Wireless Video Baby Monitor Model: HB40 The pictures are for reference only, please subject to practicality. www.hellobaby.net.cn service@hellobaby.net.cn...
- Page 2 Thank you for purchasing the HB40 Baby Monitor. With our baby monitor, you could see and hear your baby sleeping or playing in their room anytime. Please retain your original dated sales receipt for your records. For warranty service of your product, you will need to provide a copy of your dated sales receipt to confirm warranty status.
- Page 3 . The units do not appear to operate normally or exhibits a distinct change in performance; . The units have been dropped or the enclosure damaged; 2. WARRANTY TERMS We offer one-year warranty from the original purchase date against defects in workmanship and materials.
-
Page 4: Parent Unit Overview
INPUT: D C 5V 1.0A Use only power adapters listed in user's instruction. Li-ion Battery 3.7V, 2000mAh FCC I D: 2AF2R-40RX Up key IC: 20674-40RX service@hellobaby.net.cn Made in China Exit/Two Way Talk S/N: XXYYYYYYHR Menu/OK Reset Key RESET Right Key... -
Page 5: Digital Zoom
6. 3 BABY UNIT OVERVIEW: Light sensor Infrared LEDs Speaker Lens Antenna Power LED DC-Jack Pair key Temperature sensor 7. KEY OPERATION 7.1 TURN ON/OFF Press and hold the power key for 3 seconds to turn on / off the parents unit. 7.2 UP ▲... -
Page 6: Add Camera
a new baby unit, follow the procedure below: Note : Camera icon with " "means it is well registered. You should select and pair with the camera icon without " " sign. 8.1 .1 ADD CAMERA 1. Press the MENU key then the menu will pop up;... -
Page 7: Temperature Alarm Setting
8.4.1 TEMPERATURE ALARM SETTING 1. Press the ◀/▶/▲/▼ key to select for turning on alarm function; Press to confirm; 2. Press the ◀/▶ / ▲/▼ key to select for turning off alarm function; Press to confirm; 8.4.2 SET TEMPERATURE HI/LO ALERT LIMITS 1. -
Page 8: Date Setting
level, it will start transmitting the signal to the parent unit again and turn on the screen of the parent unit. To change the VOX level, please follow the below instructions. 1. Press the MENU key and the menu will pop up. is selected by orangebox. 2.Press the◀/▶/▲/▼key until the VOX icon 3.Press... -
Page 9: Technical Data
9. TECHNICAL DATA Frequency 2403.5-2475.5MHZ Parent Unit: Input: 100-240VAC 50/60Hz Output: 5V DC 1A Camera Unit: Input: 100-240VAC 50/60Hz Power Adaptor Output: 5V DC 1A Up to 1000ft (300m) outdoor (line of sight) Operating Range Up to 165ft (50m) indoor Display 4.0'' Diagonal IPS TFT LCD Battery (Parent Unit) -
Page 10: Maintenance
11. MAINTENANCE * Clean your baby monitor with a slightly damp or anti-static cloth. * Never use cleaning agents or solvents. 12. DISPOSAL GUIDE FOR BATTERY AND PRODUCT * Do not attempt to repair or adjust any of the electrical or mechanical functions of the unit;... - Page 11 television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Page 12 Hereby, videotimes declares that the radio equipment type is in compliance with RED Directive 2014/53/EU. The full text of the EU declaration of conformity is available on the website: www.hellobaby.net.cn Model: HB40 Responsible Party(US): Startline LLC Add: 22 Hazelwood Drive, Jericho, NY 11753 Tel: 1-516-681-3729...
- Page 13 WARNING Strangulation Hazard: Children have STRANGLED in cords. Keep this cord out of the reach of children (more than 3 ft (0.9 m) away). Do not remove this tag. AVERTISSEMENT DANGER D’ÉTRANGLEMENT: Des enfants se sont ÉTRANGLÉS avec des cordons électriques. Garde le cordonélectrique hors de la portée des enfants(à plus de 0.9m/3 pi du lit d’enfant).
