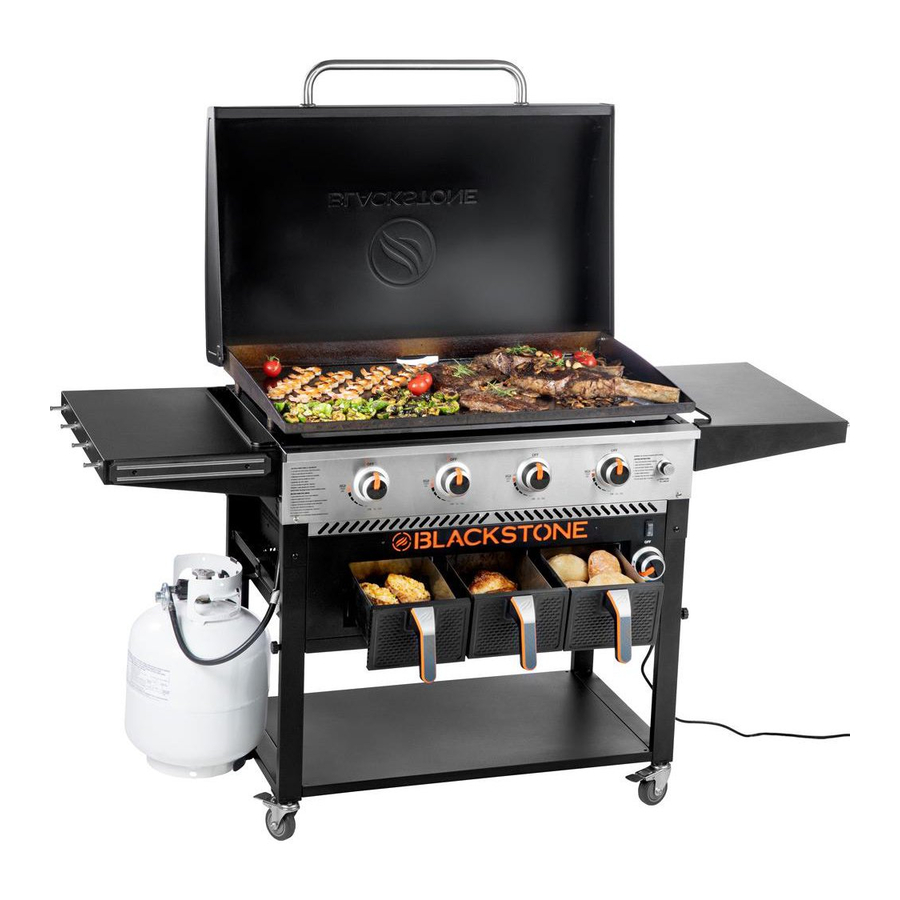

BLACKSTONE 1868 - 36" GRIDDLE Manual

ASSEMBLY GUIDE

EXPLODED VIEW

PARTS LIST

	PARTS	QTY		PARTS	QTY		PARTS	QTY		PARTS	QTY
1.1	Control knob bezel	4	1.5a	Gas rail & Valves	1	1.8a	Motor	2	9.1a	Drawer trivet	3
1.2	Air fryer control knob bezel	1	1.5b	Regulator hose	1	1.8b	Motor shell & Bracket	2	9.1b	Silicone pad (4pcs per pack)	3
1.3	Electric igniter	1	1.6	Tubular burner for gas griddle	4	1.9a	Motor switch	1	9.3	Drawer front panel	3
1.4	Electric igniter wire (5pcs per 1 set) with electrode	1	1.7	H-burner for Air fryer	1	1.9b	Power cord	1
			1.8	Motor assembly	2	5.1	Magnetic strip	1

21 Hardware pack (1 piece)

1. M6x20 screws (2 pieces)
2. Washers (8 pieces)
3. Lid spacers (2 pieces)
4. M6 Step bolts (8 pieces)
5. M5x15 screws (12 pieces)
6. M6 lock nuts (2 pieces)
7. M6x12 screws (17 pieces)
8. Side shelf pegs (8 pieces)
9. M6x15 screws (8 pieces)
10. M6 Thumbscrews (4 pieces)

ASSEMBLY INSTRUCTIONS

Find a large, clean area to assemble your unit.
Remove all packing material before assembling.

Sharp edges. Wear gloves while assembling.

Heavy pieces. Two people should assemble this appliance.

NOT INCLUDED:
LPG cylinder

Size: 18 x 12 in (45 x 30 cm), 20 lb (9 kg)
LPG cylinder must include collar to to protect LPG cylinder valve.

NOT INCLUDED:
AA battery

TOOLS NEEDED:

Phillips head screwdriver & Adjustable wrench

ELECTRIC REQUIREMENTS:
120V 60Hz 1.0A

STEP 01 Use four (4) M6x12 screws to attach the left and right leg assemblies to the bottom tray.

STEP 02 Turn the assembled legs and tray upside down and screw on the four (4) lockable caster wheels. (ensure that the wheels are locked before attaching them.)

STEP 03 With the help of another person, place the griddle body upside down on a smooth, flat surface. Loosen all eight (8) screws on the griddle body assembly one (1) turn.

STEP 04 Slide the legs into the slots on the griddle body and use two (2) M6x12 screws on each of the four corners to secure them to the griddle body. Tighten the eight (8) previously loosened screws on the griddle body.

STEP 05 Use four (4) M6 thumb screws to secure the legs to the airfryer body.

STEP 06 With the help of another person, place the griddle unit on its wheels. Use eight (8) black countersunk M6x15 screws to attach the four (4) side shelf brackets to the sides of the griddle body. (one side shelf bracket (a) and side shelf bracket (b) on each side.)

STEP 08 Use two (2) M6x12 screws and two (2) hood handle bezels to attach the hood handle to the griddle hood.

STEP 09 Attach the hood to the griddle top:

1. Align the hood with the holes on the griddle top.

2. Place one (1) hood spacer between the hood and the griddle top, the small end into the hood and the large end into the griddle top

3. Thread one (1) M6x20 screw into the hood, hood spacer, griddle top, and one (1) M6 lock nut.

   Repeat on other side.


STEP 10 Use one (1) M6x12 screw to assemble the hose retainer. Use one (1) M6x12 screw to attach the LPG hook to the left leg assembly. Use one (1) M6x12 screw to attach the LPG support to the bottom of the left leg assembly.

STEP 11 Use two (2) M6x12 screws to attach the power cord bracket to the right leg assembly.

STEP 12 Attach three (3) side shelf pegs and (3) side shelf washers to the left side shelf. Attach three (3) side shelf pegs and (3) side shelf washers to the right side shelf.

STEP 13 Thread two (2) M6 step bolts into the top holes on the left side shelf and two (2) M6 step bolts into the top holes on the right shelf.

STEP 14 Hook the left side shelf's M6 step bolts onto the shelf brackets on the left side of the griddle. Use two (2) M6 step bolts to secure the shelf to the side shelf brackets. Repeat this step with the right side shelf.

STEP 15 Hang the grease cup in the slot on the back of the griddle body.

STEP 16 Attach the drawer handle:

1. Remove the two small thumb screws from inside the drawer to remove the front panel of the drawer.

2. Use four (4) silver countersunk M5x15 screws to attach the drawer handle to the front panel. Be sure to install handle correctly, with the handle facing down.

3. Re-attach the front panel with the previously removed Never leave oil exposed in the rain. This can lead to severe thumb screws. burns. Repeat this step with the other Place the included hardcover on the burner when not in use two (2) drawers. or if it begins to rain.


STEP 15 Hang the grease cup in the slot on the back of the griddle body.

STEP 17 Install the five (5) control knobs by pushing them into place in the oFF position. Proceed to USING YOUR BLACKSTONE.

NOTICE

• Maximum weight on the side shelf is 10 lbs (4.5 kg).
• The side shelf may get hot while appliance is in use.

NOTICE
DO NOT leave the hood closed for more than 10 minutes while cooking.

USING YOUR BLACKSTONE

THE LPG CYLINDER VALVE MUST HAVE:

REGULATOR SAFETY

Cross threading can occur if you force thread a connection at an improper angle. This will damage the threads, lead to propane leaking, and potentially result in a build-up of fuel that can ignite.
DO NOT cross thread the connection between your LPG cylinder and regulator.

If you can not connect the regulator, DO NOT use the regulator.
Regulator must be replaced with a Blackstone approved model by a professionally licensed, authorized dealer.

FITTINGS & HOSES

• Annual checking and tightening of metal fittings is recommended.
• Keep the fuel supply hose away from any heated surfaces.
• Before each use, check to see if hoses are cut or worn. Replace damaged hose before using appliance. (Use only Blackstone approved replacement parts for valve, hose, or regulator. Failure to comply will void the warranty.)

CONNECT THE LPG CYLINDER

20 LB (9 KG)

STEP 01 Turn the control knobs to OFF.

1. Ensure that the LPG cylinder is OFF by turning the OPD hand wheel clockwise to a full stop.
2. Remove the safety cap from the Type 1 valve outlet.

STEP 02 Hold the regulator in a straight line with the Type 1 valve outlet so as not to cross thread the connection.

Center and insert the regulator nipple into the Type 1 valve outlet.
Hand-tighten the coupling nut in a clockwise direction. (DO NOT use tools to connect.)
If connection cannot be completed, disconnect regulator and repeat this step.

STEP 03 Secure the LPG cylinder to the appliance by hanging it on the LPG hook so that it nestles against the LPG support.

LEAK TEST INSTRUCTIONS

NOTICE
DO NOT use household cleaning agents. Damage to gas valve, hose, and regulator components may result.
Use a clean paintbrush and a 10/90 mild soap and water solution to perform the leak test.

LEAK TEST: LPG CYLINDER

• Leak test new and exchanged LPG cylinders BeFoRe connecting to griddle.
• DO NOT smoke during leak test.
• DO NOT use an open flame to check for gas leaks.
• Appliance must be leak tested outdoors in a well-ventilated area, away from ignition sources such as gas fired or electrical appliances.
• During leak test, keep appliance away from open flames or sparks.

STEP 01 Brush soapy solution onto joint areas of the LPG cylinder
(Indicated by arrows in figure 01)

• Leaks are indicated by growing bubbles

If growing bubbles appear during leak test, DO NOT use or move the LPG cylinder. Immediately contact an LPG supplier or fire department

LEAK TEST: VALVES, HOSE & REGULATOR

STEP 01 Turn the control knobs to OFF.

STEP 02 Connect the regulator to the LPG cylinder.

STEP 03 Completely open the LPG tank by turning the OPD hand wheel counterclockwise.

• If you hear a rushing sound, turn gas off immediately. There is a major leak at the connection.
• Immediately close the LPG cylinder by turning the OPD hand wheel clockwise and re-tighten connections. If leaks cannot be stopped DO NOT TRY To REPAIR.

STEP 04 Brush soapy solution cylinder. onto joint areas of valves and regulator.
(Indicated by arrows in figure 02)

• Leaks are indicated by growing bubbles.
• Immediately close the LPG cylinder by turning the OPD hand wheel clockwise and re-tighten connections.

If leaks cannot be stopped, DO NOT try to repair.
Regulator must be replaced with a Blackstone approved model by a professionally licensed, authorized dealer.

CHECK BURNER FLAME

Always check burner flame before use.

STEP 01 light burners and rotate knobs from HIGH to LOW.

STEP 02 look below the cooking top to view burners. When knob is at HIGH, flames should be larger than when knob is at LOW.

A clogged burner tube can lead to a fire beneath the appliance.
Burner should be removed and cleaned annually or whenever heavy build-up or insects/insect nests are found.

WHAT OIL IS BEST TO USE?

• Blackstone Seasoning and Cast Iron Conditioner.
• Any plant-based cooking oil.
• Rendered animal fat with no additives.

VIDEO TUTORIAL
How to Season a New Blackstone Griddle youtube.com/watch?v=VspmdVnj2pI&t=3s

STEP 01 Wipe any debris off griddle top.

STEP 02 Set your griddle to high heat until your griddle top changes color. (~10 min)

STEP 03 Use tongs to hold a paper towel or cotton cloth and spread 2-3 tablespoons of your seasoning oil across the entire griddle top.

When seasoning your griddle top, remember to use a thin and even layer of oil—the thinner the layer of oil, the easier it will be to burn it off

STEP 04 The griddle top is ready for another layer of oil when it stops smoking. Repeat STEP 03 3-4 times, or until the griddle surface is black.

TROUBLESHOOTING

IGNITION TROUBLESHOOTING

BURNER WILL NOT IGNITE:
If ignition does not occur in 5 seconds:

STEP 01 Turn the burner controls OFF.

STEP 02 Wait 5 minutes.

STEP 03 Repeat the lighting procedure.
If this does not work, to determine the cause, please try to ignite your appliance with a match

MATCH LIGHTING INSTRUCTIONS
Before beginning, check for gas leaks. (Please reference the leak Test Instructions in USING YOUR BLACKSTONE.)

STEP 01 Turn control knob(s) to OFF position.

STEP 02 Remove cooking top.

STEP 03 Light a match (or long lighter) no shorter than 11 inches long. Place the flame on the right or left side of the burner.

STEP 04 Push in and turn the control knob to the HIGH position. ensure burner lights and stays lit.

IF YOU CAN IGNITE YOUR APPLIANCE WITH A MATCH:

POSSIBLE CAUSES	SOLUTION
Dead / improperly installed battery.	Replace with new battery
Ignitor wire misaligned.	Ensure that the ignition needle is positioned 3-7mm away from the burner tube, and above a burner hole.
Damage to the ignition system.	Contact customer service for replacement parts.

IF YOU CAN NOT IGNITE YOUR APPLIANCE WITH A MATCH:

POSSIBLE CAUSES	SOLUTION
Burner tubes are not receiving fuel.	Clean the burner assembly to remove the obstruction.

GAS FLOW TROUBLESHOOTING

A FLAME IS COMING OUT OF THE AIR GATE:

POSSIBLE CAUSES	SOLUTION
Something is blocking the venturi in the burner tube.	Clean the burner assembly to remove the obstruction.

BURNER FLAMES ARE YELLOW OR IRREGULAR:

• Appliance will not achieve a high heat or heats unevenly.
• Burner flames start strong, then immediately drop to low even when burner is set to high position.
• Flame height drops when a second burner is lit.
• Flames DO NOT extend the full length of the burner, or only run on one side of the burner.
• Burner flames are inconsistent.

POSSIBLE CAUSES	SOLUTION
Obstructions in the burner, gas jets, or fuel rail.	Clean the burner, jets, and gas hose.
LPG cylinder is empty or low.	Refill or replace the LPG cylinder.
The regulator's flow limiting device was triggered.	Reset the safety system: STEP 01 Turn oFF the appliance, close the LPG cylinder valve, and disconnect the regulator from the LPG cylinder. STEP 02 Wait five minutes to allow the pressure to dissipate, then reconnect the regulator to the LPG cylinder and slowly open the OPd hand wheel one half turn. STEP 03 Ignite your appliance.
Regulator stuck in safety position.	Contact customer service for replacement parts.

SEASONING TROUBLESHOOTING

THERE IS A BROWNISH RESIDUE ON THE GRIDDLE SURFACE:

POSSIBLE CAUSES	SOLUTION
Too much oil was used. You turned off the heat too soon.	STEP 01 Turn your griddle on high and let it heat for 10-15 minutes. STEP 02 Scrape off as much of the thickened and partially cooked oil as you can. STEP 03 Re-season with a very thin layer of oil.

IMPORTANT SAFETY INFORMATION

SAFETY ALERT KEY

Indicates a hazardous situation that, if not avoided, will result in death or serious injury.

Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury.

Indicates a hazardous situation that, if not avoided, could result in death or serious injury.

NOTICE
Indicates information considered important, but not hazard-related (e.g. messages related to property damage).

If you smell gas:

• Shut off gas to the appliance.
• extinguish any open flame.
• open hood.
• If odor continues, keep away from the appliance and immediately call your gas supplier or your fire department.

Failure to follow these instructions could result in fire or property damage, personal injury or death

• DO NOT operate this appliance unattended.
• DO NOT operate this appliance within 10 ft (3.0 m) of any structure, combustible material or other gas cylinder.
• DO NOT operate this appliance within 25 ft (7.5 m) of any flammable liquid.
• If a fire should occur, keep away from the appliance and immediately call your fire department. DO NOT attempt to extinguish an oil or a grease fire with water. Failure to follow these instructions could result in fire or property damage, personal injury or death.

ELECTRIC APPLIANCE SAFETY

TO PROTECT AGAINST ELECTRIC SHOCK:

• DO NOT immerse cord or plugs in water or other liquid.
• Unplug from the outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• DO NOT operate this appliance with a damaged cord, plug, or after the appliance malfunctions or has been damaged in any manner. Contact the manufacturer for repair.
• DO NOT let the cord hang over the edge of a table or touch hot surfaces.
• Keep any electrical supply cord and the fuel supply hose away from heated surfaces.
• When connecting, first connect plug to the appliance then into the outlet.

USE ONLY A GROUND FAULT INTERRUPTER (GFI) PROTECTED CIRCUIT WITH THIS APPLIANCE.

• DO NOT remove the grounding plug or use with an adapter of 2 prongs.
• Use only extension cords with a 3 prong grounding plug, rated for the power of the equipment, and approved for outdoor use with a W-A marking.

THIS APPLIANCE IS NOT FOR FRYING TURKEYS.

• DO NOT store or use gasoline or other flammable liquids or vapors in the vicinity of this or any other appliance.
• An LPG cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.

GAS APPLIANCE SAFETY

• The use of alcohol, prescription, or non-prescription drugs may impair the consumer's ability to properly assemble or safely operate the appliance.
• Keep children and pets away from the appliance at all times.
• Have a type BC or ABC fire extinguisher readily available.

DO NOT USE FOR PURPOSES OTHER THAN INTENDED:

• DO NOT modify this appliance.
• DO NOT use for commercial cooking.
• DO NOT use this appliance as a heater.

THIS APPLIANCE SHALL BE USED OUTDOORS ONLY.

• DO NOT use this appliance inside buildings, garages, or any other enclosed area.
• DO NOT install this appliance in or on a boat.
• DO NOT install this appliance in or on a recreational vehicle.

MAINTAIN PROPER CLEARANCES FROM COMBUSTIBLE MATERIAL:

• DO NOT use this appliance on or under any apartment or condominium balcony or deck.
• DO NOT use this appliance under overhead combustible construction.
• DO NOT obstruct the flow of combustion and ventilation air.
• DO NOT operate this appliance any closer than 36 in (1 m) from the sides and back of the appliance.


INSTALLATION MUST CONFORM WITH LOCAL CODES
In the absence of local codes, installation must conform with:

1. National Fuel Gas Code, ANSI Z223.1/NFPA 54, Storage and Handling of Liquefied Petroleum Gases, ANSI/NFPA 58; or
2. Natural Gas and Propane Installation Code, CSA B149.1; Propane Storage and Handling, CSA B149.2; or
3. The Standard for Recreational Vehicles, ANSI A119.2/NFPA 1192; and Recreational Vehicle Code, CSA Z240 RV Series, as applicable.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed including the following:

1. DO NOT touch hot surfaces. Use handles or knobs.
2. To protect against electrical shock DO NOT immerse cord, plugs, or appliance in water or other liquid.
3. Close supervision is necessary when any appliance is used by or near children.
4. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
5. DO NOT operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or adjustment.
6. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
7. DO NOT let cord hang over edge of table or counter, or touch hot surfaces.
8. DO NOT place on or near a hot gas or electric burner, or in a heated oven.
9. extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
10. To disconnect, turn any control to "off', then remove plug from wall outlet.
11. DO NOT use appliance for other than intended use.
12. Fuel, such as charcoal briquettes, is not to be used with appliance.
13. Use only on properly grounded outlet.
14.
    Risk of electric Shock. Keep extension cord connection dry and off the ground.
15. For outdoor use only, DO NOT expose to rain.

FOR ExTENSION CORDS:

1. A short power-supply cord is provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.
2. Longer power-supply cords or extension cords are available and may be used if care is exercised in their use.
3. If a longer power-supply cord or extension cord is used:
   1. The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
   2. The cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally.
   3. The cord set or extension cord should be a grounding-type 3-wire cord.
4. Outdoor extension cords should be used with outdoor use appliances and are surface marked with the suffix letter "W" and with a tag stating "Suitable for use with outdoor appliances."
5. The connection to an extension cord should be kept dry and off the ground.
6. Store appliance indoors when not in use - out of the reach of children.
7. DO NOT clean this product with a water spray or the like.

CUSTOMER SERVICE
Visit us online at blackstoneproducts.com/support for assistance concerning appliance use, replacement parts, or your warranty.

CUSTOMER SERVICE HOURS:
Monday – Friday 7:00 am – 5:00 pm (MST)

Documents / Resources

References

• - YouTube
• - YouTube
• Blackstone Recipes – Blackstone Products
• Blackstone Griddles - YouTube
• Support – Blackstone Products
• How to Clean Your Blackstone Griddle | Blackstone Griddles - YouTube
• How to Clean Your Burner Tube | Blackstone Griddles - YouTube

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download BLACKSTONE 1868 - 36" GRIDDLE Manual
