WHAT'S IN THE BOX

1. JBL QUANTUM400 headset
2. USB cable (USB-A to USB-C)
3. 3.5mm audio cable
4. QSG, warranty card and safety sheet
5. Windshield foam for boom microphone

PRODUCT OVERVIEW

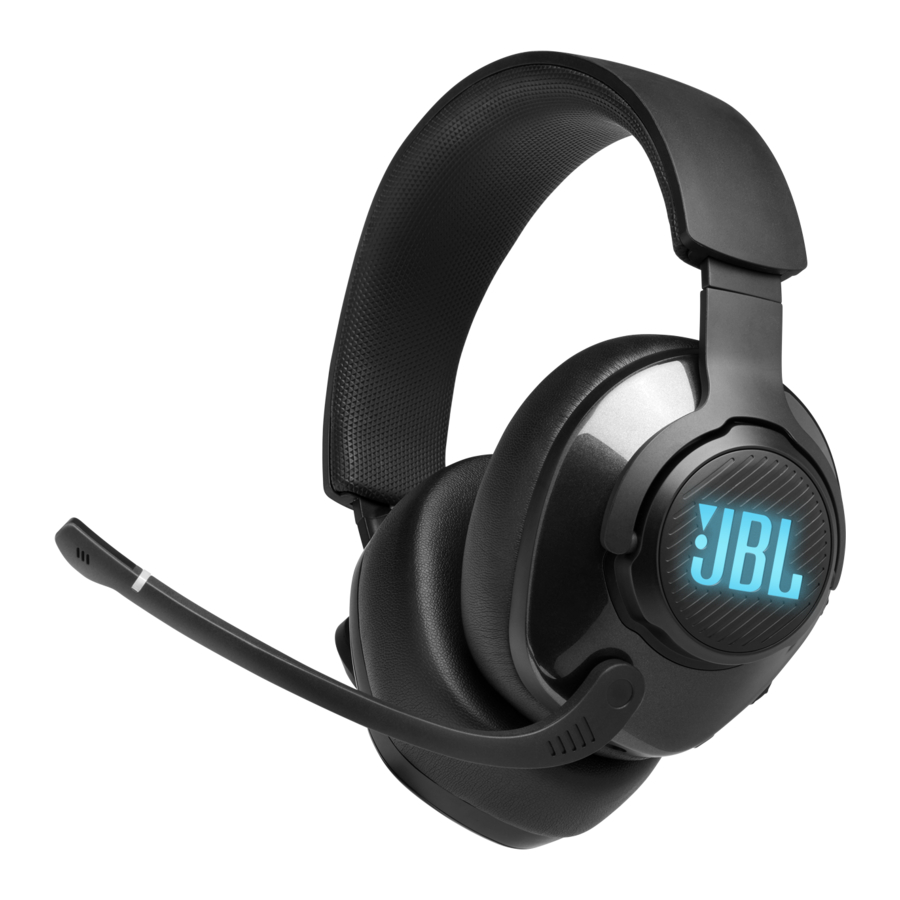

CONTROLS ON HEADSET

1. dial
   • Balances the chat volume in relation to the game audio volume.
2. Volume +/- dial
   • Adjusts headset volume.
3. Detachable windshield foam
4. Mic mute / unmute LED
   • Lights up when the microphone is muted.
5. RGB-lit JBL logo
6. 3.5mm audio jack
7. Voice focus boom microphone
   • Flip up to mute, or flip down to unmute the microphone.
8. Flat-fold ear cup
9. button
   • Press to mute or unmute the microphone.
   • Hold for more than 5 seconds to turn the RGB light on or off
10. USB-C port

GETTING STARTED

WEARING YOUR HEADSET

1. Put the side marked L onto your left ear and the side marked R onto your right ear.
2. Adjust the earpads and headband for a comfortable fit.
3. Adjust the microphone as necessary.

FIRST-TIME SETUP

(FOR PC ONLY)
Download JBL QuantumENGlNE from jblquantum.com/engine to gain full access to features on your JBL Quantum headset - from headset calibration to adjusting 3D audio to suit your hearing, from creating customized RGB lighting effects to determining how the boom microphone side-tone works.

SOFTWARE REQUIREMENTS

Platform: Wlndows 7 / Windows 10 (64 bit) only
500MB of free hard drive space for installation

TIP:

• QuantumSURROUND and DTS Headphone: X V2.0 available on Windows only. Software installation required.

1. Connect the headset to your PC via USB connection (See "With USB connection").
2. Go to "Sound Settings" > "Sound Control Panel".
3. Under "Playback" highlight "JBL QUANTUM400 GAME" and select "Set Default" > "Default Device".
4. Highlight "JBL QUANTUM400 CHAT" and select "Set Default" > "Default Communication Device".
5. Under "Recording" highlight "JBL QUANTUM400 CHAT" and select "Set Default" > "Default Device".
6. Follow the onscreen instructions to personalize your sound settings.


USING YOUR HEADSET

WITH USB CONNECTION

1. Connect the orange connector (USB-A) of the USB cable to a USB-A port on your PC, Mac or PS4.
2. Connect the black connector (USB-C) to the USB-C port on your headset.

Basic operation

Controls	Operation
Volume dial	Adjust master volume.
	Rotate towards to increase game volume.
	Rotate towards to increase chat volume.
button	Press to mute or unmute the microphone. Hold for more than 5 seconds to turn on or off the RGB light.

TIP:

• Depending on your device configuration, you can also use a USB-C to USB-C cable (not supplied). USB-Cconnectivity with all devices is not guaranteed.

WITH 3.5MM AUDIO CONNECTION

1. Connect the black connector to your headset.
2. Connect the orange connector to the 3.5mm headphone jack on your PC, Mac, mobile or gaming console device.

Basic operation

NOTE:

• The mic mute / unmute LED, button and RGB-lit JBL logo on the headset do not work in 3.5mm audio connection.

PRODUCT SPECIFICATIONS

• Driver size: 50 mm Dynamic drivers
• Frequency response: 20 Hz - 20 kHz
• Microphone frequency response: 100 Hz - 10 kHz
• Max input power: 30 mW
• Sensitivity: 98 dB SPL@1 kHz/ 1 mW
• Microphone sensitivity: -40 dBV @1 kHz/ Pa
• Impedance: 32 ohm
• Cable length: 3.5 mm audio cable (1.2 m) + Type-C to Type-A Cable (3 m)
• Microphone pickup pattern: Directional
• Microphone size: 4 mm x 1.5 mm
• Weight: 274 g

NOTE:

• Technical specifications are subject to change without prior notice.

TROUBLESHOOTING

If you have problems using this product, check the following points before you request service.

NO SOUND OR POOR SOUND

• Make sure you have chosen JBL QUANTUM400 GAME as the default device in the game sound settings of your PC, Mac or gaming console device.
• Adjust volume on your PC, Mac or gaming console device.
• Check game chat balance on PC if you are only playing game or chat audio.

In USB connection:

• Make sure the USB cable is connected securely.
• The USB ports on some gaming console devices may be incompatible with JBL QUANTUM400. This is not a malfunction.

In 3.5mm audio connection:

• Make sure the 3.5mm audio cable is connected securely.

MY VOICE CANNOT BE HEARD BY MY TEAMMATES

• Make sure you have chosen JBL QUANTUM400 CHAT as the default device in the chat sound settings of your PC, Mac or gaming console device.
• Make sure the microphone is not muted.

I CAN'T HEAR MY SELF WHEN I'M TALKING

• Enable sidetone via JBL QuantumENGlNE to hear yourself clearly over game audio.

If you have any questions about this product or its operation, please contact your retailer or customer service, or visit us at www.JBLQuantum.com
