Summary of Contents for Harman JBL QUANTUM ONE

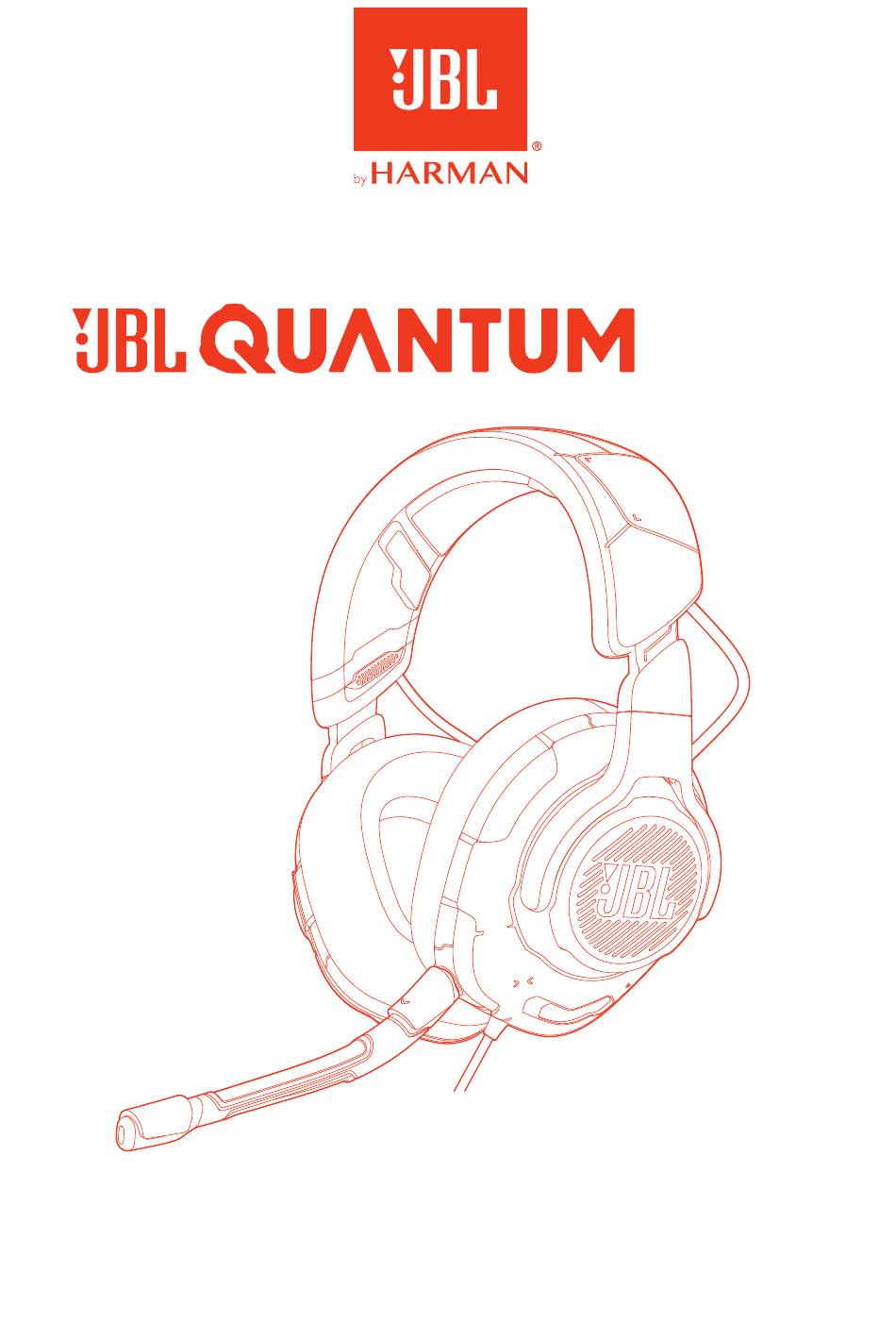

  • Page 1 O W N E R ’ S M A N U A L...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION ......................1 WHAT’S IN THE BOX ..................... 2 PRODUCT OVERVIEW ....................3 Controls on headset .............................3 Controls on USB cable ..........................5 Controls on 3.5mm audio cable ......................6 GETTING STARTED....................... 7 Wearing your headset ..........................7 First-time setup (for PC only) ........................7 Mic calibration ..............................9 RE-CENTERING ......................

  • Page 3: Introduction

    Introduction Congratulations on your purchase! This manual includes information on the JBL QUANTUMONE gaming headset. We encourage you to take a few minutes to read this manual, which describes the product and includes step-by-step instructions to help you to set up and get started. Read and understand all the safety instructions before using your product.

  • Page 4: What's In The Box

    What’s in the box JBL QUANTUMONE headset 3.5mm audio cable Calibration microphone Detachable boom microphone USB cable with game / chat balance dial (USB-A to USB-C) Windshield foam for boom microphone QSG, warranty card and warning card - 2 -...

  • Page 5: Product Overview

    PRODUCT OVERVIEW Controls on headset ANC* / TalkThru** LED • Lights up when the ANC feature is enabled. button • Press briefly to turn TalkThru on or off. • Hold for more than 2 seconds to turn ANC on or off. button •...
  • Page 6 Volume +/- dial • Adjusts headset volume. RGB Lighting Zones button • Press to mute or unmute the microphone. • Hold for more than 5 seconds to turn the RGB light on or off. Power status LED • Lights up when the USB connection is active. USB-C port 3.5mm audio jack Boom / Calibration Microphone jack...

  • Page 7: Controls On Usb Cable

    Controls on USB cable dial • Balances the chat volume in relation to the game audio volume. Power status LED • Lights up when the USB connection is active. - 5 -...

  • Page 8: Controls On 3.5Mm Audio Cable

    Controls on 3.5mm audio cable Volume dial • Adjusts headset volume in 3.5mm audio connection. slider • Slide to mute or unmute the microphone in 3.5mm audio connection. - 6 -...

  • Page 9: Getting Started

    Getting started Wearing your headset 1. Attach the detachable boom microphone. 2. Put the side marked L onto your left ear and the side marked R onto your right ear. 3. Adjust the earpads and headband for a comfortable fit. 4.

  • Page 10: First-Time Setup (For Pc Only)

    First-time setup (for PC only) Download JBL QuantumENGINE from jblquantum.com/engine to gain full access to features on your JBL Quantum headset - from headset calibration to adjusting 3D audio to suit your hearing, from creating customized RGB lighting effects to determining how the boom microphone side-tone works.
  • Page 11 7. Follow the onscreen instructions to personalize your sound settings. JBL QuantumONE JBL QuantumONE Game Chat Personalized audio calibration 15-30 sec 1. Connect the headset to your PC via USB connection (See “With USB connection”). 2. Run JBL QuantumENGINE and go to QuantumSPHERE 360 calibration. - 9 -...
  • Page 12 3. As instructed, detach the boom microphone and plug in the calibration microphone. 4. Place the calibration microphone inside your left ear and wait until proper noise level is detected. 5. Follow the onscreen instructions to finish audio calibration for both ears. 6.

  • Page 13: Re-Centering

    Re-centering This function allows you to re-center your headset before every use to get the optimal sound positioning. 1. Position yourself in front of your monitor. 2. Press on your headset and the head-tracking sensor will start automatic calibration. TIP: •...

  • Page 14: Using Your Headset

    Using your headset With USB connection 1. Connect the orange connector (USB-A) of the USB cable to a USB-A port on your PC, Mac or PS4. 2. Connect the black connector (USB-C) to the USB-C port on your headset. Basic operation Controls Operation Volume dial...

  • Page 15: With 3.5Mm Audio Connection

    TIP: • Depending on your device configuration, you can also use a USB-C to USB-C cable (not supplied). USB-C connectivity with all devices is not guaranteed. With 3.5mm audio connection 1. Connect the black connector to your headset. 2. Connect the orange connector to the 3.5mm headphone jack on your PC, Mac, mobile or gaming console device.

  • Page 16: Product Specifications

    Product Specifications • Driver size: 50 mm Dynamic drivers • Frequency response: 20 Hz - 40 kHz • Microphone frequency response: 100 Hz -10 kHz • Max input power: 20 mW • Sensitivity: 95 dB @ 1 kHz, 1 mW •...

  • Page 17: Troubleshooting

    Troubleshooting If you have problems using this product, check the following points before you request service. No sound or poor sound • Make sure you have chosen JBL QUANTUMONE GAME as the default device in the game sound settings of your PC, Mac or gaming console device. •...
  • Page 18 HP_JBL_QONE_OM_V3...
