CD PLAYER QUICK SETUP
![]()
- Make sure all items listed on the front of this guide were in the box.
- READ SAFETY INSTRUCTION BOOKLET BEFORE USING THE PRODUCT.
- Study this setup diagram.
- Place mixer in an appropriate position for operation.
- Make sure all devices are turned off and all faders and gain knobs are set to "zero"
- Connect all stereo input sources as indicated in the diagram, your microphone, and headphones
- Connect the stereo outputs to power amplifier(s), tape decks, and/or other audio sources.
- Plug all devices into AC power.
- Switch everything on in the following order.
- audio input sources (i.e. turntables or CD players)
- mixer
- last, any amplifiers or output devices
- When turning off, always reverse this operation by,
- turning off amplifiers
- mixer
- last, any input devices
- Go to http://www.numark.com for product registration.
More information about this product may be found at http://www.numark.com
FEATURES

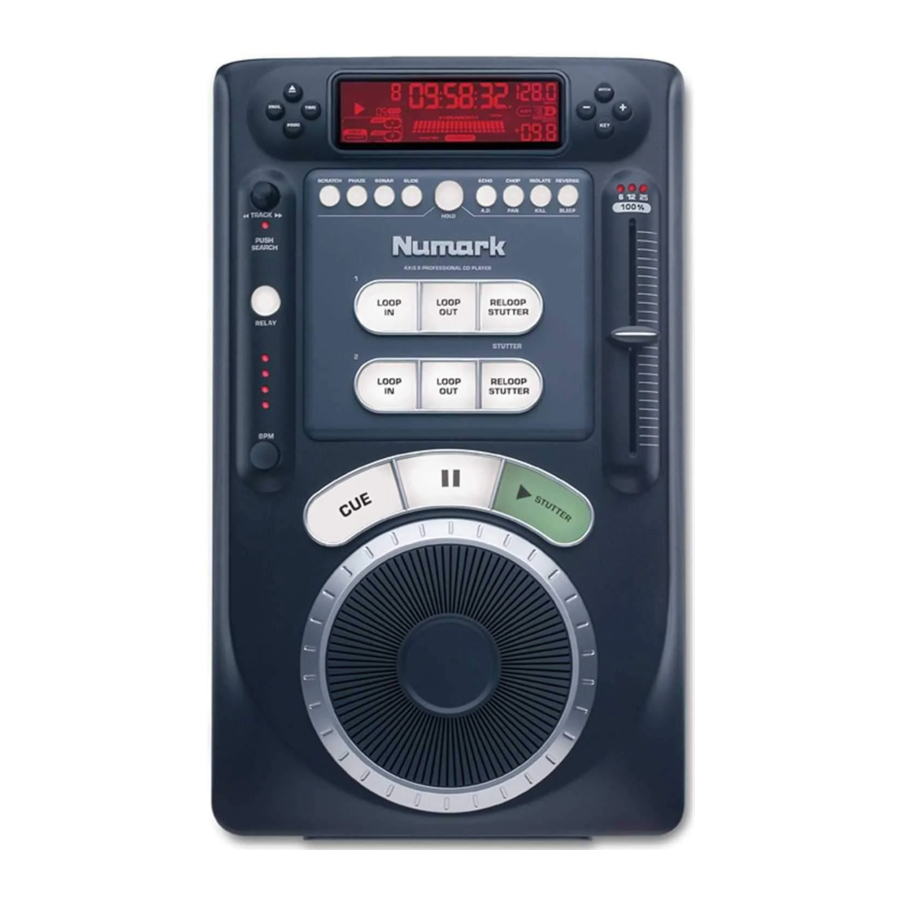

![Numark - Axis 8 - Features Overview - Part 1 Features Overview - Part 1]()
- PLAY/STUTTER - To start the music from the initial cue point.
- PAUSE - To pause the music.
- CUE - To move the music to the cue point and preview the selection.
- JOG WHEEL -
- INNER WHEEL - Used for various functions such as cueing, scratching, pitch bend, searching, and effect control
- OUTER PITCH WHEEL (AXIS 9) - Used for temporary pitch bend.
- LCD DISPLAY - Indicates all the functions, as they are occurring, with the CD.
- OPEN/CLOSE - Pressing will open or close the disc tray on the transport.
- SGL - To set play mode in single or continuous play.
- TIME - Controls display indication of time mode.
- PROGRAM - Used for setting track order and various special commands.
- TRACK SELECT/SEARCH -
- Rotation – selects tracks
- Pressing while rotating – selects tracks +10
- Pressing once - Puts wheel in search mode.
- PITCH - Actives and sets pitch slider range.
- KEY - Used for various key control.
- -,+ - Works as pitch bend and controls key and pitch functions.
- PITCH SLIDER - Controls the overall speed of the music.
- PITCH RANGE LED - Indicates current pitch range of the pitch slider
- EFFECT BUTTON - Used to determine desired effect.
- EFFECT HOLD - Used to set effects to an alternate position
- LOOP IN - Used to set stutter and loop in points.
- LOOP OUT - Used to set loop out points and release the loop.
- RELOOP/STUTTER - Used for repeated play (stutter) from the loop in point, repeating a previously set, and hot start.
- RELAY - Used for setting Alternating play start between attached units.
- BEAT SYNC with MARCHING BAR GRAPH - Tracks the beats and measure position of music
- CD Illumination Light (unit front) – lights up the CD drawer and CD when open.
- CD Drawer (Unit Front) – Place your CDs you wis h to play in here. This unit is designed to play commercially available CD and properly burned and finalized CDR. Due to variances on the specification of certain CD burners and CDs some discs home made CDs may not play properly.
![Numark - Axis 8 - Features Overview - Part 2 Features Overview - Part 2]()
- Power Switch - Turn on and turn off the machine with this button. The unit should always be shut down with this button first before any external power is removed. Typically it is recommended that the CD player is powered on before amplifiers and off after amplifiers to avoid an audio spike to be sent through your equipment.
- IEC Power Plug Connector - Plug your supplied power cord in here.
- Voltage Selector - Set this switch to the voltage for your location.
- RCA Audio Connectors - Connect your CD player to your mixer from this line level output.
- Relay Connector - If you wish to use the relay function plug in your 3.5mm stereo control cables into here and then into your other unit. The cable must be a stereo style plug for the units to work properly
- Remote Start Connector – Use this connector to plug into your fader-start compatible mixer or remote switch. This function is always active.
- To use fader-start, connect a 1/8" mono minijack cable to a fader-start compatible mixer. Every time you move the crossfader on the mixer over to the side that the unit is on, it will automatically start playing. When you move the fader away from that side, the unit will stop. Moving the fader back to the unit side will start play again.
- Foot switches can also be attached to this jac k for creative mixing techniques and can be found in most music shops. Connector plugs are often ¼" and an adapter to 1/8" will be needed for connection. There are also two types of footswitches that will work with this connector. The first is a typical, on/off pushbutton switch and are generally used for switching channels on guitar amps. The second switch is a momentary footswitch and is usually used for keyboard sustain pedals.
