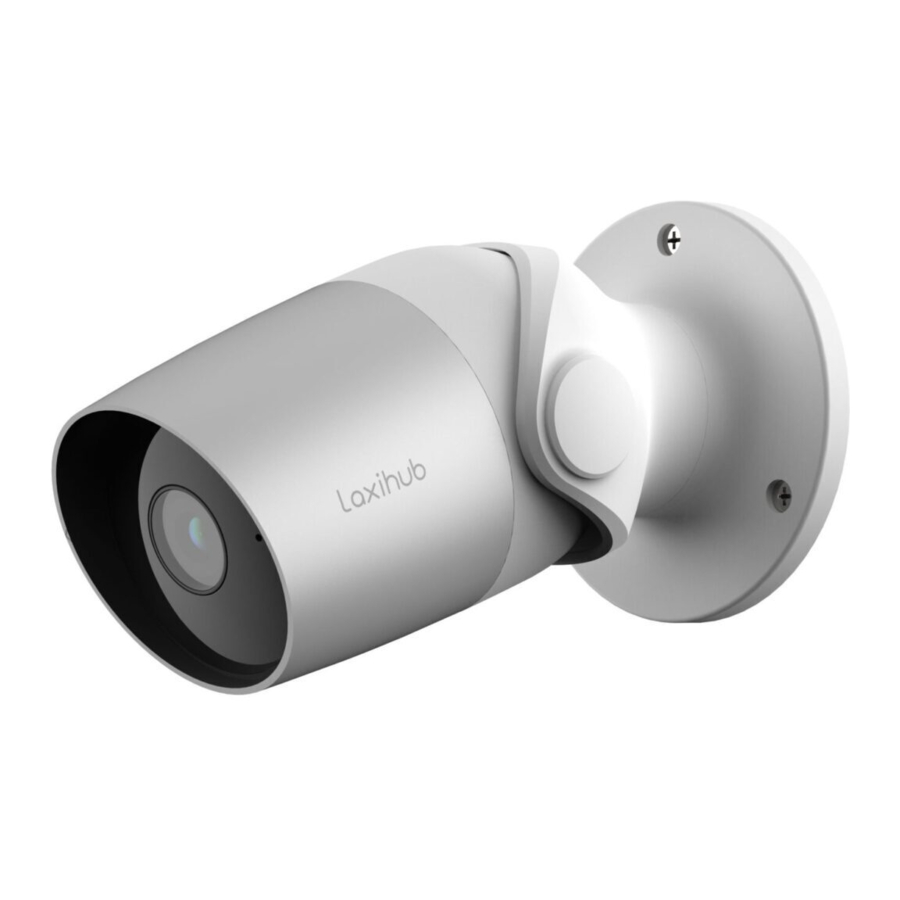

Laxihub O1 - Outdoor Wi-Fi Camera Manual

Also See for O1:

Table of Contents

Packing list

warning Notice
To reset the device, press and hold the reset button for 5 seconds. The camera beeps when the operation is complete.

Step 1 Turn on your camera by plugging in the power adapter.

Step 2 Connect your smartphone to the Wi-Fi network.

Step 3 Download Arenti app from the App Store or Google Play depending on your device.

Step 4 Launch Arenti app and sign up for the first use. Step 5 Follow the steps below to add your camera, then follow the on-screen instructions.

warning Note

If you have multiple cameras, please follow step 5 again to add devices one by one.
To change Wi-Fi network, please restore the camera to factory settings and follow step 5 to add the camera.

Sensor type	1/2.9" CMOS
Min. Brightness	Color 0.01Lux@F1.2 Black and white 0.001Lux@F1.2
Resolution	2 Mega pixels
Lens	4.0mm F2.0
Shutter	1/25~1/100,000 per second
Infrared	High power LED with ICR
Infrared distance	10 meters
Video compression	H.264
Bit rate	32Kbps~2Mbps
Max resolution	1920 x 1080
Framerate	1~25 per second
Picture settings Support	HD/SD; support flip;
Storage	SD card (Max 128G)
Audio	Two-way audio
Protocols	HTTP, DHCP, DNS, RTSP
WiFi standard	IEEE802.11b/g/n
Frequency	2.4 GHz - 2.4835 GHz
Bandwidth	20/40MHz
WiFi encryption	WPA-PSK/WPA2-PSK
Security	AES128
Working temperature	-20ºC~55ºC
Power	DC12V, 1A
Consumption	4.5W MAX
Size(mm)	79x79x132
Model	KA1201A-1201000EU
Input voltage	100-240Vac
input frequency	50-60Hz
Output voltage	+ 12Vdc
Output current	1A
Output power	5W
Efficiency	73,62%
No-load Consumption	< 0.1W
