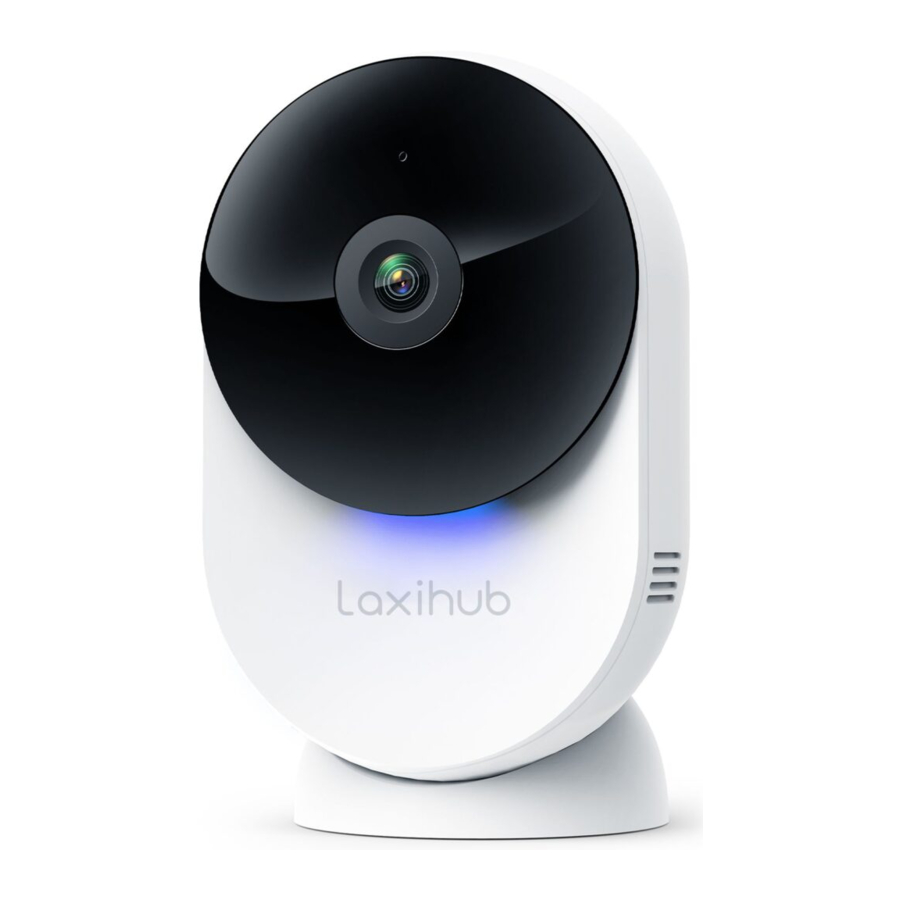

Laxihub MiniCam - Smart Indoor Wi-Fi Camera Manual
Packing list
Product description
-
Microphone
- Lens
- LED indicator
- Speaker
- Type-C port
- Reset
- SD card slot
Notice
To reset the device, press and hold the reset button for 5s.
The camera beeps when the operation is complete.
LED indicator of camera:
| Flashing red light (slow) | Wait for network config |
| Flashing red light (fast) | Connecting the network |
| Fixed red light | Network is malfunctional |
| Fixed blue light | Camera is working correctly |
Installation
- Stick the 3M tape in the middle of camera bottom.
![]()
- Put the camera on the clean plane.
![]()
Product configuration
- Turn on your camera.
- Connect your smartphone to the Wi-Fi network.
- Download Arenti app from the App Store or Google Play depending on your device.
![www.apple.com]()
![play.google.com]()
- Launch the App and sign up for the first use.
- Follow the on-screen instructions to add your camera.
For more information, scan the QR code.
Notice
If you have multiple cameras, please follow step 5 again to add devices one by one.
To change Wi-Fi network, please restore the camera to factory settings and follow step 5 to add the camera.
Specifications
| Sensor type | 1/3" CMOS |
| Min. brightness | Color 0.1Lux@F2.0 |
| Black and white 0.01Lux@F2.0 | |
| Resolution | 2 Mega pixels |
| Lens | 3.6 mm F2.0 |
| Shutter | 1/15-1/10,000 per second |
| Infrared | High power LED with ICR |
| Infrared distance | 10 meters |
| Video compression | H.264 |
| Bit rate | 32Kbps - 2Mbps |
| Max resolution | 1920 x 1080 |
| Framerate | 1-25 per second |
| Picture settings | Support HD/SD; support flip |
| Storage | SD card (Max 256GB) |
| Audio | Two-way audio |
| Protocols | HTTP, DHCP, DNS, RTSP |
| WiFi standard | IEEE802.11b/g/n/ac |
| Frequency | 2.4 GHz; 5GHz |
| WiFi encryption | WPA-PSK/WPA2-PSK |
| Security | AES128 |
| Working temperature | -20℃~40℃ |
| Power | DC5V,1A |
| Consumption | 2.5W MAX |
| Size(mm) | 143x57x36 |
| Model | TPA-67F050100VU01 |
| Input voltage | 100~240V AC |
| Input frequency | 50~60Hz |
| Output voltage | 5V DC |
| Output current | 1A |
| Output power | 5W |
| Efficiency | 73.62% |
| No-load consumption | < 0.1W |
Support
www.laxihub.com
Symbols
 | Direct current (DC) |
 | For indoor use only |
