QUICK GUIDE
F1-TY

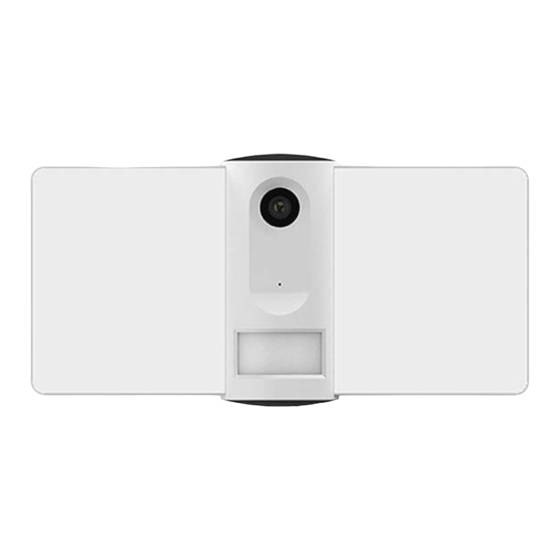

EN Smart Wi-Fi Floodlight Camera
FR Caméra Floodlight Wi-Fi intelligente
NL Slimme Wi-Fi Floodlight-camera
DE Intelligente Wi-Fi-Flutlichtkamera
IT Videocamera smart Wi-Fi Floodlight
ES Cámara de reflector con Wi-Fi inteligente
PT Câmera inteligente com Wi-Fi Floodlight
RU Умная Wi-Fi прожекторная камера
TU Akıllı Wi-Fi Işıklandırmalı Kamera
Advertisement
Related Manuals for laxihub F1-TY
Summary of Contents for laxihub F1-TY

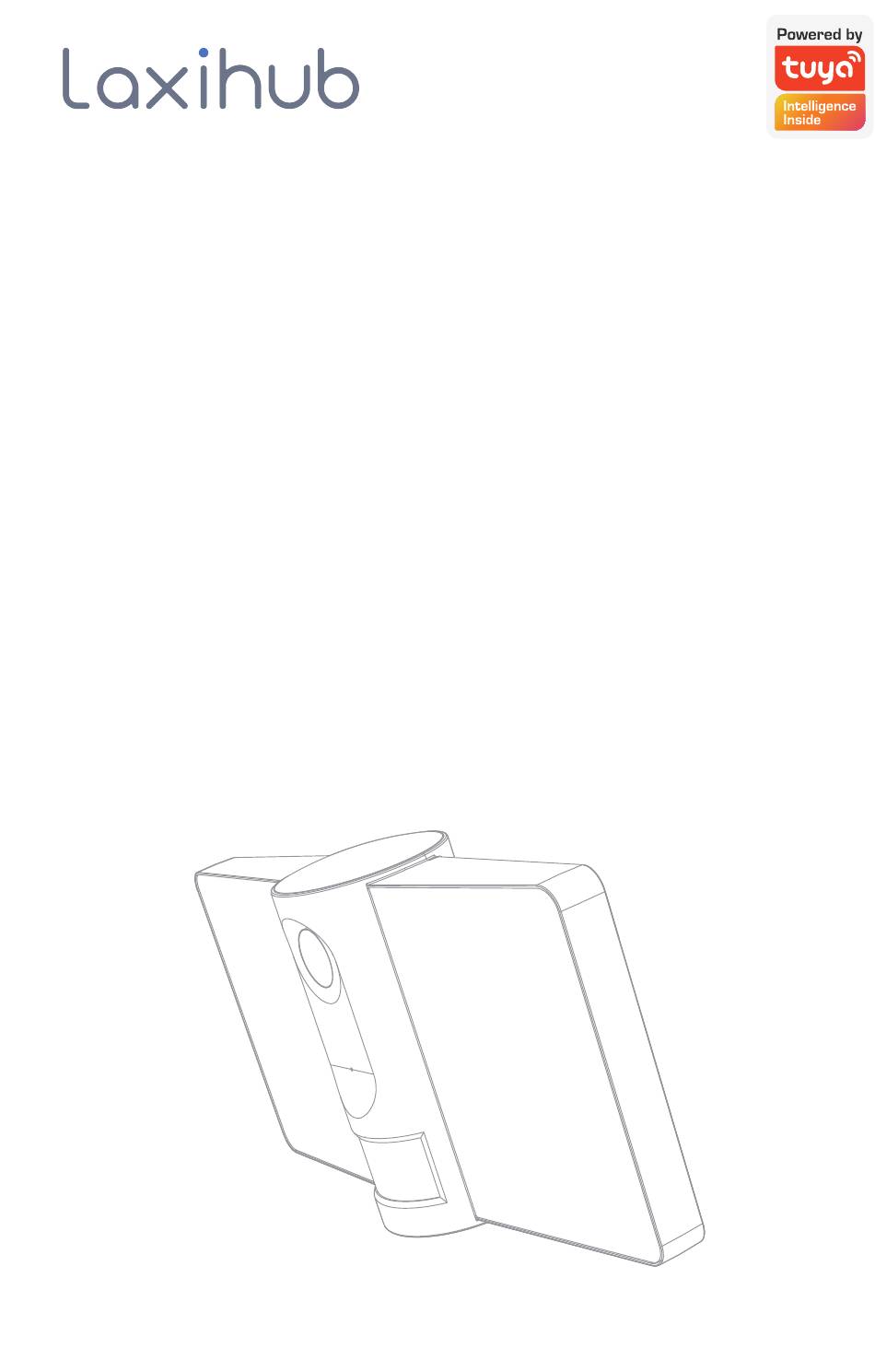

- Page 1 QUICK GUIDE F1-TY EN Smart Wi-Fi Floodlight Camera FR Caméra Floodlight Wi-Fi intelligente NL Slimme Wi-Fi Floodlight-camera DE Intelligente Wi-Fi-Flutlichtkamera IT Videocamera smart Wi-Fi Floodlight ES Cámara de reflector con Wi-Fi inteligente PT Câmera inteligente com Wi-Fi Floodlight RU Умная Wi-Fi прожекторная камера...
- Page 3 CONTENT English Deutsch Français Español Italiano Pусский Dutch...
-
Page 4: What's In The Box
English What's in the box Please consult this checklist for all parts. F1-TY Bracket Bracket screws Wire nuts Screwdriver Disc bracket Waterproof terminal User manual Screws... - Page 5 English Lens Reset Light SD card slot PIR & Status light Description Power AC 100~240V Status light Red light solids on: the camera network is abnormal Blinking red light: awaiting WiFi connecting Blue light solids on: camera running correctly Blinking blue light: currently connecting Records sounds for your video Microphone SD card slot...
- Page 6 English Install Bracket Screws Wire Nuts 100~240V AC Screws Bracket For the Europe Region If the wires are placed in an outdoor environment, the included waterproof terminal is suggested to use. NOTE: Different countries may have different colors for wiring. Please connect the wires of the same color together.
- Page 7 English The Wall Fix the F1-TY to the bracket ** Note A. Fix the camera B. Adjust the angle C. Adjust the direction and fix the camera. Set-up Plug in Plug the camera into an outlet. An audible sound will play when the system is ready for operation.
- Page 8 English Adding Download our Smart Life App by scanning the following QR codes or searching in your app store. Follow the prompts on the App to finish setup. your network SUPPORT iPad Android Download App (iOS & Android) Registration Step 1 Open the Smart Life App, click "Sign Up", and select the country or region where your account is located.
- Page 9 English Step 2 Input Verification Code and create a password which is required a combination of numbers and letters, not less than 6 digits. Then click "Log In". Note: Make sure your router, camera, and mobile phone are nearby. QR Code Configuration Few notice before adding the device 1.
- Page 10 English Process Step 1 Open the Smart Life App, click "+", and select "Video Surveillance". Step 2 Please confirm the indicator rapidly blinks. Click "QR Code", then click "Next". Step 3 Input WiFi password, click “Next”, and scan the QR Code with this camera.
- Page 11 English About 20cm Step 4 Click "I Heard a Prompt" when the device plays a tone "dong dong dong". And you can complete the configuration in about 30s.
- Page 12 English Q: During the network configuration process, if the progress bar is always not 100%, meaning the adding failed? A: This camera only supports 2.4GHz WiFi network, please make sure you are using a wireless router that supports 2.4GHz band. Q: What to do when the live video cannot be viewed properly? A: Check whether the network is normal, you can...
- Page 13 English Q: How to switch the camera network to another router? A: First remove the device on the App and/or reset it and then add the device again. Q: Why doesn't the device identify the SD card? A: It is recommended to insert the SD card while keep the power off.
- Page 14 English Functions Lighting Control You can turn the light on or off with time setting or PIR. Two-way audio You can see and hear the vistor in your App from the camera. When the camera detects someone stopping by, it sends an alarm message to your cell phone.
