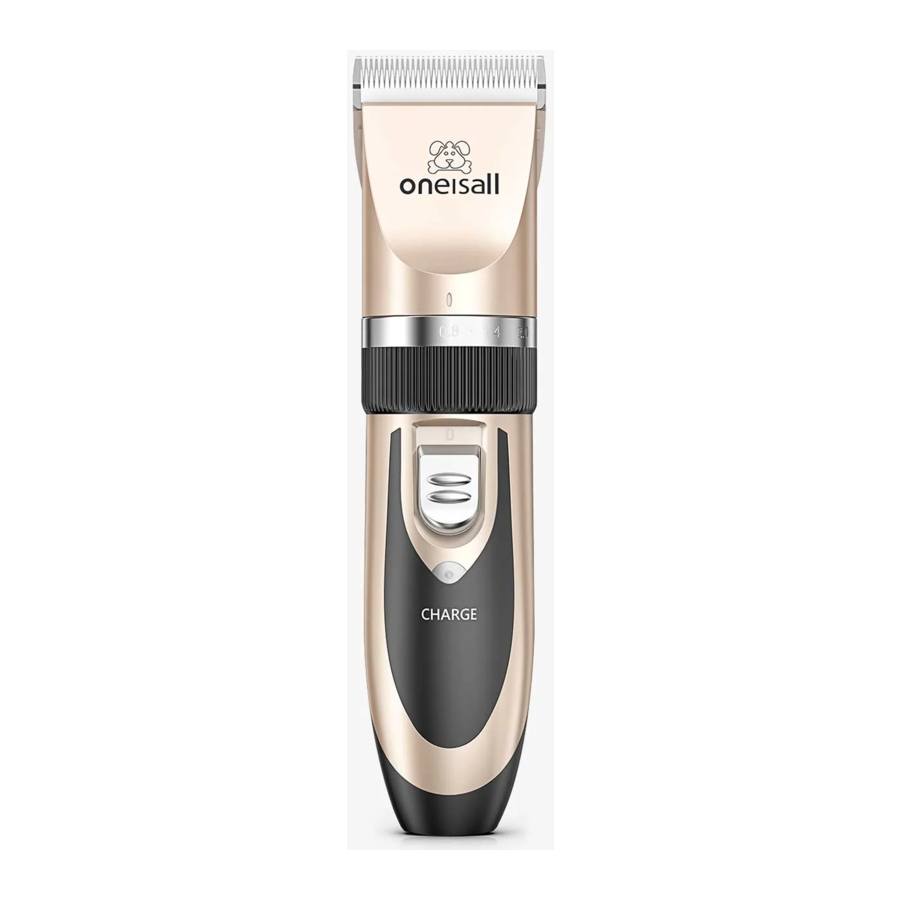

oneisall P2 - Pet Clipper Manual

Table of Contents

Contents

1 Each Part Name
2 High performance lithium battery
3 Plug-in Using Method
4 Adjusting Length Function
5 Blade Removal & Installation
- 5.1 Blade Removal
- 5.2 Blade Installation
6 Cleaning & Maintenance
- 6.1 Blade Cleaning
- 6.2 Blade Maintenance
7 Precautions For Use
8 Contact Us
9 Documents / Resources
- 9.1 References
- 9.2 Download manual

Each Part Name

High performance lithium battery

Pet Grooming Clipper	Motor	Operating voltage: 5V
		Centering material: anti-wear brass
	Battery	Battery type: 2000mAh
		Charge time: 5h
		Operating time: 5h
Specific Adapter		Input: 100 V-240V-50/60Hz
		USB connect with adapter 5V=1A

Plug-in Using Method

Putting the rechargeable batteries into the clipper and plugging the charging cable to start charge.
Red Charge light means start charge.
The red charge light will be changed into green color when it is fully charged.

Adjusting Length Function

Limited comb function trim for crew cut or the side hair Special long (3, 6, 9, 12, 15, 18 mm) kinds of length adjustment to control the length of hair
Blade limit regulator: 5 kinds of length adjustment from 0.8mm-2.0mm

Determine the need hair length
Select the appropriate guide comb
Fine tune the blade

Guide Comb installation:
Like the picture, hold both sides and push when butting the button positions. (Notes: the comb should not be close or easy to fall off after being butted.)

Guide Comb dismantle
Remove the butted positions with hands on its both sides and then remove the comb.

Moving the button left and right to adjust the blade (0.8mm-2.0 mm)
Fine tune the blade - Step 2

Blade Removal & Installation

Blade Removal

Like the picture, press down the moving blade with the thumb and then remove the blade.
Please hold with the other hand to avoid the blade falling off.

Blade Installation

Adjust the adjusting ring to 2.0mm before installing the blade
Direct the blade(B) at the hair clipper's slot(A) and plug in
Push the blade down until it clicks

Cleaning & Maintenance

Blade Cleaning

Clear up the blade with cleaning brush.

The blade can be removed out for cleaning.

The moving blade can be turned back on, and then cleaning the hair between the moving blade and the fixed blade.
Blade Cleaning

Blade Maintenance

Before or after use, maintain the blade by dripping some oil on the red point places like the left picture.

Precautions For Use

Please do not disassemble the product.

The hair clipper can not be washed. Please keep it away from wet conditions.

The product can only be cleaned by cloth with little water or mild soap solution.

Do not charge the product under environment above 40^oC or 0^oC

The product can produce little heat during using or charging, which is normal.
Please remove the battery safely and return it to the specified places when the battery runs out. Never discard it casually.

Contact Us

WE ARE READY TO HELP

Oneisall offers a standard 2 years warranty. If you have any issues with your Oneisall product, please do not hesitate to contact us. Be sure to include your proof of purchase, model number, and any relevant photos or videos in your message to expedite the process. Our Oneisall support team is available 7 days a week and will respond to your inquiry within 24 hours. Thank you for choosing Oneisall.

Please note that the Oneisall warranty does not apply to used products or purchases made from unauthorized sellers. It's important to be aware that the warranty also does not cover consumable parts such as blades, guards, filters, brushes, and similar items. These parts may require regular replacement or maintenance.

@ support@oneisall.com
+1877-522-8578 (US) Mon-Fri 8am-5pm(PST)
www.oneisall.com
