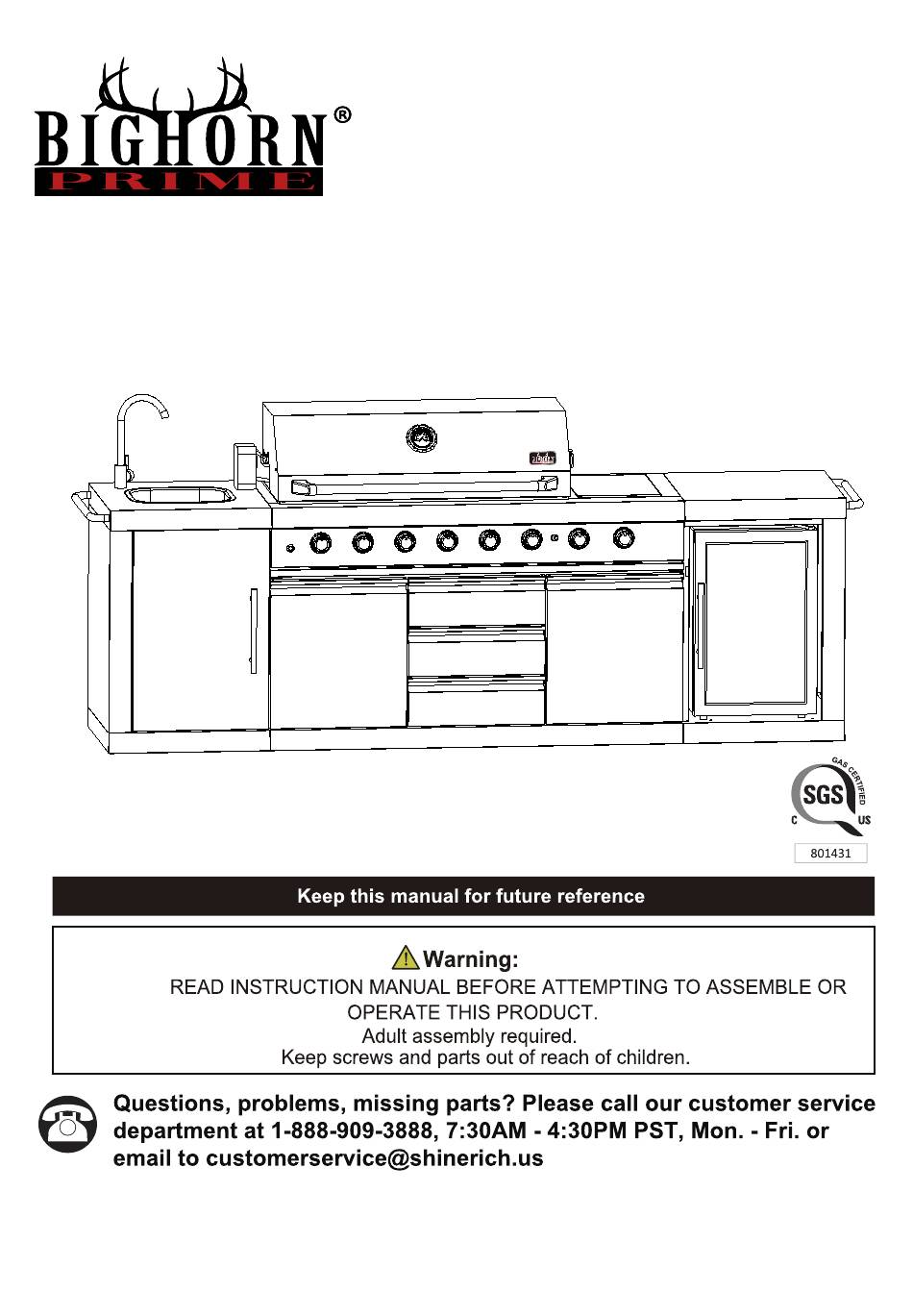

- Page 1 Outdoor Kitchen Island Model No: SRGG62301 Assembly Instructions & User’s Manual...
-
Page 2: Safety Warning
SAFETY WARNING RECOGNIZED SAFETY SYMBOLS, WORDS AND LABELS DO NOT USE ALUMINUM FOIL TO LINE THE GRILL RACKS OR GRILL BOTTOM. This can severely upset combustion airflow or trap excessive heat in the control area. WARNING Do not try lighting this appliance without first reading GAS INSTALLATION CODES the “LIGHTING INSTRUCTIONS”... -
Page 3: Table Of Contents
TABLE OF CONTENTS Safety Warning ............................2,4-5 Placement of the Grill………......................…………...6 Exploded View……............................… Parts List ..…...…………………......................…………… Assembly Instructions…..........................9-12 Gas Cylinder Installation Instructions...…......................Gas Hook-Up…............................…… Gas Safety............................... Leak Testing………........................…………… Lighting Instructions ……..........................17 -21 …......................Main Burners' Lighting Instructions …......................Rear Burner's Lighting Instructions ........................ -
Page 4: Safety Practices To Avoid Personal Injury
SAFETY WARNING TESTED IN ACCORDANCE WITH CSA/ANSI CHILDREN SHOULD NOT BE LEFT ALONE OR Z21.58-2022·CSA 1.6-2022 STANDARD FOR UNATTENDED IN AN AREA WHERE THE GRILL IS OUTDOOR COOKING GAS APPLIANCES. BEING USED. NEVER ALLOW THEM TO SIT, STAND OR PLAY ON OR AROUND THE GRILL AT ANY TIME. WARNING: This product can expose you to chemicals including soot, which is known to the State of California to cause cancer, and carbon... - Page 5 SAFETY WARNING Keeping outdoor cooking gas appliance area clear and When using the grill, do not touch the grill rack, free from combustible materials, gasoline and other flam- burner grate or immediate surroundings as these mable vapors and liquids. areas become extremely hot and could cause burns.
-
Page 6: Placement Of The Grill
PLACEMENT OF THE GRILL MINIMUM CLEARANCE: 2 feet Clearance from both sides of combustible material, and 3 feet Clearance from the back. back 3’ 2’ 2’ LOCATION When determining a suitable location take into account concerns such as exposure to wind, proximity to traffic paths and keeping any gas supply lines as short as possible. -
Page 7: Exploded View
EXPLODED VIEW Please check the contents of the packaging to ensure all parts are included. If missing parts please contact customer service. -
Page 8: Parts List
PART LIST Part # Picture Part # Picture Motor Grill modular Motor rack Faucet Rotisserie fork Sink modular Charcoal pan Refrigerator modular Warming rack Handle Cooking grid A Drain-pipe Levelling wheel (pre-assembled) Cooking grid B Non- levelling wheel (pre-assembled) Heat diffuser Side burner rack Rain Cover Hinge... -
Page 9: Assembly Instructions
ASSEMBLY INSTRUCTIONS DD x 4 M6x16 (Pre-assembled) AA x 8... - Page 10 ASSEMBLY INSTRUCTIONS Step 3 AA x 10 Step 4...
- Page 11 ASSEMBLY INSTRUCTIONS Step 5 Step 6 BB x 2 M5x10 (pre-assembled) CC x 2 M5 Nut (pre-assembled)
- Page 12 ASSEMBLY INSTRUCTIONS Step 7 Step 8...
-
Page 13: Gas Cylinder Installation Instructions
GAS CYLINDER INSTALLATION INSTRUCTIONS STEP 1 Place gas cylinder (not included) into the hole at cart bottom panel. Screw cylinder locking bolt (pre-installed) to the cart bottom panel from behind until the cylinder locking bolt touch the bottom rim of gas cylinder. STEP 2 1) Check to ensure that the valve of gas cylinder is securely turned off prior to making the connection. -
Page 14: Gas Hook-Up
GAS HOOK-UP Only the pressure regulator and hose assembly supplied Main Manifold operating pressure: 11” water column (W.C.) with the grill must be used. Any replacement pressure /2.74kPa. regulator and hose assembly must be specified by the P Gas Cylinder must be fitted with Overfill Prevention grill manufacturer. -
Page 15: Gas Safety
GAS SAFETY To disconnect LP gas cylinder: QCC-1 QUICK CLOSING COUPLING This appliance is designed to be used with an LP gas 1. Turn the burner valves off. cylinder equipped with the QCC-1 Type 1 Quick Closing 2. Turn the cylinder valve off fully (turn clockwise to stop). Coupling system which incorporates new safety features required by the American National Standard Institute Detach the regulator assembly from the cylinder valve... -
Page 16: Leak Testing
LEAK TESTING GENERAL GAS FLOW CHECK Each grill burner is tested and adjusted at the factory prior Although all gas connections on the grill are leak to shipment; however, variations in the local gas supply tested at the factory prior to shipment, a complete gas may make it necessary to adjust the burners, the flames tightness check must be performed at the installation of the burners should be visually checked. -
Page 17: Lighting Instructions
LIGHTING INSTRUCTIONS WARNING: IMPORTANT! BEFORE LIGHTING… Inspect the gas supply hose prior to turning the gas “ON”. If it is evident there is excessive abrasion or wear, or the hose is cut, it must be replaced prior to the grill being put into operation. The replacement pressure regulator and hose assembly shall be that specified by the manufacturer. -
Page 18: Rotisserie Operating Instructions
LIGHTING INSTRUCTIONS ROTISSERIE OPERATING INSTRUCTIONS 11. Always attach power cord to appliance first, then plug Important: cord into the wall outlet. If the plug does not fit in the outlet, contact a qualified electrician. DO NOT attempt to modify the plug or override this safety feature. Use Your grill may be equipped with rotisserie burner. -
Page 19: Side Burner Lighting Instructions
LIGHTING INSTRUCTIONS ROTISSERIE OPERATING INSTRUCTIONS SIDE BURNER'S LIGHTING INSTRUCTIONS Inspect the gas supply hose prior to turning the gas IMPORTANT: Do not use the rotisserie burner and the main burner at the same time. “ON”. If there is evidence of cuts, wear or Do not use side burner when the rotisserie is in use to abrasion, it must be replaced prior to use. -
Page 20: Charcoal Pan Operating Instructions
LIGHTING INSTRUCTIONS Charcoal pan instructions • Do not apply oil to charcoal pan. • Check to make sure the air vents are free of debris and ash before using. • Before each use, check for any damaged or loose parts. Tighten any loose parts and replace any damaged parts before using. -
Page 21: To Match Light The Grill
LIGHTING INSTRUCTIONS TO MATCH LIGHT THE GRILL If the burner will not light after several attempts then the burner can be match lit. 1. Open lid before lighting. 2. Turn the burner control knobs to "OFF". 3. Place a paper match in the end of the match lighter. Strike the match and place through the cooking grate to the LEFT burner, 1 /2"... -
Page 22: Grilling Guide
GRILLING GUIDE Outdoor grilling is really quite simple. You'll succeed with DIRECT COOKING burgers, dogs, or steaks usually on your very first try. With experience, you will learn how to work with your Direct cooking involves grilling your meat directly over grill, creating more imaginative meals all the time. -
Page 23: Using The Grill
GRILLING GUIDE USING THE GRILL Cooking Tips: Grilling requires high heat for searing and proper • To prevent foods from sticking to the grill it is essential to coat the grill with oil. Then light up the burners on browning. Most foods are cooked at the “MAX” heat high for 3-5 mins to warm up the barbeque. -
Page 24: Care & Maintenance
CARE & MAINTENANCE CAUTION: GREASE TRAY CLEANING The grease tray should be emptied and wiped down All cleaning and maintenance should be done when grill periodically and washed in a mild detergent and warm is cool and with the gas supply turned off at the propane water solution. -
Page 25: Trouble Shooting
TROUBLE SHOOTING BEFORE CALLING FOR SERVICE If the grill does not function properly, use the following checklist before contacting your dealer for service. You may save the cost of a service call. PROBLEM SOLUTION When light the grill, it does -- Make sure you have turned on the gas. - Page 26 TROUBLE SHOOTING BEFORE CALLING FOR SERVICE If the grill does not function properly, use the following checklist before contacting your dealer for service. You may save the cost of a service call. Problem PossibleCause Prevention/Solution Burner(s) will not • Wire and/or electrode covered •...
- Page 27 TROUBLE SHOOTING BEFORE CALLING FOR SERVICE If the grill does not function properly, use the following checklist before contacting your dealer for service. You may save the cost of a service call. Problem Possible Cause Check Procedure Prevention/Solution No sparks appear at •...
-
Page 28: Warranty Information
WARRANTY INFORMATION The appliance has been manufactured under the highest standard of quality and workmanship. We warrant to the original consumer purchaser that all aspects of this product will be free of defects in material and workmanship for one (1) year from the date of purchase. A replacement for any defective part will be supplied free of charge for installation by the consumer.
