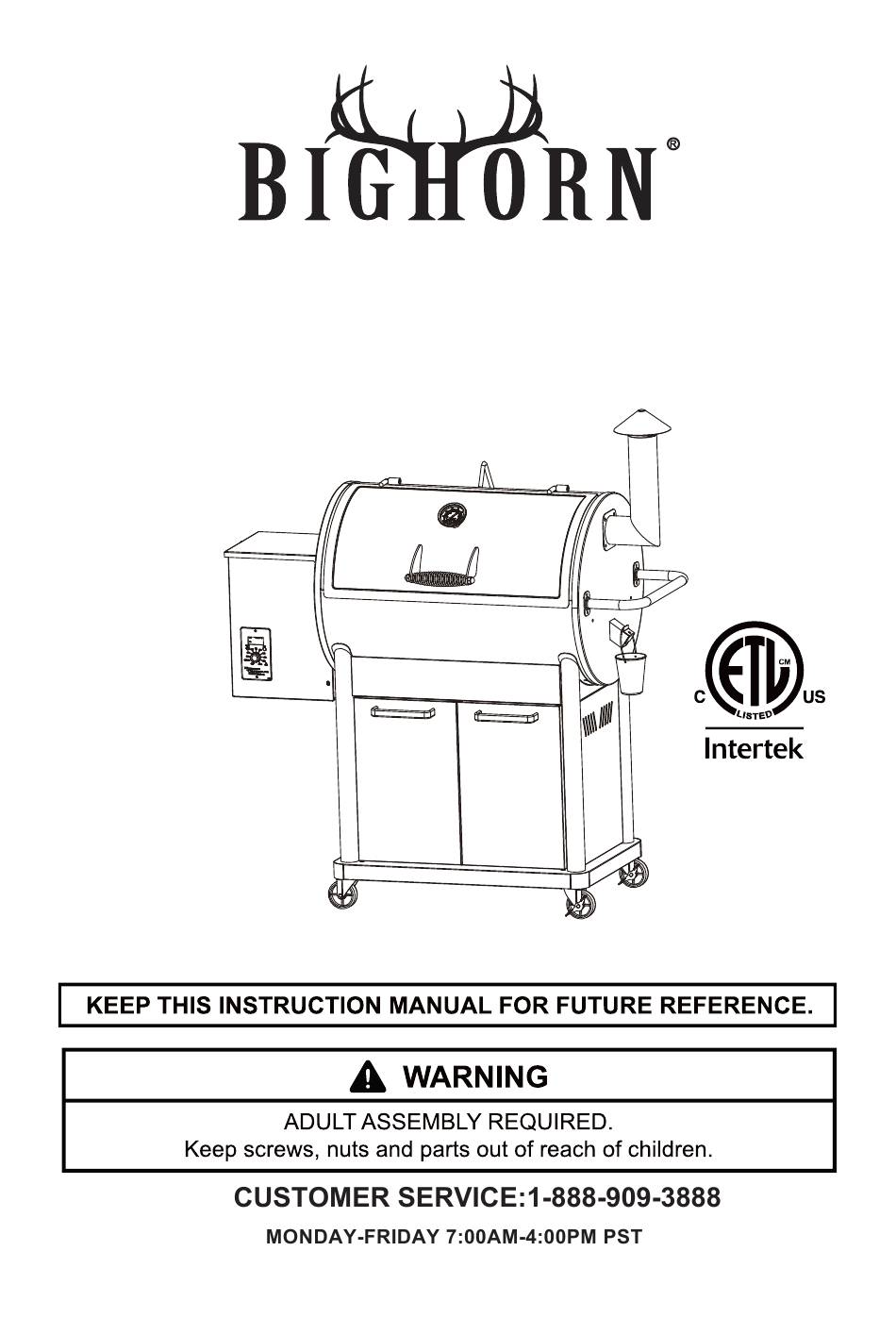

PELLET GRILL
OWNER'S MANUAL AND ASSEMBLY INSTRUCTIONS
Model#: SRPG18002
5009725
CERTIFIED TO UL
SUBJECT 2728-2009
CERTIFIED TO ULC/
ORD-C2728-13
Refer to Intertek's Directory
of Building Products for
detailed information.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SRPG18002 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BIGHORN SRPG18002

Summary of Contents for BIGHORN SRPG18002

  • Page 1 PELLET GRILL OWNER'S MANUAL AND ASSEMBLY INSTRUCTIONS Model#: SRPG18002 5009725 CERTIFIED TO UL SUBJECT 2728-2009 CERTIFIED TO ULC/ ORD-C2728-13 Refer to Intertek's Directory of Building Products for detailed information.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS WARNINGS……………………………………………………………....2-3 EXPLODED VIEW & PARTS LIST………………………………......4-7 HARDWARE AND TOOLS…………………………………………......8 ASSEMBLY INSTRUCTIONS………………………………………....9-20 CONTROLLER INSTRUCTIONS............... 21 PREPARATION FOR USE & LIGHTING INSTRUCTIONS……....22-23 SHUTDOWN INSTRUCTIONS ................. 24 OPERATING INSTRUCTIONS…………………………………...... 25-28 GRILL COOKING TIPS…………………………………........29 PROPER CARE & MAINTENACE……………………........30-31 TROUBLESHOOTING .................

  • Page 3: Warnings

    WARNINGS...
  • Page 4 WARNINGS...
  • Page 5 EXPLODED VIEW-A...
  • Page 6 EXPLODED VIEW-B...

  • Page 7: Parts List

    PARTS LIST Chamber Lid Grease Bucket Temp Gauge Cooking Rack Power Cord Bracket Left Bracket Small Cooking Rack Hopper Assembly Large Cooking Rack Flame Tamer Door Handle Decorative Panel Hopper Gasket Grease Tray Left Side Panel Smokestack Gasket Cooking Chamber Left Door Back Panel Cooking Rack...
  • Page 8 PARTS LIST Hopper Bottom Panel Grill Probe Auger Motor Hopper Latch Blower Fan Protection Guard Auger Housing Hopper Box Auger Logo Plate Fire Pot Rubber Sealer PTC Controller Power Cord Control Knob Hot Rod...
  • Page 9 Phillips Head Screwdriver (Not included) Adjustable Wrench (Not included)

  • Page 11: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Step 3 Attach the bottom panel (#29) to the left side panel (#7) and right side panel (#16) with (4) M6 x 20 bolts (FF), (4) M6 flat washers (II) and (4) M6 spring washers (JJ) as illustrated. Hardware Used M6 x 20 Bolt 4pcs...
  • Page 12 ASSEMBLY INSTRUCTIONS Step 5 Fix the door magnet (#30) to the bottom panel (#29) with (2) M6 x 12 bolts (AA) as illustrated. Hardware Used M6 x 12 Bolt 2pcs Step 6 Attach the door handles (#5) to the left door (#8) and the right door (#28) with (4) M4 x 10 bolts (DD), (4) M4 flat washers (HH) and (4) M4 spring washers (KK) as illustrated.
  • Page 13 ASSEMBLY INSTRUCTIONS Step 7 Attach the left door (#8) to the left side panel (#7) with (2) M5 x 12 stepped bolts (GG), as illustrated. Repeat the same procedures to assemble the right door. Hardware Used M5 x 12 Shoulder Bolt 4pcs Step 8 Remove the lid (#1) from the cooking chamber (#25) by removing the bolt and washer found on the left hinge pin.
  • Page 14 ASSEMBLY INSTRUCTIONS Step 9 Attach the cooking chamber (#25) to the cabinet with (10) M6 x 12 bolts (AA) as illustrated. Hardware Used M6 x 12 Bolt 10pcs Step 10 Attach the smokestack (#12) and the smokestack gasket (#24) to the chamber right endcap with (4) M6 x 12 bolts (AA) and (4) M6 nuts (BB) as illustrated.
  • Page 15 ASSEMBLY INSTRUCTIONS Step 11 Fix the grease bucket bracket (#15) on the square tube end of the chamber right bracket (#14) with (1) M6 x 12 bolt (AA) as illustrated. Screw the chimney cap (#11) to the smokestack (#12) as illustrated. Hardware Used M6 x 12 Bolt Step 12...
  • Page 16 ASSEMBLY INSTRUCTIONS Step 13 Secure the hopper assembly (#4) to the cooking chamber (#25) left wall with (4) M6 x 20 bolts (FF) as illustrated. Note: Step must be performed by two capable adults. Hardware Used M6 x 20 Bolt 4pcs Step 14 Place the flame tamer (#21) over the fire pot inside the cooking chamber (#25).
  • Page 17 ASSEMBLY INSTRUCTIONS Step 15 Place the grease tray (#23) on the chamber right side bracket and chamber left side bracket as illustrated. Step 16 Place the cooking grates (#10) onto the cooking chamber grid brackets/rails as illustrated.
  • Page 18 ASSEMBLY INSTRUCTIONS Step 17 Insert the cooking rack left bracket (#18) and the cooking rack right bracket (#9) into the mounting taps found on the cooking chamber side walls as illustrated. Note: When installing the cooking rack brackets, ensure the long slideways close the cooking grates, and the stoppers on slideways locate on the chamber front, to prevent your cooking racks from sliding when your grill is on uneven floor.
  • Page 19 ASSEMBLY INSTRUCTIONS Step 19 Reinstall the cooking chamber lid (#1) by sliding the hinge pins into the hinges. Secure it with the washer and bolt removed in Step 8. Step 20 Carefully screw the temp gauge (#2) into the lid (#1). Adjust the orientation and lock the gauge into position using the pre-attached nut on the temp gauge (#2).
  • Page 20 ASSEMBLY INSTRUCTIONS Step 21 Hang the grease bucket (#17) from the square tube end of the chamber right side bracket as illustrated. Step 22 Attach the power cord bracket (#3) to the back of the hopper assembly (#4) with (2) M5 x 10 bolts (EE) as illustrated.
  • Page 21 ASSEMBLY INSTRUCTIONS Step 23 Pellet Grill (Assembled)
  • Page 22 8 8 8 8 8 8 recision EMPERATURE ONTROL...

  • Page 23: Preparation For Use & Lighting Instructions

    PREPARATION FOR USE & LIGHTING INSTRUCTIONS PLACE THE GRILL OUTDOORS ON A HARD, LEVEL, NON-COMBUSTIBLE SURFACE AWAY FROM ROOF, OVERHANG OR ANY COMBUSTIBLE MATERIAL. NEVER USE ON WOODEN OR OTHER SURFACES THAT COULD BURN. PLACE THE GRILL AWAY FROM OPEN WINDOWS OR DOORS TO PREVENT SMOKE FROM ENTERING YOUR HOUSE.

  • Page 24: Automatic Method

    AUTOMATIC METHOD Note: We recommend setting the control knob to "High" for 10 to 15 minutes to preheat the grill. If the grill temperature is more higher than your selected setting temperature, open grill lid to cool until the grill temperature close the selected setting temperature.

  • Page 25: Manual Method

    LIGHTING INSTRUCTIONS & SHUT DOWN LIGHTING INSTRUCTIONS MANUAL METHOD 1. With the grill properly setup and located for operation, ensure control knob on OFF position. Plug the power cord into a 120V grounded electrical outlet. (Refer to SETUP PROCEDURE for more information.) DO NOT use if the ground tip has be removed from power cord. DO NOT use an extension cord or ungrounded electrical outlet.

  • Page 26: Preheating The Grill

    OPERATING INSTRUCTIONS CURING THE GRILL Before initial use, it is recommended to cure the grill to remove manufacturing oils or paint residue and minimize smoke odors or unnatural flavors from being added to food. Follow "Setup Procedure" to ensure the grill is safe for operation. Follow "Lighting Instructions"...
  • Page 27 2 3 6 4 0 0 CAUTION! After cooking at high temperatures for an extended time, do not immediately unplug or turn the controller OFF. Set the grill recision into SMOKE mode and allow up to 15 EMPERATURE minutes for the grill temperature to lower. Then turn the controller OFF to enter shut ONTROL down.
  • Page 28 OPERATING INSTRUCTIONS COOKING INSTRUCTIONS The following table represents the preset smoking modes showing the relation of smoke produced with the cooking temperature. A higher preset level will produce more smoke, but a lower cooking temperature. Smoke Mode Smoke Cooking Setting Produced Temperature HIGH...
  • Page 29 OPERATING INSTRUCTIONS IMPORTANT: Never move your pellet grill while it is hot or in use. Make sure the flame tamer and grease tray are properly installed. If not properly installed, a grease fire could result. Adjust the chimney cap height for added temperature control. Upward decreases the temperature and downward increases.

  • Page 30: Wood Pellets

    GRILL COOKING TIPS WOOD PELLETS ONLY USE wood pellets made for barbecue, not heat grade pellets. Barbecue wood pellets should be 100% all natural wood and come in a variety of types of wood that will add flavor to whatever food you are grilling or smoking. If possible, always use fresh wood pellets for each cooking session to ensure they burn properly giving off the correct amount of heat and smoke flavor.

  • Page 31: Care And Maintenance

    CARE AND MAINTENANCE GRILLING TIPS & CLEANLINESS If you pre-cook meat or poultry, do so immediately before grilling. Never defrost meat at room temperature or on a countertop. Refrigerate leftovers within 2 hours of taking off the grill. Always wash hands thoroughly with soap and hot water prior to handling food and after handling raw meat, uncooked poultry or seafood.

  • Page 32: Troubleshooting

    CARE AND MAINTENANCE Paint and Corrosion Never apply paint to interior surfaces. Rust spots on the interior can be buffed, cleaned and then lightly coated with vegetable oil or vegetable oil spray. Maintaining a light coat of oil will help minimize rusting.
  • Page 35 ． ．...
  • Page 36 8 8 8 8 8 8 recision EMPERATURE ONTROL...

  • Page 37: Warranty Information

    WARRANTY INFORMATION This appliance has been manufactured under the highest standards of quality and workmanship. We warrant to the original consumer/purchaser that all aspects of this product will be free of defects in material and workmanship for one year from the date of purchase. A replacement for any defective part will be supplied free of charge for installation by the consumer.
