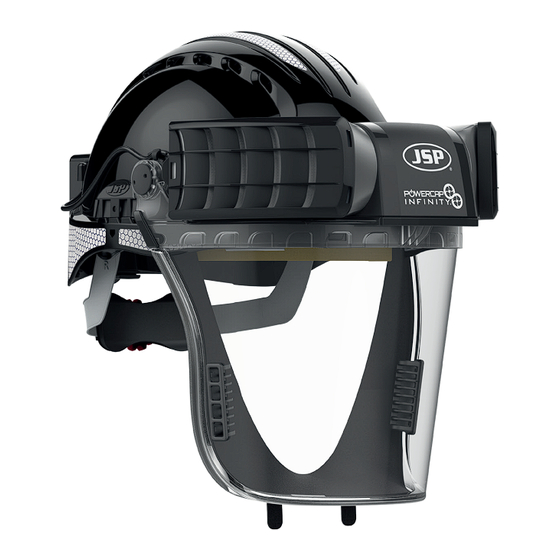

JSP POWERCAP INFINITY Manual

Powered respirator system
Hide thumbs Also See for POWERCAP INFINITY:

Advertisement

Quick Links

Download this manual
POWERCAP
EN
EN12941:1998 + A2:2008 - RESPIRATORY PROTECTION
EN397:2012: + A1:2012 - HEAD PROTECTION
EN166:2001 - EYE PROTECTION
A copy of this manual and the Declaration of Conformity for the product can be found on the product page: documents.jspsafety.com
CONTENTS
®
®
Removing & Replacing the Drive Unit & Visor Carrier Assembly
INFINITY
POWERED RESPIRATOR SYSTEM
®
®
This manual must be retained for future reference.
3
3
3
3
3
4
4
4
5
6
6
7
7
7
2
8
9
10
10
10
11
11
12
12
13
14
15
16
16
17

Advertisement

loading
Need help?

Need help?

Do you have a question about the POWERCAP INFINITY and is the answer not in the manual?

Questions and answers

Related Manuals for JSP POWERCAP INFINITY

Summary of Contents for JSP POWERCAP INFINITY

  • Page 1: Table Of Contents

    POWERCAP INFINITY POWERED RESPIRATOR SYSTEM ® ® EN12941:1998 + A2:2008 - RESPIRATORY PROTECTION EN397:2012: + A1:2012 - HEAD PROTECTION EN166:2001 - EYE PROTECTION This manual must be retained for future reference. A copy of this manual and the Declaration of Conformity for the product can be found on the product page: documents.jspsafety.com CONTENTS General Use &...

  • Page 2: General Use & Warning System

    ® ® • Do not alter or modify the product in any way not approved by JSP Ltd. • Do not touch any moving part. • Do not allow water or other liquids to enter the inside of the motor housing or battery compartment.

  • Page 3: Battery Information

    JSP Ltd will replace defective parts as required at no charge. JSP Ltd’s liability will not exceed the value of the original sales receipt for the device. In the event of valid claims under this warranty JSP Ltd will not be liable for loss of use of any of its products or for any incidental, indirect or consequential cost, expenses or damages incurred or claimed by the purchaser or any other user.

  • Page 4: Markings

    MARKINGS: Manufacturers Trademark See instructions for use. If the instructions for use Regulation 2016/425 on personal recommendations are not adhered to, the protection afforded protective equipment, as amended to by the device may be severely impaired. apply in GB. Indicates that product manufacture meets international Conformity to Regulation (EU) 2016/425.

  • Page 5: Applications

    It may offer respiratory protection to the wearers of prescription eye wear. PowerCap Infinity also has the facility to be able to accept the JSP Sonis helmet mounted hearing protection to provide protection against ®...

  • Page 6: Storage

    STORAGE: • Store in the carry case provided. • Store away from direct sunlight. • Avoid contact with solvents and solvent atmospheres. • Avoid physical contact with abrasive or hard surfaces. • Store at temperatures between +5°C and +40°C. • Store at relative humidity not greater than 75%. •...

  • Page 7: Battery & Airflow Check

    (See Removing & Replacing Filters and Removing & Replacing Pre-Filters sections). In the event that there is still insufficient airflow, do not use the product, but contact JSP Ltd for further advice. The HUD/Audio alert lights should always be the primary method of assessing flow levels.

  • Page 8: Donning

    Tighten the helmet strap by turning the wheel ratchet at the rear of the helmet clock-wise. Adjust for a comfortable, secure fit. It may be necessary to adjust the position of the head strap in the helmet using JSP’s 3D-Adjustment system to achieve a comfortable, secure fit.

  • Page 9: Warning Scenario Table

    ® TH3P R SL EN12941:2008 Only use genuine PowerCap Infinity filters supplied in pairs from JSP Ltd or its distributors. Always replace both filters ® ® The blue line is a cutter guide and not to be printed. RPKR-004-800_23-05 simultaneously. NEVER use compressed air to clean the filters. This will seriously limit protection.

  • Page 10: Removing & Replacing Filters

    REMOVING & REPLACING FILTERS: To Remove the Filters: Rotate the rear of each filter upwards by 30° until compression is lost, then pull away from the motor housing. To Replace the Filters: Ensure that the filter and motor housing mating faces are clean; do not allow any dust or foreign objects to fall into the motor housing.

  • Page 11: Removing & Replacing The Drive Unit & Visor Carrier Assembly

    REMOVING & REPLACING THE DRIVE UNIT & VISOR CARRIER ASSEMBLY: See Battery & Airflow Check, Removing & Replacing Filters, Removing & Replacing the Visor and Removing & Replacing the Face Seal Skirt sections to remove the battery cable, filters, visor and skirt. 1.

  • Page 12: Removing & Replacing The Visor

    REMOVING & REPLACING THE VISOR: (Care should be taken to avoid scratching the visor surfaces during fitting) 1. Remove the visor. Release by unhooking the face seal skirt tabs from the front (left/right) of visor 2. Gently pull one of the face seal skirt tabs to expose the remaining material fitted to the channel of the visor and remove 3.

  • Page 13: Removing & Replacing The Face Seal Skirt

    REMOVING & REPLACING THE FACE SEAL SKIRT: 1. Remove the face seal skirt. Unhook the two inner and two outer skirt loops from the harness mounting points inside the helmet. 2. Unhook the plastic tab from the hook on the visor. 3.

  • Page 14: Removing & Replacing The Harness Strap

    REMOVING & REPLACING THE HARNESS STRAP: 1. Unhook the four inner and outer face seal skirt loops from the harness mounting points inside the helmet. 2. Remove the harness strap by un-popping the arm from the receiver (hold the helmet and receiver firmly whilst doing so). 3.

  • Page 15: Cleaning

    Infinity have been designed to be compatible. Use of non-compatible hearing protection may ® ® reduce the performance of PowerCap Infinity . Contact JSP Ltd to check compatibility of other hearing protection/accessories. ® ® Fitting the Sonis Ear Defenders: ®...

  • Page 16: Replacement Parts

    REPLACEMENT PARTS: REPLACEMENT PRODUCT REPLACEMENT PRODUCT IMAGE IMAGE PARTS CODE PARTS CODE PowerCap Infinity ® ® PowerCap Infinity Twin-Turbo Drive ® ® CAU660-000-400 CEU120-001-300 Filters (Pair) Unit and Visor Carrier Assembly PowerCap Infinity ® ® Pre-Filter (5 Pairs) PowerCap Infinity ®...
  • Page 17 Certified by: Approved Body 0086. BSI Group The Netherlands B.V., BSI Assurance UK Ltd, Kitemark Court, JSP Ltd. OX29 0TA, UK Wiesenstraße 57, 40549 Düsseldorf, DE John M. Keynesplein 9, Davy Avenue, Knowlhill, Milton Keynes, www.jspsafety.com | technical@jspsafety.com | : +44 1993 826051 1066 EP Amsterdam, The Netherlands.
