Harman Infinity 6001A Owner's Manual
  1. Manuals
  2. Brands
  3. Harman Manuals
  4. Amplifier
  5. Infinity Reference 6001A
  6. Owner's manual

Harman Infinity 6001A Owner's Manual

Marine amplifiers
Hide thumbs Also See for Infinity 6001A:

Advertisement

Quick Links

Download this manual

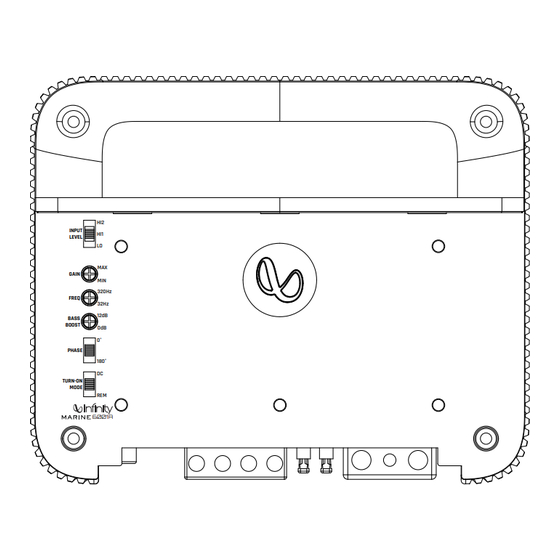

HI2
INPUT
HI1
LEVEL
LO
MAX
GAIN
MIN
320Hz
FREQ
32Hz
12dB
BASS
BOOST
0dB
0°
PHASE
180°
DC
TURN-ON
MODE
REM
6001A
REMOTE
INPUT
SUB
CONTROL
-
-
+
+
L
R
0°
12dB
BASS
PHASE
BOOST
0dB
180°
320Hz
FREQ
PRIMARY
32Hz
MODE
MAX
SECONDARY
GAIN
MIN
HI2
DC
INPUT
TURN-ON
HI1
LEVEL
MODE
LO
REM
10001A
PRIMARY OUT
REMOTE
SUB
INPUT
SECONDARY IN
CONTROL
-
-
+
+
L
R
Marine 6001A
Marine 10001A Amplifiers
FUSE
PWR/PROT
+12V
REM
GND
30A
30A
FUSE
PWR/PROT
+12V
REM
GND
35A
35A
35A
Owner's Manual
Mode d'emploi
Bedienungsanleitung
Manual de propietario
Manuale d'istruzioni
Gebruikershandleiding
EN
FR
DE
ES
IT
NL

Advertisement

loading
Need help?

Need help?

Do you have a question about the Infinity 6001A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Harman Infinity 6001A

Summary of Contents for Harman Infinity 6001A

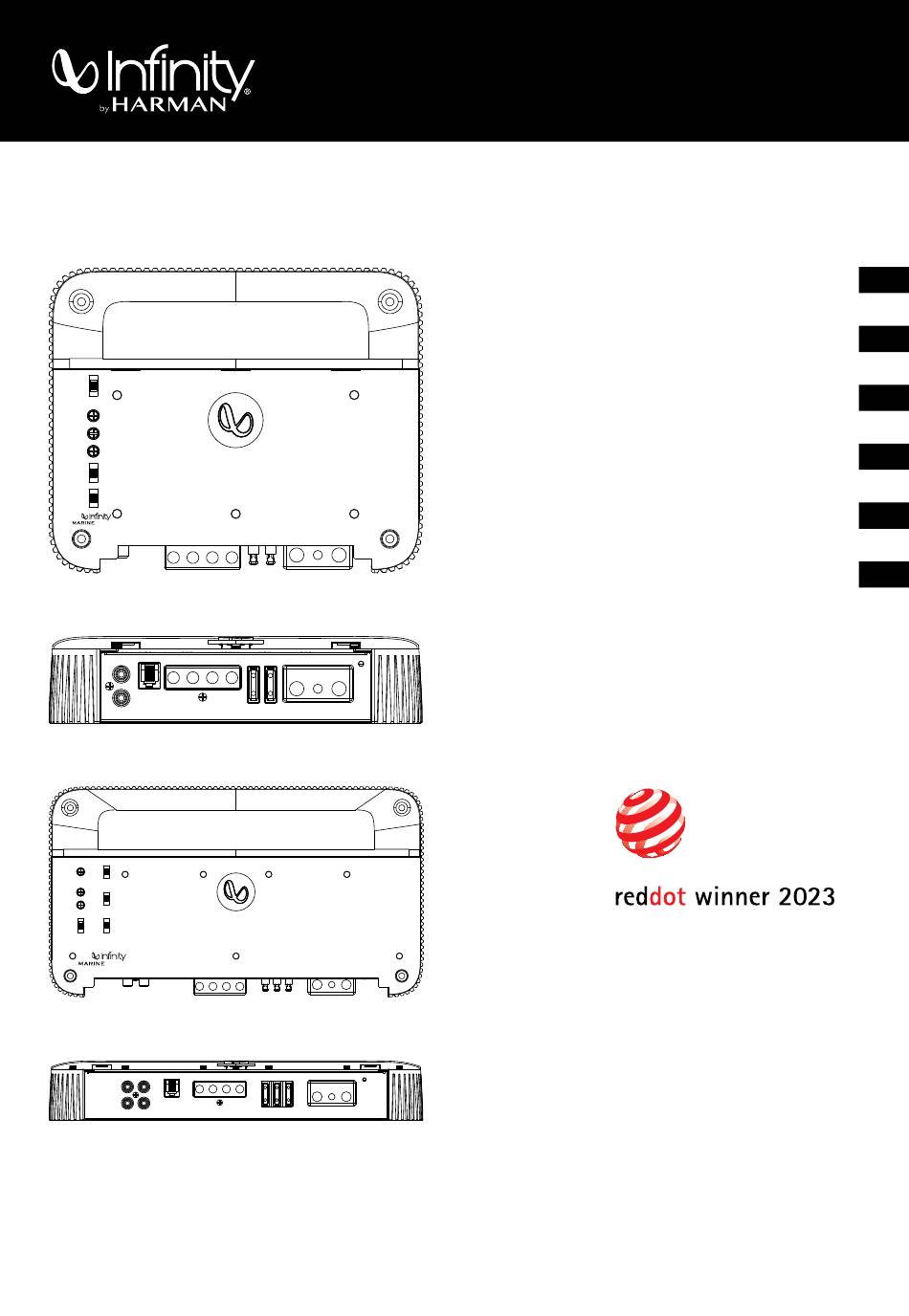

  • Page 1 Marine 6001A Marine 10001A Amplifiers Owner’s Manual Mode d’emploi INPUT LEVEL Bedienungsanleitung GAIN 320Hz FREQ 32Hz 12dB BASS Manual de propietario BOOST 0° PHASE 180° TURN-ON MODE Manuale d'istruzioni 6001A Gebruikershandleiding REMOTE INPUT FUSE PWR/PROT CONTROL +12V 0° 12dB BASS PHASE BOOST 180°...
