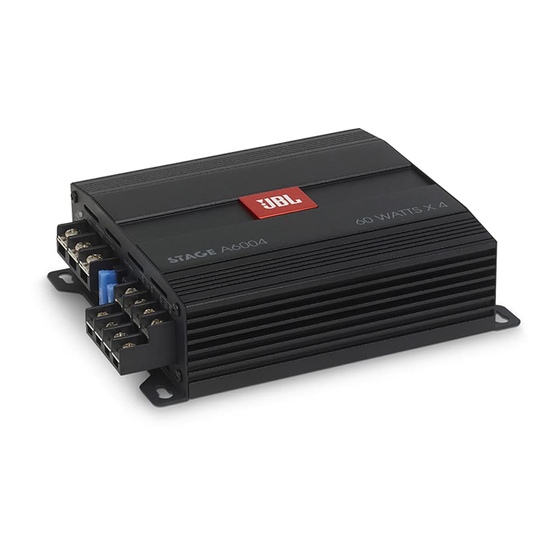

Harman JBL Stage A6004 Manual
Hide thumbs Also See for JBL Stage A6004:

Advertisement

THANK YOU FOR YOUR PURCHASE . . .
Your JBL product has been designed to provide you with the performance and ease of operation you would expect from JBL.
• Please take time to read your owner's manual in its entirety before operating or installing your amplifier.
• Keep the owner's manual for your amplifier in your glove compartment along with the owner's manual for your car.
• Put your amplifier sales receipt with other important documents in order to expedite warranty service if needed.
ABOUT THE MANUAL
This manual describes general installation guidelines and operation instructions. However, please note that proper installation of mobile audio and video
components requires qualified experience with mechanical and electrical procedures. If you do not have the knowledge and tools to successfully perform this
installation, we strongly recommend consulting an authorized JBL dealer about your installation options. Keep all instructions and sales receipts for reference.
Consider this manual as an indispensable feature of your amplifier.
EN
CHAPTER 1: PICTORIAL INDEX OF INPUT
CONNECTIONS
Stage Amplifier left side panel
1
2
1
2
R-PROTECT
R-PROTECT
R-PROTECT
1
2
1.
Power/protect indicator
2.
Power input connectors
3.
Fuse(s)
4.
Speaker output connectors
5.
High-level input(s)
6.
Line-level inputs (RCA)
What's in the box:
1x amplifier
4x mounting screws x4
Spare fuse (x1 for A6002, x2 for A3001, A6004 and A9004)
JBL Stage A6002/A6004/A9004/A3001
3
4
Stage A6002
3
4
3
4
Stage Amplifier right side panel
5
6
Stage A6002
6
5
Stage A6004 and A9004
5
6
7
Stage A3001
7.
Gain (input sensitivity)
8.
Bass EQ control(s)
9.
Crossover frequency control(s)
10. Crossover filter selector(s)
11. Subwoofer phase selector
High-level input adapter (x1 forA6002 and A3001, x2 for A6004 and A9004)
Mounting hardware
Quick-start guide
7
8
9
10
9
7
8
10
32HZ
320HZ
32HZ
320HZ
32HZ
320HZ
32HZ
320HZ
8
9
11
12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JBL Stage A6004 and is the answer not in the manual?

Questions and answers

Summary of Contents for Harman JBL Stage A6004

  • Page 1 JBL Stage A6002/A6004/A9004/A3001 THANK YOU FOR YOUR PURCHASE . . . Your JBL product has been designed to provide you with the performance and ease of operation you would expect from JBL. • Please take time to read your owner's manual in its entirety before operating or installing your amplifier. •...
  • Page 2 Precautions: +12 volt Remote Ground IMPORTANT: Disconnect the vehicle’s negative (–) battery terminal before beginning the installation. • Always wear protective eyewear when using tools. To in-dash receiver • Choose a safe mounting location, away from moisture. Check clearances on both sides of a planned mounting surface. Be sure that screws or wires will not puncture brake lines, fuel lines, or wiring harnesses and that wire routing will not interfere with the safe vehicle operation.
  • Page 3 Subwoofer Subwoofer o To power two subwoofers in parallel, connect one sub’s positive (+) and negative (-) leads to the positive and negative Stage A6004 and A9004 terminals of the other sub, then connect that subwoofer’s • The Stage A6004 and A9004 feature Channel 1 +/-, Channel 2 +/-, positive (+) wire to the positive (+) terminal, and the Channel 3 +/-, and Channel 4 +/- terminals.
  • Page 4 HARMAN International © 2018 HARMAN International Industries, Incorporated. All rights reserved. Industries, Incorporated JBL is a trademark of HARMAN International Industries, Incorporated, registered in the 8500 Balboa Boulevard, United States and/or other countries. Features, specifications and appearance are subject Northridge, CA 91329 USA to change without notice.
