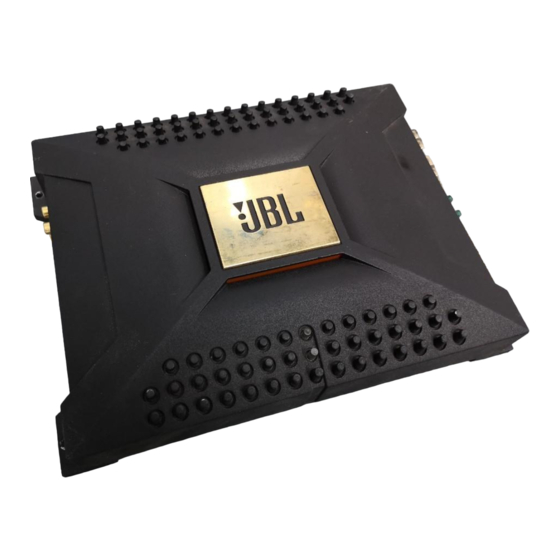

Summary of Contents for Harman JBL PRO POWER A302GTi
- Page 1 PRO POWER Automotive Amplifier Owner’s Manual A302GTi A601GTi A1201GTi...
- Page 2 The Official Brand of Live Music Thank you for purchasing a JBL Choosing a Location and Mount the amplifier so that it is not GTi Series amplifier. In order that Mounting the Amplifier damaged by the feet of back-seat we may better serve you, should you Amplifiers need air to stay cool.
- Page 3 PRO POWER Figure 2. Connecting the A302GTi Wiring the Power Connections Refer to Figures 1 and 2 for connector locations. All the GTi Series amplifiers will accept up to 4-gauge power and INPUT ground wire. To determine the mini- LEVEL ST BR HPF FLAT LPF mum acceptable power and ground...
- Page 4 The Official Brand of Live Music Connecting an Optional Wiring the Speaker Output Wiring the Input Signal Stiffening Capacitor Connections Connections You may connect an optional All the GTi Series amplifiers will Connect a pair of signal cables with outboard stiffening capacitor (sold accept up to 8-gauge speaker wire.
- Page 5 PRO POWER Installing the Remote Level Control Controlling More Than One Figure 4. Mounting the level control (A1201GTi and A601GTi only) and A601GTi or A1201GTi With a Status Monitor Single Remote Level Control Choose a location for the remote In order to control several GTi Series level control that is within your reach amplifiers with a single level control, while you are seated in the driving...
- Page 6 The Official Brand of Live Music System Set-Up and Adjustment Adjusting Amplifier Input Level, Setting the Crossover Crossover and Bass Boost Programming and Using the A1201GTi and A601GTi Status Monitor Setting Input Level The 24dB/octave low-pass filter built In order for the status monitor to Initially, turn the input level control into your A1201GTi or A601GTi can display the correct data, it must be...
- Page 7 Declaration of Conformity We, Harman Consumer International 2, route de Tours 72500 Chateau-du-Loir FRANCE declare in own responsibility, that the products described in this owner’s manual are in compli- ance with technical standards: EN 55013/A12/8.1994...
- Page 8 Specifications A302GTi A601GTi A1201GTi Number of channels Output power @ 4 ohms 150W RMS x 2 300W RMS x 1 600W RMS x 1 Output power @ 2 ohms 300W RMS x 2 600W RMS x 1 1200W RMS x 1 Output power bridged 600W RMS x 1 Stable into...
