Summary of Contents for KickAss KAJBLILID-L3

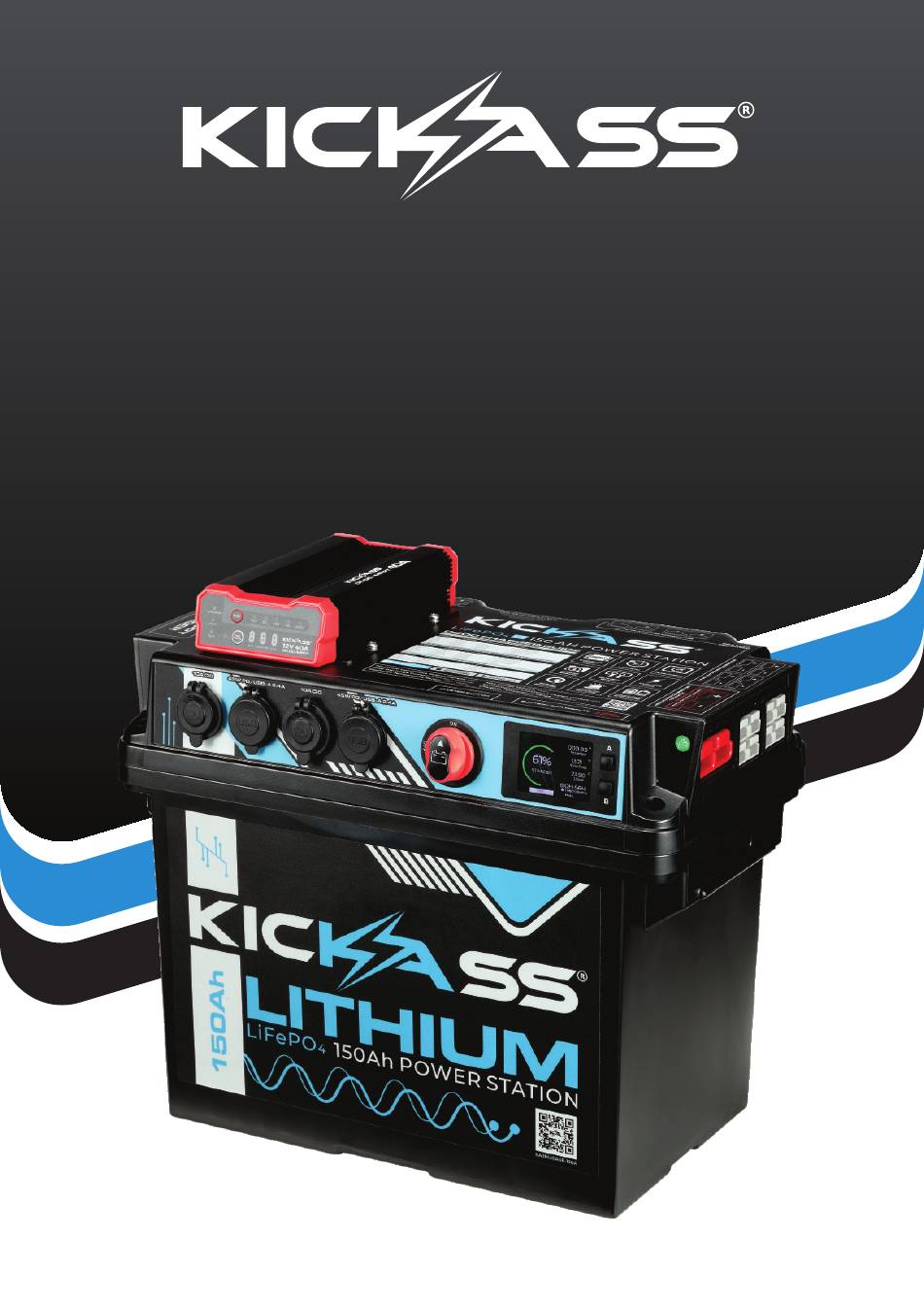

- Page 1 150Ah LITHIUM POWER STATION USER MANUAL PATENT PENDING © 2024, KickAss Products Pty Ltd. All rights reserved. VER 1.0...
-
Page 2: Table Of Contents
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - KICKASS LITHIUM BMS ALARM MODES... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Ÿ The total current draw from the battery must not exceed the maximum discharge rating of the battery. Should the maximum current draw be exceeded, the battery management system will trigger the over current protection mode. Ÿ The lid of the Power Station must remain shut at all times whilst charging. Ÿ... -
Page 4: Overview
OVERVIEW DCDC 2.4A USB-A & 2.4A USB-A & BATTERY CHARGER 45W PD USB-C 45W PD USB-C MONITORING LCD SCREEN MAIN CIGARETTE CIGARETTE ON/OFF SOCKET SOCKET SWITCH BATTERY BOX 12V 40A 10A CIG 10A CIG 45W PD/ QC3.0 45W PD/ QC3.0 10A CIG 10A CIG 45W PD/ QC3.0... -
Page 5: Getting Started
GETTING STARTED Step 1: Install the battery 12V 40A cables onto the terminal 10A CIG 10A CIG 45W PD/ QC3.0 45W PD/ QC3.0 10A CIG 10A CIG 45W PD/ QC3.0 45W PD/ QC3.0 00.88 CURRENT 12.75 posts of the battery. VOLTAGE 26.70 DISCHARGING... - Page 6 12V 40A Step 3: Install the 4 x 10A CIG 10A CIG 45W PD/ QC3.0 45W PD/ QC3.0 10A CIG 10A CIG 45W PD/ QC3.0 45W PD/ QC3.0 00.88 CURRENT 12.75 bolts to fasten the lid to VOLTAGE 26.70 DISCHARGING TEMP 7H 43M TIME TO EMPTY...
-
Page 7: Battery
150A Internal Battery Management System (BMS). Ÿ BMS supervised Lithium Battery Protection and alarms. Ÿ Bluetooth compatibility with KickAss app (Android and iOS). Ÿ LCD screen unit connection to BMS. Ÿ Approximately 2000 cycles at 80% DOD, and up to 4000 cycles at lower discharge rates. -
Page 8: Optional Accessories
Securely affix the tray in position using bolts or screws, whichever is applicable. Ensure that washers are used when installing the tray, to avoid damage. Note: KickAss do not provide the screws or bolts for this installation. Step 2: Ensure straps are laying outside... -
Page 9: Switch
Only use this switch when placing the battery in storage and not attempting to charge. LCD SCREEN The KickAss Lithium Battery Box Monitor has a display and two buttons. The screen is used to monitor the state and condition of the battery. The display features the following: Ÿ... - Page 10 Battery Instantaneous Load State of Muted Low Temperature Current In/Out State Charge Battery Alarm State of Charge Ring Battery Time to Voltage Full/Empty 000.00 CURRENT 13.46 VOLTAGE 27.30 STANDBY TEMP 524H-08M TIME TO EMPTY PAGE 1 PAGE 2 Page Number Turning the screen on/off...
-
Page 11: Bluetooth App Connection And Operation
BLUETOOTH APP CONNECTION AND OPERATION When the app is first launched, select To scan for a new battery, select the “Single” battery configuration. The scan option at the top of the page. parallel and series configuration are not applicable when the battery is configured as a Power Station. - Page 12 The state of charge (SOC), battery The detailed battery information page voltage, current and average power shows state of charge (SOC), battery are shown on the main battery voltage, current, average power, summary page. For detailed status (standby, discharging, information about the battery, click on charging), battery temperature, time the battery serial number.
- Page 13 Example of further information of a Select the configuration button battery system warning. performance information. The battery performance page shows After disconnecting from the battery, the battery health, the serial number / the battery can be reselected from the name, rated capacity, cycle count and quick start list on the main page of the cell voltage information.
-
Page 14: Kickass Lithium Bms Alarm Modes
KICKASS LITHIUM BMS ALARM MODES LCD SCREEN ALARM MODE APP SYSTEM WARNING SYSTEM WARNING Charging Over Voltage Error Over Voltage Protection: The voltage of your battery has exceeded the normal range. Remove charger View Error from battery. CHARGING OVER VOLTAGE... -
Page 15: Connections
CONNECTIONS OUTPUTS 2 X CIGARETTE SOCKET OUTPUTS = Maximum 10A output per socket. 2 x Cigarette Socket Outputs 2 X 45W PD / 2.4A USB = 2 x 45W PD USB-C = 2 x 5V2.4A USB-A 2 X 45W PD / 2.4A USB 1 x (175A) Anderson Style Plug INPUTS/OUTPUTS on the left side... - Page 16 6 X (50A) ANDERSON STYLE PLUGS 2 x (50A) Anderson Style Plugs 4 x (50A) Anderson Style Plugs on the back on the side = Input / output capable. = All Anderson plugs combined must not exceed 50A total current. WARNING: 1.
- Page 17 INPUTS ALTERNATOR 1 X TRIPLE ANDERSON STYLE PLUG = 9-32V DC Starter Battery Input (+/-) = Ignition source connection MPPT SOLAR 1 X (50A) ANDERSON STYLE PLUG = Minimum Solar Input Voltage: 9V DC = Maximum Solar Input Voltage: 32V DC Unregulated Solar Input - utilises in built DCDC MPPT regulator.
-
Page 18: Connecting To External Chargers
CONNECTING TO EXTERNAL CHARGERS The KickAss Power Station may be charged in a number of ways: Ÿ Connecting an AC charger to any of the in/out Anderson style connectors. Ÿ Connecting a solar panel with regulator/controller to any of the in/out Anderson style connectors. -
Page 19: Charging The Power Station
CHARGING THE POWER STATION ALTERNATOR INPUT SOLAR INPUT SKU: KAJBLILID-L3 | V1.0 (UNREGULATED 10-32V DC) 2X IN/OUT POWER CONNECTOR 50A MAX REGISTERED DESIGN NO.: 202016276, COMBINED 202112701, 202112702, 202112703 PATENT PENDING LiFePO 150 AH POWER STATION DCDC CHARGER GUIDE ALTERNATOR LED BATTERY STATUS... -
Page 20: Techincal Specifications
TECHNICAL SPECIFICATIONS BATTERY INFORMATION Battery Type LiFePO4 Nominal Voltage 12.8V Rated Capacity 150Ah Energy 1920Wh Max Charge Voltage 14.6V Charge Temperature 0 ~ +55°C Max Continuous Charge Current 150A Discharge Temperature -20 ~ +60°C Max Continuous Discharge Current 150A Battery Low Voltage Cutout WARNINGS ●... -
Page 21: Power Station
THANK YOU FOR CHOOSING LITHIUM LiFePO POWER STATION YOUR COMPLETE 12V POWER SOLUTION...
