KickAss KA12100-LION User Manual

12v 100a lithium battery with communication

Advertisement

Quick Links

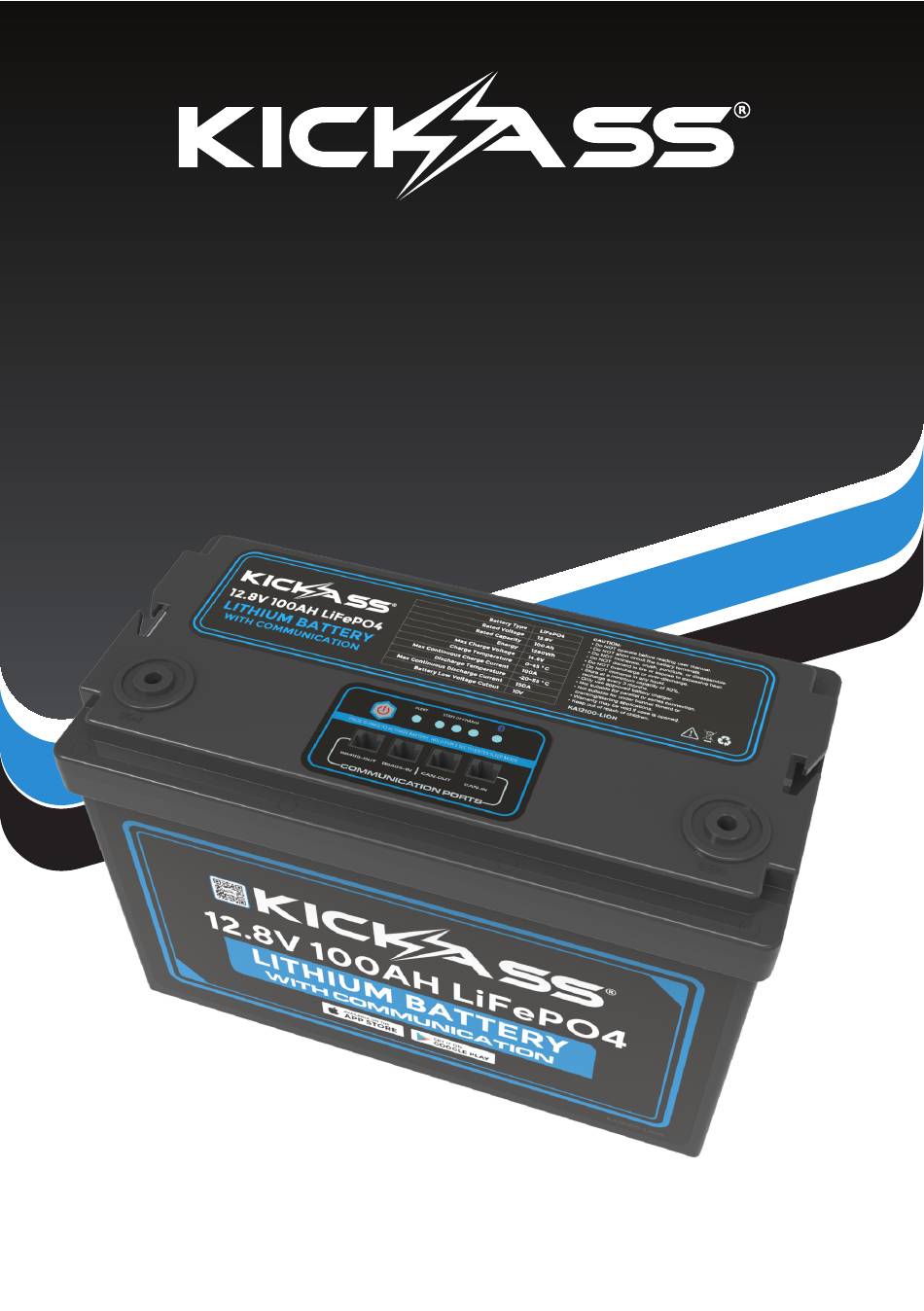

12V 100A
LITHIUM BATTERY
WITH COMMUNICATION
USER MANUAL
KA12100-LION
©2023, KickAss Products Pty. Ltd. All rights reserved.
VER1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KA12100-LION and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for KickAss KA12100-LION

  • Page 1 12V 100A LITHIUM BATTERY WITH COMMUNICATION USER MANUAL KA12100-LION ©2023, KickAss Products Pty. Ltd. All rights reserved. VER1.0...
  • Page 2: Table Of Contents

    TABLE OF CONTENT - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - INTRODUCTION INTRODUCTION - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -...
  • Page 3: Introduction

    INTRODUCTION Thank you for purchasing a KickAss Lithium Battery. The battery allows you to power all your 12V camping equipment with the following features: • Lithium Iron Phosphate (LiFePO4) Battery. • Internal Battery Management System (BMS). • BMS supervised lithium battery protection and alarms, via LED indicators in battery display and Mobile Application.
  • Page 4: Safety Precautions

    Safety Precautions • The total current draw from the battery must not exceed BMS rated capacity. • Ensure a lithium compatible charger is used with lithium batteries. • Do NOT use the battery for cranking/starting applications. • Do NOT allow the battery to sit in a discharged state ≤10.0 V. •...
  • Page 5: Dimensions

    DIMENSIONS...
  • Page 6: Battery Specifications

    BATTERY SPECIFICATIONS 100AH LiFePO4 Battery Specifications Nominal Voltage 12.8V Nominal Capacity 100Ah Nominal Energy 1280Wh Cycle Life (DoD - 80% Under Controlled Conditions) ≥ 2000 Cycles Bluetooth Battery Monitoring App Dimensions and Weight Length 331mm Width 171mm Height 226mm Weight 14kg ±...
  • Page 7: Product Information

    PRODUCT INFORMATION ALERT STATE OF CHARGE PRESS ONCE TO ACTIVE BATTERY, HOLD FOR 3 SEC TO ENTER SLEEP MODE 485-OUT 485-IN CAN-OUT CAN-IN COMMUNICATION PORTS DESCRIPTION Description Item Terminal Power Battery connection terminals. M8 x 2 threaded holes. Port LED Indicators Check LED State Indicator Table at page 7 Tap (1s) to activate battery display;...
  • Page 8: Led Indicator Table

    LED INDICATOR TABLE LED 4 LED 2 LED 5 LED 1 LED 3 ALERT STATE OF CHARGE PRESS ONCE TO ACTIVE BATTERY, HOLD FOR 3 SEC TO ENTER SLEEP MODE 485-OUT 485-IN CAN-OUT CAN-IN COMMUNICATION PORTS State indicator during charging and discharging LED 1 LED 2 LED 3...
  • Page 9: Bms Protection Features And Activation

    BMS PROTECTION FEATURES AND ACTIVATION The KickAss Lithium Batteries are built with a Battery Management System (BMS) inside to protect the battery from overcharging, over discharging, short circuiting and extreme temperature. Over-charge Protection 3.85 ± 0.2V (Cell) / 14.8 ±0.8V (Battery)
  • Page 10: Sleep Mode And Activation

    SLEEP MODE AND ACTIVATION Sleep Modes Timing Sleep Sleep mode can be triggered by two conditions: 1. If there is no charge or discharge for 15 days. 2. If the battery continuously powers a load with current below 0.5A for 15 days, it will enter sleep mode if the single cell voltage is lower than 3.0V.
  • Page 11: Installation Instructions

    (+) terminal and black cable is connected to the negative (-) terminal. If connecting the Remote Display Unit to your KickAss Lithium Battery, connect the black data dongle on the RDU to the black data connector on the battery.
  • Page 12: Connecting The Battery

    CONNECTING THE BATTERY (SERIES) Up to four batteries can be connected in series to increase the voltage (V) of the battery bank. WARNING: Ensure all batteries are fully charged before connecting in series. 100% 100% 100% 100% BATTERY 4-1 BATTERY 3-1 BATTERY 2-1 BATTERY 1-1 100%...
  • Page 13: Connecting The Battery (Parallel)

    CONNECTING THE BATTERY (PARALLEL COMMUNICATIONS) Note: Parallel communications is only required when the KA12100-LION is used in conjunction with compatible Inverter/Charger devices. Please to refer to the Inverter/Charger device to confirm if communications with the KA12100-LION is supported. 1. If using more then one KA12100-LION battery in parallel, connect the communications cable between each battery.
  • Page 14: Charging Instruction

    CHARGING INSTRUCTION Please adhere to the following guidelines while charging your batteries: • Ensure that the charging voltage does not exceed 14.6V for a nominal 12V battery system. • The charging current should not exceed the maximum charging current specified in the User Manual's specification sheet.
  • Page 15: Connecting To Bluetooth

    3. Connect the battery to your phone. You can rename the battery after connecting. There are two ways for connecting: a) Search the battery from the device list that your phone can discover. b) Scan QR code on the battery, and the battery name will appear. Note: One smartphone can only connect to one battery at the same time.
  • Page 16 6. After connecting, you can see the SOC (States of Charge) from the Basic Info. There are 4 battery cells in total. If the voltage differences between any two of them reaches or even is higher than 400mV, these two cells will be displayed in red: BASIC INFO DETAILS INFO 13.17V...
  • Page 17 7. You can also check the individual cell voltage from the Details Info. BASIC INFO ALARM Cell Overvoltage Battery Overvoltage Over-temperature Protection Protection Charging Protection CAPACITY Cell Undervoltage Battery Undervoltage Over-temperature Protection Protection Discharging Protection 13.2V 120.0Ah Short Circuit Overcurrent Low-temperature VOLTAGE CAPACITY...
  • Page 18 VIBRATION PRBASE000003 80:F5:B5:57:AB:F3 SOUND PRBASE000004 BLUETOOTH 80:F5:B5:57:AB:F4 SMART APP LOW CAPACITYNOTICE PRBASE000005 80:F5:B5:57:AB:F5 PRBASE000006 80:F5:B5:57:AB:F6 KICKASSPRODUCTS.COM.AU Information Page KickAss Pty. Ltd. PRBASE000007 Tel: ############### 80:F5:B5:57:AB:F7 Fax: ########### Email: ############ Web: ############### CURRENT VERSION: 1.1.8 CONTACT NOTIFICATION DEVICES BLUETOOTH ABOUT MANUAL...
  • Page 19: Warning And Attention

    WARNING AND ATTENTION • Do not reverse the positive and negative of the battery. • Do not touch or store the electrodes of the battery with unnecessary wires or other metal materials to avoid short circuit • Do not puncture, impact, drop, or step on the battery. •...
  • Page 20: Storage And Transportation

    STORAGE AND TRANSPORTATION Item Criteria Less than 1 month -10°C ~ +45°C Storage Less than 3 months -10°C ~ +35°C Temperature More than 3 months 0°C ~ 30°C Relative Humidity ≤75& RH 40% ~ 60% • To ensure a longer lifespan of the battery, please recharge it every 3-6 months. •...
