Summary of Contents for EKF PROxima AD-32

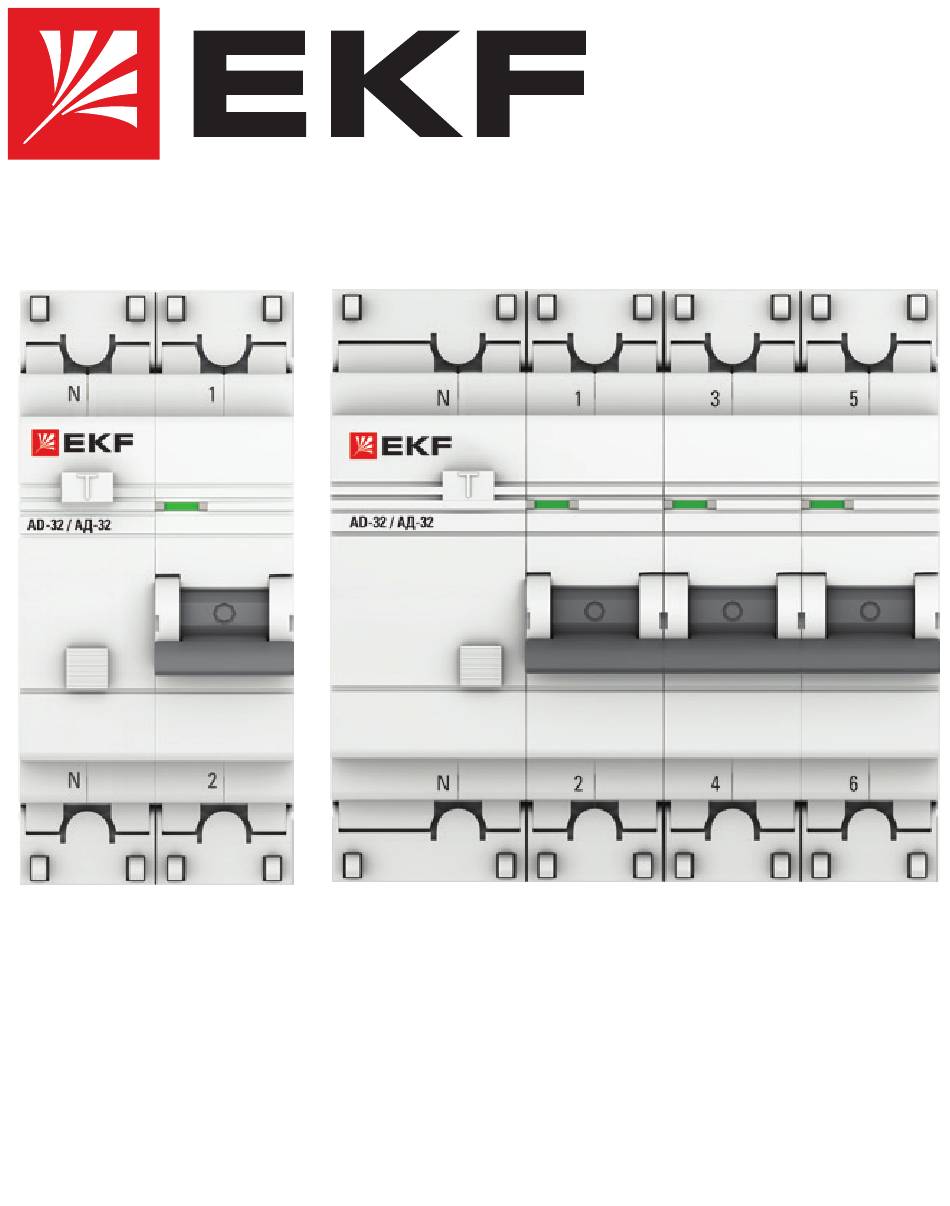

- Page 1 TECHNICAL MANUAL Residual current circuit breakers with overcurrent protection AD-32 EKF PROXIMA...
- Page 2 1 DESCRIPTION The residual current circuit breakers with overcurrent protection AD-32 EKF PROXIMA are used in 50Hz 230 V/400 V AC circuits of residential and commercial buildings. The residual current circuit breakers with overcurrent protection (RCBO) are designed to: • Protect persons against electric shock by accidental indirect contact with exposed conductive parts of electrical installation.
-
Page 3: Technical Data
2 TECHNICAL DATA Table 1 Value Characteristics АD-32 1P+N АD-32 3P+N Poles 1P+N 3P+N Rated operating voltage Ue, V Rated current In, A 6, 10, 16, 20, 25, 32, 40, 50, 63 Rated residual operating current IΔn, mA 10, 30, 100, 300 Frequency fn, Hz Rated breaking capacity Iсn, А... -
Page 4: Tripping Characteristics
3 TRIPPING CHARACTERISTICS Table 2 – Tripping characteristics of AD-32 EKF PROXIMA Tripping Release Trip/non-trip time curve 1,13 In: t ≥ 1 hour – no trip 1,45 In: t < 1 hour – trip В,С Thermal 2,55 In: 1 sec < t < 60 sec (at In ≤ 32А ) – trip 1 sec <... - Page 5 Table 4 – Maximum trip time for half-wave pulse residual current for AD- 32 EKF PROXIMA, type A. Maximum trip time for AD-32 type A in case of half- wave pulse residual current, sec IΔn, Type In, А mА 1,4IΔn 2IΔn 2,8IΔn 4IΔn 7IΔn 0,35А...
-
Page 6: Overall Dimensions
4 OVERALL DIMENSIONS Figure 2 – Overall dimensions... -
Page 7: Installation And Connection
5 INSTALLATION AND CONNECTION The RCBO shall be installed and connected by qualified electrical per- sonnel. Before installation, make sure that: • The device characteristics (RCBO marking) meet the required values. • The device has no visible damage. • The mechanism properly operates (by turning the handle a few times and pressing the «T»... -
Page 8: Operation Conditions
After the RCBO trips by residual current (the operating handle turns to the OFF position and the button next to the handle is released), carefully in- spect the insulation of wires and devices in the protected circuit and trou- bleshoot the causes of current leakage. Press the button indicating the device trip and turn the operating handle to the ON position to reclose the device. -
Page 9: Maintenance
9 MAINTENANCE For RCBO maintenance, follow national safety rules for operation of elec- trical Installations. Under normal operating conditions: test the RCBO operation with the Test button every month; visually inspect the device and tighten screw termi- nals every 6 months. Do not operate the RCBO, if visual damage to the RCBO housing is found. -
Page 10: Certificate Of Acceptance
Russian Federation: OOO «Electroresheniya», Otradnaya st., 2b bld. 9, 5th floor, 127273, Moscow, Russia. Tel.: +7 (495) 788-88-15. Importer and EKF trademark service representative on the territory the Republic of Kazakhstan: TOO «Energoresheniya Kazakhstan», Kazakh- stan, Almaty, Bostandyk district, street Turgut Ozal, 247, apt 4.
