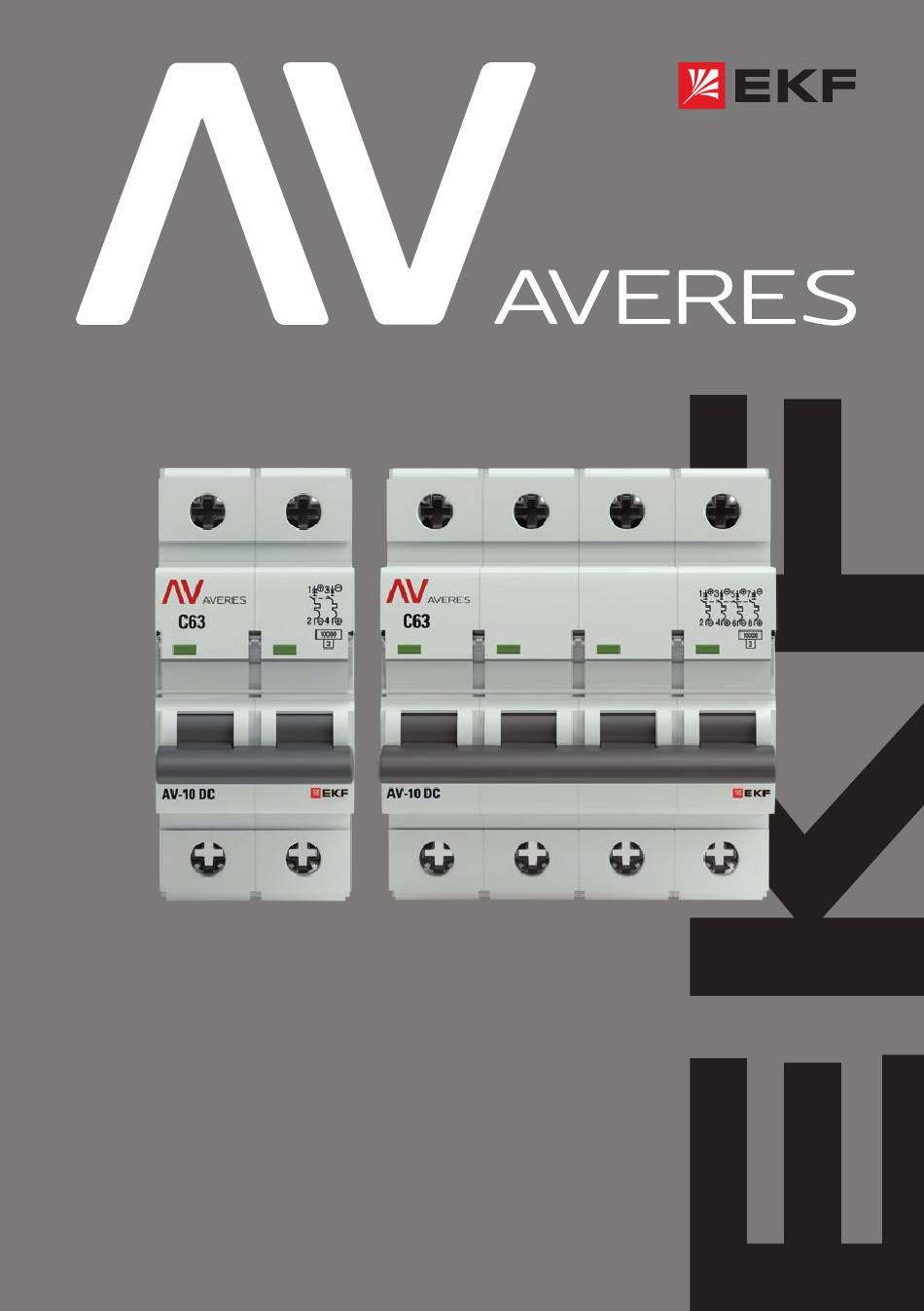

TECHNICAL MANUAL
Miniature circuit breakers
AV-6 DC and AV-10 DC
EKF AVERES

Advertisement

loading
Need help?

Need help?

Do you have a question about the AVERES AV-6 DC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EKF AVERES AV-6 DC

Summary of Contents for EKF AVERES AV-6 DC

  • Page 1 TECHNICAL MANUAL Miniature circuit breakers AV-6 DC and AV-10 DC EKF AVERES...
  • Page 2 1 DESCRIPTION Miniature circuit breakers AV-6 DC and AV-10 DC EKF AVERES are electro- mechanical switching devices used for close/open operations in DC electrical circuits and for protection against overload and short-circuit currents in res- idential and commercial buildings. AVERES miniature circuit breakers (MCB) comply with IEC 60947-2.

  • Page 3: Technical Data

    2 TECHNICAL DATA Table 1 Values Characteristics AV-6 DC AV-10 DC 1P: 250 V DC, 2P: 500 V DC, Rated voltage Ue, V 3P: 750 V DC, 4P: 1000 V DC Current Number of poles 1, 2, 3, 4 Rated current In, А 1–63 Tripping curve Rated breaking capacity Icn, kА...

  • Page 4: Tripping Characteristics

    3 TRIPPING CHARACTERISTICS Figure 1. Tripping curves Figure 2. MCB temperature derating chart...

  • Page 5: Overall Dimensions

    4 OVERALL DIMENSIONS 17,5 52,5 70,5 Figure 3. Overall dimensions 5 INSTALLATION AND CONNECTION Figure 4. Wiring diagrams Miniature circuit breakers shall be installed and connected by qualified elec- trical personnel. Copper and aluminum wire connection options are support- ed. Do not connect copper and aluminum wires to one terminal concurrently. Always connect anode (+) and cathode (-) to the respective terminals of the circuit breakers (figure 4).

  • Page 6: Operation Conditions

    Tightening torque: max. 3 N·m for copper wires; max. 2,2 N·m for alumi- num-alloy series 8000 wires. Position in space: vertical or horizontal on a vertical plane. If vertically in- stalled, the upper position of the operating handle shall correspond to the MCB ON status, while the handle lower position shall correspond to the MCB OFF status in compliance with IEC 60447.
  • Page 7 Republic of Kazakhstan: TOO «Energoresheniya Kazakhstan», Kazakhstan, Almaty, Bostandyk district, Turgut Ozal st., 247, apt 4. 13 CERTIFICATE OF ACCEPTANCE Miniature circuit breakers AV-6 DC and AV-10 DC EKF AVERES have been approved for operation. Date of manufacture: for information, refer to the product package.
