Dru Metro 130XT-41 RCH Installation Manual

G20/g25/g25.3 (natural gas), g30 (butane) and g31 (propane)

Hide thumbs Also See for Metro 130XT-41 RCH:

Installation manual (44 pages)

Table Of Contents

Quick Links

Download this manual

Metro 130XT-41 RCH

Metro 130XT-41 Tunnel RCH

G20/G25/G25.3 (Natural gas), G30 (Butane) and G31 (Propane)

Installation manual

Store this document in a safe place

Scan this QR-Code

for DRU Video Assist.

Table of Contents

Need help?

Do you have a question about the Metro 130XT-41 RCH and is the answer not in the manual?

Questions and answers

Summary of Contents for Dru Metro 130XT-41 RCH

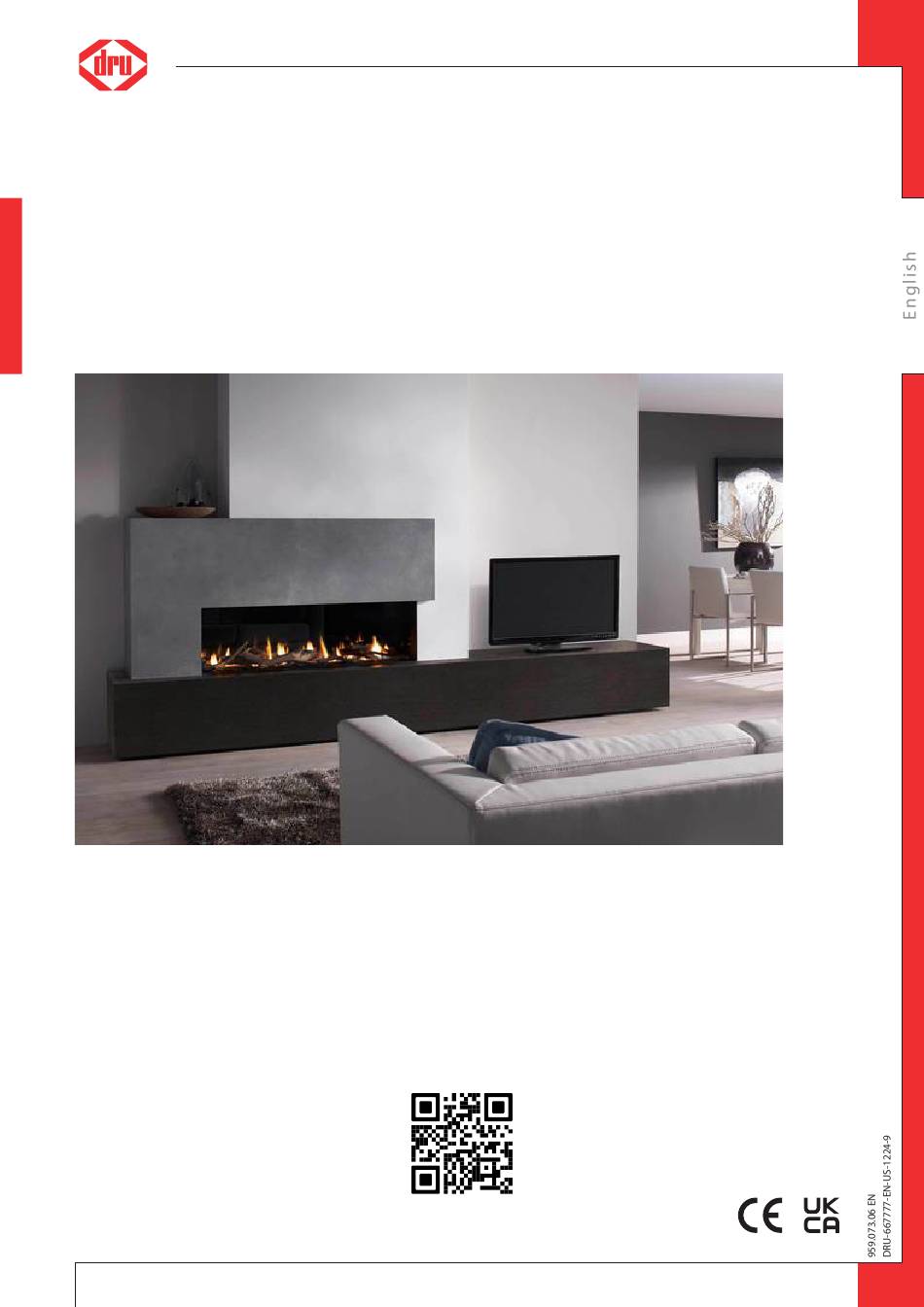

Page 1 Metro 130XT-41 RCH Metro 130XT-41 Tunnel RCH G20/G25/G25.3 (Natural gas), G30 (Butane) and G31 (Propane) Installation manual Store this document in a safe place Scan this QR-Code for DRU Video Assist.
Page 2: Table Of Contents
I N S T A L LA T I O N M A N U A L Contents 1. Introduction 2. CE declaration 3. SAFETY 3.1 General 3.2 Regulations 3.3 Precautions / safety instructions at installation 3.4 Principle of ignition cycle 4.
Page 3: Introduction
This declaration loses its validity if changes are made to the appliance without written permission from DRU. The instructions in the manuals must also be observed at all times. A copy of the EU test certificate can be downloaded via www.druservice.com.
Page 4: Safety
Igniting the appliance takes place as follows: the appliance is switched on by means of an ignition command. This can be done by means of the provided remote control, the DRU Fire App (iOS and Android) or a home automation system.
Page 5: Installation
The appliance is now in manual mode, runs at full capacity and is now ready for operation. The second burner can be switched on and off manually by means of the remote control and/or DRU Fire App.
Page 6: Gas Connection
With connection (C), it is possible, for example, to switch the lamps of DRU lux element or a ventilation system (Appendix 3, Fig. 36 (C)). This can be done by means of the provided remote control or DRU Fire App. The App can also be used to dim this contact.
Page 7: Placing The Appliance
(if applicable) Not all built in DRU appliances are supplied with a control hatch. Built in appliances must be installed with the DRU control hatch. This is necessary to ensure a durable, safe and !Caution proper operation. The DRU control hatch can be ordered separately. Exceptions are: Appliances with supplied DRU guard cabinet.
Page 8: Placing The Chimney Breast
!Tip You should preferably apply the ventilation holes (outgoing) on both sides of the chimney breast. Use the DRU ventilation elements. Check the following issues, before the chimney breast is fully closed: •...
Page 9: Concentric System
5.8 Concentric system 5.8.1 General The appliance is connected to a flue gas discharge / combustion air supply system delivered by DRU, hereafter referred to as the concentric system. The diameter for this connection is indicated in appendix 2, table 2. The passage to the outside can be created with a wall terminal (C11) or a roof terminal (C31).
Page 10 My Flue Assist ist eine DRU-Webanwendung, mit der überprüft werden kann, ob ein beabsichtigtes konzentrisches System zulässig ist, und die Ratschläge zum Einstellen des Geräts gibt. Besuchen Sie die DRU Service-Website für My Flue Assist. Die Informationen aus dem Installationshandbuch sind immer führend.
Page 11: Connection To An Existing Chimney (C91)
The following requirements apply when connecting to an existing chimney: • Only allowed when used in combination with the special DRU chimney set. The installation regulation is parat of the delivery. •...
Page 12: Additional Instructions
I N S T A L LA T I O N M A N U A L 5.10 Additional instructions In case of the Tunnel version of this appliance, it is important to know that the tilting mechanism of the glass pane !Caution is only located on one side of the appliance.
Page 13: Setting The Appliance
IN S T A LLA TION M A NU A L 5.12 Setting the appliance The appliance has to be set in such a way that it works correctly in combination with the concentric system. For that purpose, a restrictor slide is placed and/or the air inlet guide is removed. The conditions for application with wall terminal and roof terminal are stated in appendix 2, tables 4, 5 and 6.
Page 14: Placing The Wood/Pebble Set
I N S T A L LA T I O N M A N U A L This appliance has 3 adjustable rings, make sure all 3 rings are adjusted correctly. !Caution Ø Place the vermiculite tray back in the appliance and fasten it with the self-tapping screws. Ø...
Page 15: Pebble Set
IN S T A LLA TION M A NU A L Ø If required, spread the glow material over the burner. The areas around the ionization and ignition should remain free from glow material. !Caution !Tip Fasten the glow material under chips and/or wood set. 5.13.2 Pebble set The pebble set consists of vermiculite (see Appendix 3, fig.
Page 16: Control
The appliance can be operated by means of a home automation system, see section 9.6. For the installer, there is a service menu in the DRU Fire App (available for iOS and Android) in which data of the appliance can be read (see section 6.1.3).
Page 17: Final Inspection
(if applicable) In addition to operation by means of the remote control and DRU Fire App, the appliance can also be operated via an external source. A wired home automation system can be directly connected to the receiver (Appendix 3, fig. 36 (D)).
Page 18: Ignition Main Burner
1. Remove the glass pane from the appliance (see section 5). 2. Ignite the appliance by means of the remote control or DRU Fire App. See section 3.4 for a step-by-step description of the ignition process. (Go to step 11 if the burner continues to burn).
Page 19: Igniting The Burner(S)
Ø Inspect the flue gas discharge system. You must always perform a final inspection. !Caution Ø Perform the inspection as described in section 7.3.1. 8.1 Parts Parts to be replaced are available via the DRU service website, dealer or importer.
Page 20: Delivery
• Cleaning the glass pane(s). • In case of delivery of an appliance equipped with a DRU CM system, the Installation Manual will contain additional information about this. 10. Malfunctions Appendix 1 provides an overview of malfunctions that might occur, their possible causes and remedies.
Page 21: Appendix 1 Malfunctions
IN S T A LLA TION M A NU A L Appendix 1 Malfunctions Error messages Error code Problem Possible cause Remedy F01 E00 Communication loss between Communication cable Properly connect the receiver (DFGT) and controller (ESYS) does not make contact communication cable Communication cable defective Replace communication cable...
Page 22 I N S T A L LA T I ON M A N U A L Error messages Error code Problem Possible cause Remedy 24 hour check control (only F13) Reset with remote control Gas has fallen away Restore the gas supply Gas control defective Replace the gas control F15 E09...
Page 23: Appendix 2 Tables
IN S T A LLA TION M A NU A L Appendix 2 Tables Table 1: Parts included with the delivery Part Number Installation manual User manual Wood set / Pebble set Glow material Restrictor slide Remote control Mains lead Control hatch Back-up self-tapping screws for benefit of glass pane assembly Key bolts...
Page 24 Yes*** With distance controle option * This appliance is suitable for G25.3 with the composition according NTA 8837. ** System efficiency. ***(achieved) using home automation. **** Adjusting screw. *****Categories C12 and C32 only in combination with DRU PV-1 100/60 (PowerVent®).
Page 25 IN S T A LLA TION M A NU A L Table 3: Line-pressure when using G31 Country mbar NL / DK / FI / NO / SE / HU / BA / GR FR / BE / IT / PT / ES / GB / IE Permissibility and conditions concentric system with wall terminal Table 4: Conditions for setting the appliance G20/G25/G25.3/G30/G31...
Page 26 I N S T A L LA T I ON M A N U A L Table 5: Determining permissibility concentric system with roof terminal G20/G25/G25.3 Total number of meters Total no. of meters vertical and/or sloping pipe length G30/G31 horiz.
Page 27: Appendix 3 Figures
IN S T A LLA TION M A NU A L Appendix 3 Figures 1365 1520 407,5 1304 38C-2132 /0 Metro 130XT 41 RCH 1365 1520 1304 38C-2133 /0 Metro 130XT Tunnel 41 RCH...
Page 28 I N S T A L LA T I O N M A N U A L Tot.min. 200cm min. 410 Metro 130XT min. 476 Metro 130XT Tunnel 300 mm ≥ Ø40 mm ≥ 20 mm 38C-2605/2...
Page 29 IN S T A LLA TION M A NU A L 38C-2799 1x90° 1x90° 38c-744o 38c-744p 2 - 5m 0 - 1m...
Page 30 I N S T A L LA T I ON M A N U A L 38C-1897 /0...
Page 31 IN S T A LLA TION M A NU A L MAX 1CM 38C-1899 /0 38C-1898 /0 38C-1901 /0 38C-1900 /0...
Page 32 I N S T A L LA T I ON M A N U A L...
Page 33 IN S T A LLA TION M A NU A L 38P-0432 38P-0263 38P-0433 38P-0434 38p-0023 38p-0022 38P-0028 /1...
Page 34 I N S T A L LA T I ON M A N U A L 38P-0169 38p-0443...
Page 35 IN S T A LLA TION M A NU A L 38P-0442 38p-0444 38P-0445...
Page 36 I N S T A L LA T I ON M A N U A L 38P-0529 /0 38P-0530 /0 38c-1657 /0...
Page 37 IN S T A LLA TION M A NU A L 38p-0448 38p-0440 38p-0441...
Page 38 I N S T A L LA T I ON M A N U A L Home automation Valve 2nd burner Triac Relay Eco Glow® PowerVent® (0-10V) DRU Fire App Controller (ESYS) Ignition Receiver (DFGT) Remote control Valve main burner Ionization 38C-1871/2 PowerVent®...
Page 39 IN S T A LLA TION M A NU A L 38C-2482/1 38C-2555/3...
Page 40 I N S T A L LA T I ON M A N U A L Min. 0 mm Min. 0 mm 38C-2311/0 38C-2321/0 Min. 12,5 mm Min. 12,5 mm Min. 60 mm Min. 60 mm Min. 100 mm Min. 100 mm...
Page 41 IN S T A LLA TION M A NU A L...
Page 42 I N S T A L LA T I ON M A N U A L...
Page 43 IN S T A LLA TION M A NU A L...
Page 44 DRU Verwarming B.V. The Netherlands Postbus 1021, NL-6920 BA Duiven Ratio 8, NL-6921 RW Duiven...
