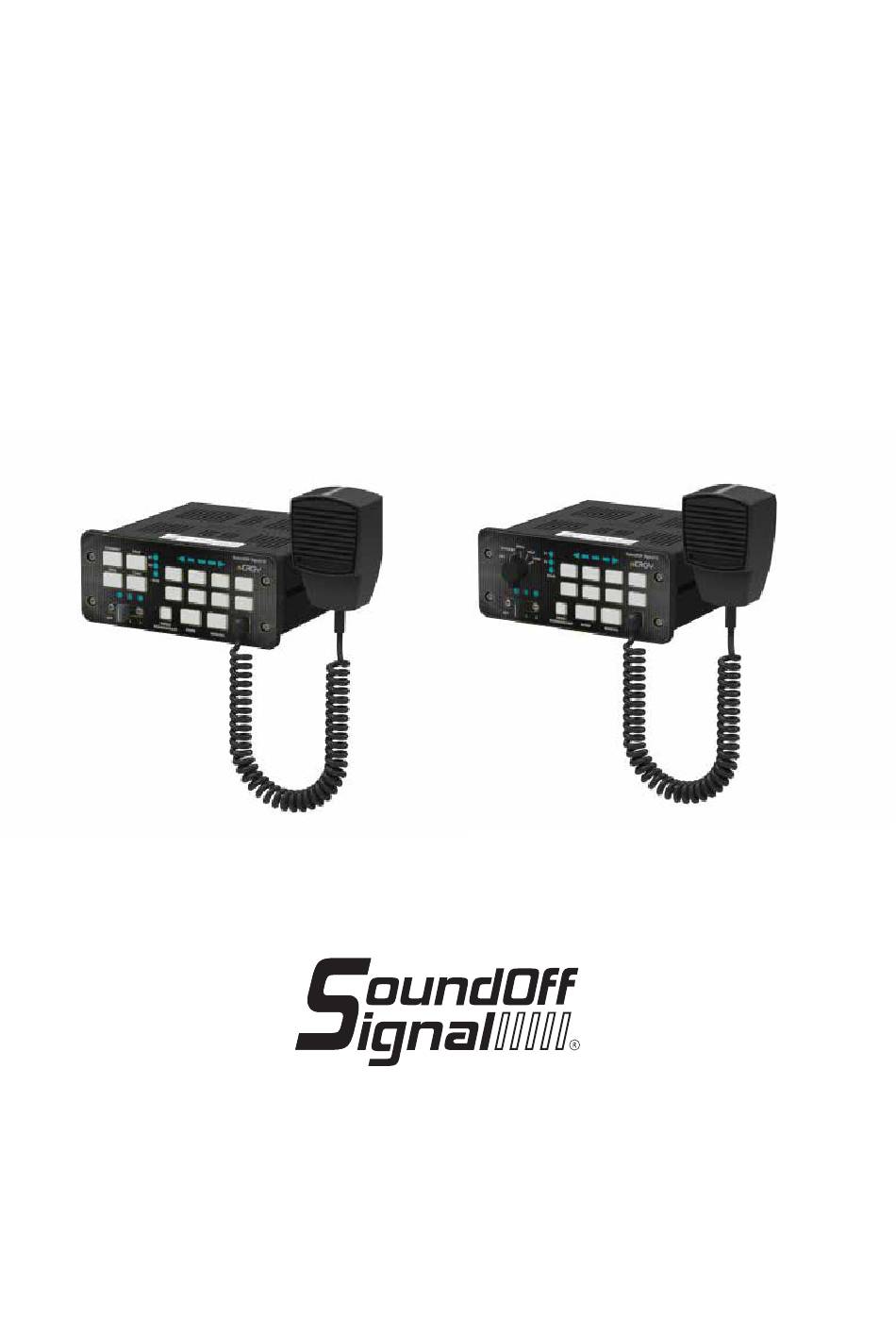

- Page 1 INSTALLATION INSTRUCTIONS 400 SERIES CONSOLE SIREN ROTARY OR PUSH-BUTTON USER INTERFACE PUSH BUTTON ROTARY ETSA483CSP - 100W ETSA483CSR - 100W ETSA484CSP - 200W ETSA484CSR - 200W ETSA48(X)CSX 0000KP 0524 REV B...
-
Page 2: Warning
The siren system is intended for use by authorized personnel only. It is the user’s responsibility to ensure they understand and operate the emergency warning devices in compliance with all applicable city, state, and federal laws and regulations. SoundOff Signal assumes no liability for any loss resulting from the use. WARNING •... -
Page 3: Table Of Contents
Table of Contents Warning ..............2 Contents . -
Page 4: Contents
INTRODUCTION CONTENTS The ETSA48(3,4)CS(R,P) is a console (DASH) mounted all in COMPONENT one siren and light controller. It comes in 4 styles differing in the user interface method and the amount of speaker CONSOLE SIREN power available. This siren can also drive a variety of AMPLIFIER WIRE HARNESSS WITH CONNECTORS programmable powered control lines capable of up to nine (1-4 PIN, 1-12 PIN, 1-5 PIN, &... -
Page 5: Mounting
MOUNTING SIREN INSTALLATION NOTE: Siren must be mounted using fasteners in the side t-slots. 1. Before drilling holes, check for clearance to prevent damage. Check both sides of the mounting surface before drilling and the be aware of any vehicle components or other vital parts that may be damaged during drilling. 2. -
Page 6: Siren Audio Warning
SIREN AUDIO WARNING PARK KILL INPUT (YELLOW WIRE): The input will silence the siren tone when the input wire is activated. The input is typically connected to the transmission neutral safety switch. If this feature is required, the installer needs to determine if the signal wire from the neutral safety switch is switching the +V or ground side of the circuit. - Page 7 WIRE CAPACITY REQUIREMENTS: Wire capacity requirements for siren amplifier (incoming power)-each supply and ground wire: 0-10 Feet: 14 AWG 10-20 Feet: 12 AWG 20-30 Feet: 10 AWG 30+ Feet: Consult Factory to determine requirements SIREN AUDIO WARNING SCHEMATIC YELLOW BLUE RADIO BLUE REBROADCAST...
-
Page 8: Powered Output Wiring
POWERED OUTPUT WIRING Auxiliary Push-Button 7 Normally Open Output Auxiliary Push-Button 8 Normally Open Output RED/ WHITE Auxiliary Push-Button 7 Normally Closed Output Push-Button 4 Output YELLOW Push-Button 3 Output Push-Button 2 Output Push-Button 1 Output Wire capacity requirements for Relay incoming power supply for each wire Wire Length Minimum Wire Gauge 0-10 Feet... - Page 9 POWERED OUTPUT WIRING (CONTINUED...) INTERNAL RELAY BOARD FUSE REPLACEMENT: To replace fuses: 1. Remove power connectors CN8 and CN6 or remove power to unit. 2. Remove unit from console or obtain access to full top of unit. 3. Depress snaps on top cover and lift open. 4.
-
Page 10: Control Panel Programming
CONTROL PANEL PROGRAMMING PUSH BUTTON (SHOWN BELOW) SIMILAR TO ROTARY SWITCH (NOT SHOWN): S1 Primary Speaker Siren Control Select* Arrow Control S2 Secondary Speaker Display Diagnostic Slide (Level) Switch AUXILARY BUTTONS #’s Slide Switch LEDs (Siren & Multiple Outlets) Siren Control Momentary (Single Output) Horn Ring Configuration Settings... - Page 11 CONTROL PANEL PROGRAMMING (CONTINUED...) LEGEND: ON - GREEN OFF - BACKLIGHT ON - RED BACKLIGHT OFF - OFF NOT APPLICABLE INPUT SETTINGS: NOTE: Grayed areas denote factory defaults 1. Press and Hold Auxiliary Button 1 and 3 until slide switch #3 LED flashes. 2.
-
Page 12: Backlight Intensity
CONTROL PANEL PROGRAMMING (CONTINUED...) SLIDE SWITCH SETTINGS: 1. Press and hold Auxiliary Push-Button “1” and “4” until slide switch #2 indicator LED flashes. 2. Press Auxiliary Push-Button “1”, “2” or “3” depending on which configuration for the slide switch is required. SLIDE SWITCH SETTINGS RELAY OUTPUT RELAY OUTPUT... -
Page 13: Other Modes
ALTERNATE HORN RING CONTROL OPTION 1 OPTION 2 STANDBY OEM HORN OEM HORN OEM HORN OEM HORN LEVEL 1 Tap to Turn On Warning Tone, Tap again to Air Horn or Wail Button LEVEL 2 Change Warning Tone. Press and Hold for Air Tone while Pressed* Horn Tone Tap to turn ON Warning... - Page 14 CONTROL PANEL PROGRAMMING (CONTINUED...) OTHER MODES (CONTINUED...) 5. Horn Ring Latch Mode: (Alternate Horn Ring Control Must be Disabled) Activates the siren tone per scroll mode off settings when operator momentarily presses on Vehicle Horn. *Wail Only. Only works when tone is already active. (See Horn Ring Table).
- Page 15 CONTROL PANEL PROGRAMMING (CONTINUED...) SIREN AMPLIFIER DIAGNOSTIC INDICATORS DIAG CONDITION FLASHING UNDER-VOLTAGE FLASHING OVER-VOLTAGE FLASHING FLASHING COMM FAULT - RELAY FLASHING FLASHING COMM FAULT - AMP FLASHING FLASHING FLASHING COMM FAULT - RELAY AND AMP *OFF SPKR 1 IS ACTIVE *OFF SPKR 2 IS ACTIVE *OFF...
- Page 16 CONTROL PANEL PROGRAMMING (CONTINUED...) WAIL BUTTON HORN BUTTON BUTTON BUTTON BUTTON BUTTON BUTTON BUTTON BUTTON BUTTON SPKR A SPKR B SPKR A SPKR B WAIL 1 WAIL 1 HORN 1 HORN 1 WAIL 2 WAIL 2 HORN 2 HORN 2 WAIL 1 WAIL 2 HORN 3...
-
Page 17: Dielectric Grease On Molex Connector
Molex has advised to add dielectric grease for “Mini-Fit Sr.” connectors. On the SoundOff Signal 400 Series Sirens this includes the Connector (CN8) on the back of the siren. Connector CN8 is used on the 400 Series Sirens to supply power to the Slide and Auxiliary outputs of the siren. -
Page 18: Replacement Parts & Accessories
REPLACEMENT PARTS & ACCESSORIES ITEM # PART# DESCRIPTION PSRN4ANR1 REPLACEMENT AMP/RELAY ASSEMBLY-100 WATT PSRN4ANR2 REPLACEMENT AMP/RELAY ASSEMBLY-200 WATT PSRN4HDK2 FUSE KIT PSRN4HDK4 HARNESS KIT PSRNSWK2 ROTARY SWITCH KNOB PSRNLEG1 AUXILIARY BUTTON LEGENDS-REMOTE PSRNMC1 MICROPHONE & STRAIN RELIEF PSRNSWK1 SLIDE SWITCH KIT PSRNMMC1 MICROPHONE MOUNTING CLIP PSRN4CTRL2... -
Page 19: Warranty & Return Goods Procedure
Each RMA # is good for only one (1) return and will expire (30) days after the date it was issued. Products must be shipped back to SoundOff Signal and the RMA # clearly marked on the outside of the package near the shipping label. Please use the...
