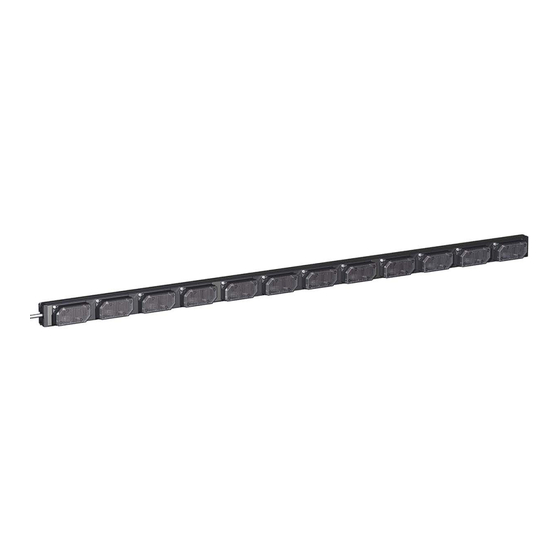

Soundoff Signal UltraLITE EL3H12A20 Series Assembly Instructions

WARNING
: Warning devices are strictly
regulated and governed by Federal, State and
Municipal ordinances. These devices shall be
used ONLY on approved vehicles. It is the sole
responsibility of the user of these devices to
ensure compliance.
MOUNTING INSTRUCTIONS
Before starting the installation make certain
you have the correct bracket for your
application. A universal Deck/Dash mount
bracket is supplied. For other mounting
brackets, see product literature or visit our
website.
Install the UltraLITE by following the
assembly instructions provided with the
brackets and check for security.
Important: DO NOT over tighten mounting
screws or nuts. This could cause
permanent damage to the light or bracket.
Use appropriate hardware for mounting.
PATTERN SELECTION
Because of the variety of configuring
options see separate sheets for detailed
instructions
!
WARNING
This product contains high intensity LED devices.
To prevent eye damage, DO NOT stare into light
beam at close range.
WIRE HOOK-UP TABLE
Wire Color Connect to:
Blue Input 1 / Left Input
Green Input 2 / Right Input
Brown Input 3 / Warning Input
Red +12Vdc
Black Ground (-)
White Pattern Select
Input Voltage: 10-16Vdc
Current: 6 Amps Maximum
SUPPLIED BAR
MOUNTING HARDWARE
UNIVERSAL BRACKET
BLUE
GREEN
BROWN
WHITE
RED
+12Vdc
BLACK
10A FUSE
12 MODULE BAR

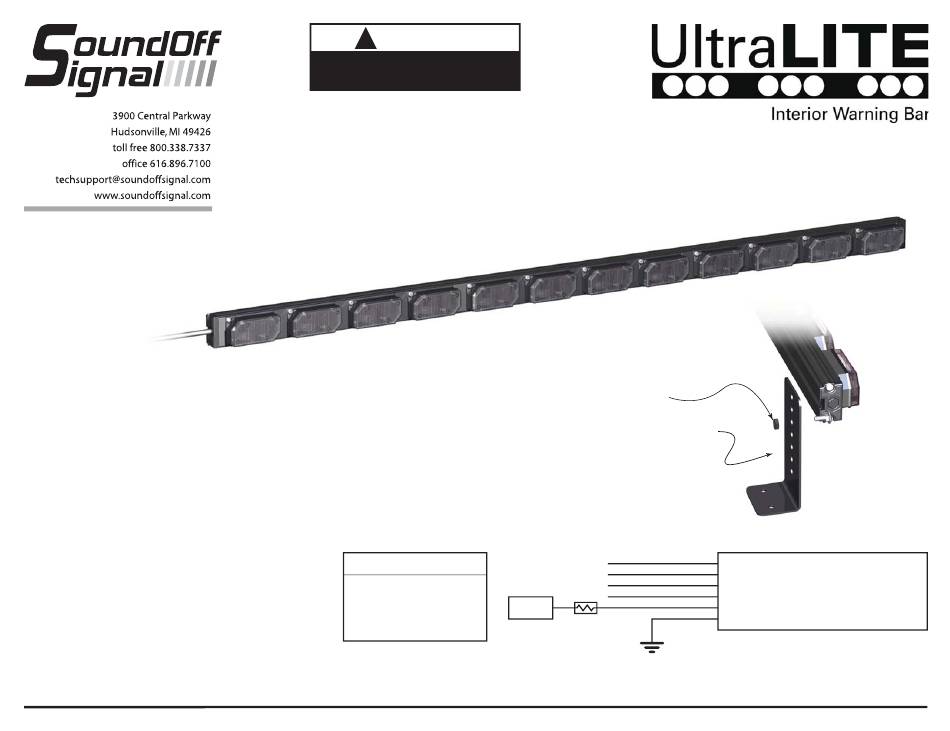

ASSEMBLY INSTRUCTIONS
EL3H12AØØ(x)
12 MODULE UltraLITE
EL3H12A(xxx) 2.09
