INSTRUCTION MANUAL
Cordless Stapler
DST220
DST221
Read before use.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DST220 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Makita DST220

Summary of Contents for Makita DST220

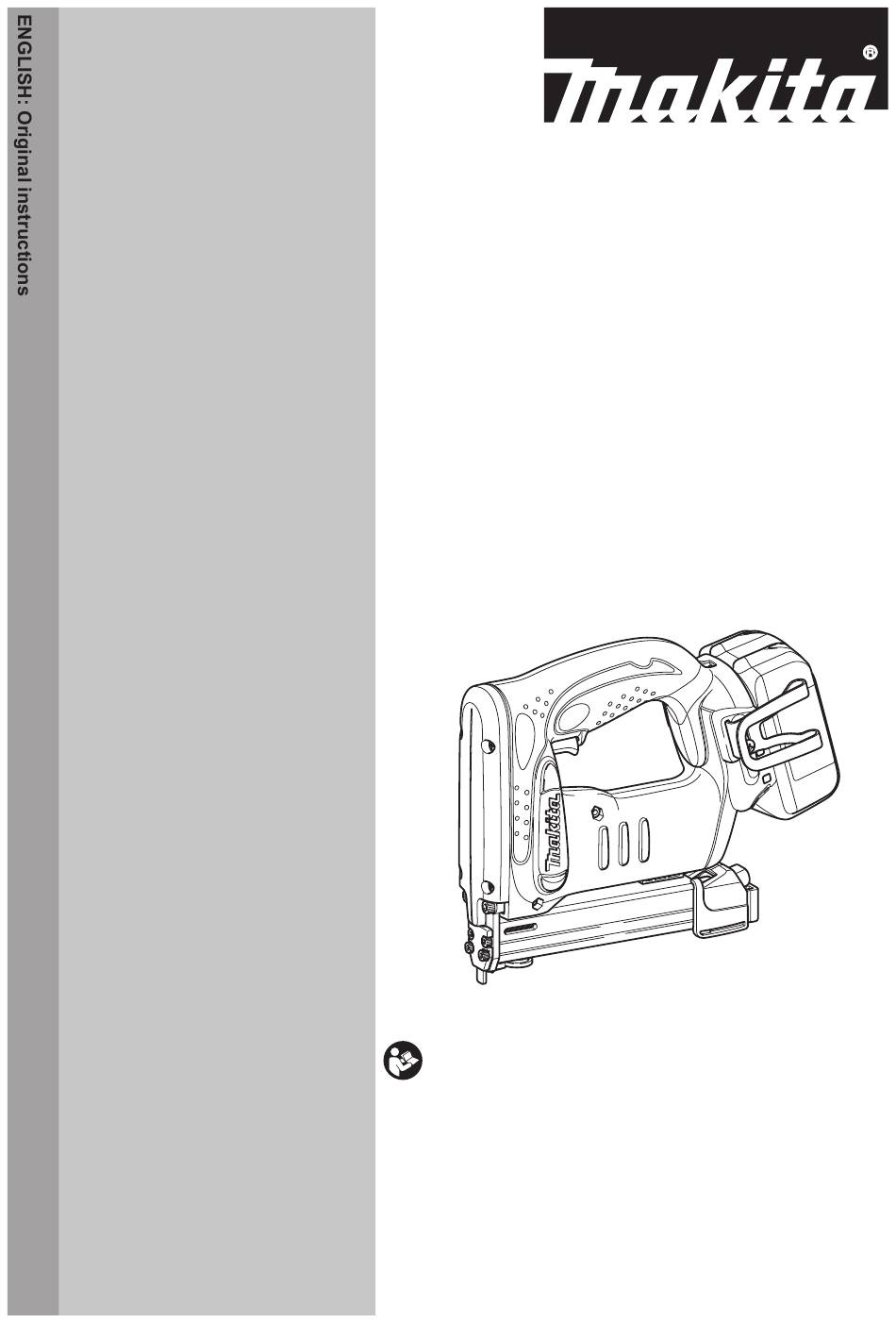

  • Page 1 INSTRUCTION MANUAL Cordless Stapler DST220 DST221 Read before use.

  • Page 2: Specifications

    SPECIFICATIONS Model DST220 DST221 Staple width 10 mm Applicable staples length 10 mm - 22 mm Staple magazine capacity 84 pcs Overall length 247 mm 251 mm Net weight 2.3 kg 2.4 kg Rated voltage D.C. 14.4 V D.C. 18 V •...
  • Page 3 Electrical safety 18. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot Power tool plugs must match the outlet. Never be controlled with the switch is dangerous and modify the plug in any way.
  • Page 4 CORDLESS STAPLER SAFETY WARNINGS WARNING: DO NOT let comfort or famil- iarity with product (gained from repeated Always assume that the tool contains fasten- use) replace strict adherence to safety ers. Careless handling of the stapler can result in rules for the subject product. MISUSE or unexpected firing of fasteners and personal injury.

  • Page 5: Functional Description

    Indicating the remaining battery FUNCTIONAL capacity DESCRIPTION Only for battery cartridges with the indicator CAUTION: • Always be sure that the tool is switched off and the battery cartridge is removed before adjust- ing or checking function on the tool. Installing or removing battery cartridge ►...

  • Page 6: Safety System

    Safety system Loading staples Remove the battery cartridge. Press the locking lever on the rear of the sub magazine and slide the sub magazine backward. ► 1. Trigger 2. Safety lever Make sure all safety systems are in working order before operation.
  • Page 7 Unloading staples Hook CAUTION: CAUTION: • When removing staples, make sure that your • Always make sure that your fingers are not fingers are not placed on the trigger or the lever placed on the trigger or the lever and the battery and the battery cartridge is removed from the cartridge is removed before using the hook.

  • Page 8: Operation

    When the head of driven staple remains above the OPERATION surface of material to be fastened, drive the staple while holding the stapler head firmly. Depth adjustment NOTE: • Using the stapler continuously with the head ► 1. Nut of driven staples remaining above the surface of material to be fastened may cause damage If the staples are driven too deep or too shallow, adjust to the driver of the stapler and stapler jamming...

  • Page 9: Removing Jammed Staples

    . • These accessories or attachments are recom- mended for use with your Makita tool specified Remove the battery cartridge from the stapler. in this manual. The use of any other accessories or attachments might present a risk of injury to persons.
  • Page 12 Makita Europe N.V. Jan-Baptist Vinkstraat 2, 3070 Kortenberg, Belgium Makita Corporation 3-11-8, Sumiyoshi-cho, Anjo, Aichi 446-8502 Japan 885343B225 www.makita.com 20220930...
