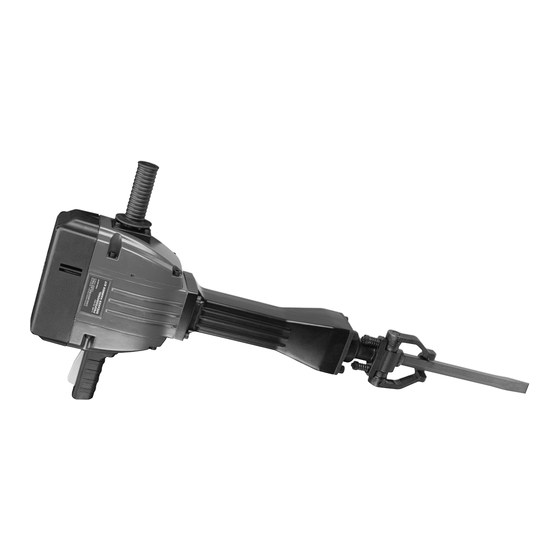

Harbor Freight Tools Bauer 70 LB PRO Owner's Manual And Safety Instructions

Hide thumbs

Table Of Contents

Quick Links

Download this manual

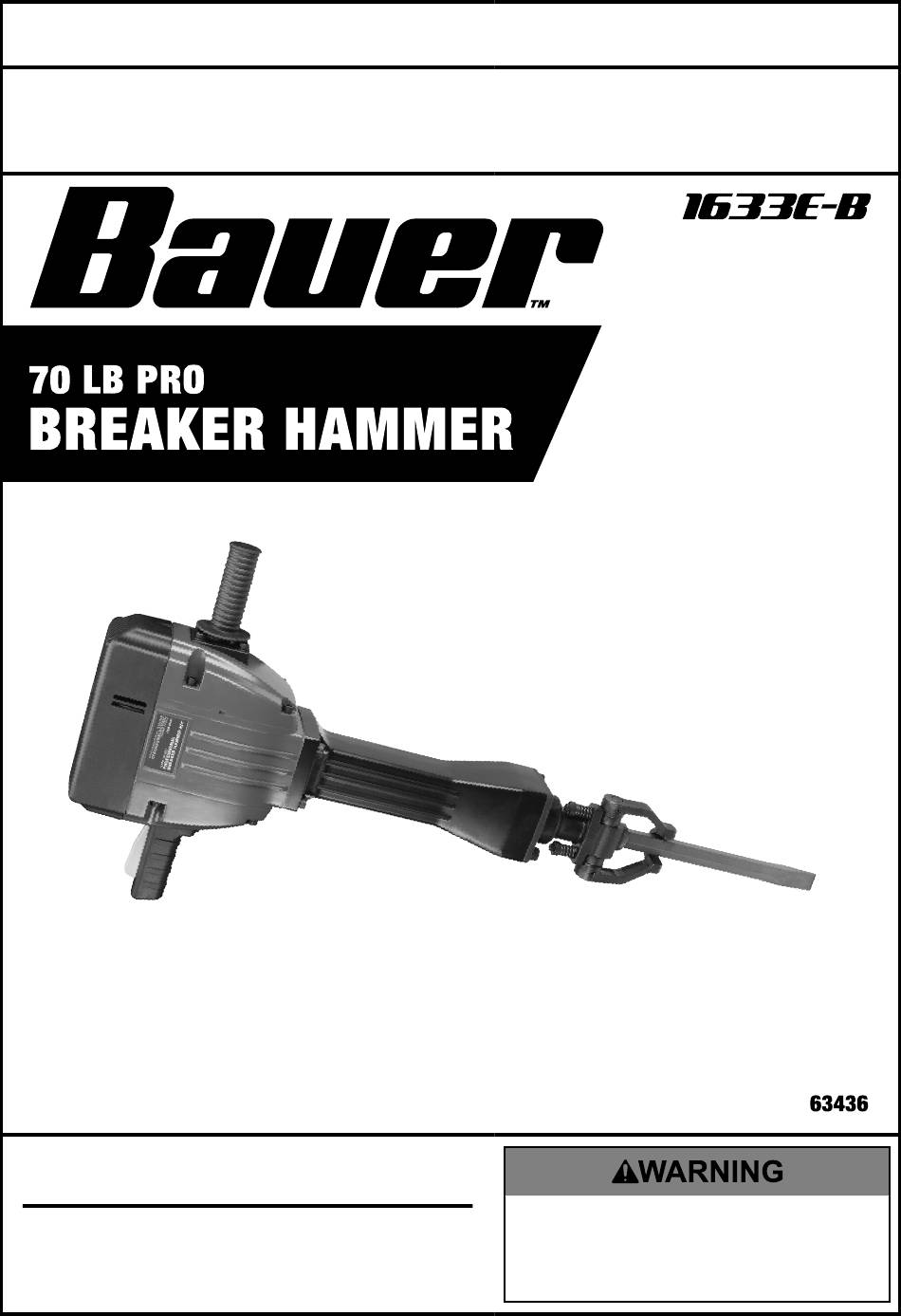

Owner's Manual & Safety Instructions

Save This Manual

operating, inspection, maintenance and cleaning procedures. Write the product's serial number in the

back of the manual near the assembly diagram (or month and year of purchase if product has no number).

Keep this manual and the receipt in a safe and dry place for future reference.

Email our technical support at: productsupport@harborfreight.com

When unpacking, make sure that the product is intact

and undamaged. If any parts are missing or broken,

please call 1-888-866-5797 as soon as possible.

2016 by Harbor Freight Tools

No portion of this manual or any artwork contained herein may be reproduced in

any shape or form without the express written consent of Harbor Freight Tools.

Diagrams within this manual may not be drawn proportionally. Due to continuing

improvements, actual product may differ slightly from the product described herein.

Tools required for assembly and service may not be included.

Keep this manual for the safety warnings and precautions, assembly,

Visit our website at: http://www.harborfreight.com

Read this material before using this product.

Failure to do so can result in serious injury.

SAVE THIS MANUAL.

17j

Table of Contents

Need help?

Do you have a question about the Bauer 70 LB PRO and is the answer not in the manual?

Questions and answers

Summary of Contents for Harbor Freight Tools Bauer 70 LB PRO

Page 1 No portion of this manual or any artwork contained herein may be reproduced in Failure to do so can result in serious injury. any shape or form without the express written consent of Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing SAVE THIS MANUAL.
Page 2: Table Of Contents
Table of contents Safety ............2 Maintenance ..........14 Specifications ..........8 Parts List and Diagram ......18 Setup ............8 Warranty ............ 20 Operation ........... 10 WARNING SyMBOLS AND DEFINITIONS This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Page 3: Safety
Electrical safety 1. power tool plugs must match the outlet. 4. Do not abuse the cord. Never use the cord Never modify the plug in any way. for carrying, pulling or unplugging the Do not use any adapter plugs with grounded power tool.
Page 4: Vibration Safety
If unreadable or missing, contact possible conditions and situations that may occur. Harbor Freight Tools for a replacement. It must be understood by the operator that 10. Avoid unintentional starting. common sense and caution are factors Prepare to begin work before turning on the tool.
Page 5 1. Anyone using vibrating tools regularly or for 2. Do not smoke during use. Nicotine reduces an extended period should first be examined the blood supply to the hands and fingers, by a doctor and then have regular medical increasing the risk of vibration-related injury. check-ups to ensure medical problems are not 3.
Page 6: Grounded Tools: Tools With Three Prong Plugs
Grounding TO pREVENT ELEcTRIc SHOcK AND DEATH FROM INcORREcT GROUNDING WIRE cONNEcTION: check with a qualified electrician if you are in doubt as to whether the outlet is properly grounded. Do not modify the power cord plug provided with the tool.
Page 7: Extension Cord
Extension cords 1. Grounded tools require a three wire extension cord. 7. Make sure the extension cord is properly wired Double Insulated tools can use either and in good electrical condition. Always replace a two or three wire extension cord. a damaged extension cord or have it repaired by a qualified electrician before using it.
Page 8: Specifications
Specifications Electrical Rating 120VAC / 60Hz / 15A Blows Per Minute 950 BPM 1 Bull Point (included) Chisel 1 Flat Chisel Weight 71 lb 1 Grease Tube Other 1 Carbon Brush Set Accessories 4 Hex Keys (5, 6, 8, & 12mm) Setup - Before Use: Read the ENTIRE IMpORTANT SAFETy INFORMATION section at the beginning of this manual including all text under subheadings therein before set up or use of this product.
Page 9 Functions Trigger Main Handle Secondary Handle Lock Lever Figure B Item 63436 For technical questions, please call 1-888-866-5797. Page 9...
Page 10: Operation
Operating instructions Read the ENTIRE IMpORTANT SAFETy INFORMATION section at the beginning of this manual including all text under subheadings therein before set up or use of this product. Tool Set Up TO pREVENT SERIOUS INJURy FROM AccIDENTAL OpERATION: Make sure that the Trigger is in the off-position and unplug the tool from its electrical outlet before performing any procedure in this section.
Page 11 Mounting chisels with a collar 1. Pull the Lock Lever open about 70-80° to the second engaging position, as shown in Figure F. Retaining Ring Figure F 2. Insert the collared Chisel. 3. Slide the Chisel in as far as it will go. Figure G 4.
Page 12: Work Piece And Work Area Set Up
Work piece and Work Area Set Up 1. Designate a work area that is clean and well-lit. 4. There must not be objects, such as utility lines, The work area must not allow access by children nearby that will present a hazard while working. or pets to prevent distraction and injury.
Page 13 General Operating Instructions TO pREVENT SERIOUS INJURy: Wear ANSI-approved safety goggles, ear protection, steel-toe boots, and dust mask during use. Keep feet clear of Breaker Hammer. Keep children and animals well clear of the work area. 1. Check Chisel for dullness, cracks, or other damage. 7.
Page 14: Maintenance
Maintenance And Servicing procedures not specifically explained in this manual must be performed only by a qualified technician. TO pREVENT SERIOUS INJURy FROM AccIDENTAL OpERATION: Make sure that the Trigger is in the off-position and unplug the tool from its electrical outlet before performing any procedure in this section.
Page 15 Greasing Gearbox Note: Due to the possibility of accidental damage and/or contamination, only a qualified technician should disassemble and lubricate this item. 1. Loosen the four Socket Head Bolts (59) 4. Fill each of the 4 grooves inside the and Washers (4) that connect the Aluminum Housing with 0.5 ounces of Aluminum Housing (60) to the Housing (8).
Page 16: Troubleshooting
Troubleshooting problem possible causes Likely Solutions Tool will 1. Cord not connected. 1. Check that cord is plugged in. not start. 2. No power at outlet. 2. Check power at outlet. If outlet is unpowered, turn off tool and check circuit breaker. If breaker is tripped, make sure circuit is right capacity for tool and circuit has no other loads.
Page 17: Please Read The Following Carefully
pLEASE READ THE FOLLOWING cAREFULLy THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT.
Page 18: Parts List And Diagram
parts List and Diagram parts List part Description part Description Housing Ass’y Y-Type Sealing Ring Ø45.7×Ø55.2×7 Side Cover Piston Hex Socket Bolt M10×35 O-Ring Ø46×Ø5.3 Ø10 Flat Washer Brush Cap O-Ring Ø82×Ø2 Carbon Brush Hex Socket Bolt M10×45 (12.9) Brush Holder Aluminum Housing Insulation Washer Washer...
Page 19: Assembly Diagram
Assembly Diagram 111 110 10 2 10 1 1 00 11 12 Item 63436 For technical questions, please call 1-888-866-5797. Page 19...
Page 20: Warranty
Limited 90 Day Warranty Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase.
