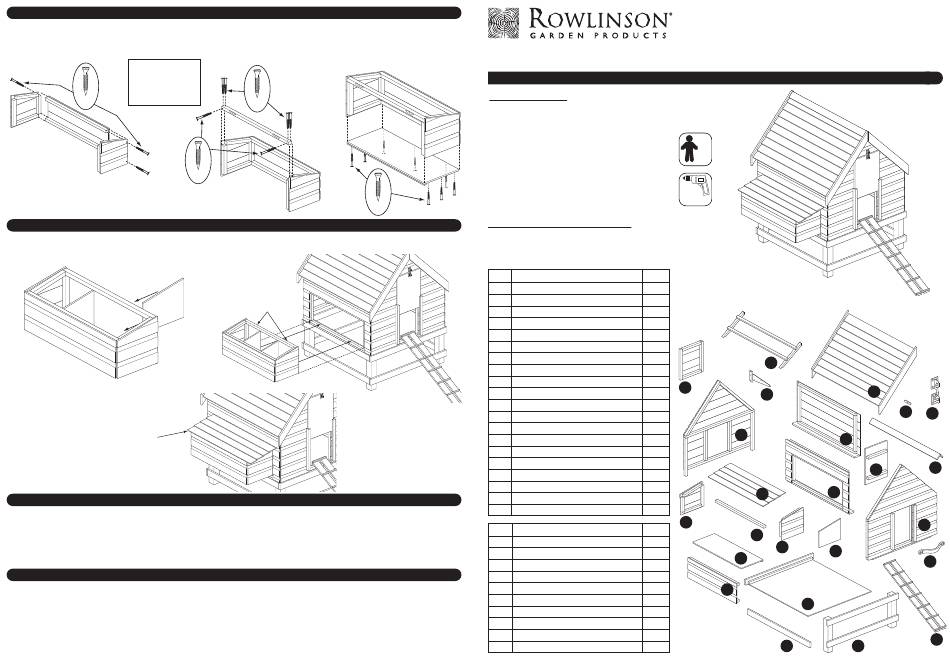

Rowlinson Garden Products SS217D Assembly Instructions

6. Nest box
Align the back and side panels of the nest box and secure using 4 x 60mm screws. Position the top bar as shown in the
diagram, ensure the turn buttons are facing out from the nest box. Secure the top bar using 6 x 60mm screws as shown.
Attach the nest box floor to the bottom of the wall panels using 8 x 30mm screws.
Important note
Ensure correct
orientation of the
turn buttons
60mm
7. Fitting the nest box
Slide the nest box dividers into the slots in the box. Hook the bottom of the nest box over the frame of the side panel
pivot the nest box upright and reach inside to turn the turn buttons that hold it in place. Place the nest box lid on top of
the nest box.
Place nest box lid on top of the nest box.
Ensure the correct orientation of the roof
slats to allow water to run off the building.
Important information
As timber is a natural material, there are certain weather conditions that may affect the materials properties. In times of excessive dry
spells the material may lose some of its internal moisture causing a certain degree of shrinkage on a panel and in periods of excessive rain
there will be a certain amount of swelling throughout the wooden panels. This process can not be avoided. If you have problems with
certain boards shrinking in dry spells try to decrease the amount of direct sunlight on the building or the amount of air passing over the
building. During hot spells spray water directly onto the panels with the aid of a garden hose.
If in doubt of any aspect regarding the assembly, use or safety of your building please contact us:
Help Line (Normal Office Hours) 01829 261 121
ROWLINSON GARDEN PRODUCTS LIMITED
Green Lane
Wardle Nr. Nantwich
Cheshire
CW5 6BN
60mm
60mm
Turn buttons
We constantly improve the quality of our products, occasionally the
components may differ from the components shown and are only
correct at time of printing. We reserve the right to change the
specification of our products without prior notice.
2011 © Rowlinson Garden Products Ltd
Large Chicken Coop
Assembly Instructions
Before assembly
• We recommend that time is taken to
read the instructions before starting
assembly, then follow the easy step by
step guide. The instruction sheet is only
a guide to the assembly.
Certain items may not be shown to scale.
• Check all components prior to assembly
• This product should be assembled
by no less than two people
• Drill all components where indicated
30mm
Recommended tools for assembly
• Cross head screw driver
• Drill
• 2mm drill bit
No. Components
1 Front/back base frame
2 Side base frame
3 Plain side panel
4 Nest box side panel
5 Front apex panel
6 Front door
7 Back apex panel
8 Back door
9 Perch
10 Roof panel
11 Roof ridge
12 Floor
13 Ramp
14 Nest box left side panel
15 Nest box right side panel
16 Nest box back panel
17 Nest box top bar
18 Nest box floor
19 Nest box dividers
20 Nest box lid
No. Fixing kit
21 Hinges
22 Handles
23 Hook & eye
24 Turn buttons
25 80mm screws
26 60mm screws
27 50mm screws
28 30mm screws
29 25mm screws
30 12mm screws
x 2
Drill
Qty.
2
4
(75x20x1090mm)
1
1
1
(sliding door)
1
1
(hinged door)
1
1
8
2
1
1
1
7
1
1
1
1
1
20
2
1
14
Qty.
17
2
3
18
1
3
8
16
10
32
8
27
8
English SS217D
9
10
21
24
23
3
11
6
4
5
15
19
22
12
13
2 1
