Rowlinson Garden Products SS269E Assembly Instructions

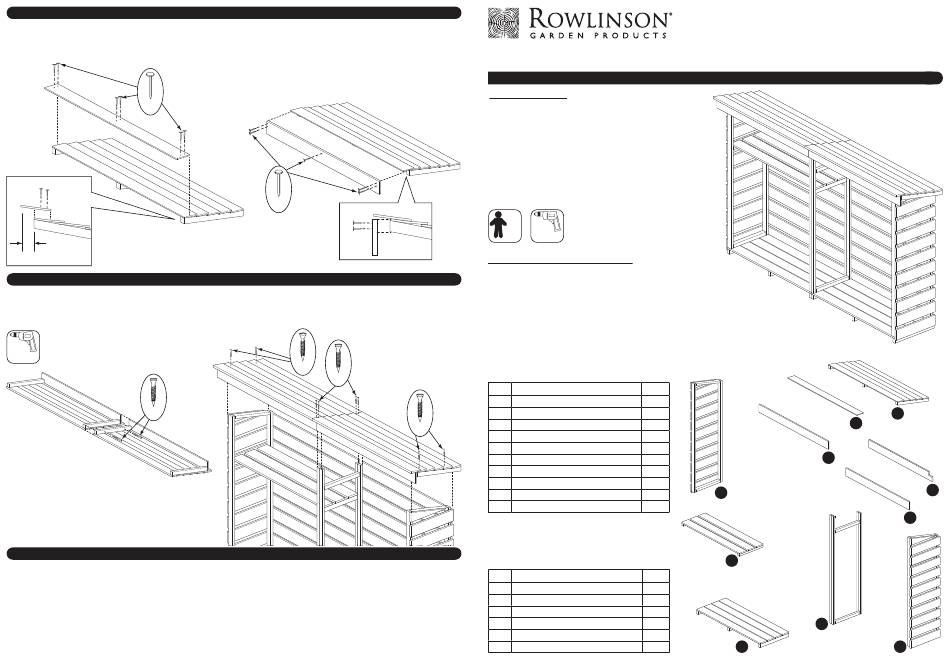

5 . Roof panels
To each roof panel, position a roof top board so that it overhangs the front edge by 50mm. Secure in place using 6 x
30mm nails. Position the front fascia board underneath the top board and secure to the roof framing. At each end use 2
x 40mm nails. In the middle use only 1 x 40mm nail.
30mm
50mm
6 . Roof
With the roof panels upside down, secure them together using 2 x 50mm screws. Once secured turn up the right way.
Place the roof onto the main assembly and attach to each side panel by screwing 2 x 45mm screws down through the
roof into the top frames of the side panels. In the middle of the roof, screw 4 x 80mm screws through the roof into the
centre panel.
It may be necessary to drill
pilot holes for all screws in
this section.
Drill
50mm
Information
If in doubt of any aspect regarding the assembly, use or safety of your log store, please contact us:
Help Line (Normal Office Hours) 01829 261 121
Email: support@rowgar.co.uk
ROWLINSON GARDEN PRODUCTS LIMITED
Green Lane
Wardle Nr. Nantwich
Cheshire
CW5 6BN
www.rowgar.co.uk
40mm
45mm
80mm
45mm
We constantly improve the quality of our products, occasionally
the components may differ from the components shown and are
only correct at time of printing. We reserve the right to change the
specification of our products without prior notice.
2022 © Rowlinson Garden Products Ltd
Large Log Store
Assembly Instructions
Before assembly
• We recommend that time is taken to
read the instructions before starting
assembly, then follow the easy step by
step guide. The instruction sheet is only
a guide to the assembly. Certain items may
not be shown to scale.
•
Check all components prior to assembly
• This product should be assembled
by no less than two people
• Drill all components where indicated
x 2
drill
Recommended tools for assembly
•
Power drill/screwdriver
• 3mm drill bit
• Cross head screwdriver bit
• Tape measure
•
Hammer
•
Spirit level
•
Sharp knife
Components Qty.
No.
1 Floor 2
2 Left side panel 1
3 Right side panel 1
4 Centre panel 1
5 Back slat notched 2
6 Back slat 18
7 Shelf 1
8 Roof panel 2
9 Roof top board 2
10 Roof fascia 2
No. Fixing Kit Qty.
11 80mm screws 4
12 63mm screws 4
13 50mm screws 10
14 45mm screws 4
15 40mm nails 96
16 30mm nails 12
English SS269E
8
9
10
2
7
4
1 3
5
6
