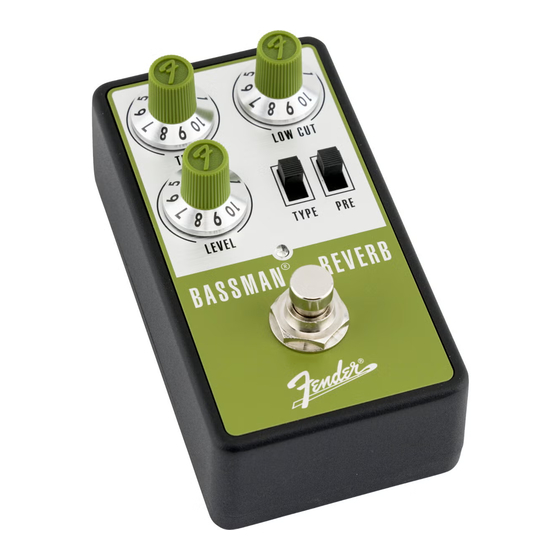

- Page 2 DC POWER CONNECTOR INPUT JACK OUTPUT JACK TIME LOW CUT CONTROL CONTROL KNOB KNOB TIME LOW CUT LEVEL PRE-DELAY CONTROL SWITCH KNOB TYPE LEVEL SWITCH TYPE SWITCH FOOTSWITCH INTERNAL-CONTROL COMPARTMENT SCREW ACCESS ON REAR...
- Page 3 B A S S M A N R E V ER B ® The Bassman Reverb is an ambience pedal crafted to add depth and space to bass instruments. Reverb is often applied to bass in the studio, using various tricks to add ambience without muddying the low frequencies so important to bass character.
- Page 4 OUTPUT JACK Low-impedance output connects to amp or next pedal in signal chain. INPUT JACK High-impedance input for bass guitar and other instruments. PAD SWITCH Switch on side of pedal is for active instruments with strong signals; UP position applies -6dB to input. DC POWER CONNECTOR Connect DC adapter here.
- Page 5 INTERNAL CONTROLS (ACCESSIBLE BY REMOVING COVER) Remove cover using a flat-head screwdriver. PRE-DELAY TRIM potentiometer adjusts delay time length when PRE-DELAY SWITCH is in UP position. Pre-delay times range from minimum 25 milliseconds at full counterclockwise to maximum 100 milliseconds at full clockwise (factory position is full counterclockwise). DAMP TRIM potentiometer adjusts reverb signal high-frequency content.
- Page 6 STUDIO ROOM Combining low TIME control settings with the TYPE switch in the down position (room reverb) will create a natural recording room tone. TIME: 3 LOW CUT: 8 LEVEL: 6 SWITCHES: Both down TIME LOW CUT TYPE LEVEL...
- Page 7 VENUE HALL Setting the PRE-DELAY switch to the up position can add extra clarity when dialing in longer hall reverb settings. TIME: 6 LOW CUT: 5 LEVEL: 5 SWITCHES: Both up TIME LOW CUT TYPE LEVEL...
- Page 8 SUB-SPACE WAVES Dialing the LEVEL control high and the LOW CUT control to lower settings will create deep, pad-like sustained low notes. TIME: 8 LOW CUT: 1 LEVEL: 9 SWITCHES: Both up TIME LOW CUT TYPE LEVEL...
-
Page 11: Important Safety Instructions
A PRODUCT OF FENDER MUSICAL INSTRUMENTS CORPORATION 31 1 CESSNA CIRCLE CORONA, CALIF. 92880 U.S.A. Fender and Bassman are registered trademarks of FMIC. ® ® Copyright © 2024 FMIC. All rights reserved. PN 7082000213 REV C IMPORTANT SAFETY INSTRUCTIONS •... - Page 12 © FENDER MUSICAL INSTRUMENTS 2024...
