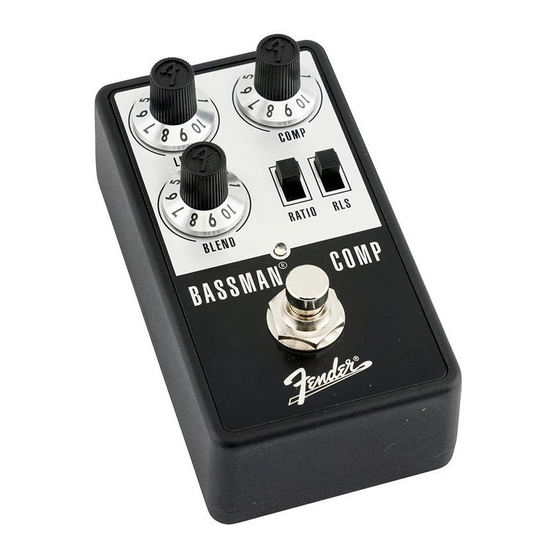

- Page 2 DC POWER CONNECTOR OUTPUT JACK INPUT JACK COMPRESSION LEVEL CONTROL CONTROL KNOB KNOB LEVEL COMP BLEND RELEASE CONTROL SWITCH KNOB RATIO BLEND SWITCH RATIO SWITCH FOOTSWITCH 9V BATTERY AND INTERNAL-CONTROL COMPARTMENT SCREW ACCESS ON REAR...
- Page 3 B A S S M A N C O M P ® Designed specifically for bass, the Bassman Comp is a studio-style compressor pedal that evens out your bass’s dynamic range, creating a more consistent output level by taming the difference between high- and low-volume signals.
- Page 4 OUTPUT JACK Low-impedance output connects to amp or next pedal in signal chain. INPUT JACK High-impedance input for bass guitar and other instruments. PAD SWITCH Switch on side of pedal is for active instruments with strong signals; UP position applies -6dB to input. DC POWER CONNECTOR Connect DC adapter here.
- Page 5 INTERNAL TRIM POTENTIOMETERS (ACCESSIBLE BY REMOVING COVER) Remove cover using a flat-head screwdriver. MANUAL RELEASE trim potentiometer determines release time when Release Switch is at UP position. Turn clockwise for longer release time; counterclockwise for shorter release time (factory position is full clockwise). ATTACK trim potentiometer determines compressor attack time.
- Page 6 GENTLE COMP For a smooth and fully compressed output signal, turn the BLEND control all the way down and set the RATIO switch to the down position. LEVEL: 6 COMP: 7 BLEND: 1 SWITCHES: Both down LEVEL COMP RATIO BLEND...
- Page 7 TAMING THE TRANSIENTS Blending the clean signal with high COMPRESSION control settings while setting the RELEASE switch to the down position keeps dynamics while compressing transients across your playing. Great for slapping and other transient-heavy playing styles. LEVEL: 5 COMP: 9 BLEND: 5 SWITCHES: Both down LEVEL...
- Page 8 LIMITING COMPRESSION A high COMPRESSION control setting combined with the RATIO and RELEASE switches in the up poistion creates a limiting effect ideal for keeping all signal at the same level. These settings work especially well when the compressor is placed after other effects. LEVEL: 8 COMP: 10 BLEND: 2...
- Page 11 A PRODUCT OF FENDER MUSICAL INSTRUMENTS CORPORATION 31 1 CESSNA CIRCLE CORONA, CALIF. 92880 U.S.A. Fender and Bassman are registered trademarks of FMIC. ® ® Copyright © 2024 FMIC. All rights reserved. PN 708200021 1 REV C IMPORTANT SAFETY INSTRUCTIONS •Read these instructions.
- Page 12 © FENDER MUSICAL INSTRUMENTS 2024...
