- Page 1 L E VE L SET B U F F E R...

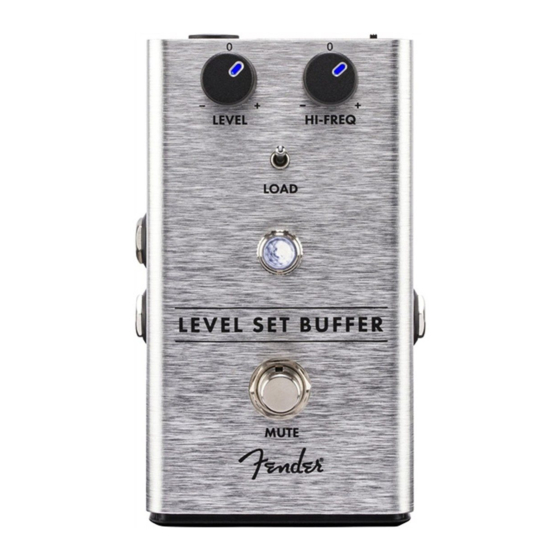

- Page 2 LEDs 9V DC INPUT LEVEL HI-FREQ LOAD LEVEL S ET B UFF ER MUTE 1. Mute Footswitch 7. Load Switch 2. Tuner Output Jack 8. Input Jack 3. Jewel Indicator 9. Low Battery Indicator 4. Main Output Jack 10. LED Kill Switch 5.
- Page 3 Third, the pedal serves as a buffer that helps maintain signal quality through multiple pedals and cables. The Level Set Buffer is designed to be placed first in the signal chain, with other pedals following. DESIGNED IN CALIFORNIA, U.S.A.
- Page 4 Level This control offers up to 12dB of volume boost or cut, with the center position being unity gain (no level change). With the player’s main instrument, begin by setting this control to the center position and then dialing in the rest of the rig. Then adjust the Level control up or down as needed depending on the output level of subsequent guitars.
- Page 5 Input Jack This is a high-impedance input suitable for electric guitar, bass, acoustic guitars with pickup systems, keyboards and other instruments. Main Output Jack This is a low-impedance output jack that connects to the amp or to the next effect pedal in the signal chain. Tuner Output Jack This jack connects to a tuner’s input jack.
- Page 6 A PRODUCT OF: FENDER MUSICAL INSTRUMENTS CORPORATION CORONA, CALIFORNIA, USA Fender® is a registered trademark of FMIC. Copyright © 2018 FMIC. All rights reserved. P/N 7713288000 - REV A Important Safety Instructions •WARNING: To prevent damage, fire or shock hazard, do not expose the unit or its AC power to rain or moisture.
- Page 7 NOTES:...
- Page 8 © FENDER MUSICAL INSTRUMENTS 2018...
