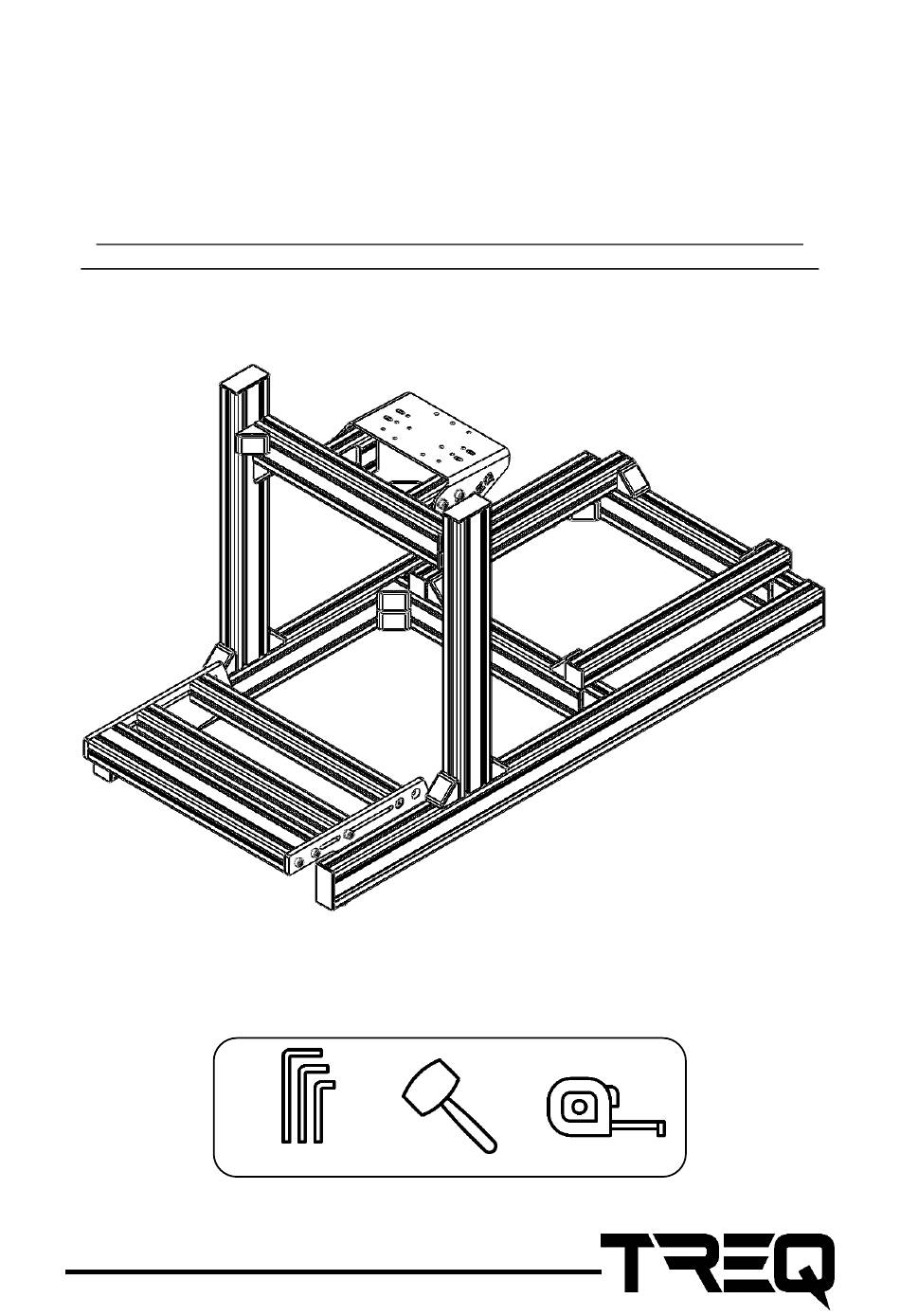

- Page 1 TREQ ONE INSTRUCTION MANUAL The setup of your rig is very dependent on body type, personal seating preferences and the equipment you own, but to give you a head start, we included a setup scheme on the last page. REQUIRED TOOLS:...
-
Page 2: General Instructions
GENERAL INSTRUCTIONS The easiest way to mount the click-in-nuts, is to slide them in from one side of the profile. But don't worry if you need to put in a click-in-nut in a profile which has both ends already closed: it... - Page 3 Profile 4040 L=478 Profile 4080 L=500 Profile 4080 L=1185 Profile 4080 L=478 Profile 4080 L=580 Profile 4080 L=90 Wheel Mount Bracket Pedal Bracket Right Corner Cover 4040 Corner 4040 Pedal Bracket Left Cover 4040 Cover 4080 M8x16 M8 Click-in-Nut www.treq-sim.com...
- Page 4 M6x16 (Socket Head) M5 T-Nut Click-in-Nut M8x20 (Sunken Head) Black M6x20 (Socket Head) Rubber Foot M8 Washer M6x25 (Socket Head) M6 Washer M6 T-Nut Click-in-Nut Profile 8040 L=1185 (2x) (16x) (4x) These come from the ‘Rubber Feet’ bag (4x) www.treq-sim.com...
- Page 5 (4x) M5x12 (4x) Profile 8040 L=500 (2x) (12x) www.treq-sim.com...
- Page 6 M8x16 (16x) Profile 4040 L=500 (2x) (4x) www.treq-sim.com...
- Page 7 Break the pins! M8x16 (8x) The width of the two 4040 profiles is depended on your seat, so you might want to wait before tightening them! Profile 8040 L=580 (2x) (8x) www.treq-sim.com...
- Page 8 M8x16 (8x) Assembly of Pedal Bracket Profile 8040 L=478 (1x) Profile 4040 L=478 (2x) M8x20 (Black) (2x) (2x) M8x20 (Black) (6x) www.treq-sim.com...
- Page 9 Assemble the Pedal Bracket on Frame M8x20 (4x) Assembly of Wheel Mount Assembly Profile 8040 L=500 (1x) (8x) www.treq-sim.com...
- Page 10 Profile 8040 L=90 (2x) (10x) 130mm 130mm M8x16 (8x) www.treq-sim.com...
- Page 11 (4x) (2x) M8x16 (Black) (6x) (6x) www.treq-sim.com...
- Page 12 Assemble the Wheel Mount Assembly on the rig. Break the pins! M8x16 (8x) Adjust Pedal Bracket and Wheel Mount Assembly to desired position (see step 21 for a setup drawing). www.treq-sim.com...
- Page 13 (20x) (4x) (6x) www.treq-sim.com...
- Page 14 To mount these type of pedals, please use the spare corner brackets. Mount 1 side to a pedaldeck-profile and the other to the pedals. For Fanatec or Heusinkveld pedals you can use click-in-nuts and mount them ‘from the top’. www.treq-sim.com...
- Page 15 When first building your rig, we recommend putting S on 35 cm. Don’t tighten the bolts of the steering rack too much, ‘cause there is a big chance you’re going to adjust it after you mount a steering wheel. www.treq-sim.com...
